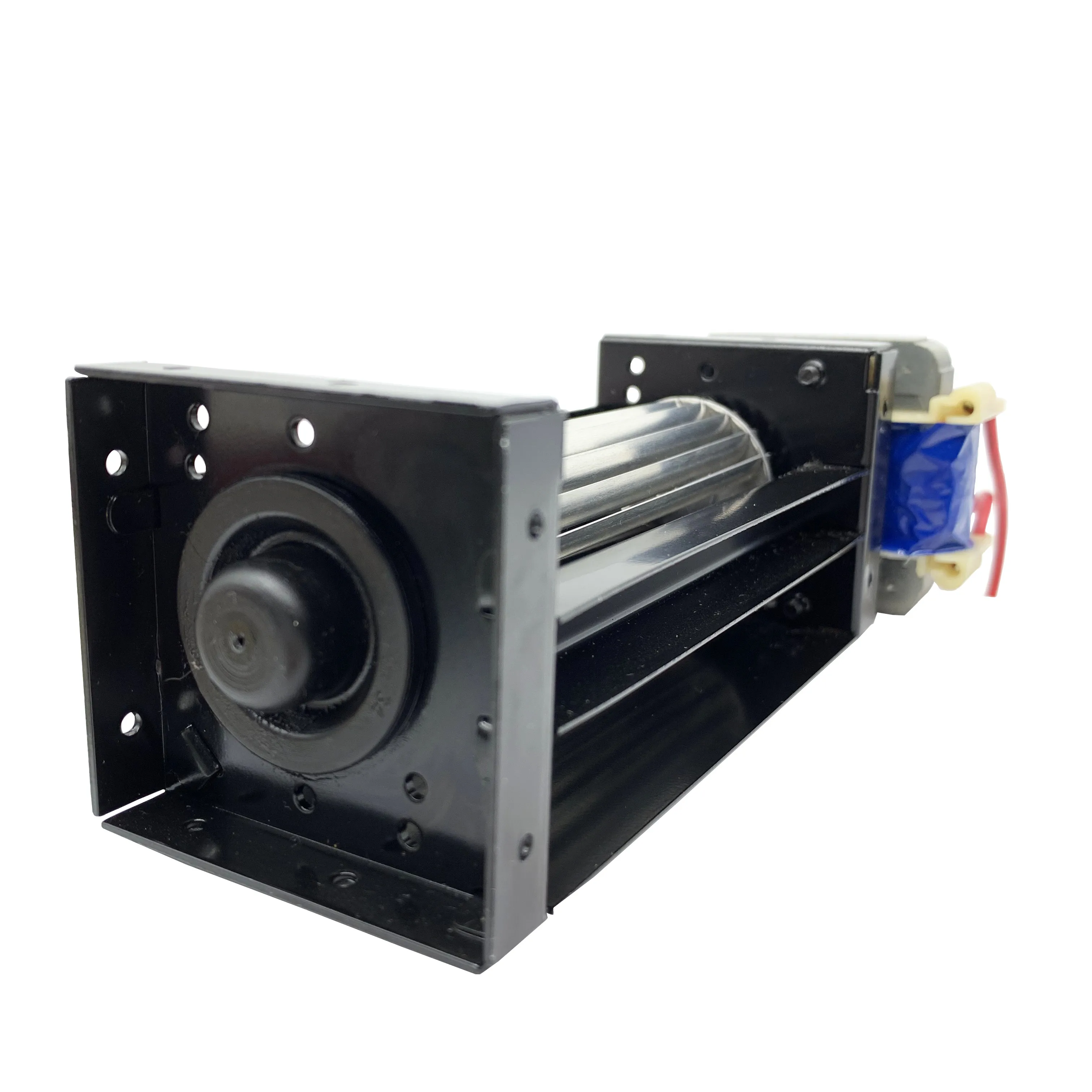

Key specification for this cross flow fan: 110V/120V, 220V/240V, material Aluminum Alloy. Everything below is reproduced from the factory data sheet. Made by GULF ELECTRICS CO., LTD. (8 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: JE-03019A12
- Voltage: 110V/120V, 220V/240V
- Blade Material: Other
- Material: Aluminum Alloy
- Warranty: 1 Year
- Certification: CE/UL/ROHS
Technical Specifications
| Voltage | 110V/120V, 220V/240V |
|---|---|
| Blade Material | Other |
| Electric Current Type | AC |
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Taiwan, China |
| Brand Name | GULF |
| Model Number | JE-03019A12 |
| Size | 280×980 (mm) |
| Housing | Black Zinc Electroplating |
| Connecting | Wire Leads |
| Weight | 290 – 670 (g) |
| Material | Aluminum Alloy |
| Certification | CE/UL/ROHS |
| Packaging Details | Cartons |
| Port Of Dispatch | Kaohsiung |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 100000 units per Month |
Product Details

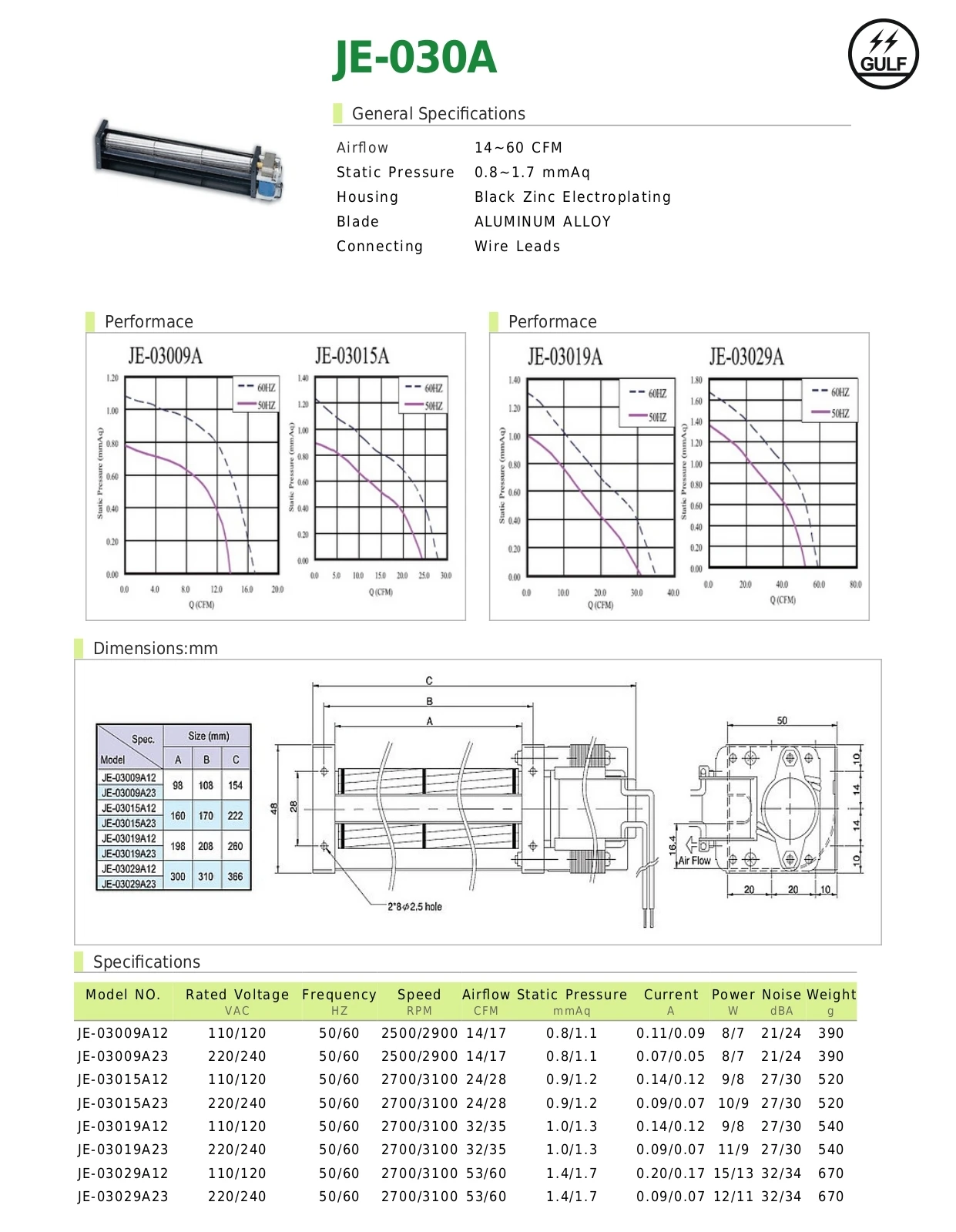

| Model NO. | Rated Voltage | Frequency | Speed | Airflow | Static Pressure | Current | Power | Noise | Weight |
|---|---|---|---|---|---|---|---|---|---|
| (VDC) | (HZ) | (RPM) | (CFM) | (mmAq) | (mA) | (W) | (dBA) | (g) | |
| JE-03009A12 | 110/120 | 50/60 | 2500/2900 | 14/17 | 0.8/1.1 | 0.11/0.09 | 8/7 | 21/24 | 390 |

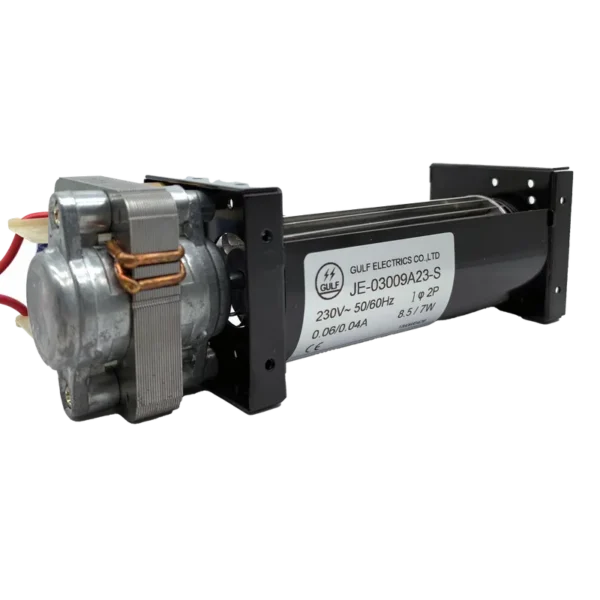

| JE-03009A23 | 220/240 | 50/60 | 2500/2900 | 14/17 | 0.8/1.1 | 0.07/0.05 | 8/7 | 21/24 | 390 |
| JE-03015A12 | 110/120 | 50/60 | 2700/3100 | 24/28 | 0.9/1.2 | 0.14/0.12 | 9/8 | 27/30 | 520 |
| JE-03015A23 | 220/240 | 50/60 | 2700/3100 | 24/28 | 0.9/1.2 | 0.09/0.07 | 10/9 | 27/30 | 520 |
| JE-03019A12 | 110/120 | 50/60 | 2700/3100 | 32/35 | 1.0/1.3 | 0.14/0.12 | 9/8 | 27/30 | 540 |
| JE-03019A23 | 220/240 | 50/60 | 2700/3100 | 32/35 | 1.0/1.3 | 0.09/0.07 | 11/9 | 27/30 | 540 |
| JE-03029A12 | 110/120 | 50/60 | 2700/3100 | 53/60 | 1.4/1.7 | 0.20/0.17 | 15/13 | 32/34 | 670 |
| JE-03029A23 | 220/240 | 50/60 | 2700/3100 | 53/60 | 1.4/1.7 | 0.09/0.07 | 12/11 | 32/34 | 670 |
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

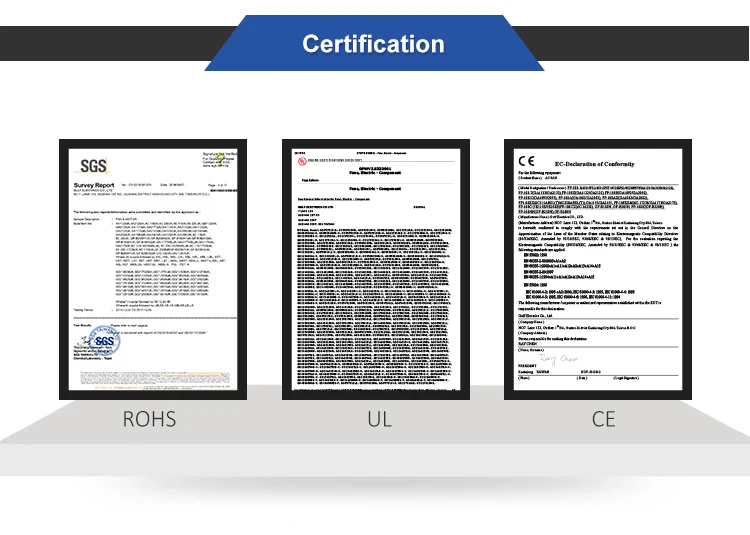

Which certifications does this cross flow fan carry?
It is supplied with CE/UL/ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 110V/120V, 220V/240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by GULF ELECTRICS CO., LTD.. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full GULF ELECTRICS CO., LTD. range on HVACR Nexus.
