Cross flow fan — 110v/220v/380v, 370W. The complete factory specification follows. Made by Dongguan Linyue Electric Technology Co., Ltd. (11 years on the platform, typical reply ≤10h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: TSL50
- Power: 370W
- Voltage: 110v/220v/380v
- Blade Material: galvanized sheet
- Blade Material:: Cast Iron
- Speed: 2300~2800RPM
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 110v/220v/380v |
| Speed | 2300~2800RPM |
| Blade Material | galvanized sheet |
| Electric Current Type | AC |
| After-Sales Service Provided | No overseas service provided |
| Place Of Origin | Guangdong, China |
| Power | 370W |
| Air Volume | 55~226m³/H |
| Brand Name | TSL |
| Model Number | TSL50 |
| Certification | CE |
| After-Sales Service Provided: | No overseas service provided |
| Pressure | 58~84mmAq |
| Phase | single |
| Frequency | 50/60Hz |
| Weight: | 2kg |
| Cast Iron Mounting: | Free Standing |
| Type: | Centrifugal Fan |
| Blade Material: | Cast Iron |
| Electric Current Type: | AC |
| Packaging Details | carton |
| Port Of Dispatch | sekou |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 100000 pieces per Month |
Product Details
 |

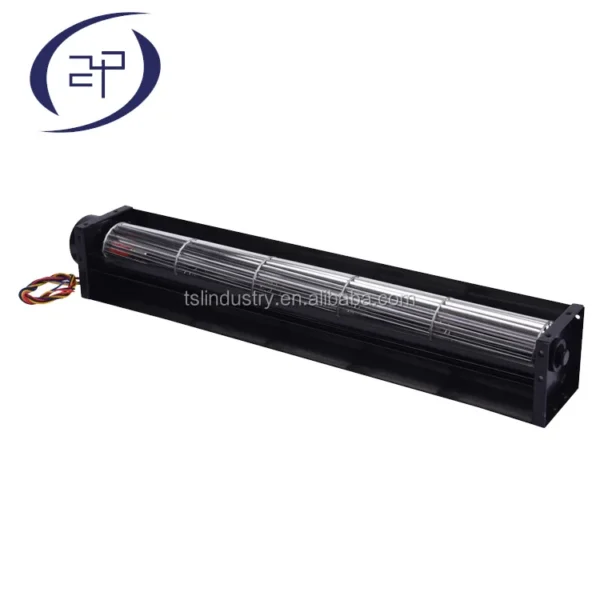

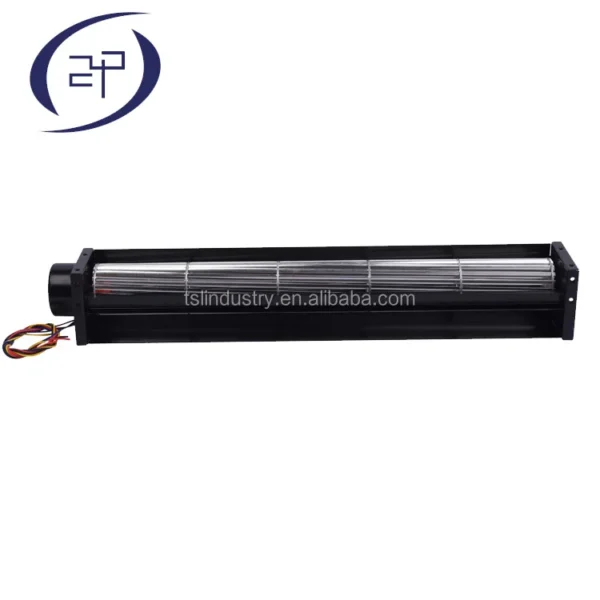

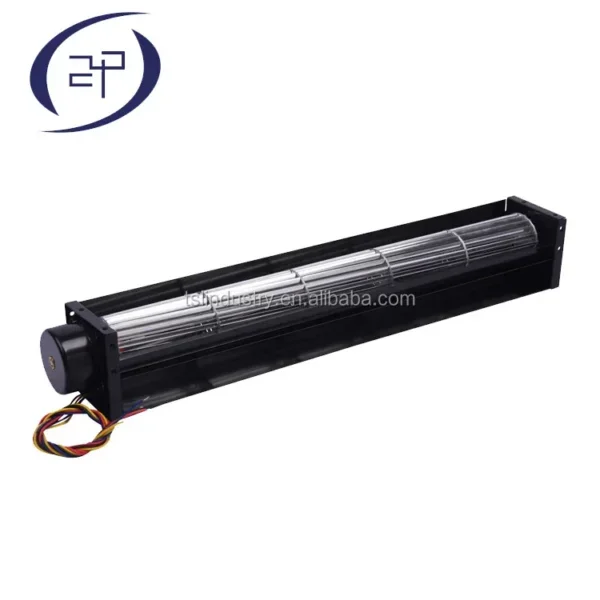

Cross flow fan
· Impeller Material:Aluminum Alloy. · Bearing:Ball Bearing/Sleeve Bearing. · Safety Approval:UL,CE,CCC,TUV. · Operating Temperature:-25℃~+60℃.
If any items you are interested,Warmly welcome you feel free to contact us. |
| Model | Size(mm) | Rated Voltage | Rated Current | Input Power | Speed | Static Pressure | Air Flow | Noise | Weight | ||
| Part Number | A | B | C | VDC | A | W | RPM | mmH2O | M3/H | dBA | g |
| GLF5098D12H3B-RF | 98 | 108 | 155 | 12 | 0.31 | 3.7 | 2800 | 3.2 | 55 | 35 | 335 |
| GLF5098D24H3B-RF | 24 | 0.19 | 4.6 | 2800 | 3.2 | 55 | 35 | ||||
| GLF50198D12H3B-RF | 198 | 208 | 255 | 12 | 0.48 | 5.8 | 2000 | 2.5 | 110 | 33 | 460 |
| GLF50198D24H3B-RF | 24 | 0.25 | 6.0 | 2000 | 2.5 | 110 | 33 | ||||
| GLF50298D12H3B-RF | 298 | 308 | 360 | 12 | 0.68 | 7.9 | 2400 | 4.1 | 215 | 42 | 720 |
| GLF50298D24H3B-RF | 24 | 0.41 | 9.8 | 2400 | 4.1 | 215 | 42 | ||||
| GLF30358D12H3B-RF | 358 | 368 | 420 | 12 | 0.76 | 9.1 | 2300 | 3.5 | 226 | 41 | 780 |
| GLF30358D24H3B-RF | 24 | 0.46 | 11.0 | 2300 | 3.5 | 226 | 41 | ||||
,
 |
 |
| Trade Term: Payment: 30% deposit By T/T, Western Union, Paypal, 70% before delivery. Production Lead time: 7~25days; If we have this item of your q’ty in stock, 2days delivery. Shipping methods: You can choose EMS/DHL/UPS/FedEx/TNT/standard airfreight or ocean freight via international forwarder according to gross weight & Volume. In order not to increase the risk of losing goods and shipping time, we don’t suggest although it would be much cheaper than other shipping ways. FOB Shipping port: Guangzhou or Shenzhen, mainland China, Hong Kong Port If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry. |
|
Q: What voltages you can do , if you can make special voltages ?
A: Normal standard is 380V for 3phase, 220V for singple(OR 24V/12V).The voltage and herz can be customized as your requirement.For example,400V,240V,50.60Hz.(OR 24V/12V)
Q: Hong long is the warranty?
A: One year.
Q: What is the MOQ , can I order a sample for test?
A: MOQ is 10sets, it’s for convenience to arrange products. If you need sample for test ,then order large quantity, 1 set for sample is ok,too.
Q: Are you real manufacturer or ..?
A: Yes, we are 100% original manufactuer of blower fan. Our factory located at DongGuan city , GuangDong province . Welcome to visit us .As a manufacturer, we have strict control of the material purchase and productions quality. Make sure the goods delivery to you are unwounded and perfect.
Q: How can I pay?
A: We accept TT(Telegraphic transfer) and Western Union
Q: want to use our own brand , is it ok?
A: Of course it’s OK , we can make OEM products and also can provide our own brand products , it’s all by your request .
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10+ piece: US $31.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this cross flow fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 110v/220v/380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Linyue Electric Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company. Browse the full Dongguan Linyue Electric Technology Co., Ltd. range on HVACR Nexus.
