This cross flow fan is published with the manufacturer’s full specification — 12V/24V, 2.4W~9.6W. Made by Shenzhen Haixinghe Electroincs Co., Ltd. (17 years on the platform, typical reply ≤9h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: 40F
- Power: 2.4W~9.6W
- Voltage: 12V/24V
- Blade Material: aluminium
- Noise Level(DBA): 35.4~43.4
- Speed: 2200RPM~3000RPM
Technical Specifications
| Voltage | 12V/24V |
|---|---|
| Electric Current Type | DC |
| Speed | 2200RPM~3000RPM |
| Mounting | Free Standing |
| Blade Material | aluminium |
| Place Of Origin | Guangdong, China |
| Power | 2.4W~9.6W |
| Air Volume | 25CFM~105CFM |
| Brand Name | HXH |
| Model Number | 40F |
| Bearing Type | Ball bearing |
| Fan Dimension(Mm) | Customize |
| Static Pressure(MmH2O) | 1.9~3.12 |
| Noise Level(DBA) | 35.4~43.4 |
| Application | HVAC,Ventilation,industrial machinery etc. |
| Packaging Details | 18pcs/carton, no wooden package |
| Port Of Dispatch | HongKong |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 20000 pieces per Day |
Product Details

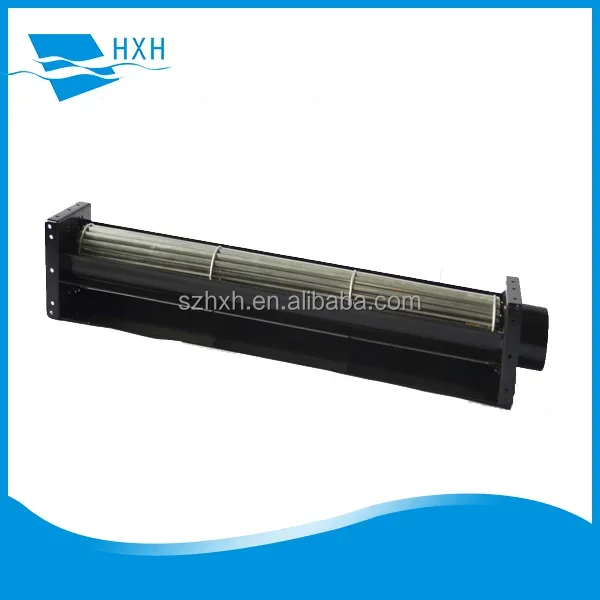

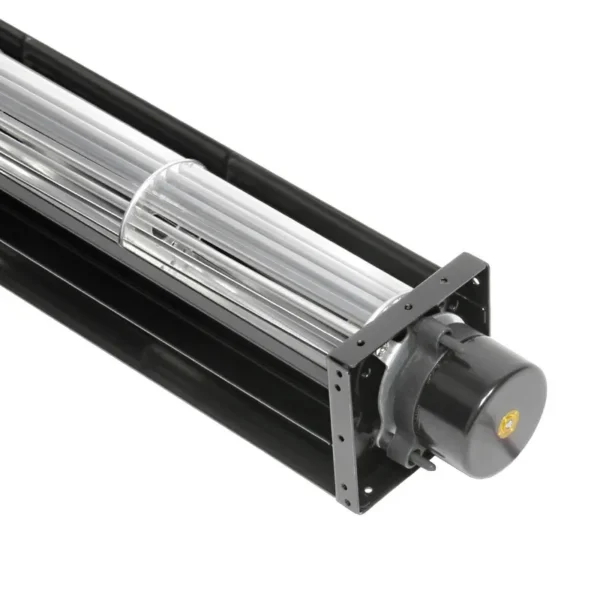

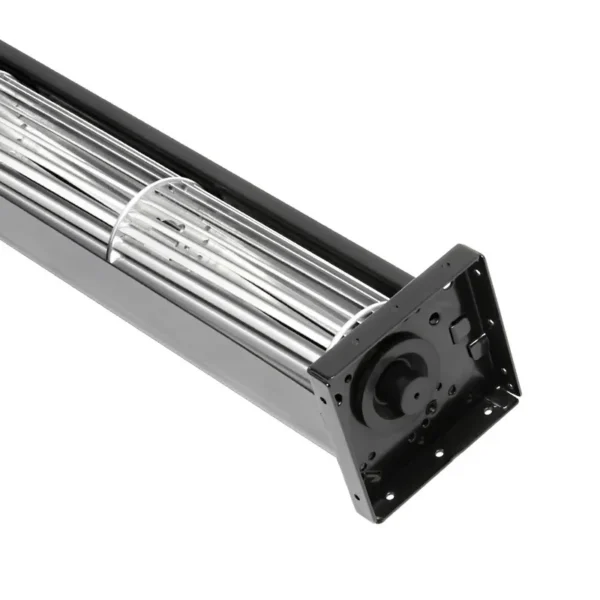

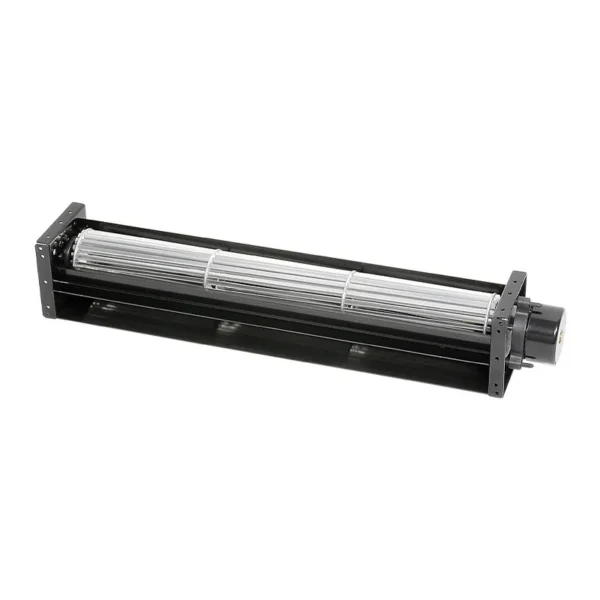

12v 24v dc cross flow fan tangential fan
- 1. bearing system type: Ball bearing
- 2. rated voltage: 12V,24V
- 3. rated speed: 2200~3000RPM
- 4. maxima air flow: 25~105CFM
- 5. maxima pressure : 1.9~3.12mmH2O
- 6. maxima noise(dBA): 35.4~44.2dBA
- 7. function: by impedance,by IC, by IC with FG
- 8. safety approvals: CE,ROHS
40F SERIES DC FAN with different specifications for your choice:
| HC-040 SERIES | |||||||||||||
| Model | Bearing | Size(mm) | Rated Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | ||||
| Part NO. | System | A | B | C | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HCB4012H090 | Ball | 98 | 108 | 134 | 12 | 0.20 | 2.40 | 3000 | 0.71 | 25 | 3.12 | 0.12 | 35.4 |
| HCB4024H090 | 24 | 0.15 | 3.60 | ||||||||||
| HCB4012H150 | 160 | 170 | 196 | 12 | 0.25 | 3.00 | 2600 | 1.05 | 37 | 2.74 | 0.11 | 35.4 | |
| HCB4024H150 | 24 | 0.20 | 4.80 | ||||||||||
| HCB4012H190 | 198 | 208 | 234 | 12 | 0.30 | 3.60 | 2500 | 1.44 | 51 | 2.65 | 0.10 | 36.2 | |
| HCB4024H190 | 24 | 0.15 | 3.60 | ||||||||||
| HCB4012H240 | 250 | 260 | 286 | 12 | 0.35 | 4.20 | 2500 | 2.09 | 74 | 2.63 | 0.10 | 40.3 | |
| HCB4024H240 | 24 | 0.25 | 6.00 | ||||||||||
| HCB4012H290 | 300 | 310 | 356 | 12 | 0.55 | 6.60 | 2700 | 2.72 | 96 | 2.44 | 0.10 | 43.4 | |
| HCB4024H290 | 24 | 0.35 | 8.40 | ||||||||||
| HCB4012H350 | 360 | 370 | 416 | 12 | 0.60 | 7.20 | 2600 | 2.97 | 105 | 2.33 | 0.09 | 44.2 | |
| HCB4024H350 | 24 | 0.40 | 9.60 | ||||||||||
| HCB4012H420 | 420 | 430 | 460 | 12 | 0.45 | 5.40 | 2200 | 2.52 | 89 | 1.9 | 0.07 | 40.1 | |
| HCB4024H420 | 24 | 0.23 | 5.52 | ||||||||||
2012,7:Factory expansion again, Set up the radiator module division, passed UL certification.
2011.5:Factory expanded, moved to Dongguan and found Dongguan Hesen Industrial Co.,Ltd.
2007.4:Factory passed ISO9001 quality system certificate. CE certificate passed, manufacture all series of AC and DC FAN.
2004.5:Build Shenzhen Haixinghe Electronic Co., Ltd, creat our own brand "HXH".
2001.8:processing plant was given priority to with OEM, manufacture part of the model fan for part of the customers.
Fan adopts the most advanced design, with large air volume, low noise, long life, corrosion resistance, etc.
1.We have a strong engineering design capabilities, we have cooperation with domestic and foreign many well-known fan factory partnership, has a strong technical support, we can design according to customer requirements and manufacture specialized products.
2.We understand the specific needs of various industries for fan, offers a variety of standard products for your choice.
3.Our fan is made of high quality bearing, silicon steel sheet, enameled wire, has higher reliability.
4.We provide considerate and meticulous service, and fast on time delivery.
Our goal: be the best cooling fan manufacturer, even in the world!!
1. cooler master case fan 5v-800pcs/carton, no wooden package.
2. 12-15 days after confirm your order and receive your payment.
3. We ship goods to worldwide! Product will be ship by EMS, FedEx, DHL, or UPS.
4. Please check with your local agency as you might be required to pay custom duty/tax on import of this goods, all custom duty/tax pay by buyer. We HXH do not responsible for any custom duty or import tax.
5. All items will be packed safely by our professional logistic department, please check the product before Signoff, if your item is damaged or lost by Express, please Reject. Meanwhile, please contact us immediately so we can assist with correcting the problem A.S.A.P, And we will report to the Express and ask for refund.
If you want to learn more and get latest price pls add my trademanager or send inquiry to me i will be happy to service with you !
Ordering and Pricing
- Minimum order quantity: 200 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 12V/24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
