Cross Flow Fan, 220*72*60mm, 40mm, 115 VAC, 36.49 CFM, 50 Hz

The cross flow fan listed here carries voltage 115 VAC, 36.49 CFM / 62 m3/H, documented exactly as the manufacturer publishes it. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cross Flow Fan

• Model Number: PC40B1A160B
• Voltage: 115 VAC
• Air Flow: 36.49 CFM / 62 m3/H
• Blade Material: Aluminium alloy
• Warranty: 5 year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

PRODUCT SPECIFICATIONS

1.General Characters

Rated Voltage	115 VAC	Life Expectance	30,000 Hours
Frequency	50 Hz	Direction of Rotation	Clockwise seen on rotor
Rated Speed	3000 RPM	Dimension	See dimension drawing
Input Current	0.24 A	Material of Impeller	Aluminum alloy
Input Power	16.8 W	Air Flow	36.49 CFM / 62 m³/H
Acoustical Noise	36 dB(A)	Static Pressure	2.45 mmH₂O / 24 Pa

2. Environmental Characters

Operating Temperature

-20℃ to 70℃

Storage Temperature

-40℃ to 80℃

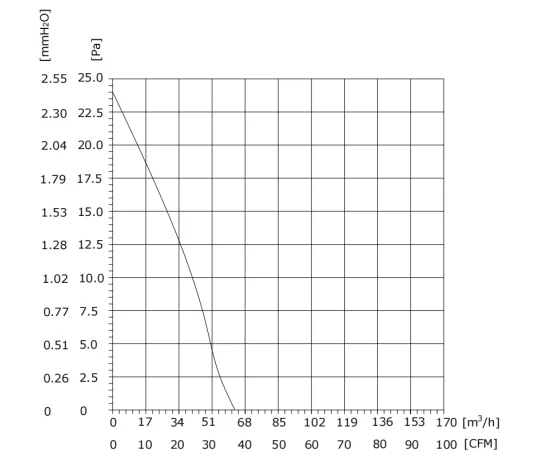

3. Performance Curve

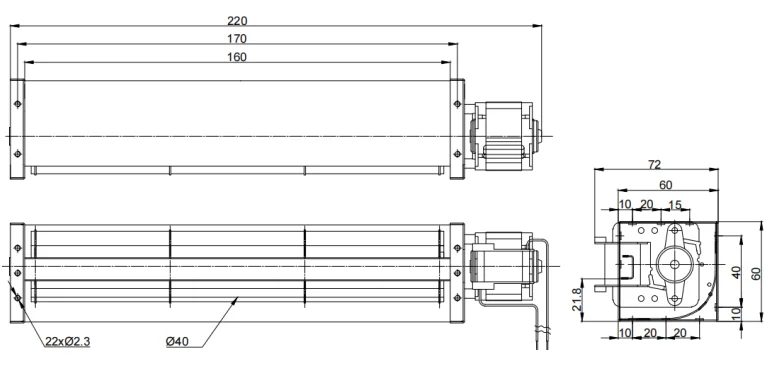

4. Outline Drawing

Certifications

Application Scopes

Recommend Products

Model Part No.	Rated  Voltage VAC	Air  Flow m³/H	Air  Pressure Pa	Rated  Speed RPM	Sound  Level dB(A)	Total  Length mm
PC40B1A98B	115	40	25	3200	35	158
PC40B2A98B	230	36	20	2700	35	158
PC40B1A160B	115	62	24	3000	36	220
PC40B2A160B	230	57	19	2500	36	220
PC40B1A198B	115	77	24	2900	38	258
PC40B2A198B	230	68	19	2400	36	258
PC40B1A250B	115	98	24	3000	38	315
PC40B2A250B	230	90	19	2500	37	315
PC40B1A300B	115	113	23	2800	39	365
PC40B2A300B	230	106	19	2400	38	365
PC40B1A348B	115	152	24	2900	39	418
PC40B2A348B	230	132	19	2500	37	418
PC40B1A420B	115	170	22	2700	38	490
PC40B2A420B	230	163	19	2500	37	490

PBM AC Tangential Blowers with Different Impeller Sizes

PBM Cross Flow Fan 30mm Blades

Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.

PBM Cross Flow Fan 40mm Blades

Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.

PBM Cross Flow Fan 45mm Blades

Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.

PBM Cross Flow Fan 48mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 50mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 60mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 65mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

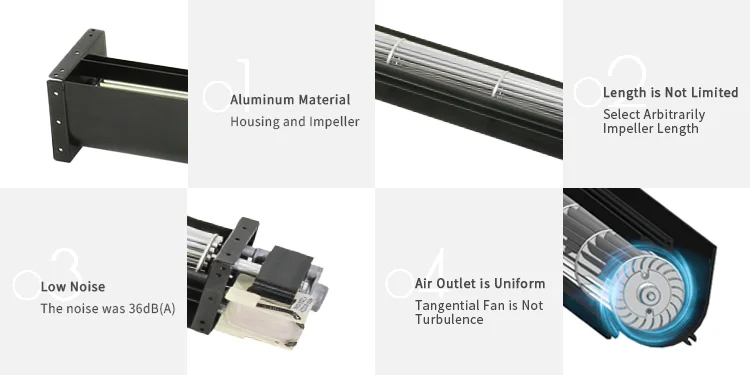

Product Overview

Exhibition Show

Packing Detail

FAQ

Q: What are the typical applications for these cross-flow blowers?

A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors, air curtains, air conditioners, and heaters.

Q:How about the delivery time ?
A:Within 25 days after we receive the order.

Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.

Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.

Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.

Ordering and Pricing

• Minimum order quantity: 100 piece
• Volume pricing:
  • 100–499 piece: US $9.35 / piece
  • 500–999 piece: US $8.83 / piece
  • 1000+ piece: US $8.59 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fan?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the cross flow fan be supplied for my local voltage?

The standard configuration is 115 VAC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
