This cross flow fan is published with the manufacturer’s full specification — 12V / 24V, material Aluminum Alloy. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cross Flow Fan
- Model Number: DFM5035
- Rated Power: 10W
- Voltage: 12V / 24V
- Material: Aluminum Alloy
- Speed(RPM): 1600
- Warranty: 3 months ~ 1 year
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | 10W |
| Speed(RPM) | 1600 |
| IP Rating | IP54 |
| Efficiency | IE3 |
| Type | Cross Flow Fan DC Motor |
| Construction | Permanent Magnet |
| Frame | 50mm |
| Motor Mounting Type | Panel Mount |
| Protect Feature | Waterproof |
| Usage | Electric Bicycle |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 0.05 |
| Model Number | DFM5035 |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Certification | Ce;RoHS |
| Size | 50x35mm |
| Product Name | High performance 24V Cross Flow Fan |
| Voltage | 12V / 24V |
| Application | geothermal/ air conditioning |
| Material | Aluminum Alloy |
| Motor Type | BLDC Brushless Motor |
| Keywords | aluminum Durable Motor with Fast heat dissipation |
| Selling Units | Single item |
| Single Package Size | 10X10X7 cm |
| Single Gross Weight | 0.5 kg |
Product Details

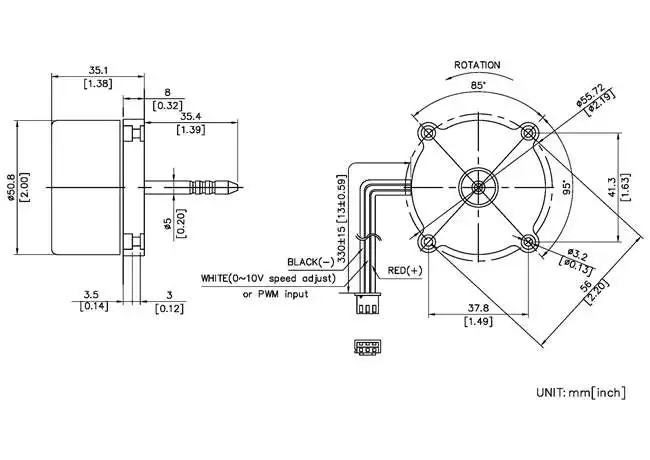

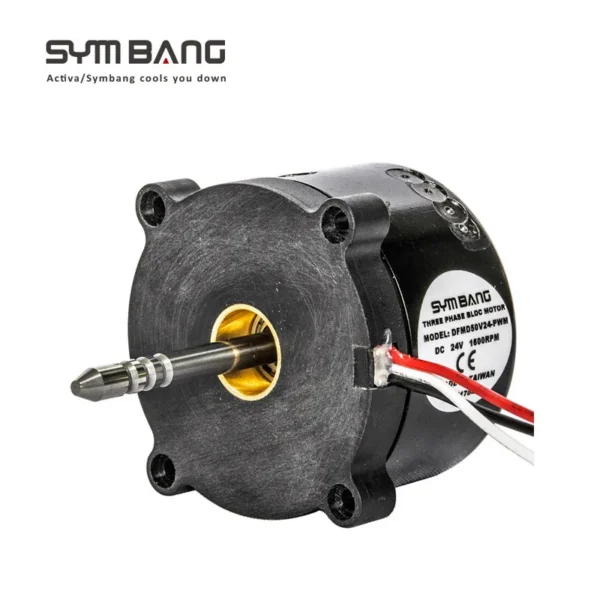

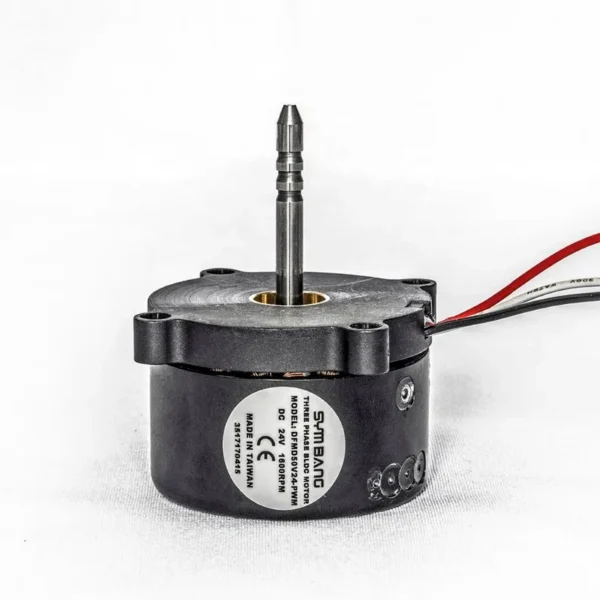

Taiwan factory RoHS Certified 24V DC Brushless Motor 1800RPM 56mm BLDC Motor IP54 CE for Cross Flow Fan
| MOTOR TYPE BEARING OPERATING TEMPERATURE CONTROL VIBRATION INTENSITY DIELECTRIC STRENGTH INSULATION RESISTANCE TERMINATION IMPELLER DIAMETER OF THE STEEL SHAFT | 3 PHASE BLDC MOTOR Ball Bearing -20°C to + 70°C IC Control 5~11.8 m/s2 Max. 5mA Max. at 500 VAC for 1 second 10M &omg; min. @500 VDC Lead Wire Yes Fit for diameter 48mm or 65mm impeller 5mm |
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Duct fan |
|
Our factory :
Our Certificate :
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–10 piece: US $28.31 / piece
- 11–99 piece: US $25.95 / piece
- 100–999 piece: US $22.02 / piece
- 1000+ piece: US $19.66 / piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cross flow fan carry?
It is supplied with Ce;RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 12V / 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ACTIVA INC.. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ACTIVA INC. range on HVACR Nexus.
