Centrifugal blower — 48 V, material Plastic. The complete factory specification follows. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Blower
- Model Number: DCF13391V24HB-B
- Voltage: 48 V
- Material: Plastic
- Blade Material: Plastic
- Speed: 4000 RPM
- Warranty: 1 Year
Technical Specifications
| Mounting | Industrial Equipment |
|---|---|
| Voltage | 48 V |
| Speed | 4000 RPM |
| Material | Plastic |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Model Number | DCF13391V24HB-B |
| Type | Centrifugal Fan |
| Applicable Industries | Manufacturing Plant/Machinery Repair Shops |
| Certification | ce |
| Size | 133x91mm |
| WEIGHT | 2.3 kgs |
| IP LEVEL | IP44 (Special IP Rating On Request) |
| ROHS COMPLIANCE | Yes |
| IMPELLER | Plastic Impeller, Metal Plate |
| Selling Units | Single item |
| Single Package Size | 16X16X12 cm |
| Single Gross Weight | 1.0 kg |
Product Details

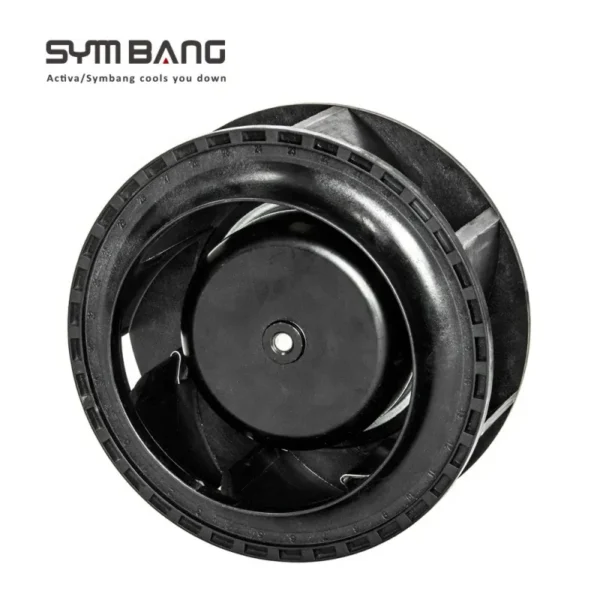

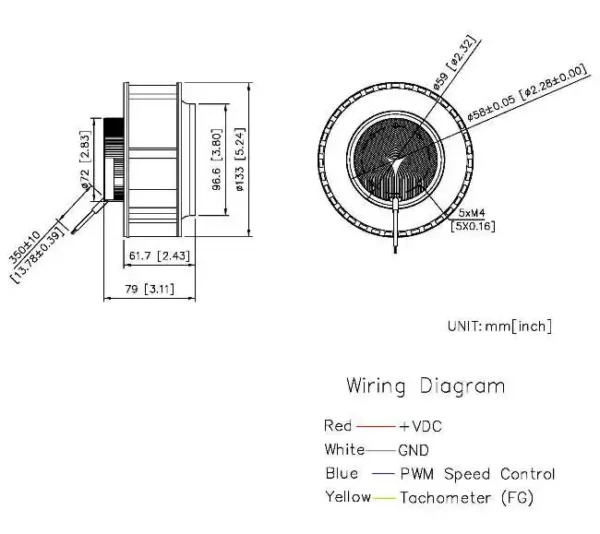

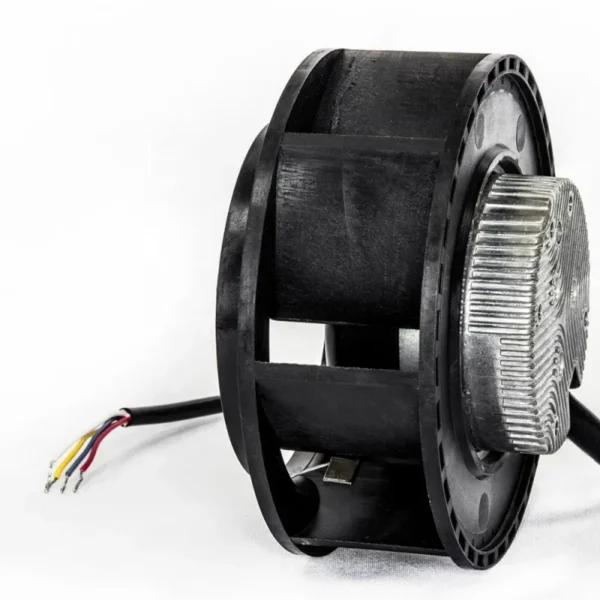

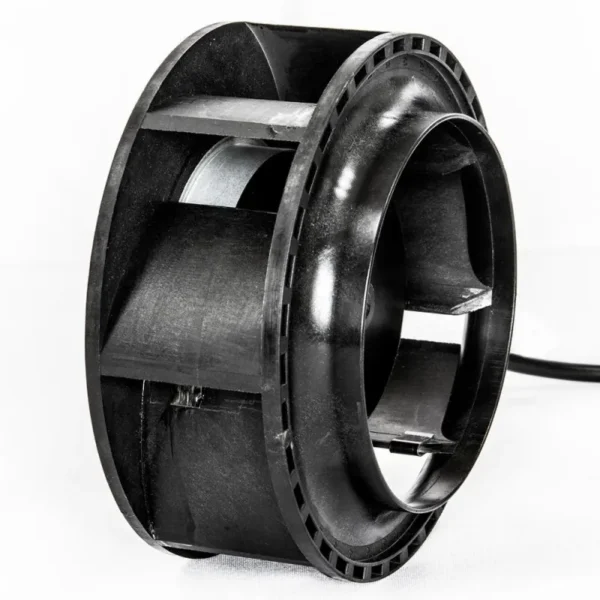

48V DC Mini Backward Curved Centrifugal Fan (DCF13391V48HB-B)

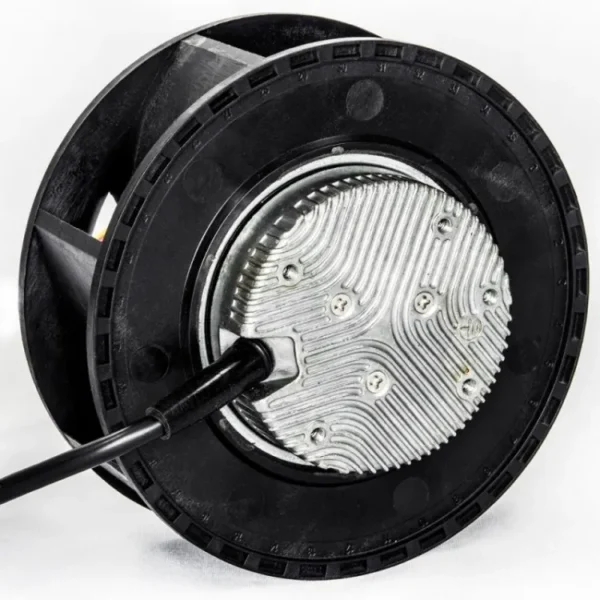

| MOTOR | Outer rotor motor Ø72mm |
| IMPELLER | Plastic Impeller, Metal Plate |
| BEARING | Ball |
| INSULATION | Class A |
| OPERATING TEMPERATURE | -25°C to + 65°C |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 minute |
| WEIGHT | 740 g |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP42 (Special IP Rating On Request) |

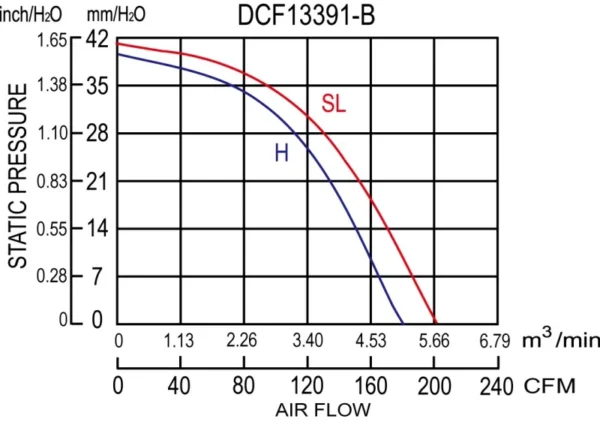

| Model No. | RATED VOLTAGE (V) | RATED CURRENT (A) | INPUT POWER(W) | SPEED(RPM) | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A)@1M | ||
| inchH2O | mmH2O | CFM | m3/min | ||||||
| DCF13391V24HB-B | 24 | 2.0 | 48 | 4500 | 1.77 | 45 | 202 | 5.72 | 63 |
| DCF13391V24HB-B | 24 | 1.4 | 34 | 4000 | 1.57 | 40 | 182 | 5.15 | 60 |
| DCF13391V48SLB-B | 48 | 1.0 | 48 | 4500 | 1.77 | 45 | 202 | 5.72 | 63 |
| DCF13391V48HB-B | 48 | 0.7 | 34 | 4000 | 1.57 | 40 | 182 | 5.15 | 60 |
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Misting Fan |
|
Our factory:
Our certificate:
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $41.25 / piece
- 11–50 piece: US $35.75 / piece
- 51+ piece: US $34.38 / piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal blower carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 48 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ACTIVA INC.. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ACTIVA INC. range on HVACR Nexus.
