Cross flow fan — voltage Dc 24V, blade material housing: steel , blade : aluminum. The complete factory specification follows. Made by Dongguan Kuhong Electronics Co., Ltd. (8 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: CM30350HB24-PB
- Voltage: Dc 24V
- Blade Material: housing: steel , blade : aluminum
- Material: Steel , aluminum
- Speed: 2400RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | Dc 24V |
|---|---|
| Speed | 2400RPM |
| Blade Material | housing: steel , blade : aluminum |
| Material | Steel , aluminum |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | COOLCOM FAN |
| Model Number | CM30350HB24-PB |
| Selling Units | Single item |
| Single Package Size | 60X20X10 cm |
| Single Gross Weight | 0.5 kg |
Product Details
Model: CM30350HB24-PB

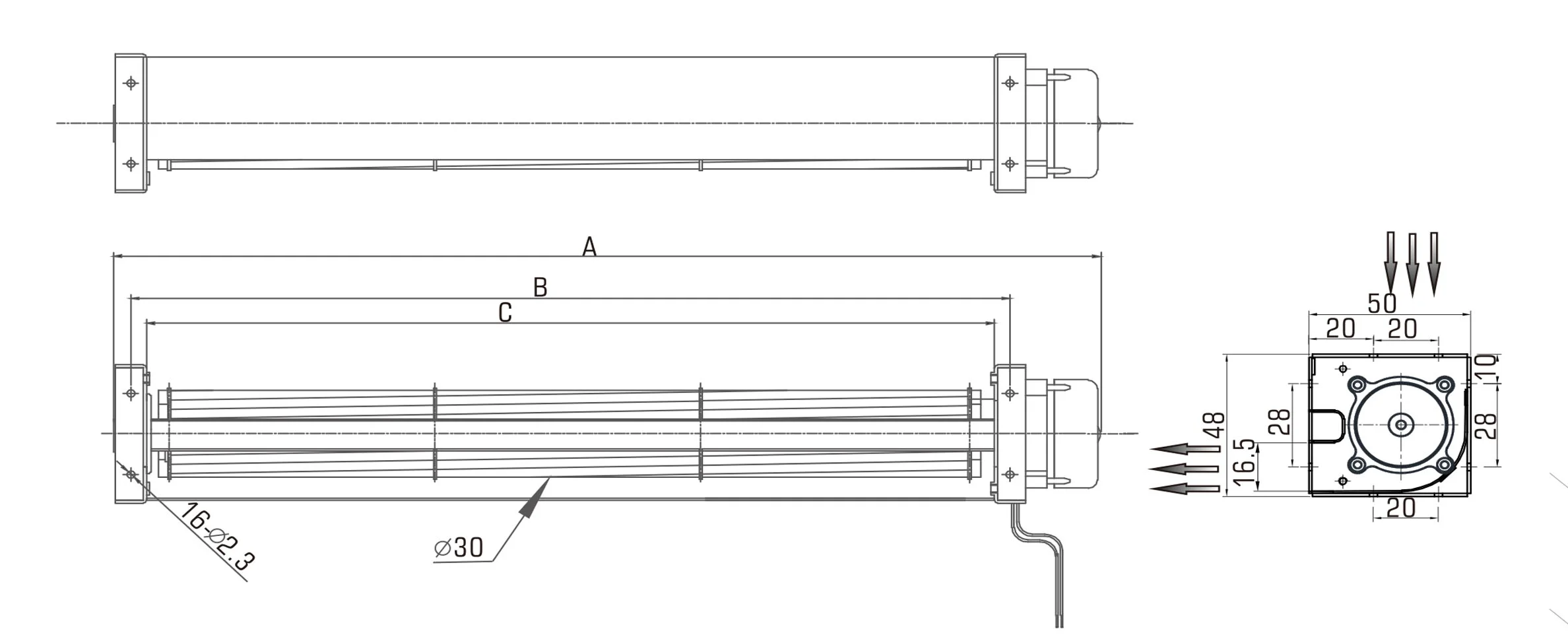

Size(mm): A=406 B=362 C=352

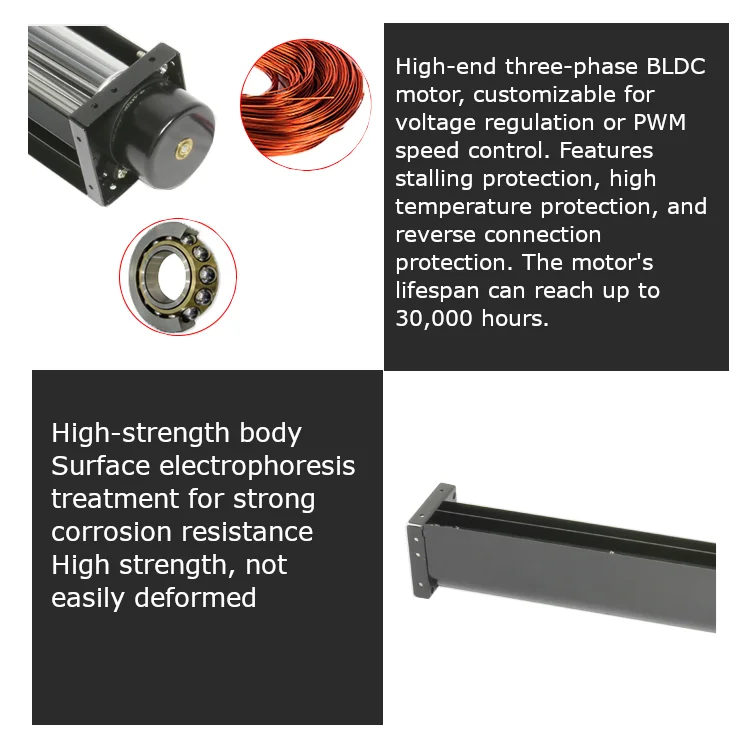

- Motor type : 37.2mm Three-phase BLDC
- Optional voltage : 24v
- Speed Control : 0-10V / PWM control
- Speed : 2400rpm,Customizable according to customer requirements
- Impeller Diameter: 30mm
- Bearing: Precision ball bearings
- Certifications: UL, CE, CCC
- Lifespan at Normal Temperature: Ball bearings – 30,000 hours
- Insulation Class: Class B
- Operating Environment: -20°C to +70°C
| Model | Size (mm) | Rated Voltage (V) | Current (A) | Speed (rpm) | Air Flow(pa) | Pressure (m3/h) | Noise (db) |
|---|---|---|---|---|---|---|---|
| CM30090HB12-PB | A=152 B=108 C=98 | 12 | 0.1 | 3000 | 17 | 35 | 29 |
| CM30090HB24-PB | A=152 B=108 C=98 | 24 | 0.05 | 3000 | 17 | 35 | 29 |
| CM30160HB12-PB | A=214 B=170 C=160 | 12 | 0.12 | 2800 | 15 | 42 | 30 |
| CM30150HB24-PB | A=214 B=170 C=160 | 24 | 0.14 | 2800 | 15 | 42 | 30 |
| CM30190HB12-PB | A=252 B=208 C=198 | 12 | 0.14 | 2700 | 14 | 52 | 31 |
| CM30190HB24-PB | A=252 B=208 C=198 | 24 | 0.08 | 2700 | 14 | 52 | 31 |
| CM30250HB12-PB | A=302 B=258 C=248 | 12 | 0.16 | 2600 | 14 | 65 | 32 |
| CM30250HB24-PB | A=302 B=258 C=248 | 24 | 0.09 | 2600 | 14 | 65 | 32 |
| CM30290HB12-PB | A=354 B=310 C=300 | 12 | 0.18 | 2500 | 13 | 72 | 33 |
| CM30290HB24-PB | A=354 B=310 C=300 | 24 | 0.09 | 2500 | 13 | 72 | 33 |
| CM30350HB12-PB | A=406 B=362 C=352 | 12 | 0.20 | 2400 | 12 | 84 | 35 |
| CM30350HB24-PB | A=406 B=362 C=352 | 24 | 0.10 | 2400 | 12 | 84 | 35 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $25.5 / piece
- 100–2999 piece: US $15.5 / piece
- 3000–4999 piece: US $13.5 / piece
- 5000+ piece: US $12.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
