The cross flow fan listed here carries voltage 12/24 V, blade material aluminum, documented exactly as the manufacturer publishes it. Made by ACTIVA INC. (15 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: DF30
- Voltage: 12/24 V
- Blade Material: aluminum
- Speed: 3200RPM
- Warranty: 1 Year
- Certification: ce
Technical Specifications
| Voltage | 12/24 V |
|---|---|
| Speed | 3200RPM |
| Mounting | Industrial Equipment |
| Blade Material | aluminum |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Model Number | DF30 |
| Size | 30mm |
| Certification | ce |
| Type | CROSS FLOW FAN |
| Applicable Industries | Manufacturing Plant/Machinery Repair Shops |
| Core Components | motor/Bearing |
| Selling Units | Single item |
Product Details
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade |
|
|

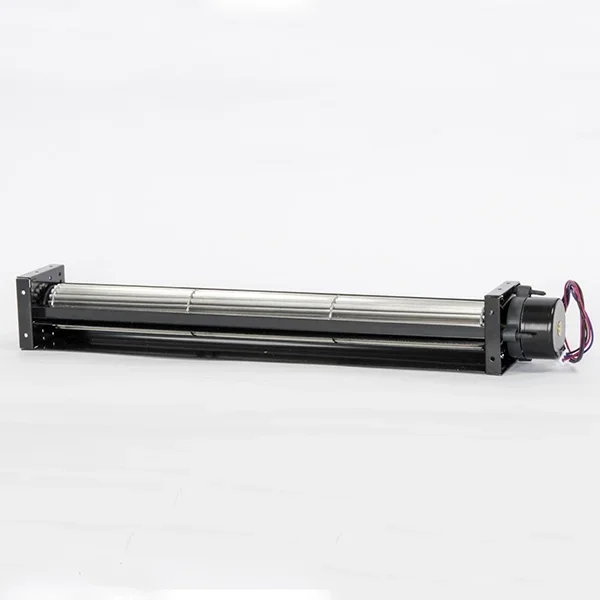

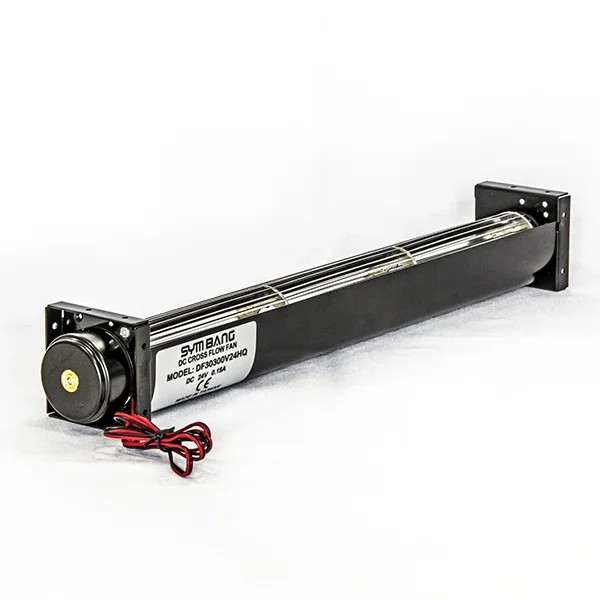

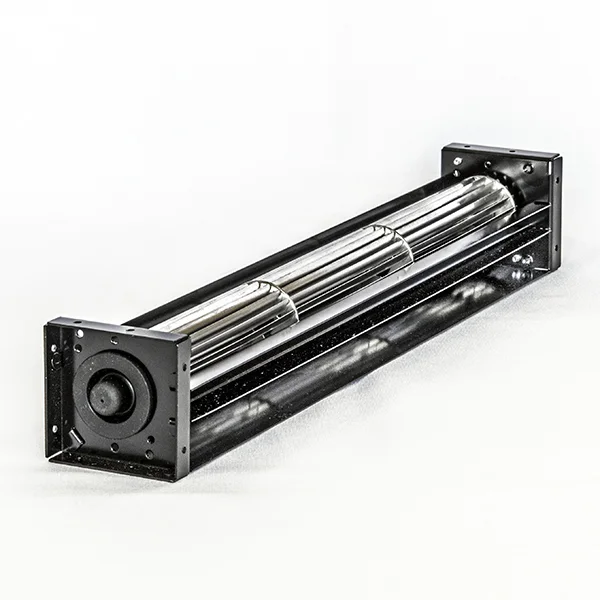

30mm 12V 24V tangential fan (df30)
| HOUSING | Metal/Aluminum |
| IMPELLER | Aluminum, Ø30 |
| BEARING | Ball |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| INSULATION RESISTANCE | 10M Ohms Min. @500 VDC |
| SAFETY | Impedance Protected |
| ROHS COMPLIANCE | Yes |
| MOTOR TYPE | DC Brushless Motor |
| Model No. | RATED VOLTAGE (V) | RATED CURRENT (A) | INPUT POWER (W) | SPEED(RPM) | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A)@1M | ||
| inchH2O | mmH2O | CFM | m3/min | ||||||
| DF30098V12H | 12 | 0.16 | 1.92 | 3500 | 0.07 | 1.7 | 18 | 0.5 | 38 |
| DF30098V24H | 24 | 0.15 | 3.6 | 3500 | 0.07 | 1.7 | 18 | 0.5 | 38 |
| DF30160V12H | 12 | 0.2 | 2.4 | 3100 | 0.07 | 1.7 | 28 | 0.8 | 37 |
| DF30160V24H | 24 | 0.17 | 4.08 | 3100 | 0.07 | 1.7 | 28 | 0.8 | 37 |
| DF30198V12H | 12 | 0.23 | 2.76 | 2900 | 0.06 | 1.6 | 32 | 0.9 | 36 |
| DF30198V24H | 24 | 0.18 | 4.32 | 2900 | 0.06 | 1.6 | 32 | 0.9 | 36 |
| DF30300V12H | 12 | 0.27 | 3.24 | 2600 | 0.05 | 1.4 | 46 | 1.3 | 35 |
| DF30300V24H | 24 | 0.2 | 4.8 | 2600 | 0.05 | 1.4 | 46 | 1.3 | 35 |
Our factory :
Our certificate:
Ordering and Pricing
- Minimum order quantity: 100 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cross flow fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 12/24 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ACTIVA INC.. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ACTIVA INC. range on HVACR Nexus.
