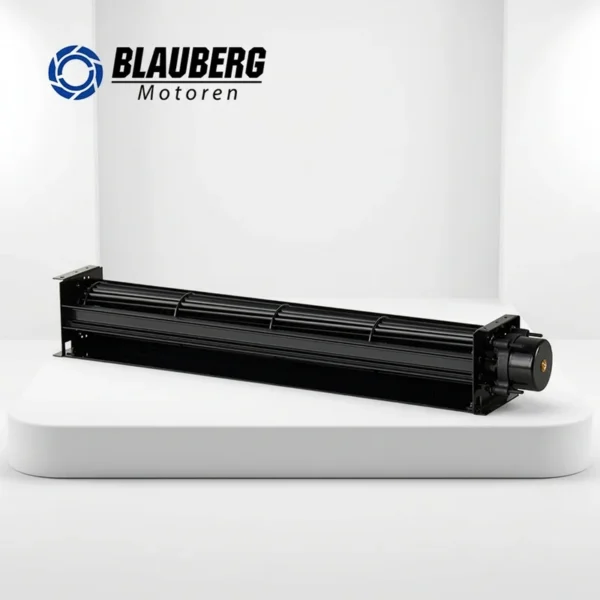

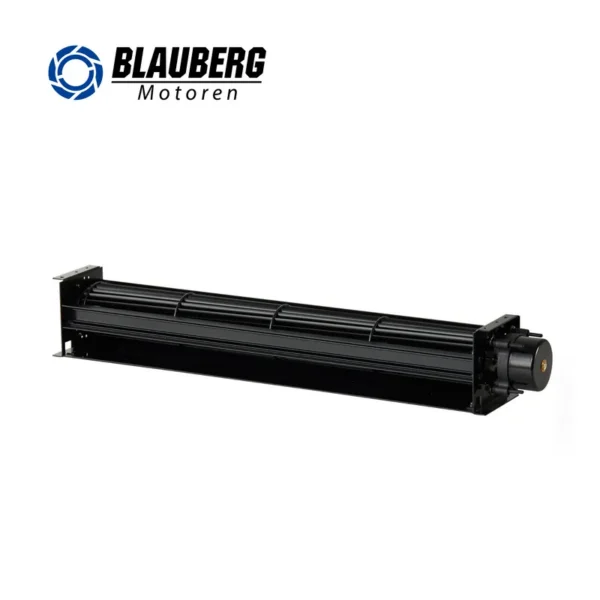

The cross flow fan listed here carries voltage Dc 24V, blade material Plastic, documented exactly as the manufacturer publishes it. Made by Suzhou Blauberg Motoren Technology Co., Ltd. (7 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cross Flow Fan
- Voltage: Dc 24V
- Blade Material: Plastic
- Certification: ceCCCROHS
- Place Of Origin: Jiangsu
- Application: General Machinery
- Size: 390*63*60mm
Technical Specifications
| Voltage | Dc 24V |
|---|---|
| Blade Material | Plastic |
| Place Of Origin | Jiangsu |
| Name | Backward Curved Centrifugal fan |
| Application | General Machinery |
| Color | Picture |
| Usage | Electric Tool |
| Housing | Iron |
| Protection Class | IP55 |
| Size | 390*63*60mm |
| Certification | ceCCCROHS |
| Selling Units | Single item |
| Single Package Size | 44X45X35 cm |
| Single Gross Weight | 5.0 kg |
Product Details
Dimension: | 390*63*60mm | Mode of operation: | S1 |
Materials Impeller: | aluminum alloy | Bearing: | ball bearings |
Materials Housing: | SPCC+S45C | Motor protection: | self-resetting TOP wired internally |
Direction of rotation : | clockwise,seen on rotor | Air Flow: | 198M³/H |
Number of Blades: | – | Static Pressure: | 26Pa |
Speed Control: | 0~10VDC / PWM | Life Expectance: | 50,000 Hours(L10) |
Operating Voltage: | 24 VDC | Operating Humidity: | 5%-90% RH |
Type of protection: | IP20 | Signal Output: | FG (Frequency Generator) |
Insulation class: | B | Authentication: | UL,CE,ROHS,CCC,ISO |
1 | Ventilation & Purification | 7 | Automobile Industry |
2 | Air Conditioning | 8 | Household Electric Appliances |
3 | Cold Storage and Cold Chain | 9 | Cloud Date Center |
4 | IT & Electronic Industry | 10 | Mechanical Equipment and Systems |
5 | Medical Industry | 11 | Energy-saving & Intelligent Retrofitting |
6 | Heating |
1 | Charging Column | 9 | Equipments Cooling Project |
2 | Kitchen smoke exhaust system | 10 | Ventilation Unit Project |
3 | FFU Project | 11 | AHU（Air Handing Unit）Project |
4 | Computer room cooling | 12 | Air Purifier Project |
5 | Air-conditioned fan for rail transit carriers | 13 | Heater Exchanger Project |
6 | Electrical appliances | 14 | Telecom Container Project |
7 | FanGrid Project | 15 | Data Center Cooling Project |
8 | Ventilation Equipments Project |
Title goes here.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $17.66 / piece
- 100–999 piece: US $16.81 / piece
- 1000+ piece: US $14.71 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this cross flow fan carry?
It is supplied with ceCCCROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Blauberg Motoren Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Blauberg Motoren Technology Co., Ltd. range on HVACR Nexus.
