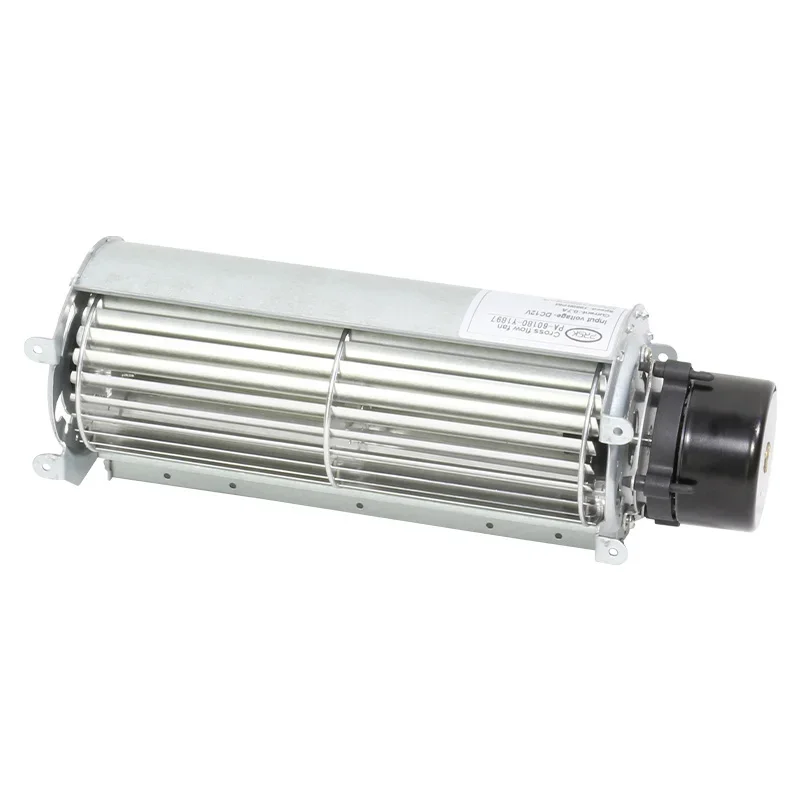

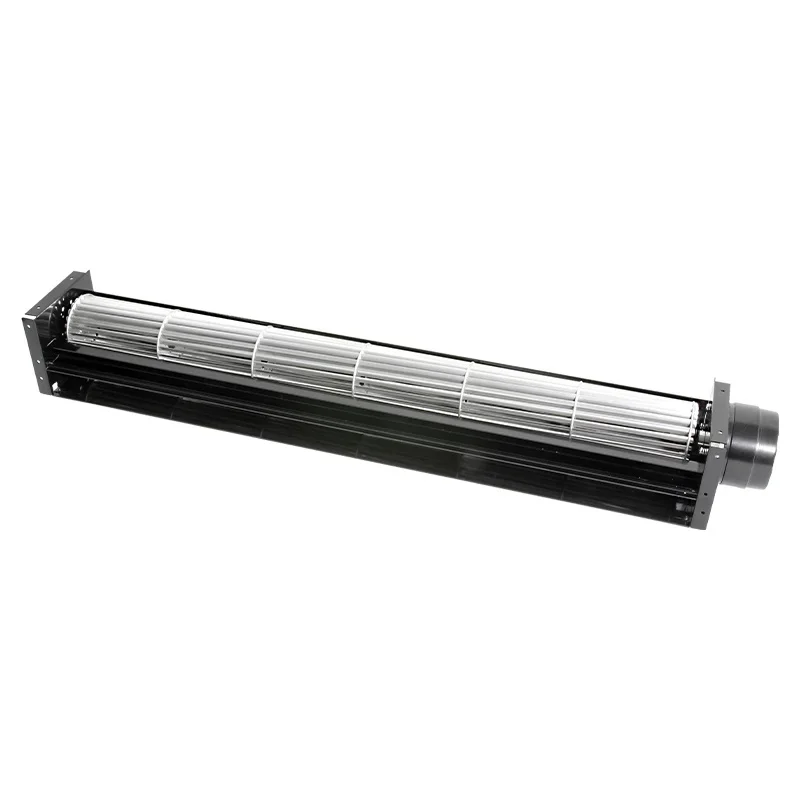

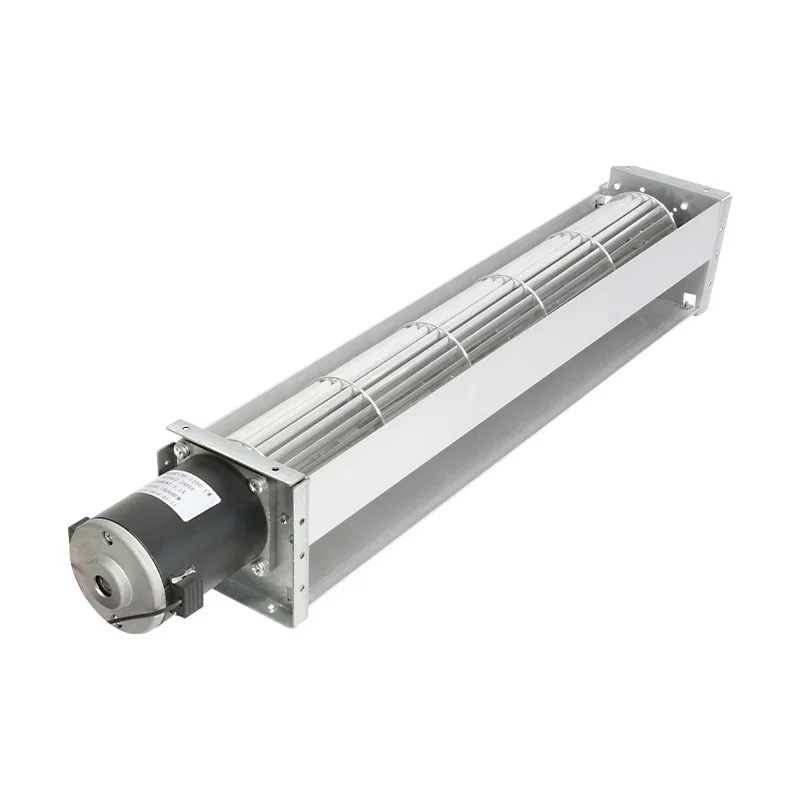

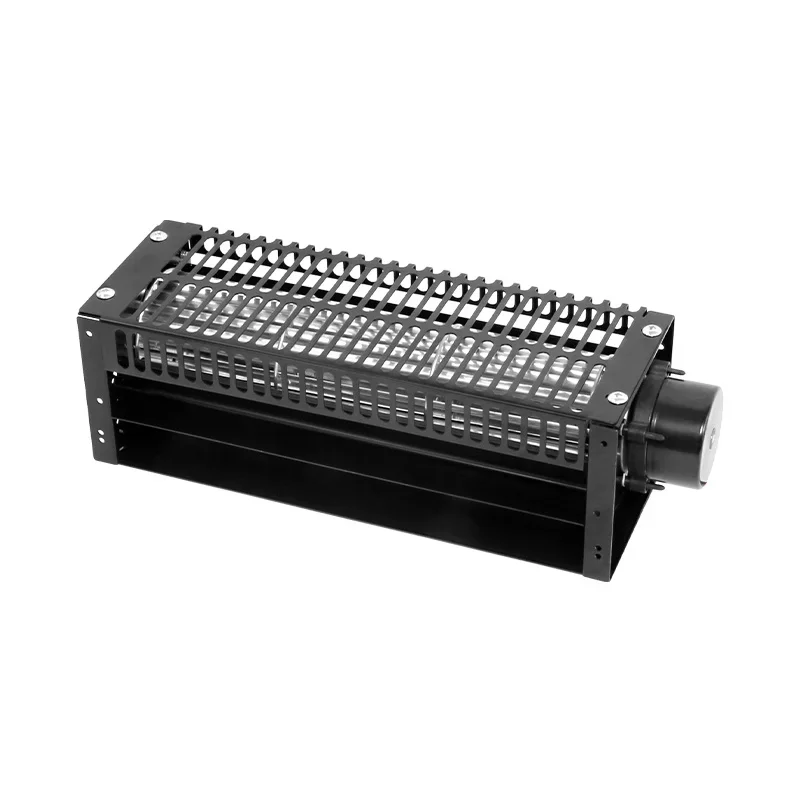

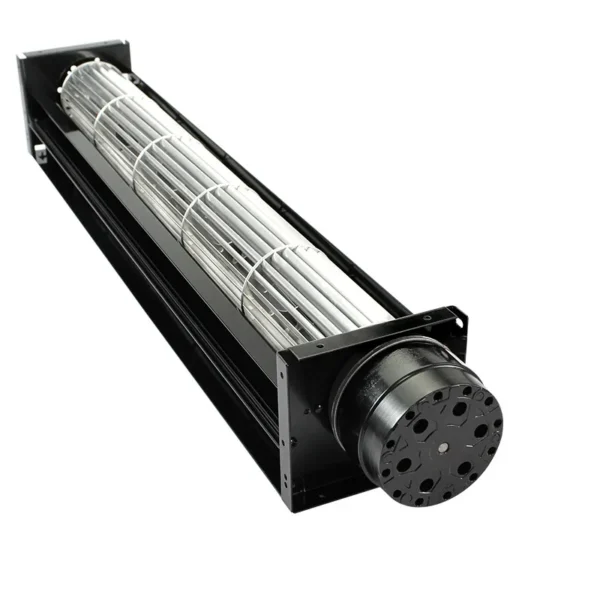

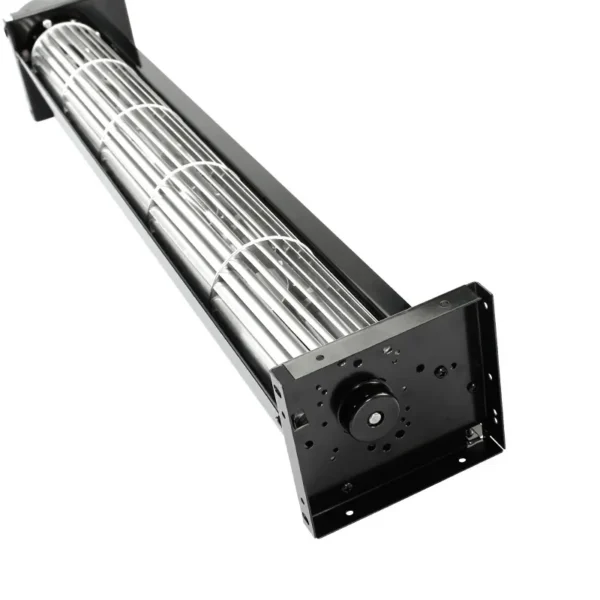

Cross Flow Fan, 60mm, Aluminum, Brushless, Tangential, Plastic

This cross flow fan is published with the manufacturer’s full specification — 10V 12V 24V, air flow (DC 30-2000) (EC 30-5000). Made by Suzhou Fanova Motor Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cross Flow Fan

• Power: (DC 10-500) (EC 10-500)
• Voltage: 10V 12V 24V
• Air Flow: (DC 30-2000) (EC 30-5000)
• Blade Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy
• Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy
• Impeller Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy

Technical Specifications

Product Details

Products Description

Model	Size (mm)					Voltage	Rated	Speed	Pressure	Maximun	Noise
										Frequency		Current			Air Flow
		A	B	C	V	A	r.p.m	Pa	m³/h	dB
LZ-60240DC	310	268	250	24	0.2	2400	22	152	40
LZ-60300DC	370	328	310	24	0.25	2400	24	186	40
LZ-60360DC	410	368	350	24	0.3	2400	24	212	41
LZ-60420DC	485	443	425	24	0.4	2400	24	277	42
LZ-60520DC	580	538	520	24	0.45	2400	24	315	43
LZ-60610DC	693	628	610	24	0.6	2400	24	380	44
LZ-60750DC	833	768	750	24	0.65	2400	24	440	44
LZ-60870DC	953	888	870	24	0.8	2400	24	510	46
LZ-60920DC	1003	938	920	24	0.85	2400	24	540	46
LZ-601080DC	1163	1098	1080	24	1	2400	24	630	47
LZ-601300DC	1383	1318	1300	24	1.2	2400	24	760	47
PJ-60420DC-Z	540	440	427.5	24	1.3	2400	48	466	46
PJ-60420DC-Y	540	440	427.5	24	1.3	2400	48	466	46
PF-60120DC	186	138	123	12	0.74	2600	52	102	45
								24	0.35	2600	52	102	45
PF-60180DC	246	199	184	12	1	2400	47	150	46
								24	0.47	2350	47	145	45
PF-60240DC	307	259	245	12	1.2	2200	43	210	45
								24	0.55	2200	43	210	45
PF-60300DC	368	321	306	12	1.35	2100	41	250	43
								24	0.63	2000	41	240	43
PF-60360DC	430	383	368	12	1.45	2000	41	290	43
								24	0.67	1900	38	280	42
PF-60420DC	492	444	429	12	1.53	1900	38	300	42
								24	0.73	1800	36	290	42
								24	2.55	3200	86	537	50
PA-60120DC	182	134	123	12	0.57	2400	50	105	40
								24	0.28	2400	50	105	40
PA-60180DC	240	193	181	12	0.93	2400	54	170	40
								24	0.44	2400	54	170	40
PA-60240DC	301	265	242	12	1.15	2400	51	210	42
								24	0.6	2400	51	210	42
PA-60300DC	363	315	304	12	1.24	2200	48	250	42
								24	0.69	2200	48	250	42
PA-60350DC	402	365	353	12	1.32	2000	48	290	43
								24	0.74	2000	48	290	43
PA-60420DC	477	430	418	12	1.39	1900	45	220	40
								24	0.76	1900	45	220	40
LL-60520DC	600	535	520	24	0.6	1800	50	330	47
LL-60610DC	690	625	610	24	0.6	1800	50	380	47
LL-60640DC	720	655	640	24	0.7	1800	52	400	48
LL-60700DC	780	715	700	24	0.7	1800	52	440	48
LL-60750DC	830	765	750	24	0.8	1800	52	470	48
LL-60870DC	950	885	870	24	1	1800	52	550	49
LL-601100DC	1185	1120	1105	24	1.5	1800	60	630	52
LL-601300DC	1385	1320	1305	24	2.2	1800	60	820	54
LF-60520DC	600	535	520	24	0.6	1800	50	330	47
LF-60610DC	690	625	610	24	0.6	1800	50	380	47
LF-60640DC	720	655	640	24	0.7	1800	52	400	48
LF-60700DC	780	715	700	24	0.7	1800	52	440	48
LF-60750DC	830	765	750	24	0.8	1800	52	470	48
LF-60870DC	950	885	870	24	1	1800	52	550	49
LF-601100DC	1185	1120	1105	24	1.5	1800	60	630	52
LF-601300DC	1385	1320	1305	24	2.2	1800	60	820	54

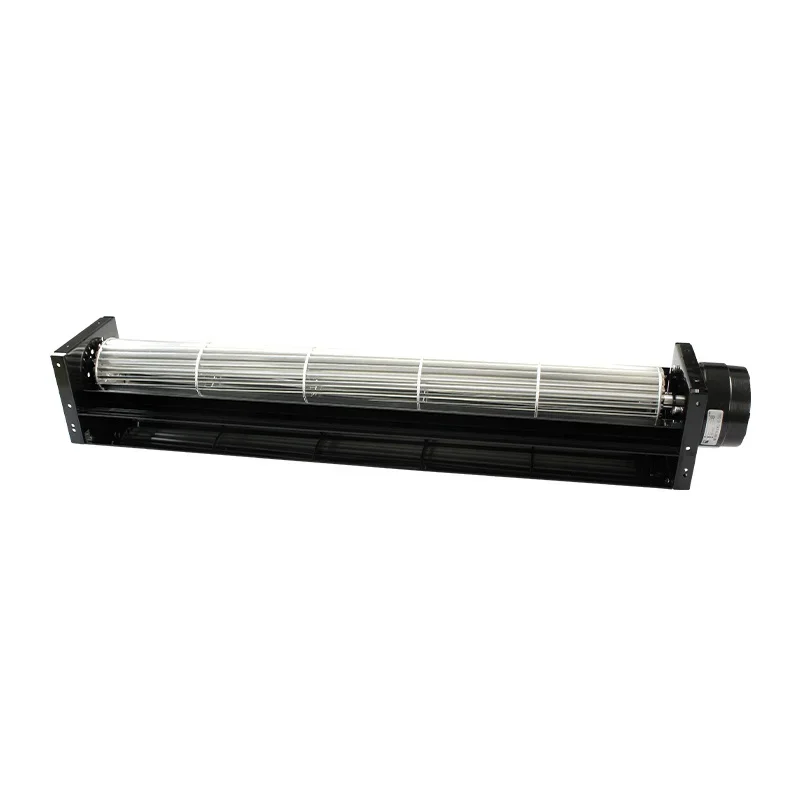

Cross flow fan
Special flat structure design, the air direction is more concentrated in a columnar shape, the wind direction can be changed, high air volume, low static pressure, low noise, especially suitable for special narrow scenes

Specification	EC	DC
Dimension	30-150	30-150
Voltage	115/230	24/48/85/115/310
Air flow	30-5000	30-2000
Static pressure	5-500	5-300
Power	10-500	10-500
Rotation speed	400-2900	400-2900
Control	PWM/0-10/Modbus	PWM/0-10/Modbus

Voltage Output	Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance	10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
Life Expectance	50,000 Hours(L10)
Leakage Current	≤3.5mA (Max. )
Direction of Air Flow	Straight forward from air outlet
Motor	External rotor EC motor
Technical features	Motor current limitation
		Soft starting Protection
		Under/Over voltage detection
		Thermal overload protection for electronics/motor
		Line undervoltage detection
		Locked-rotor Protection
		Reverse Polarity Protection
Operating Temperature	-25ºC (Min. )	60ºC (Max. )
		Heat sink of IC	115ºC (Max. )
		Other electronic parts	85ºC (Max. )
		Ball bering	80ºC (Max. )
		Lead Wire	120ºC (Max. )
Storage Temperature	-40ºC to 75ºC
Operating Humidity	5% to 90% RH
Storage Humidity	5% to 95% RH
Electronics housing material	Die-cast aluminum
Operation Mode	S1
Motor bearing	Ball bearing
Valid For Approval/Standard	CE,RoHS,ErP2015

1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy
consumption, ensuring optimal performance and efficiency.

2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.

3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.

5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.

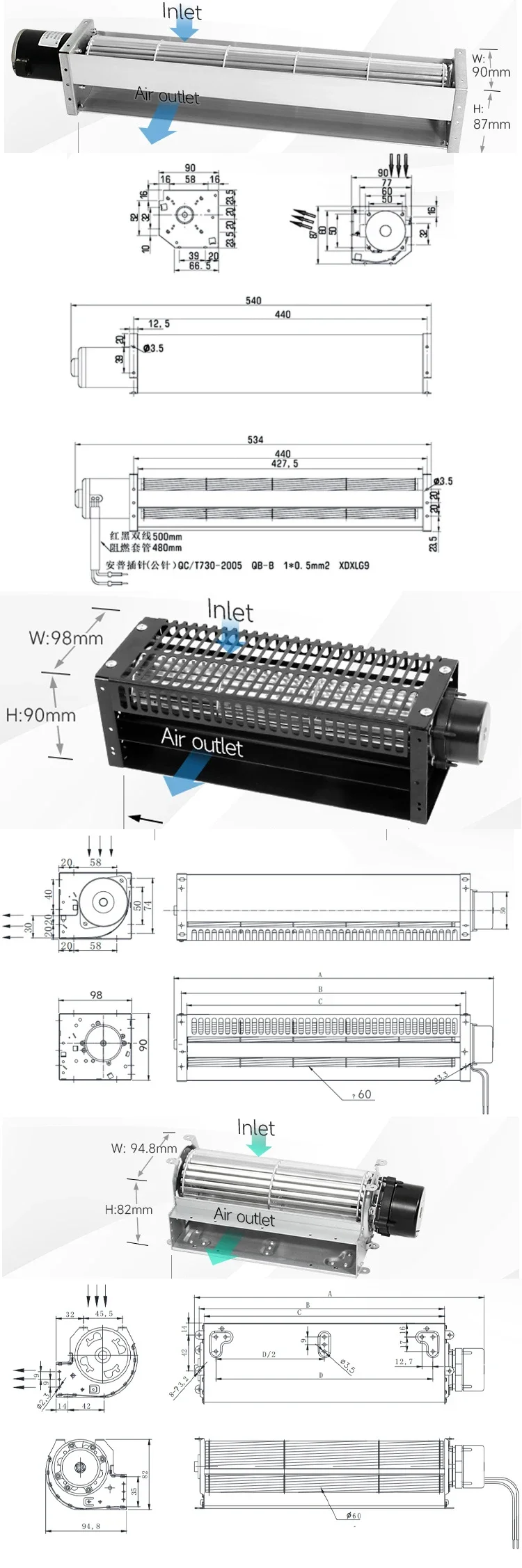

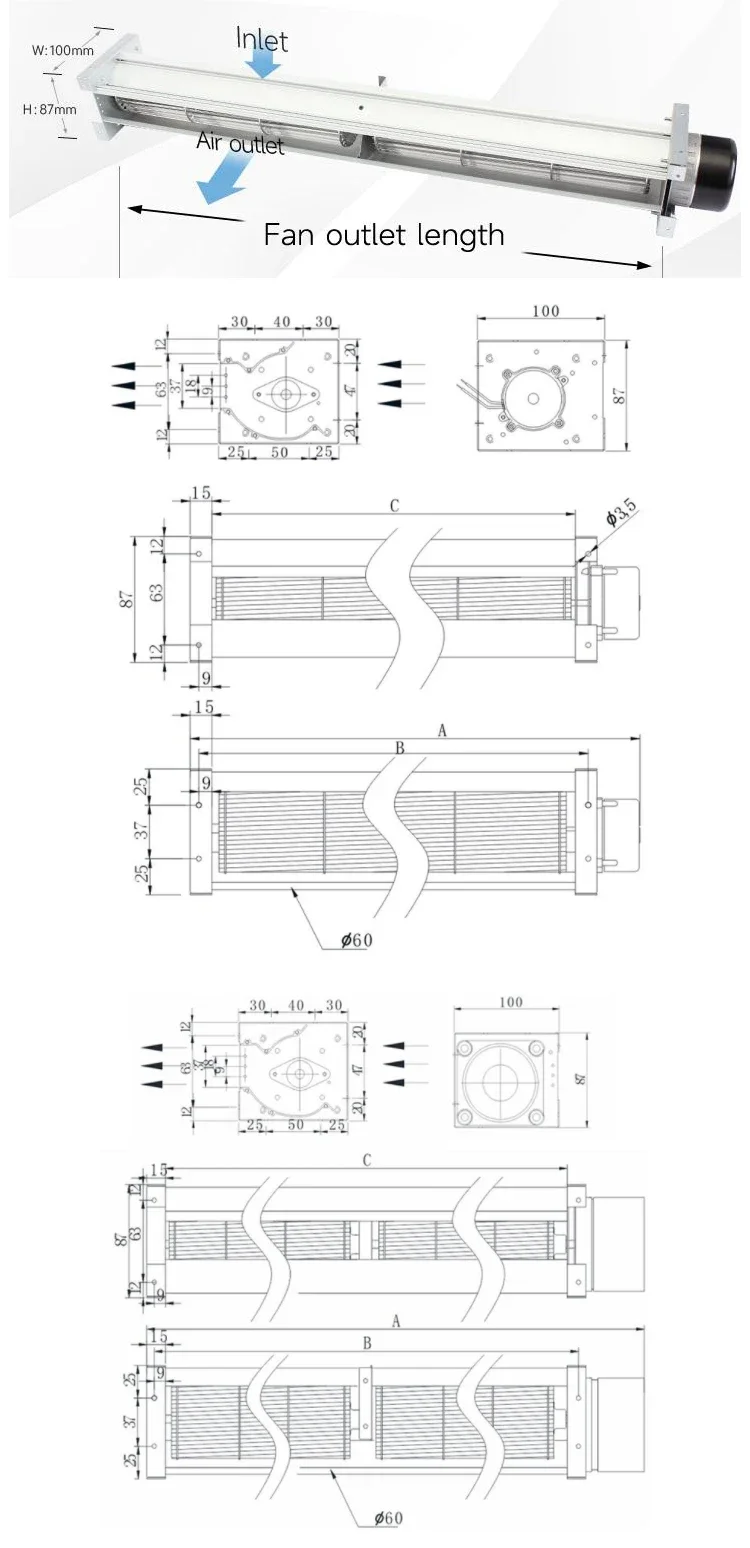

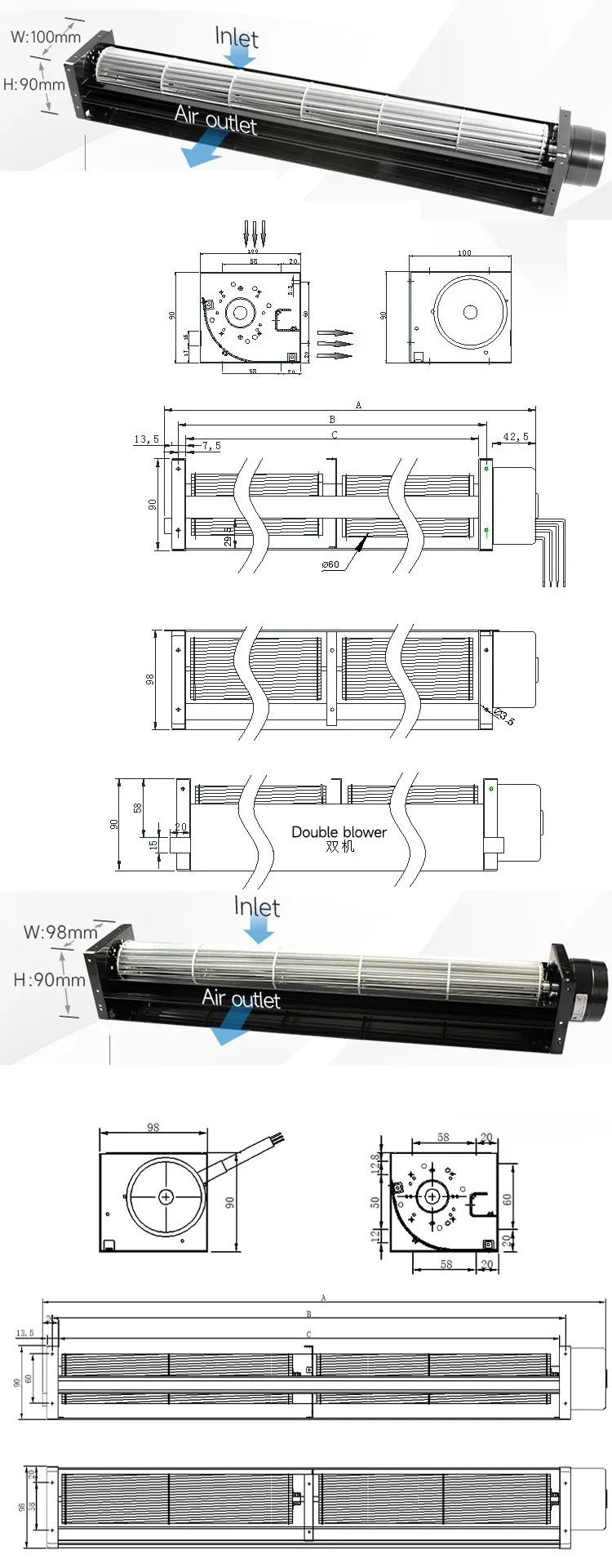

Product Drawing / Aerodynamic Performance Charts / Connection Diagram

Contact us for detailed specifications

Applications

HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.

Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.

Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.

Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.

Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.

Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.

Product packaging

Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.

Related Products

Company Profile

Fanova (Suzhou) Motor Technology Co., LTD is a specialized research, design, and production enterprise focusing on AC fans, DC motors, centrifugal fans, axial fans, and cross-flow fans. Established in 2003, the company has evolved into a prominent player in the motor and fan industry, providing customers with high-quality products and outstanding services. It has established a strong influence in the market and earned a reputation for its commitment to innovation, reliability, and customer satisfaction. As a professional EC fan manufacturer, we possess advanced production equipment and a skilled technical team dedicated to providing comprehensive solutions to our customers. Our products are widely used in various industries, including industrial, commercial, and residential sectors, covering applications such as purification equipment, HVAC equipment, ventilation equipment, transportation facilities, medical facilities, household appliances, and machinery. We aim to provide customers with efficient and energy-saving solutions for airflow power needs. The company boasts a professional R&D team, dedicated to driving continuous innovation and technological breakthroughs in product development. Our R&D efforts focus on exploring new plastic materials, enhancing motor and fan designs, improving manufacturing processes to stay at the forefront of industry trends. Our products have passed multiple international certifications, including CE, UL, ROHS, providing customers with reliable assurance and meeting the diverse needs of different application areas.

FAQ

Q1:What kind of payments do you support? A1: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment Q2.Will you provide samples? A2: Yes, samples can be delivered within 10days on request. Q3:How can I place the order? A3: We need the information like fan type, quantity, size, material, voltage, air flow and static pressure and usually quote you within 24 hours after we get your inquiry. First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods. Q4:About transportation A4: All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive. Q5:After-sales service A5: We will provide professional after-sales service, patiently answer customers' various problems to ensure the normal operation of products .

Ordering and Pricing

• Minimum order quantity: 5 piece
• Volume pricing:
  • 5–49 piece: US $22.6 / piece
  • 50–99 piece: US $16.95 / piece
  • 100+ piece: US $11.07 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fan?

The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this cross flow fan carry?

It is supplied with EAC, TUV, GOST, ISO9001, ROHS, CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the cross flow fan be supplied for my local voltage?

The standard configuration is 10V 12V 24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
