The cross flow fan listed here carries 12V-24V, blade material Aluminum Alloy, documented exactly as the manufacturer publishes it. Made by Ningbo Longwell Electric Technology Co., Ltd. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cross Flow Fan
- Voltage: 12V-24V
- Blade Material: Aluminum Alloy
- Material: Steel+Aluminum Alloy
- Housing Material: Steel+Aluminum Alloy
- Noise Level: 23~33dBA
- Speed: 4000 RPM, 1100rpm, 990rpm
Technical Specifications
| Voltage | 12V-24V |
|---|---|
| Speed | 4000 RPM, 1100rpm, 990rpm |
| Mounting | Free Standing |
| Blade Material | Aluminum Alloy |
| Material | Steel+Aluminum Alloy |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Zhejiang, China |
| Brand Name | LONGWELL |
| Model Number | LWCD-30530MN-06(Double Blower), LWCD-30610MN-06(Double Blower), LWCD-30650MN-06(Double Blower), LWCD-30718MN-06(Double Blower), LWCD-30800MN-06(TripleBlower), LWCD-30854MN-06(TripleBlower), LWCD-30920MN-06(TripleBlower), LWCD-30950MN-06(TripleBlower), LWCD-30986MN-06(TripleBlower), LWCD-301082MN-06(TripleBlower) |
| Color | Black, White, Silver, Chrome, Gold, Red, Blue, Grey, Yellow, Green |
| Fan Type | Cross flow fan / Tangential fan blower |
| Housing Material | Steel+Aluminum Alloy |
| Noise Level | 23~33dBA |
| Bearing | Ball Bearing |
| Fan Length | Up to 1400mm |
| Fan Diameter | 30,40,45,50,60,65,120,150mm |
| Life Time | 15000~50000h |

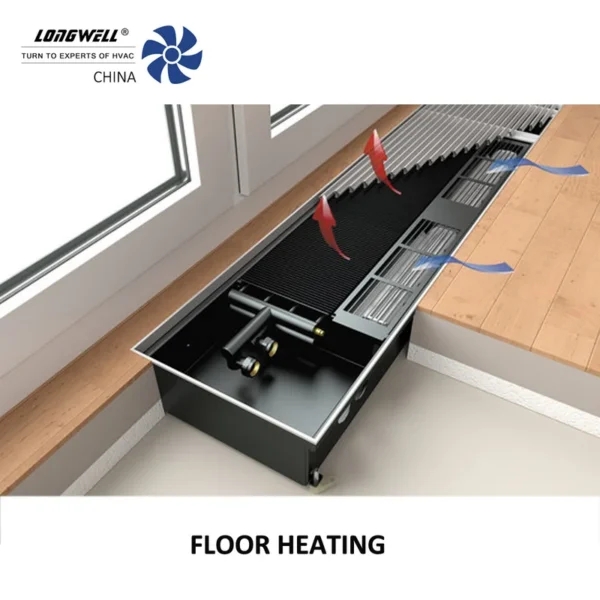

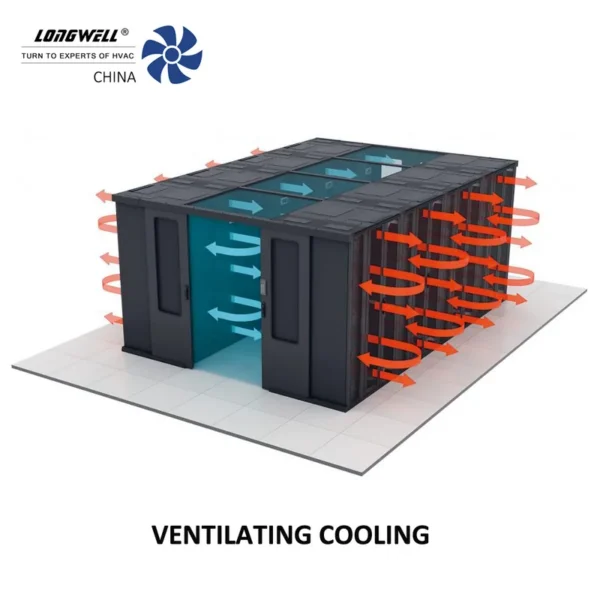

| Application | Heater,Air Purifier,Floor Heating,Air Curtain,Microwave,OvenCooling |
| Motor Type | 3 Phase BLDC Motor |
| Selling Units | Single item |
| Single Package Size | 200X35X35 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Nominal Impeller Diameter: | from 30mm to 200mm ( impeller diameters ) | ||||||
Nominal Impeller Length: | 150mm – 1450mm | ||||||
Max Length of the blower : | Up to 1450mm | ||||||
Fan Speeds : | 0-3600 rpm | ||||||
Drive Motor Types : | Shaded Pole Motor ( AC ) ; Brushless DC ( BLDC/EC) | ||||||
Standard supply voltages: | DC 12V / 24V / 48V~50/60 Hz ; AC 115V / 230V~50/60 Hz ; EC 115V / 230V~50/60 Hz. | ||||||
Motor and Impeller Bearing Type: | Ball Bearings | ||||||
Optional heater elemtns : | PTC Heater or Aluminum Fan heaters | ||||||
Typical Applications : | Trench Heaters / Floor Convectors / Wall Convector /Domestic ventilation /Catering equipment / Electronic cooling / Heat recovery ,etc | ||||||
Special Features : | Compact Desin with low noise ( down to 20 dBA ) . Coupled fans for extended length applications ; 0-10v / pwm speed control system | ||||||

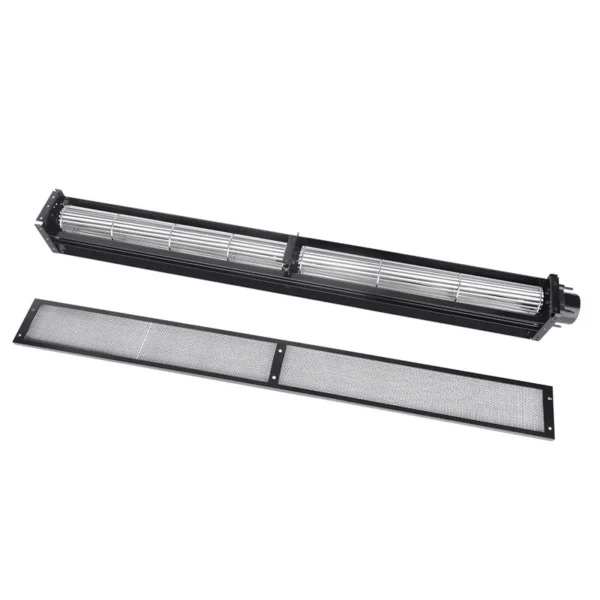

Other Options Include ； | Finger guard , mounting brackets , special electrical connector . | ||||||
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $20 / piece
- 500–999 piece: US $18 / piece
- 1000–9999 piece: US $15 / piece
- 10000+ piece: US $10 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 12V-24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
