Key specification for this cross flow fan: voltage AS REQUIRED, blade material Plastic. Everything below is reproduced from the factory data sheet. Made by Ningbo Longwell Electric Technology Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Voltage: AS REQUIRED
- Blade Material: Plastic
- Material: ASG30
- Warranty: 1 Year
- Certification: CCC/RoHS
- Place Of Origin: Zhejiang, China
Technical Specifications
| Voltage | AS REQUIRED |
|---|---|
| Mounting | Wall Fan |
| Blade Material | Plastic |
| After-Sales Service Provided | Free Spare Parts |
| Warranty | 1 Year |
| Place Of Origin | Zhejiang, China |
| Brand Name | LONGWELL |
| Certification | CCC/RoHS |
| Product Name | Cross Flow Fan Blower |
| Application | split air conditioner , air curtains , cooling |
| Bearing | Ball Bearing / Sleeve bearing |
| Fan Diameter | 30 ~200mm |
| Fan Length | customization available up to 1200mm |
| Material | ASG30 |
| Shaft Diameter | 6,8,10,12mm |
| Color | black , blue , nature or customization available |
| Selling Units | Single item |
Product Details

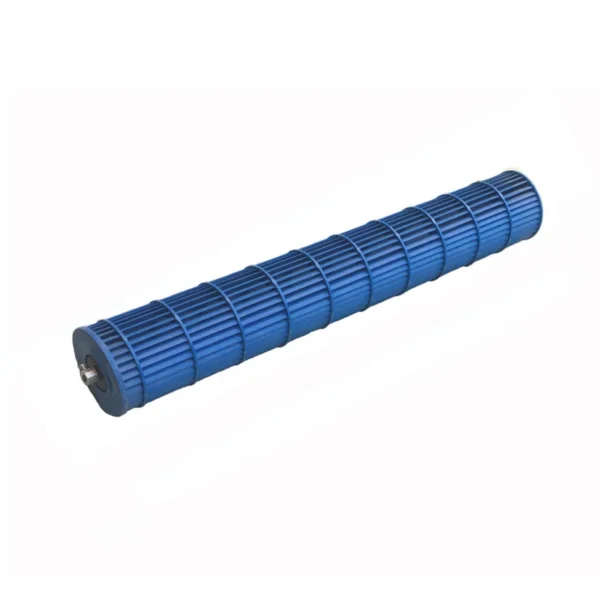

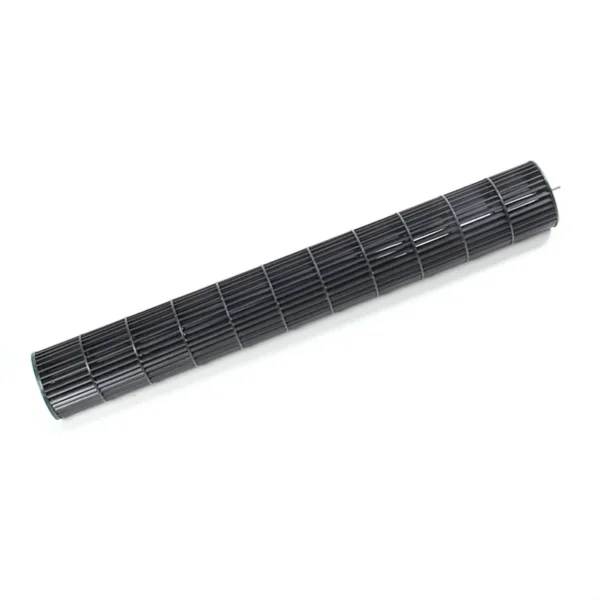

107mm Diameter OEM Plastic Cross Flow Fan for Air Conditioning plastic tangential fan air conditioner blower blades
| Diameter -A | Lengh -L1 | Shaft | Shaft sleeve | Rotation | Set screw | ||||
| mm | mm | shaft diameter -C (mm) | shaft length -L2 (mm) | Shaft sleeve ID -B (mm) | shaft sleeve length -D | color | Blades Qty | see from shaft end | |
| Φ50 | ≤800 | 4,6,8,10,12mm | ≤50 | 4,6,8,10,12mm | inside. /outsize ≤35mm | Customization by customer generally black, white ,blue ,green | 25 | CCW | M4,M5 |
| Φ60 | 31 | CCW | |||||||
| Φ71 | 35 | CCW | |||||||
| Φ76 | 35 | CCW | |||||||
| Φ81 | 35 | CCW | |||||||
| Φ87 | 35 | CCW | |||||||
| Φ90 | 28 | CCW | |||||||
| Φ91 | 35 | CCW | |||||||
| Φ93 | 35 | CCW | |||||||
| Φ95 | 35 | CCW | |||||||
| Φ97 | ≤1200 | 35 | CCW | ||||||
| Φ101.5 | 35 | CCW | |||||||
| Φ105 | 35 | CCW | |||||||
| Φ108 | 28 | CCW | |||||||
| Φ109 | 35 | CCW | |||||||
| Φ112 | 28 | CCW | |||||||
| Φ115 | 35 | CCW | |||||||
| Φ120 | 26 | CCW | |||||||
| Φ121 | 35 | CCW | |||||||
| Φ125 | 35 | CCW | |||||||
| Φ135 | 35 | CCW | |||||||
| Φ150 | 24 | CCW | |||||||
| Φ160 | 32 | CCW | |||||||
| Φ180 | 35 | CCW | |||||||
| Customized Size is available based on our mould factory , please contact us for detials. | |||||||||
- Material : Reforced AS ,ABS ,ABS+Glass Fiber, PP ;
- Date of Delivery : 10~ 25 days .
Air Conditioning , Air curtain, Ventilation Fans , Heaters, Air purifier …
LONGWELL is a manufacturer of HVAC fans, blowers , motors and components , as well as water purifier pumps and home appliances , established in 1990 , equipped with high advanced testing and production facilities .
Longwell co.,ltd are typically purchased as OEM solutions by manufacturering companies or as aftermarket solutions and replacement parts for HVAC,FCU,FFU,AHU system .
Customers can select form the large variety of preexisting products developed by Longwell including but not limited to :
AC motorized centrifugal fans & blowers ;
Brushless DC/EC motorized backward / forward centrifugal fans & blowers ;
cross flow fan / wheel / blower with motor ( plastic or metal metal ) ;
axial fans / blades with plastic or metal material ;
Shaded Pole Motors ;
Duct fans ;
Parts or assemble parts or repair parts for HVAC,AHU,FCU,FFU,etc.
1, Are you a manufacturer ?
Yes, we are . we own over 10 production lines for different products .
2, How is your quality ?
Aboove average and top class quality are your options in our range , The quality is pretty good ,and trusted by many customers in overseas . our quality is above the average in customer's same budget , customers have
1 year warranty , and free after sales technical support in product designed life span .
3, How is your price
Our price is very competitive by large scale production contribution .
4, What's your lead time ?
7days -25days , depengs on volume and different items .
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $5 / piece
- 500+ piece: US $1.3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cross flow fan carry?
It is supplied with CCC/RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is AS REQUIRED. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
