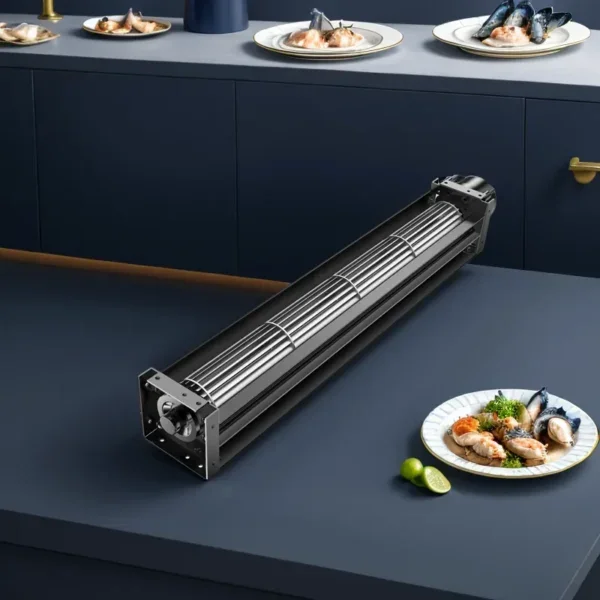

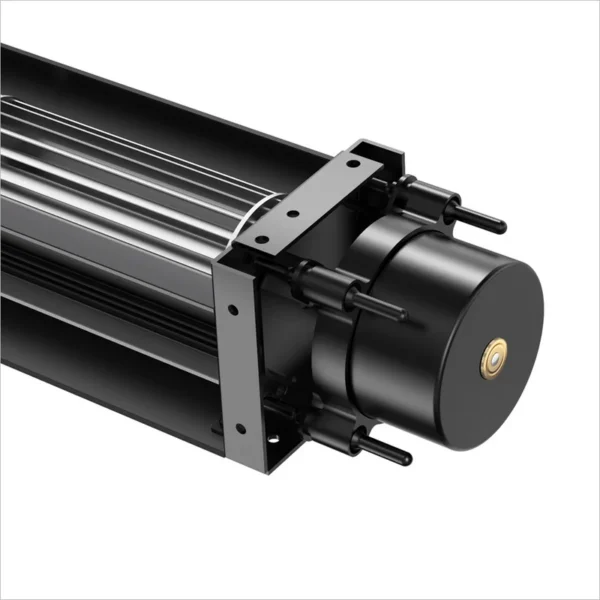

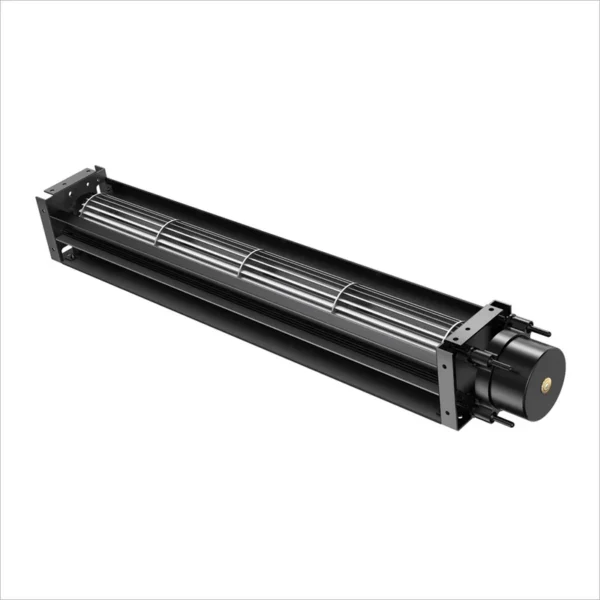

Cross Flow Fan, Tangential, 12V, Galvanized+Aluminum

The cross flow fan listed here carries 12V/24V, blade material Galvanized+Aluminum, documented exactly as the manufacturer publishes it. Made by Ningbo Longwell Electric Technology Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Cross Flow Fan

• Model Number: LWCA-60 Series, Brand substitution
• Voltage: 12V/24V
• Mounting / Voltage: FREE STANDING / 12V/24V
• Blade Material: Galvanized+Aluminum
• Housing Mater /Blade Material: el+Aluminum Alloy , Ganized Sheet Steel,Steel /Aluminum Alloy
• Warranty: 3 Years

Technical Specifications

Product Details

Top 10 reasons why customers choose LONGWELL:

1.LONGWELL is a professional manufacturer which is the specialist in HVACR fans, motor and components for the applications of
airconditioner, air ex-changer, coolers, heaters, floor convectors, sterilization purifier, air purifiers, medical purifiers,
andventilation ,energy industry, 5G cabinet…

2.We have many authoritative international certifications .
3.Have professional sales team more than 200 person, Set up sites in many countries around the world，to help you solve the problem
any time !
4.LONGWELL Promise will never release unqualified products !
5.Rich experience in different fields and word's most comprehensive fan soluions
6.Quality is life ! with strict quality control system,supervise the whole process from raw materials, production, quality
inspection, packaging and delivery!
7.Born for High-Quality Breathing, LONGWELL Fans Power Your Equipment
8.LONGWELL have own delivery department, make sure fast delivery and regular feedback of production progress !
9.Professional after-sales team provides 24-hour online service !
10. we makes very quiet noise , and good air performances of fans !

Specification

Model	A（mm）	B(mm)	C(mm)	Voltage（V)	Current(A)	Speed (RPM)	Pressure(Pa)	Air Flow(myh)	Noise[dB(A))
LWCD-30530MN-06 Double	584	540	530	24	0.12	2400	17	137	32
LWCD-30610MN-06 Double	664	620	610	24	0.13	2400	18	158	33
LWCD-30650MN-06 Double	704	660	650	24	0.13	2400	18	168	34
LWCD-30718MN-06 Double	772	728	718	24	0.14	2400	19	185	35
LWCD-30800MN-06 Triple	854	810	800	24	0.18	2400	19	207	36
LWCD-30854MN-06 Triple	908	864	854	24	0.19	2400	20	221	36
LWCD-30920MN-06 Triple	974	930	920	24	0.21	2400	20	238	37
LWCD-30986MN-06 Triple	1040	996	986	24	0.22	2400	21	255	37
LWCD-301082MN-06 Triple	1136	1092	1082	24	0.24	2400	21	279	38

Product Description

DC Cross Flow Fans-Double Blower

Diameter of lmpeller : 30,40,45,50,60,65mm Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)

Motor Type: BLDC External Rotor

MotorSpeed Range : Up to 2400 RPM

DC Cross Flow Fans-Single Blower

Diameter of lmpeller : 30,40,43,45,50,60,65,80,90,100,110,120,150mm

Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)

Motor Type: BLDC External Rotor

MotorSpeed Range : Up to 2400 RPM

DC Cross Flow Fan – Trip Blower

Diameter of lmpeller : 30,40,50,60,65mm

Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)

Motor Type: BLDC External Rotor

MotorSpeed Range : Up to 2400 RPM

AC Cross Flow Fan – Single

Diameter of lmpeller : 30,40,43,45,50.60,80,90,100.110,120.150mm

Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)

Motor Type: AC Shaded Pole MotorSpeed Range : Up to 3000 RPM

AC Cross Flow Fan – Double

Diameter of lmpeller : 30,40,43,45.5060,80,90,100,110,120,150mm

Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)

Motor Type: AC Shaded Pole MotorSpeed Range : Up to 3000 RPM

AC Cross Flow Fan

Diameter of Impeller : 30,40,43,45,5060,80,90,100,110,120,150mm

Materials : Galvanized Metal(HousingAluminum Alloy(Blades)

Motor Type: AC Shaded Pole MotorSpeed Range : Up to 3000 RPM

EC Cross Flow Fan

Diameter of impeller : 80,90,100,110.120,150mm

Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)

Motor Type: EC Motor Speed Range : Up to 1500 RPM

EC Cross Flow Fan

Diameter of lmpeller : 80,90,100,110,120.150mm Materials : Galvanized Metal(Housing)Aluminum Alloy(Blades)

Motor Type: EC Motor

Speed Range : Up to 1500 RPM

Cross Flow lmpellers

Diameter(lmpeller):30-200mm Materials : Aluminum Alloy High Strength design with Dust& water Proof

Company Profile

Certifications

Delivery and Packaging

Contact Us

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $9.9 / piece
  • 10–49 piece: US $8.9 / piece
  • 50–99 piece: US $7.9 / piece
  • 100+ piece: US $6.9 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the cross flow fan be supplied for my local voltage?

The standard configuration is 12V/24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
