Cross Flow Fan, Tangential, 230V, Aluminum

This cross flow fan is published with the manufacturer’s full specification — voltage 230 VAC, 135.36 CFM / 230 m3/H. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cross Flow Fan

• Model Number: PC60B2A245F
• Voltage: 230 VAC
• Air Flow: 135.36 CFM / 230 m3/H

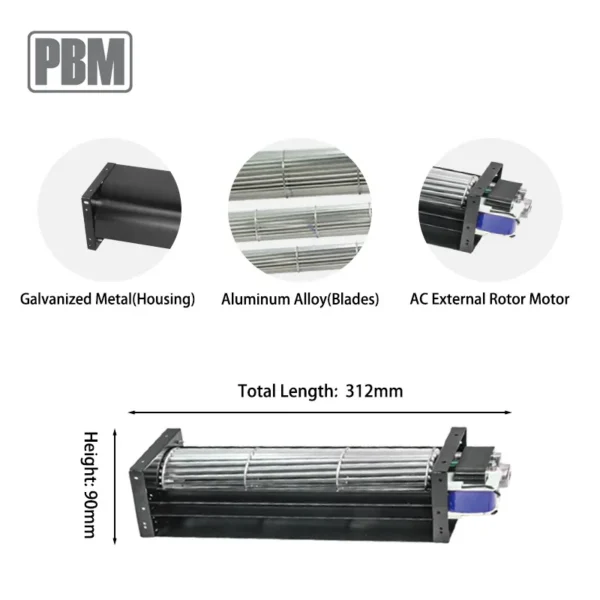

• Blade Material: Aluminium alloy
• Warranty: 5 year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

PRODUCT SPECIFICATIONS

1.General Characters

Rated Voltage	230 VAC	Life Expectance	30,000 Hours
Frequency	50 Hz	Direction of Rotation	Clockwise seen on rotor
Rated Speed	2300 RPM	Dimension	See dimension drawing
Input Current	0.27 A	Material of Impeller	Aluminum alloy
Input Power	34 W	Air Flow	135.36 CFM / 230 m³/H
Acoustical Noise	44 dB(A)	Static Pressure	5.31 mmH₂O / 52 Pa

2. Environmental Characters

Operating Temperature

-20℃ to 70℃

Storage Temperature

-40℃ to 80℃

3. Performance Curve

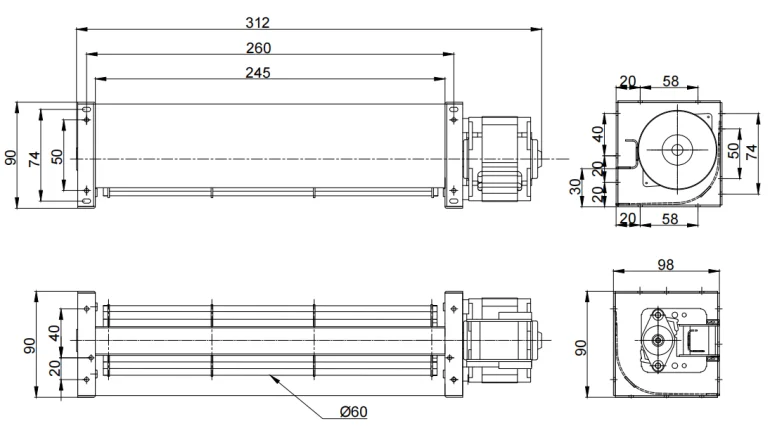

4. Outline Drawing

Certifications

Application Scopes

Recommend Products

Model Part No.	Rated  Voltage VAC	Air  Flow m³/H	Air  Pressure Pa	Rated  Speed RPM	Sound  Level dB(A)	Total  Length mm
PC60B1A123F	115	141	47	3300	40	190
PC60B2A123F	230	125	40	2800	40	190
PC60B1A184F	115	180	54	3100	47	251
PC60B2A184F	230	166	52	2700	47	251
PC60B1A245F	115	200	50	2900	41	312
PC60B2A245F	230	230	52	2600	44	312
PC60B1A306F	115	270	54	3000	46	378
PC60B2A306F	230	280	54	2600	46	378
PC60B1A368F	115	280	41	2900	43	440
PC60B2A368F	230	280	47	2600	43	440
PC60B1A429F	115	245	21	3100	43	501
PC60B2A429F	230	265	23	2700	44	501

PBM AC Tangential Blowers with Different Impeller Sizes

PBM Cross Flow Fan 30mm Blades

Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.

PBM Cross Flow Fan 40mm Blades

Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.

PBM Cross Flow Fan 45mm Blades

Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.

PBM Cross Flow Fan 48mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 50mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 60mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 65mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Product Overview

Exhibition Show

Packing Detail

FAQ

Q: What are the typical applications for these cross-flow blowers?

A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors, air curtains, air conditioners, and heaters.

Q:How about the delivery time ?
A:Within 25 days after we receive the order.

Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.

Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.

Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–499 piece: US $17.48 / piece
  • 500–999 piece: US $16.51 / piece
  • 1000+ piece: US $16.06 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the cross flow fan be supplied for my local voltage?

The standard configuration is 230 VAC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Pbm Motor And Fan(suzhou) Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Pbm Motor And Fan(suzhou) Co., Ltd. range on HVACR Nexus.
