The tangential fan listed here carries voltage 12/24 VDC, 153.01 CFM / 260 m3/H, documented exactly as the manufacturer publishes it. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Tangential Fan
- Model Number: PC50B12290B, PC50B24290B
- Voltage: 12/24 VDC
- Air Flow: 153.01 CFM / 260 m3/H
- Blade Material: Aluminium alloy
- Warranty: 5 year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 12/24 VDC |
|---|---|
| Mounting | Free Standing |
| Blade Material | Aluminium alloy |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Warranty | 5 year |
| Place Of Origin | Jiangsu, China |
| Brand Name | PBM |
| Model Number | PC50B12290B, PC50B24290B |
| Insulation Class | Class B |
| Input Current | 0.91 A |
| Acoustical Noise | 44 dB(A) |
| Direction Of Rotation | Clockwise seen on motor |

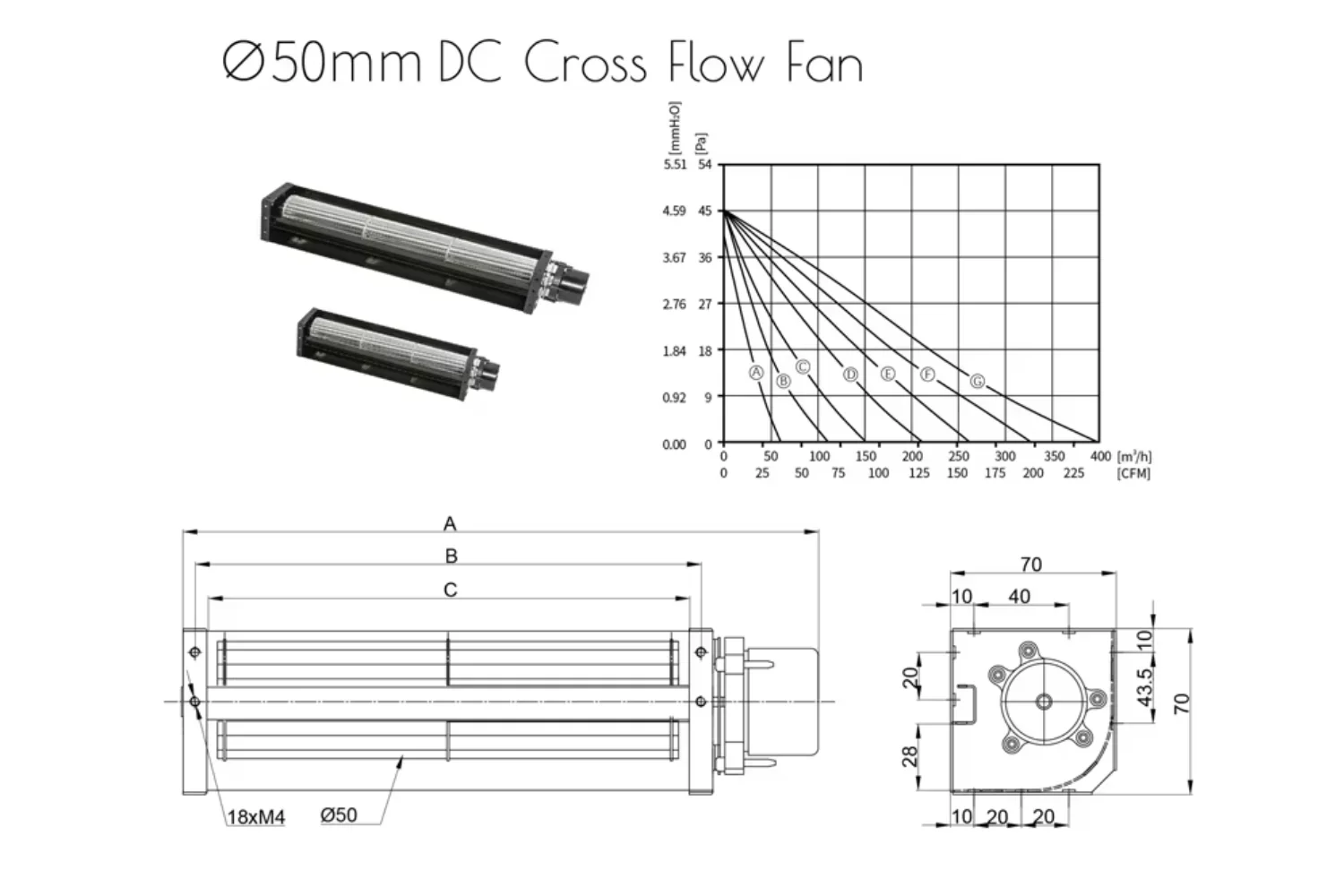

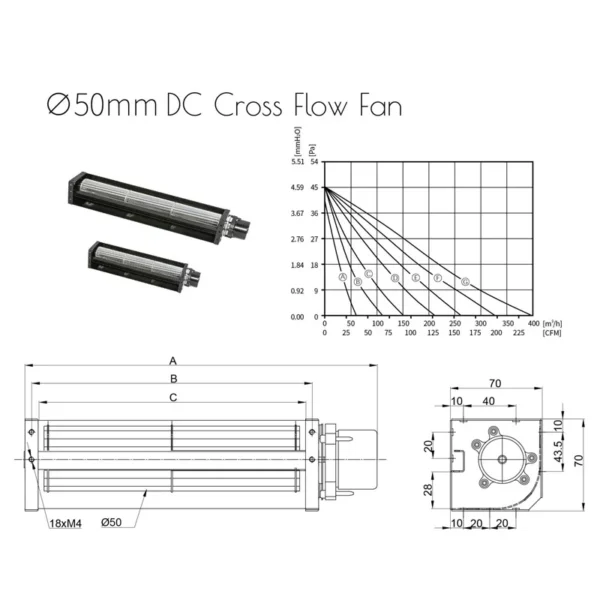

| Dimension | 70x70x363 (see dimension drawing) |
| Air Flow | 153.01 CFM / 260 m3/H |
| Static Pressure | 4.59 mmH2O / 45 Pa |
| Operating Temperature | -25℃ to 60℃ |
| Storage Temperature | -40℃ to 75℃ |
| RoHS | All the material meets RoHS standard |
| Selling Units | Single item |
| Single Package Size | 46.3X17X17 cm |
| Single Gross Weight | 2.0 kg |
Product Details
- PBM tangential blowers with AC and DC power supply EC green technology motor, with aluminum die cast fan frame, with anti-vibration rubber damping pad system, with ball bearing and sleeve bearing, maximum entire tangential fan length goes up to 1190mm at single,
- Double and triple sections harmoniously connected together makes it possible to achieve a very high airflow throughput ratio with extremely low wind noise with quiet three-core sin-wave integrated commutation electronics motor controller circuit and low air flow velocity.
- Cross flow blowers are available for home indoor stove, fireplace, oven, wood burner underfloor convectors, air doors, air curtains, air conditioners and heaters’ cooling and ventilation at extremely shallow, flat design to satisfy home appliances’ nice outlooking and slim features that market requirements and consumer calling for.
Model | Rated Voltage | Air Flow | Air Pressure | Rated Speed | Sound Level | Total Length |
Part No. | VDC | m3/H | Pa | RPM | dB(A) | mm |
PC50B1298B | 12 | 60 | 40 | 2400 | 34 | 166 |
PC50B2498B | 24 | 60 | 40 | 2400 | 34 | 166 |
PC50B12158B | 12 | 110 | 45 | 2400 | 42 | 226 |
PC50B12198B | 12 | 150 | 45 | 2400 | 43 | 266 |
PC50B12248B | 12 | 210 | 45 | 2400 | 44 | 310 |
PC50B12290B | 12 | 260 | 45 | 2400 | 44 | 363 |
PC50B12358B | 12 | 330 | 45 | 2400 | 43 | 422 |
PC50B12418B | 12 | 395 | 45 | 2400 | 43 | 476 |
PC50B24158B | 24 | 110 | 45 | 2400 | 42 | 226 |
PC50B24198B | 24 | 150 | 45 | 2400 | 43 | 266 |
PC50B24248B | 24 | 210 | 45 | 2400 | 44 | 310 |
PC50B24290B | 24 | 260 | 45 | 2400 | 44 | 363 |
PC50B24358B | 24 | 330 | 45 | 2400 | 43 | 422 |
PC50B24418B | 24 | 395 | 45 | 2400 | 43 | 476 |
air curtains, air conditioners, and heaters.
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $17.17 / piece
- 500–999 piece: US $16.21 / piece
- 1000+ piece: US $15.78 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 12/24 VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

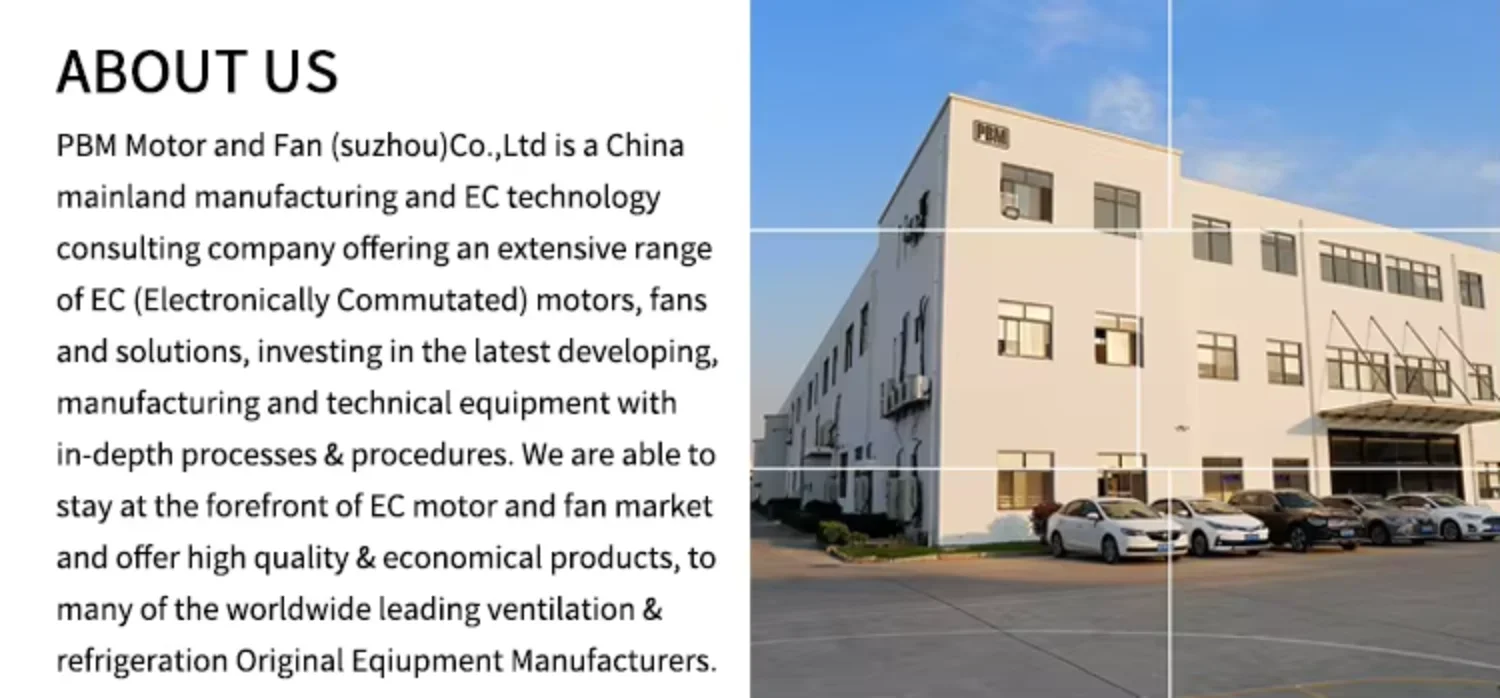

About the Manufacturer
