Key specification for this cross flow fan: voltage 24 VDC, 720 m3/H. Everything below is reproduced from the factory data sheet. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.

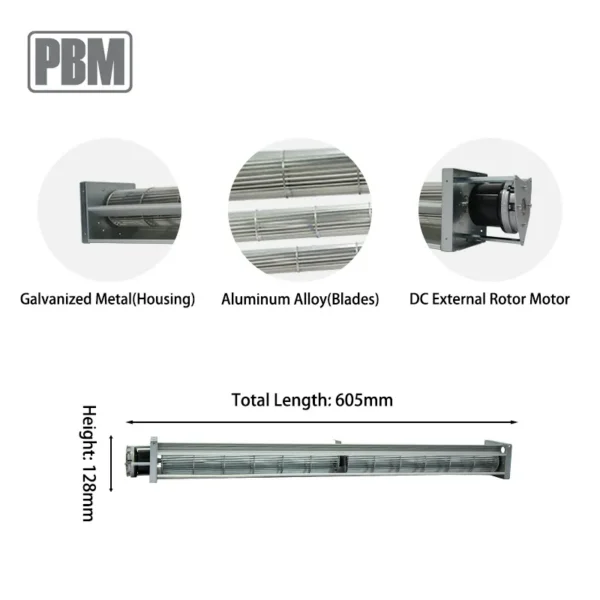

Key Features of This Cross Flow Fan

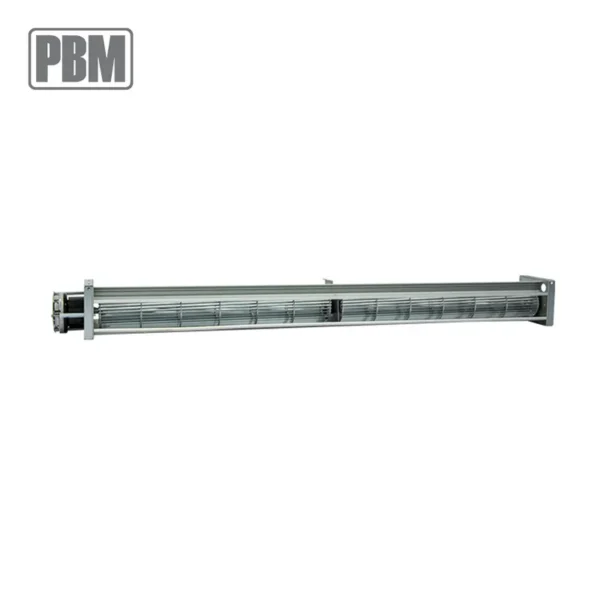

- Model Number: PC80B24520L
- Voltage: 24 VDC
- Air Flow: 720 m3/H
- Blade Material: Aluminium alloy
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 24 VDC |
|---|---|
| Blade Material | Aluminium alloy |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Jiangsu, China |
| Brand Name | PBM |
| Model Number | PC80B24520L |
| Insulation Class | Class B |
| Input Current | 1.83 A |
| Acoustical Noise | 57 dB(A) |
| Direction Of Rotation | Clockwise seen on motor |
| Dimension | 520x540x605 (see dimension drawing) |
| Air Flow | 720 m3/H |
| Static Pressure | 58 Pa |
| Operating Temperature | -25℃ to 60℃ |
| Storage Temperature | -40℃ to 75℃ |
| Selling Units | Single item |

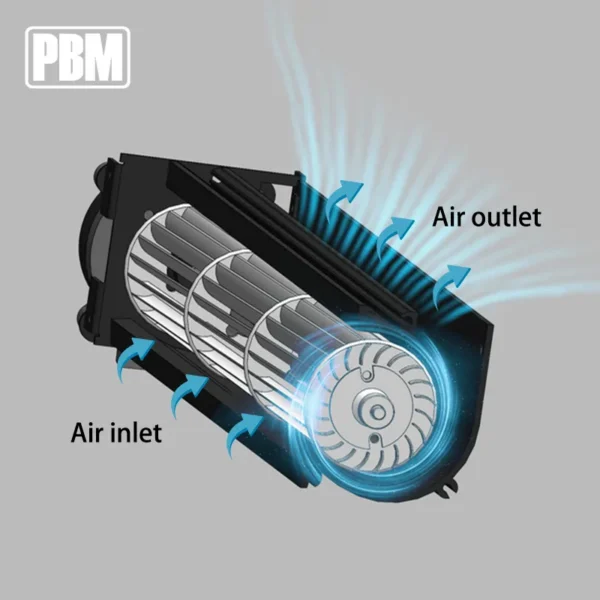

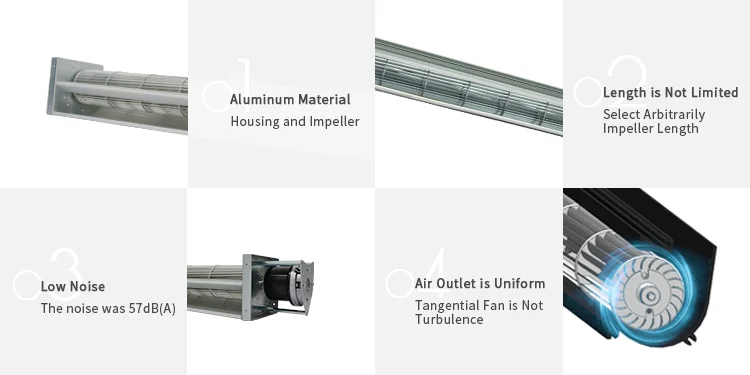

Product Details
PRODUCT SPECIFICATIONS
1.General Characters
24Rated Voltage | 24 VDC | Insulation Class | Class B |
Operating Voltage | 16 ~ 28 VDC | Static Pressure | 58 Pa |
Rated Speed | 1650 RPM | Input Power | 43.92 W |
Input Current | 1.83 A | Speed Control | Control input 0~10VDC |
Acoustical Noise | 57 dB(A) | Air Flow | 720 m³/h |
50,000Hours(L10) At 40℃ room, humidity 15%~65%RH. | Locked rotor protection Polarity protection Automatic restart capability | ||
Direction of Rotation | Clockwise seen on motor | Protection Type | IP44 |
2. Electrical Protection
Locked-rotor Protection | Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage. |
Reverse Polarity Protection | No damage if the positive and negative leads are reversed under maximum operation voltage conditions. |
Over Voltage Protection | The circuit will be shut down automatically when input voltage over 15VDC. And re-started when Voltage down to 15VDC below. |
Soft Start | In 5 seconds after power on and speed control voltage gets to 1.5V. |

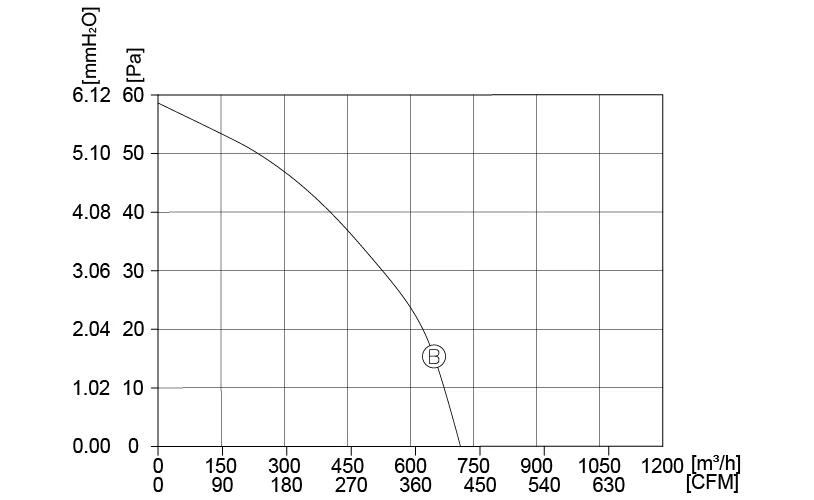

3. Airflow Curve

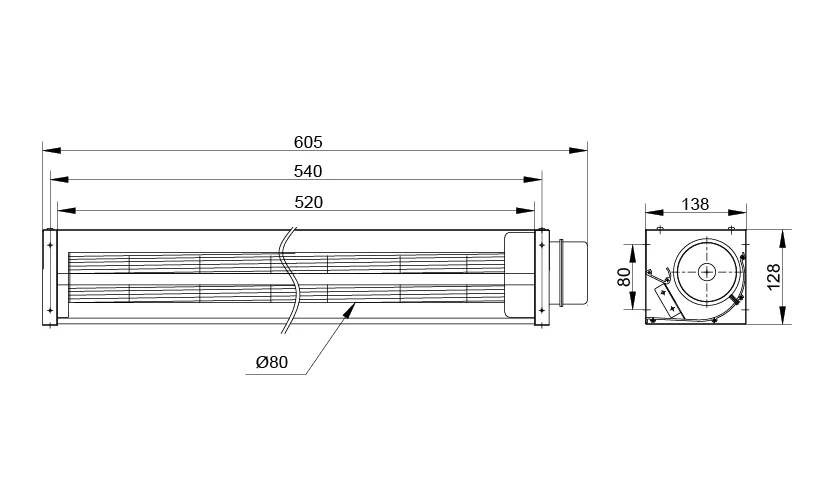

4. Outline Drawing
Certifications
Application Scopes
Recommend Products
Model Part No. | Rated Voltage VDC | Air Flow m³/H | Air Pressure Pa | Rated Speed RPM | Sound Level dB(A) | Total Length mm |
PC80B24440L | 24 | 642 | 59 | 1700 | 57 | 525 |
PC80B24520L | 24 | 720 | 58 | 1650 | 57 | 605 |
PC80B24620L | 24 | 816 | 55 | 1550 | 56 | 705 |
PC80B24696L | 24 | 960 | 53 | 1500 | 55 | 771 |
PC80B24860L | 24 | 1000 | 53 | 1500 | 55 | 935 |

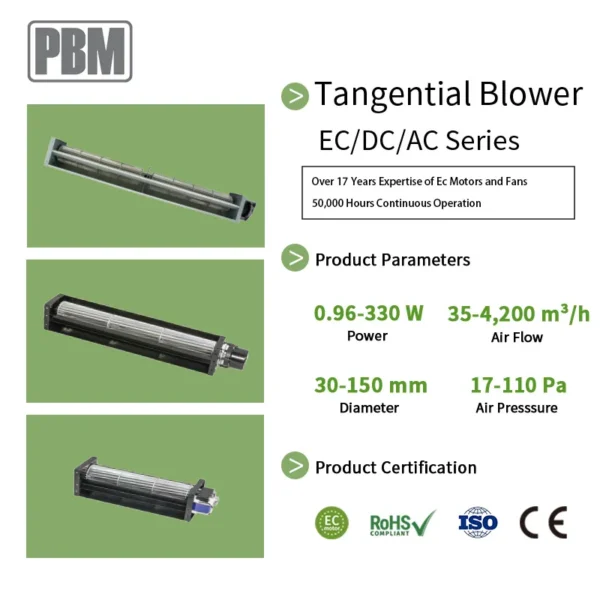

PBM DC Tangential Blowers with Different Impeller Sizes
PBM Cross Flow Fan 30mm Blades
Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.
