Cross flow fans — power supply AC110V/AC220V optional, 50HZ/60HZ +/-10%. The complete factory specification follows. Made by Suzhou Yiqiang Photoelectricity Technology Co., Ltd. (15 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Cross Flow Fans
- Power Supply: AC110V/AC220V optional, 50HZ/60HZ +/-10%
- Applicable Material: All kinds metals and some plastic
- Marking Speed: 7000mm/s
- Warranty: 2 Years
- Warranty Of Core Components: 2 Years
- Place Of Origin: Jiangsu
Technical Specifications
| Laser Type | Fiber laser |
|---|---|
| Marking Area | 110mm*110mm |
| Laser Source Brand | MAX/RAYCUS |
| Cooling System | AIR COOLING |
| Configuration | Gantry Type |
| Control System Brand | CLEFENG |
| Feature | Air-Cooled |
| Warranty | 2 Years |
| Mode Of Operation | Pulsed |
| Cnc Or Not | Yes |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, DXP |
| Condition | New |
| Key Selling Points | No consumable |
| Working Accuracy | +/-0.01mm |
| Place Of Origin | Jiangsu |
| Brand Name | Yiqiang |
| Control Software | CNF130 |
| Weight | 58 KG |
| Laser Source | 20W, 30W, 50W optional |
| Applicable Material | All kinds metals and some plastic |
| Laser Wavelength | 1064nm |
| Marking Speed | 7000mm/s |
| Power Supply | AC110V/AC220V optional, 50HZ/60HZ +/-10% |
| Lifespan Of Laser Source | More than 100000hours |
| Color | Red or Blue optional |
| HS Code | 8456110090 |
| Control System | CNF130 |
| Packing | Cartons or plywood box |
| Application | Laser Marking |
| Applicable Industries | Building Material Shops, Food & Beverage Factory, Printing Shops, Food & Beverage Shops, Advertising Company |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty Of Core Components | 2 Years |
| Core Components | Machine |
| Packaging Details | Standards plywood box or carton box |
| Port Of Dispatch | Qingdao/Shanghai/Ningbo |
| Selling Units | Single item |
| Single Package Size | 82X47X30 cm |
| Single Gross Weight | 58.000 kg |
| Supply Ability | 199 sets per Month |
Product Details
Laser marking on the fly for continuous production lines, marking “on the fly” offers great solution flexibility by enabling marking/engraving of the product while it is moving.

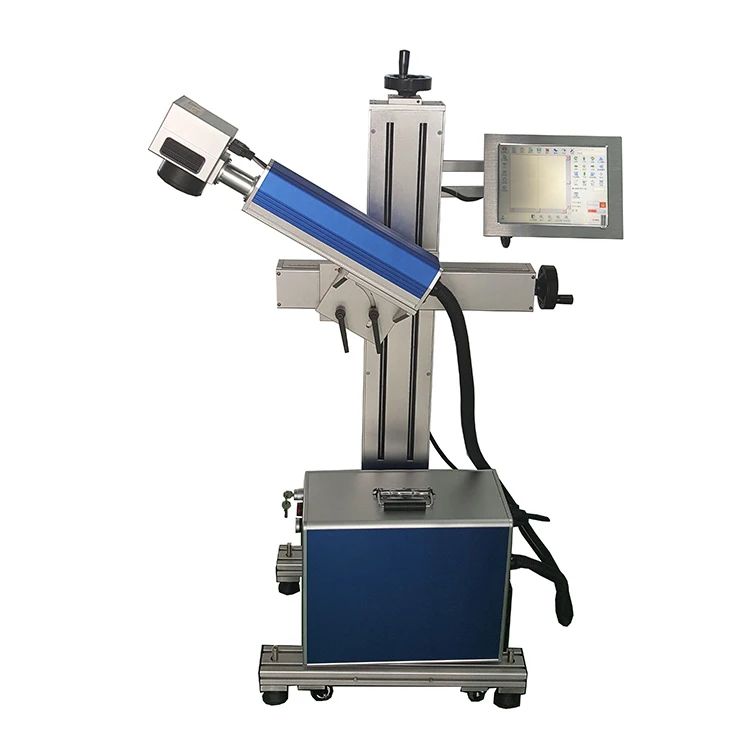

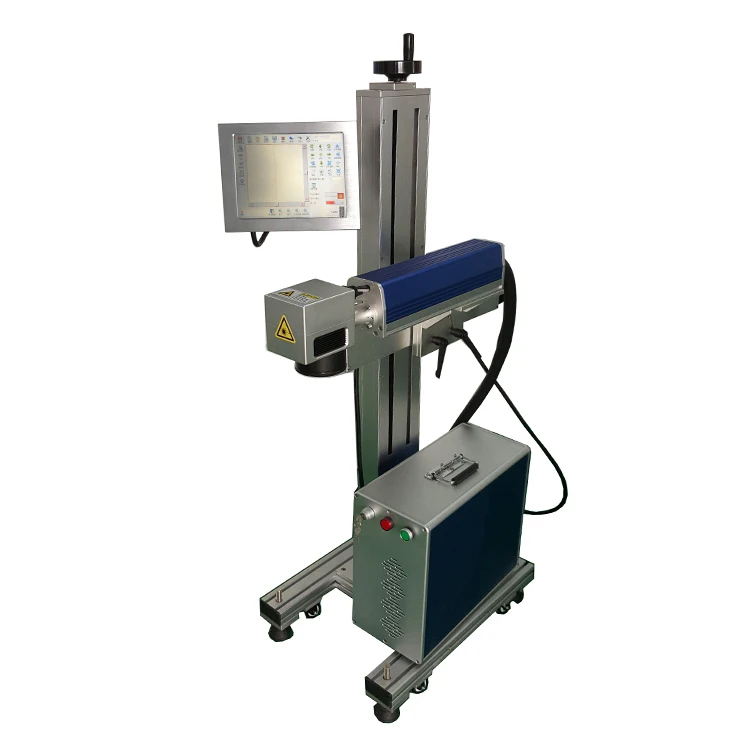

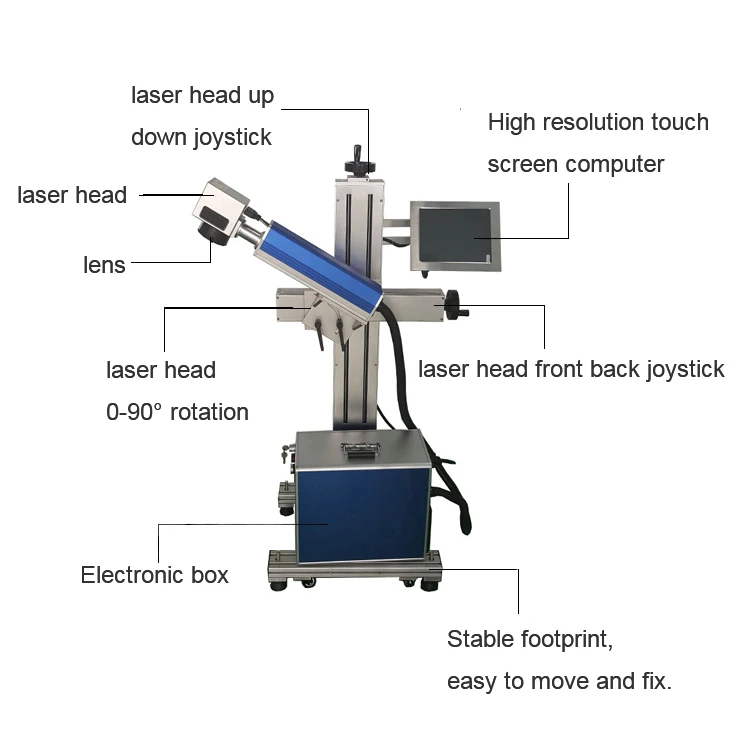

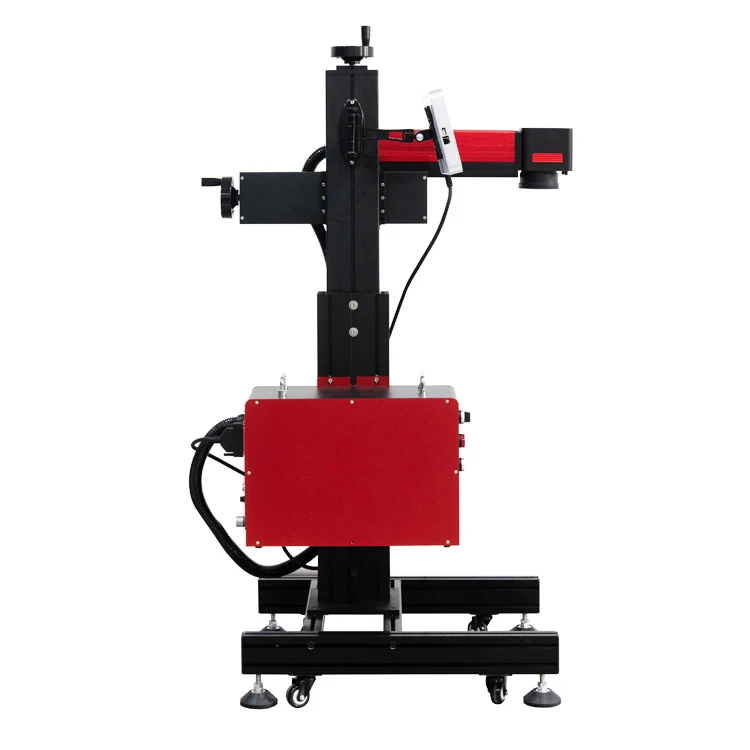

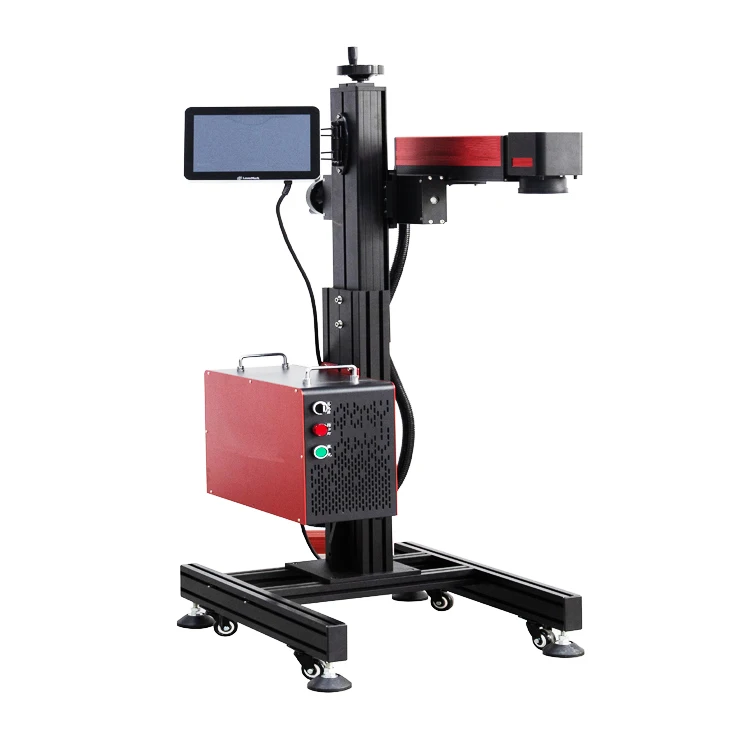

Yiqiang Flying fiber laser marking machine footprint is easy to move, can be easily integrated into all kinds exisiting production lines.
High adaptability: Machine adopts good quality laser source and fast speed galvo head, which maintaining excellent marking quality. Can be used on many materials like metal, plastic, alloy etc. Can be used in many industries like Jewelry engraving, Medical devices, Phone case engraving, Hardware industry, stainless steel tableware, electron components marking etc.
Yiqiang Flying fiber laser marking machine footprint is easy to move, can be easily integrated into all kinds exisiting production lines.
High adaptability: Machine adopts good quality laser source and fast speed galvo head, which maintaining excellent marking quality. Can be used on many materials like metal, plastic, alloy etc. Can be used in many industries like Jewelry engraving, Medical devices, Phone case engraving, Hardware industry, stainless steel tableware, electron components marking etc.

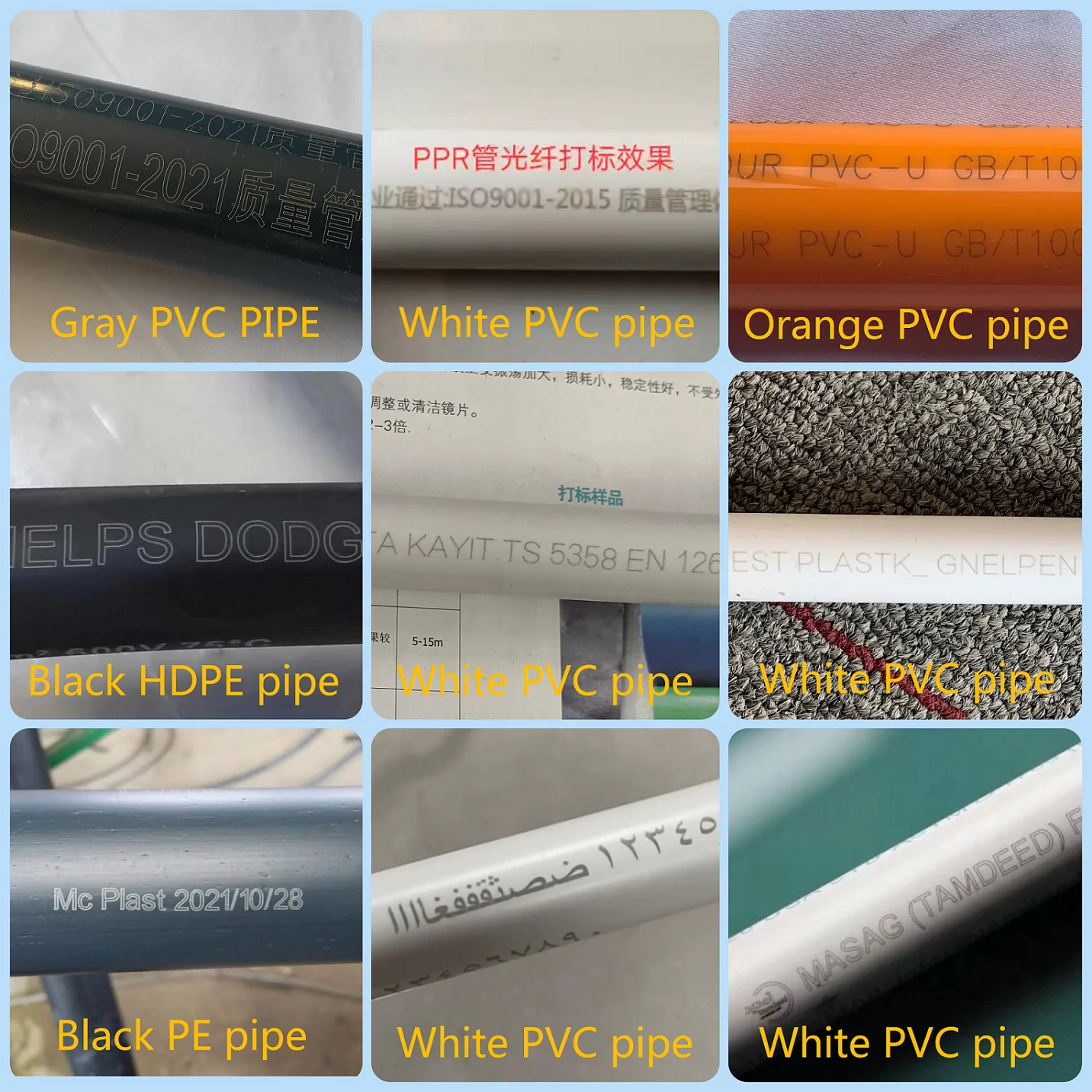

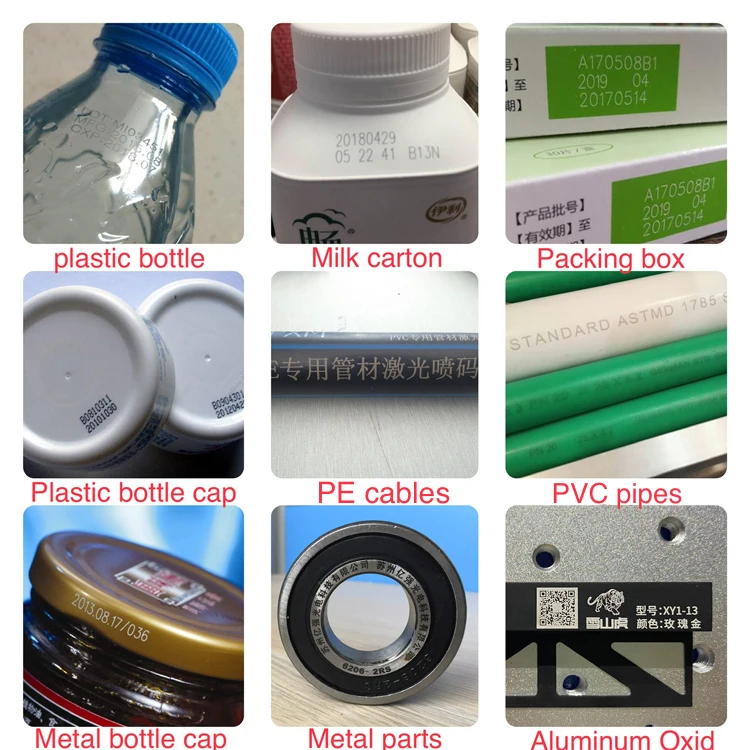

Some pipes marking show in real
Black PE: Marking white on it
Black HDPE pipes: Marking white on it.
White PVC pipes: Marking black on it
Orange PVC pipes: Marking black on it
White PVC pipes: Marking black on it
Orange PVC pipes: Marking black on it
What kind of pipes or cables you need to print?
Support input logo, text, digitals, serial number, date, times, etc.
Support every 1m or 2m.. marking
Support working on production line, also support static marking.
Support PLT output and imput
……
Also for other metal products, or some plastic products.
Support input logo, text, digitals, serial number, date, times, etc.
Support every 1m or 2m.. marking
Support working on production line, also support static marking.
Support PLT output and imput
……
Also for other metal products, or some plastic products.
Fiber Laser Marking Machine Specification Chart | ||||||||
Laser power | 20W | 30W | 50W | 100W | ||||
Optical Quality (M2) | <1.5 | <1.8 | ||||||
Laser wavelength | 1064nm | |||||||
Marking area | 110X110MM | |||||||
Marking speed | 7000mm/s | |||||||
Positioning accuracy | +/-0.01mm | |||||||
Laser frequency | 20-60kHz | 20-60kHz | 20-100kHz | 20-200kHz | ||||
Minimum character | letter 1x1mm | |||||||
Cooling methods | Air cooling | |||||||
Power supply | AC220V/60HZ/ac110V/50HZ | |||||||
Format supported | AI, BMP, PLT, DXF, DST, JPG, BMP, PNG, etc. | |||||||
Gross power | 500W | |||||||
Working temperature | 0-40 degree | |||||||
Why choose fiber online laser marking machine?
Permanent marking: Laser marking is a permanent marking. It won’t fade or become less discernable as time passes, even in the water.
Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
Powerful function: Machine can mark text, date, QR code, barcodes, serial numbers, graphics. Meet different industry marking demands.
High efficiency: Computer operated, touch screen computer. Suitable for automatically processing (like production line). 30W laser power, production line speed 70m/min is workable.
If you have any demands, kindly provide us marking contents, we will recommend right laser power.
Environmentally friendly: Using no harsh chemicals during the process.
Cost-effective: No maintenance during the 100,000 hours working life. One machine can be used in many different materials & industry.
Permanent marking: Laser marking is a permanent marking. It won’t fade or become less discernable as time passes, even in the water.
Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
Powerful function: Machine can mark text, date, QR code, barcodes, serial numbers, graphics. Meet different industry marking demands.
High efficiency: Computer operated, touch screen computer. Suitable for automatically processing (like production line). 30W laser power, production line speed 70m/min is workable.
If you have any demands, kindly provide us marking contents, we will recommend right laser power.
Environmentally friendly: Using no harsh chemicals during the process.
Cost-effective: No maintenance during the 100,000 hours working life. One machine can be used in many different materials & industry.
Comparision | Fiber Laser Marking Machine | Inkjet Machine | ||||||
Print color | Black PE marking white, White PVC mark black, and many more colors depends on products | Can inkjet one color only | ||||||
Consumable parts | NO | Filter need to be replaced regularly | ||||||
Consumable costs | NO | Expensive (Ink and solvents) | ||||||
Maintenance | Minimal (Clean lens regularly) | Heavy(Ink line must be clean frequently) | ||||||
Environmental impact | NO | Ink and solvents emit a taste that's not good for workers. | ||||||
Printing effect | Beautiful, permanent, never fade, even in the water | Non-permanent, easy to erase. | ||||||
Summary: Laser marking machine has lower usage cost, forever marking, and environmental friendly | ||||||||
FAQ
1. Are you factory?

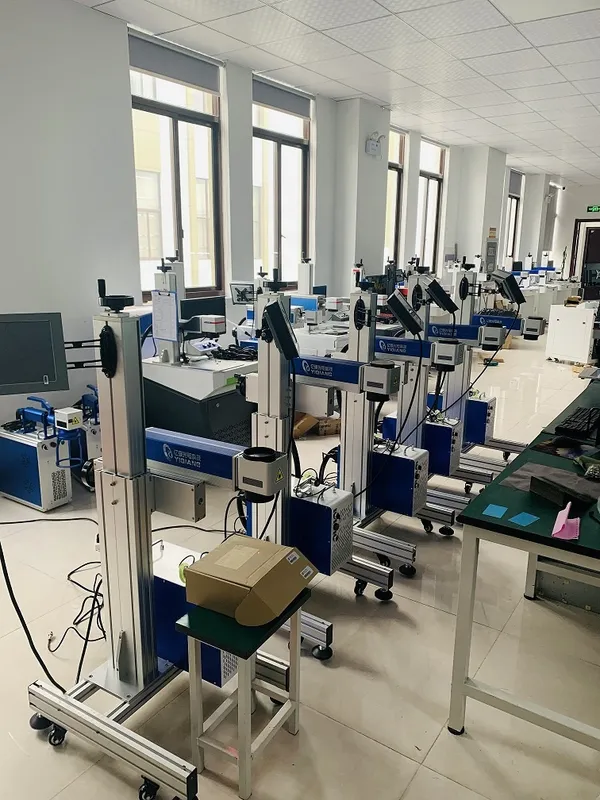

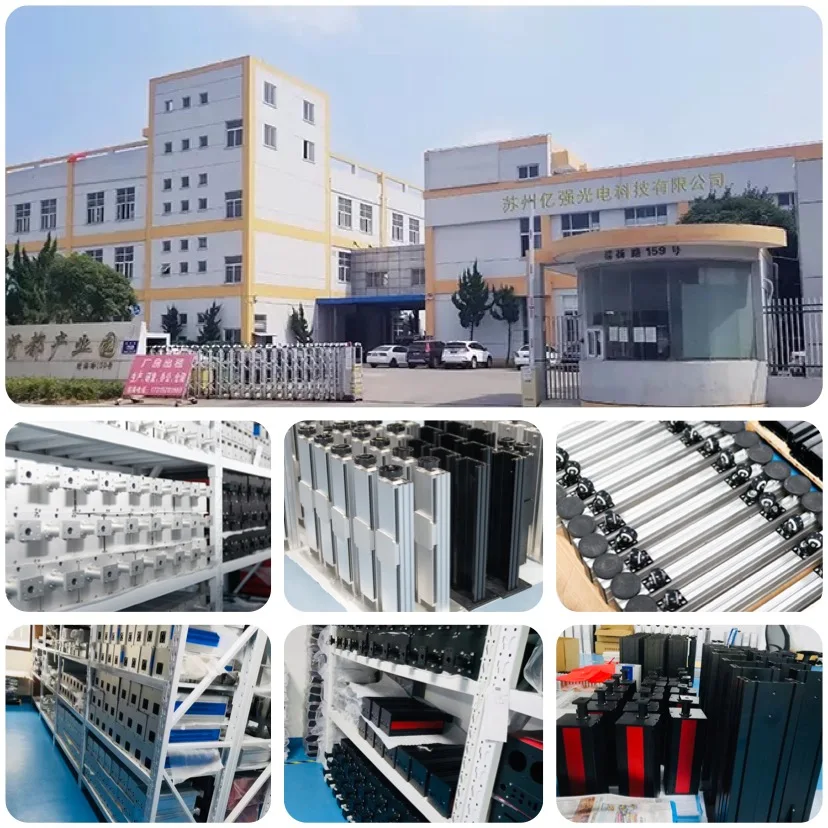

Yes, we are factory in Suzhou City. This flying laser marking machine, we open dies ourselves, from design, color to packing, every aspect are planed carefully to meet domestic and aboard customers using, also save transportation cost. This project we cost usd160000 total. Machine has enough stock, can deliver in time. Welcome your visit and cooperation.
2. Machine is easy to operate?
Yes, it is. Provide English installation guide videos and user manual. Fast to install and learn.
3. Machine support 110V, USA plug?
Yes, support. Also support UK plug, Europe plug, South Africa plug, etc.
4. Can you help test samples?
Yes, we can. If we have same material, will test sample timely. Also, you can send to us your own material to test.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $2750 / set
- 3–4 set: US $2650 / set
- 5+ set: US $2250 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the cross flow fans be supplied for my local voltage?
The standard configuration is AC110V/AC220V optional, 50HZ/60HZ +/-10%. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Yiqiang Photoelectricity Technology Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, Trading Company. Browse the full Suzhou Yiqiang Photoelectricity Technology Co., Ltd. range on HVACR Nexus.
