This cross flow fans is published with the manufacturer’s full specification — 230V, 31.6KW, 15.8KW. Made by Shandong Kochef Commercial Kitchen Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Cross Flow Fans
- Model Number: CP-COG
- Power: 31.6KW, 15.8KW
- Power Source: Gas
- Voltage: 230V
- Material: Corn, Flour, Milk, Nuts, Other, Soybean, Vegetables
- Warranty: 1 Year
Technical Specifications
| Voltage | 230V |
|---|---|
| Power | 31.6KW, 15.8KW |
| Temperature Range | 150 °F-500 °F |
| Installation Type | Freestanding |
| Number Of Shelves | 5 |
| Control Type | Knob Control, Manual Control, Button Control |
| Special Feature | Removable Crumb Tray, Cool Touch Exterior |
| Power Source | Gas |
| Timer | Manual Timer |
| Warranty | 1 Year |
| Plug Type | EU Plug, UK Plug, Us Plug |
| Door Style | Hinged Door |
| Application Fields | Bakery, Commercial Catering, Restaurant, Hotel, Snack Food Factory, Flour Mill |
| Material | Corn, Flour, Milk, Nuts, Other, Soybean, Vegetables |
| Place Of Origin | Shandong, China |
| Model Number | CP-COG |
| Brand Name | KOCHEF |
| Dimension(L*W*H) | 97*113*157/175cm |
| Output Product Name | Commercial American-style Gas Convection Oven |
| Oven Size | 74*57*50cm/74*57*50cm*2 |
| Overall Dimensions | 97*113*157/175cm |
| Weight | 175kg per single cabinet |
| Product Name | Commercial American-style Gas Convection Oven |
| Type | Gas Convection Oven |
| Interior Dimensions | 74*57*50cm/74*57*50cm*2 |
| Gas Type | NG/LP |
| Certification | CE/ETL/CSA/UL/NSF/US Sanitation |
| Usage | Commercial Usage |
| MOQ | 1 |
| Selling Units | Single item |
Product Details
Products Description
American-style Gas Convection Oven | Commercial Six-Door Tall Refrigerated Cabinet 1280L | |
Model number | CP-COG | |
Gas Type | NG/LP | |
Interior Dimensions | 74*50*57/74*50*57 cm*2 | |

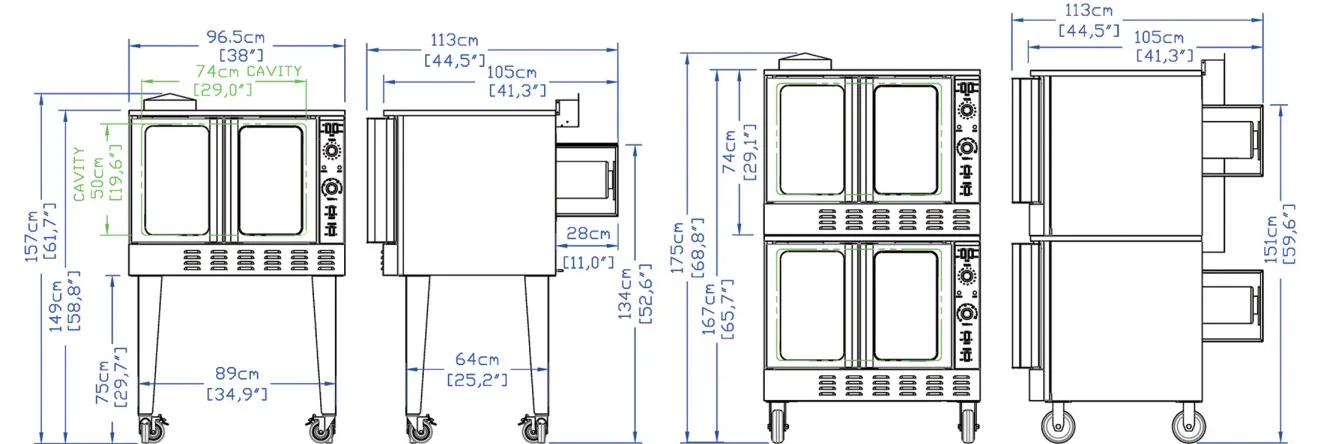

Overall Dimensions | 97*113*157/175 cm | |
Voltage | 230V/50Hz | |
Power | 15.8/31.6KW | |
Powe Source | Gas | |
Certification | CE/ETL/CSA/UL/NSF/US Sanitation | |
Model.No | Power | Interior Dimensions | Overall Dimensions | NG Consumption | LP Consumption | Voltage |
CP-COG Single | 15.8KW | 74*50*57 cm | 97*113*157 cm | 1.55m³/h | 1.22kg/h | 230V/50Hz |
CP-COG Double | 31.6KW | 74*50*57 cm*2 | 97*113*175 cm | 3.1m³/h | 2.44kg/h | 230V/50Hz |

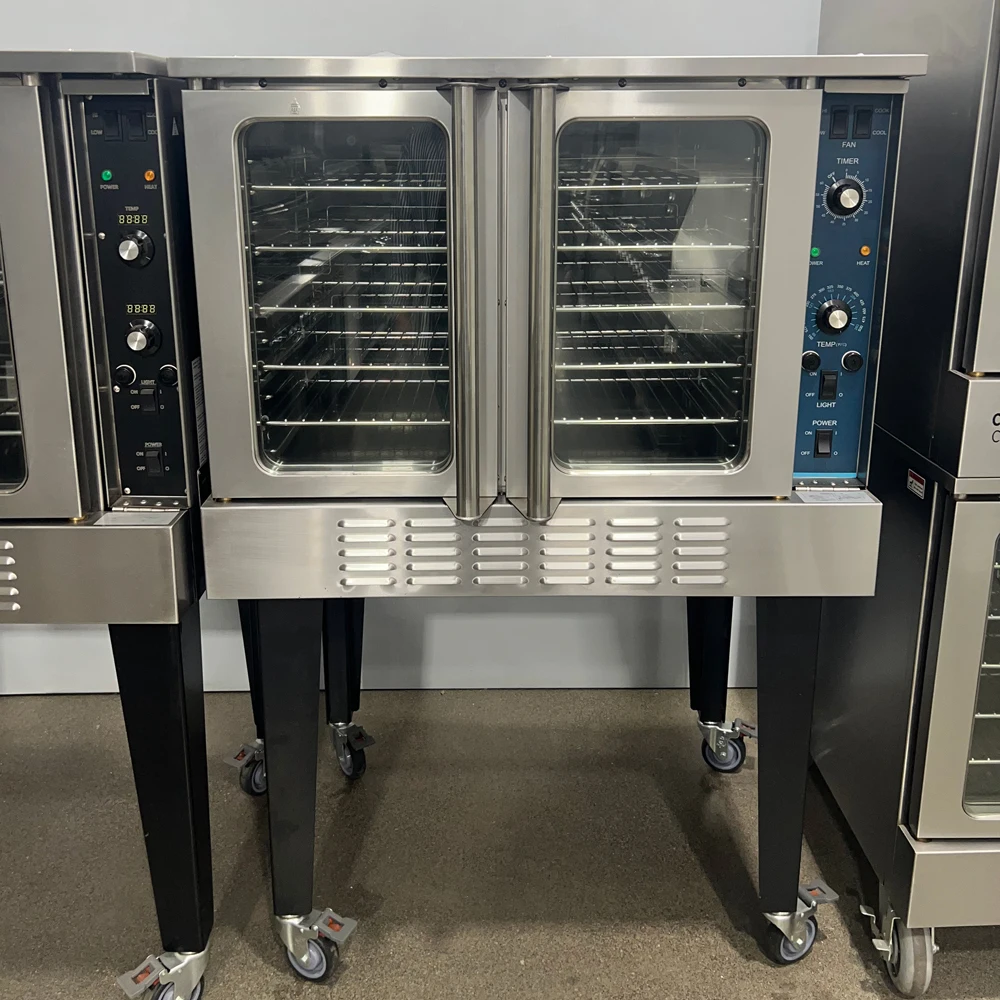

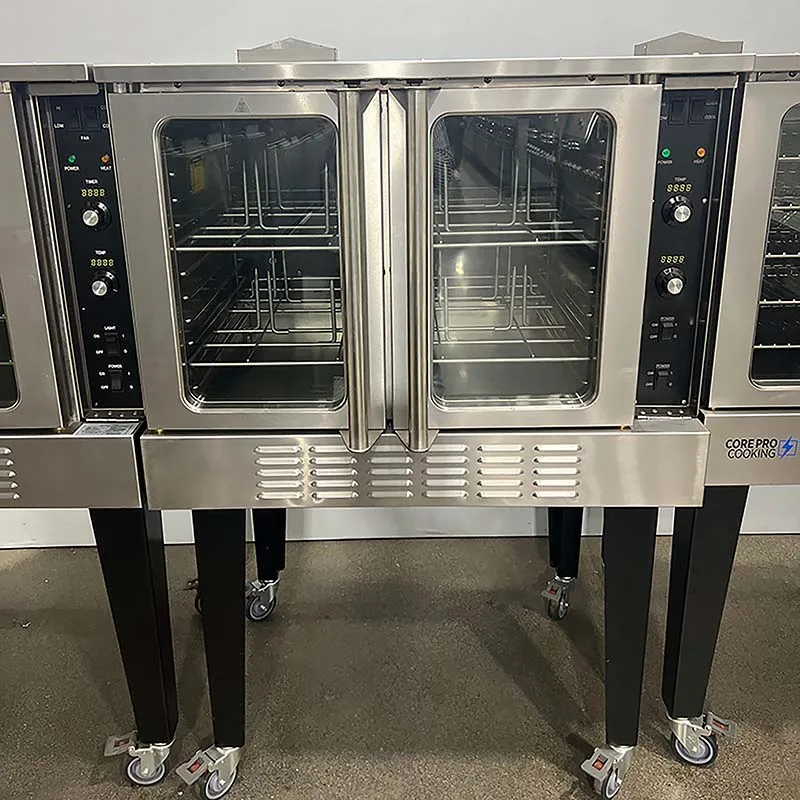

American-style Gas Convection Oven
Full-Size Convection Oven,stainless steel structure, with high-power jet burners.
A strong dual-speed fan for full hot air circulation—enables flexible baking control and cuts time by 20%–30% vs. conventional static ovens.
Up to 10 shelf positions fit full-size trays for fast high-volume output. Double-layer tempered glass door + 2 lights for easy monitoring.
Auto shuts off heating/fan when door opens (safe); forced cooling mode boosts cleaning efficiency.
Up to 10 shelf positions fit full-size trays for fast high-volume output. Double-layer tempered glass door + 2 lights for easy monitoring.
Auto shuts off heating/fan when door opens (safe); forced cooling mode boosts cleaning efficiency.
Technical Specifications:
Gas power: 54,000 BTU (15.8kW)
Power supply: 230V/50Hz
60-minute timer with reminder function.
Precise temperature control, adjustable range: 150°F-500°F (66℃-260℃)
Full enamel interior for easy cleaning.
Dual-speed motor, rotation speed: 950-1437 RPM (Revolutions Per Minute)
5 nickel-plated shelves with 10 adjustable positions.
Professional ignition control module combined with hot-surface ignition for safety and reliability.
Flip-up control panel for convenient and reliable maintenance.

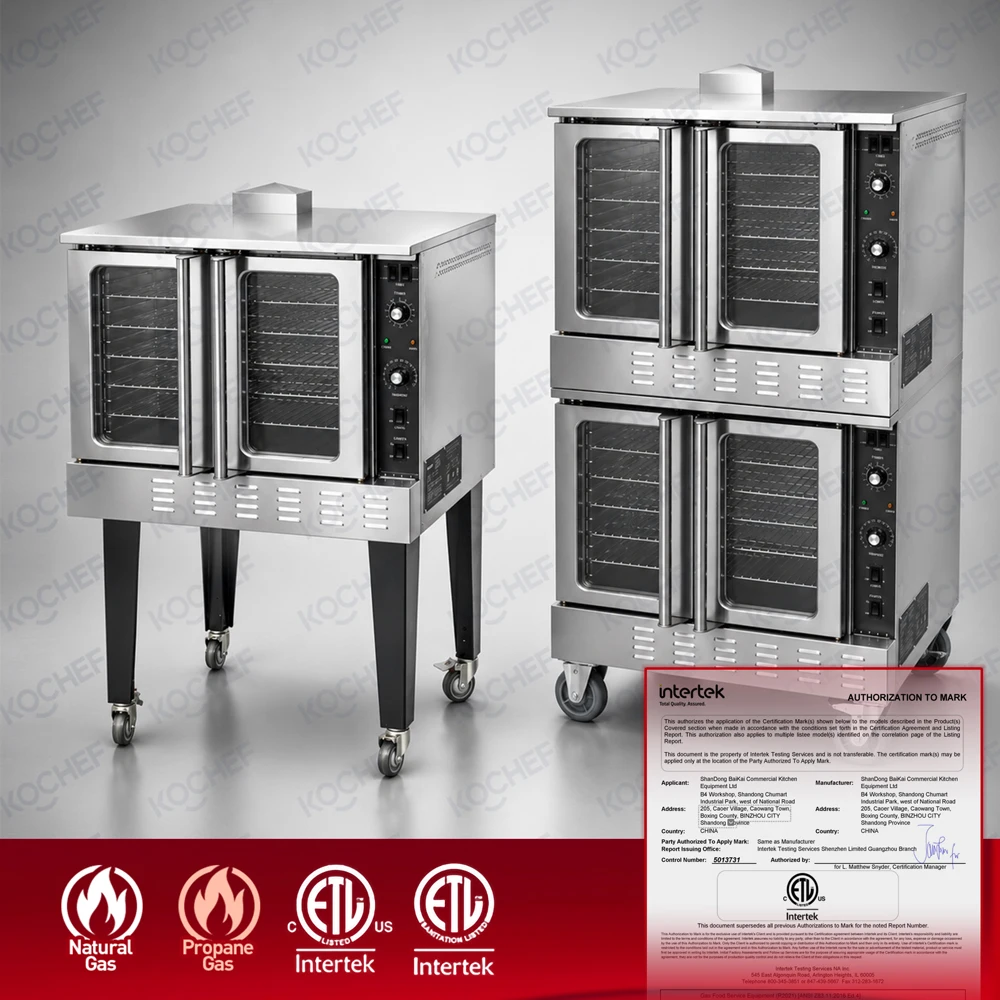

Single-layer use, or double-layer stacking (with different optional kits) to better utilize space and improve production
capacity.
Default natural gas supply, including LPG (liquefied petroleum gas) conversion kit.
Gas power: 54,000 BTU (15.8kW)
Power supply: 230V/50Hz
60-minute timer with reminder function.
Precise temperature control, adjustable range: 150°F-500°F (66℃-260℃)
Full enamel interior for easy cleaning.
Dual-speed motor, rotation speed: 950-1437 RPM (Revolutions Per Minute)
5 nickel-plated shelves with 10 adjustable positions.
Professional ignition control module combined with hot-surface ignition for safety and reliability.
Flip-up control panel for convenient and reliable maintenance.
Single-layer use, or double-layer stacking (with different optional kits) to better utilize space and improve production
capacity.
Default natural gas supply, including LPG (liquefied petroleum gas) conversion kit.
Gas Convection Oven
1. This equipment is for commercial use only; residential use is strictly prohibited.
2. 180cm-long power cord with plug, rated for 230V.
3. 3/4” NPT threaded gas connection.
4.Natural Gas (NG): 875pa; pipeline supply pressure must not exceed 3500pa.
2. 180cm-long power cord with plug, rated for 230V.
3. 3/4” NPT threaded gas connection.
4.Natural Gas (NG): 875pa; pipeline supply pressure must not exceed 3500pa.
Liquefied Petroleum Gas (LP): 2500pa; pipeline supply pressure must not exceed 3500pa.
5. Safe installation clearance: Maintain a distance of at least 15cm from flammable surfaces on the side and rear of the
equipment.
5. Safe installation clearance: Maintain a distance of at least 15cm from flammable surfaces on the side and rear of the
equipment.

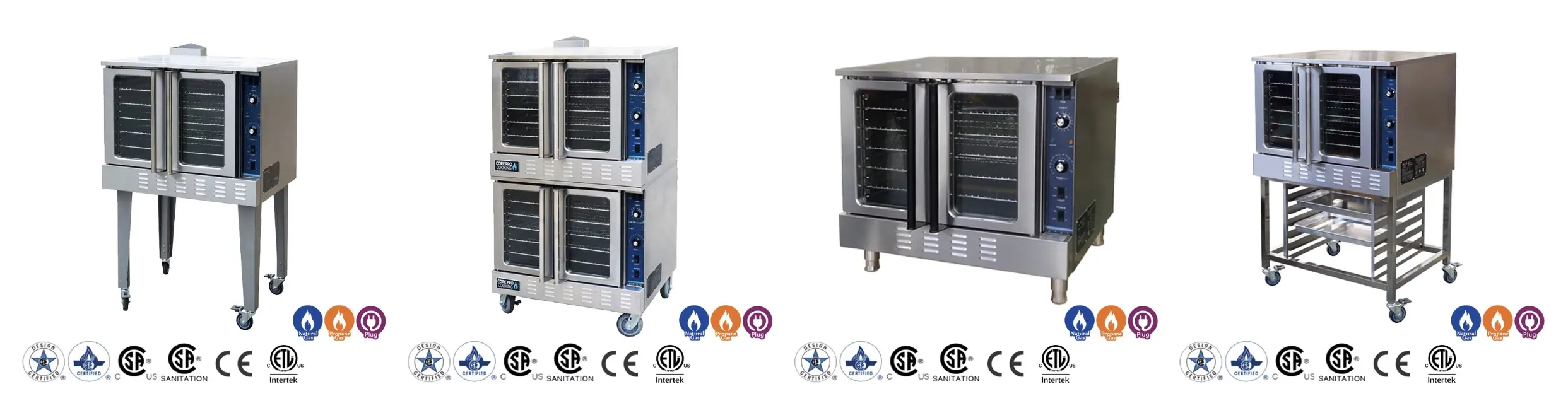

1. The single-layer oven consists of one cabinet and a single-layer assembly.

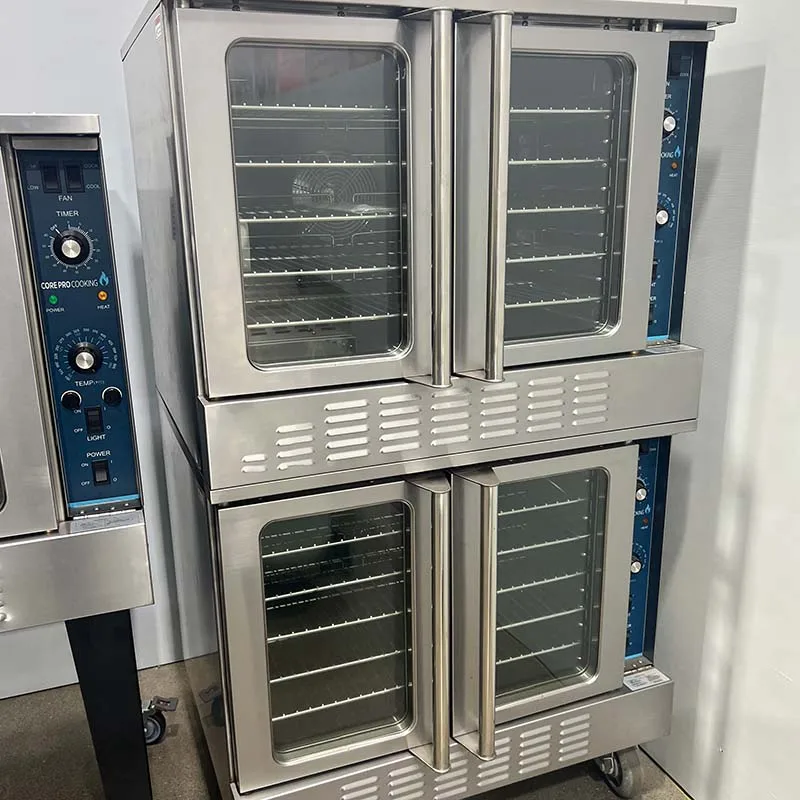

2. The double-layer oven consists of two cabinets and a double-layer assembly.
3. Single-layer assembly: 4 steel legs and 4 pieces of 4-inch swivel casters with brakes.
4. Double-layer assembly: 4 heavy-duty 6-inch casters, connecting components, and a connecting smoke hood.

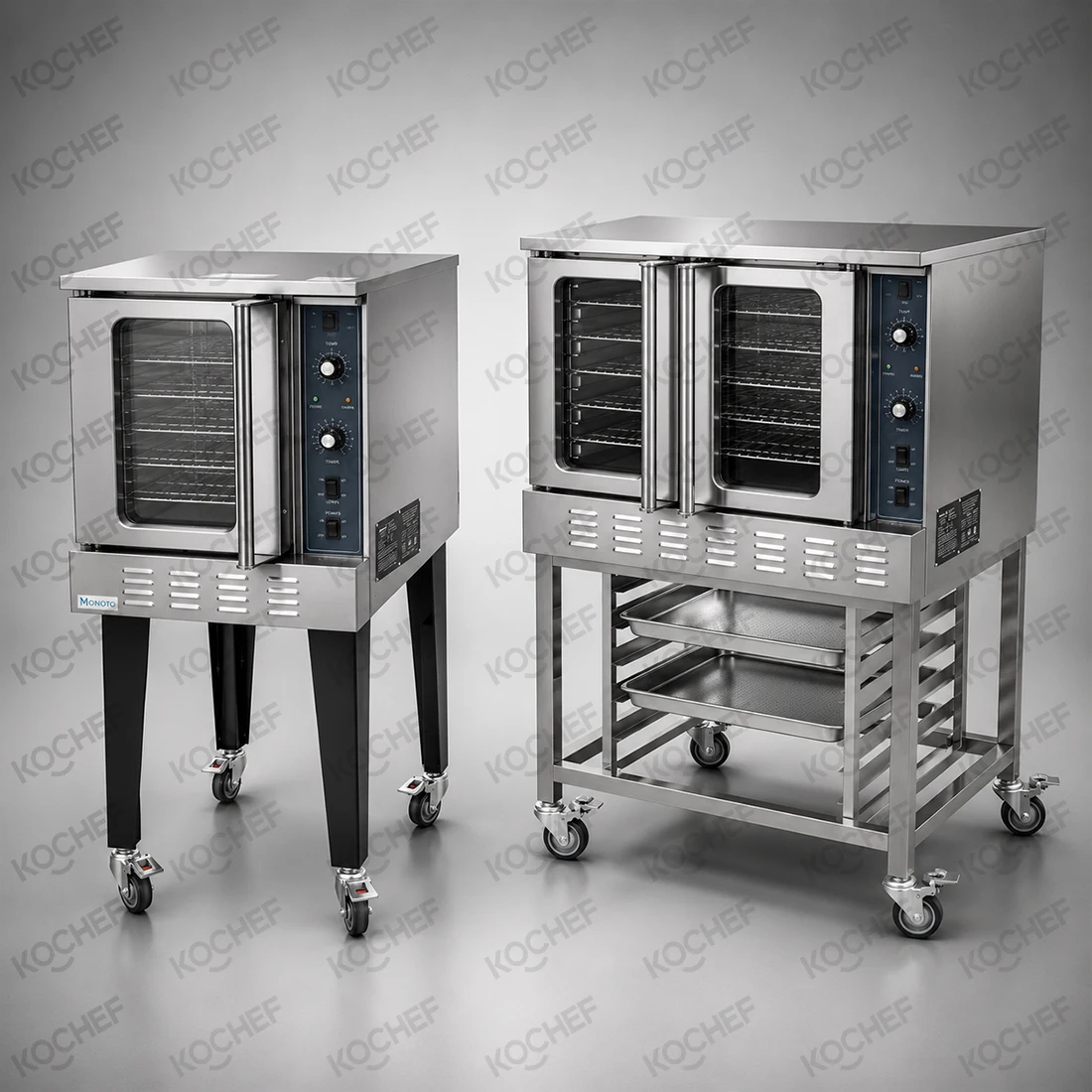

5. Additionally, 4-inch stainless steel countertop feet and stainless steel shelf assemblies are available as options.
2. The double-layer oven consists of two cabinets and a double-layer assembly.
3. Single-layer assembly: 4 steel legs and 4 pieces of 4-inch swivel casters with brakes.
4. Double-layer assembly: 4 heavy-duty 6-inch casters, connecting components, and a connecting smoke hood.
5. Additionally, 4-inch stainless steel countertop feet and stainless steel shelf assemblies are available as options.

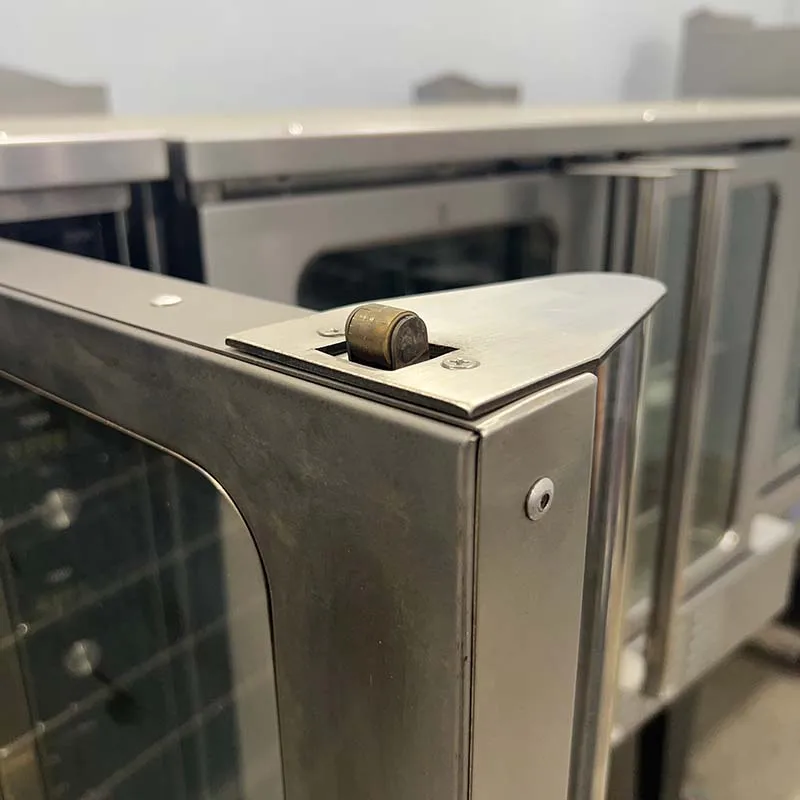

Door latches
The latches ensure good sealing, helping to maintain the ideal cooking temperature and ensuring that food can be cooked as expected.

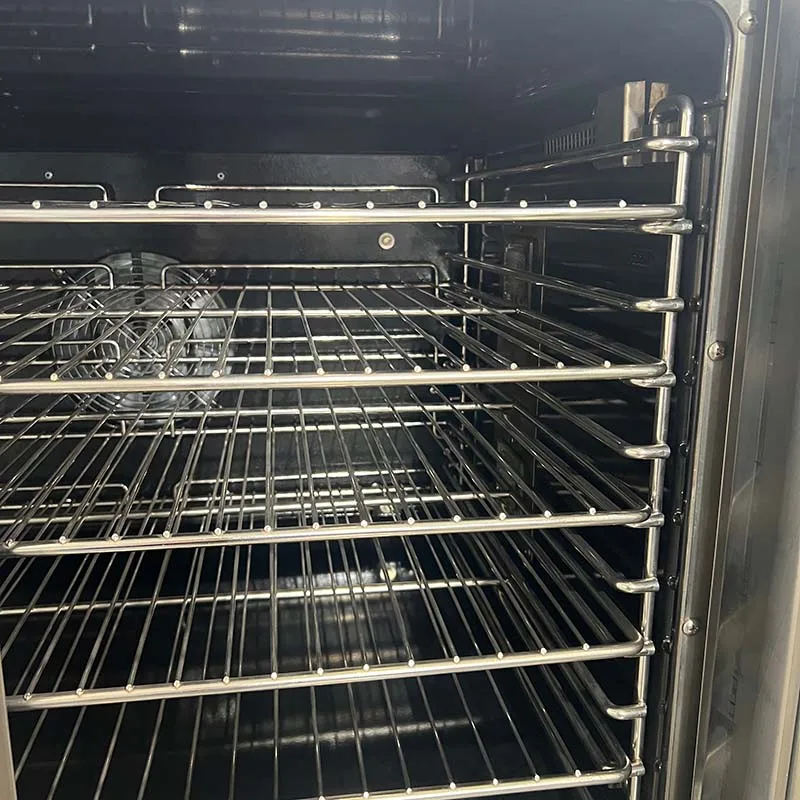

10 shelf positions
The oven supports up to 10 shelf positions that fit full-size trays, allowing for efficient production of large batches at
speed.
speed.

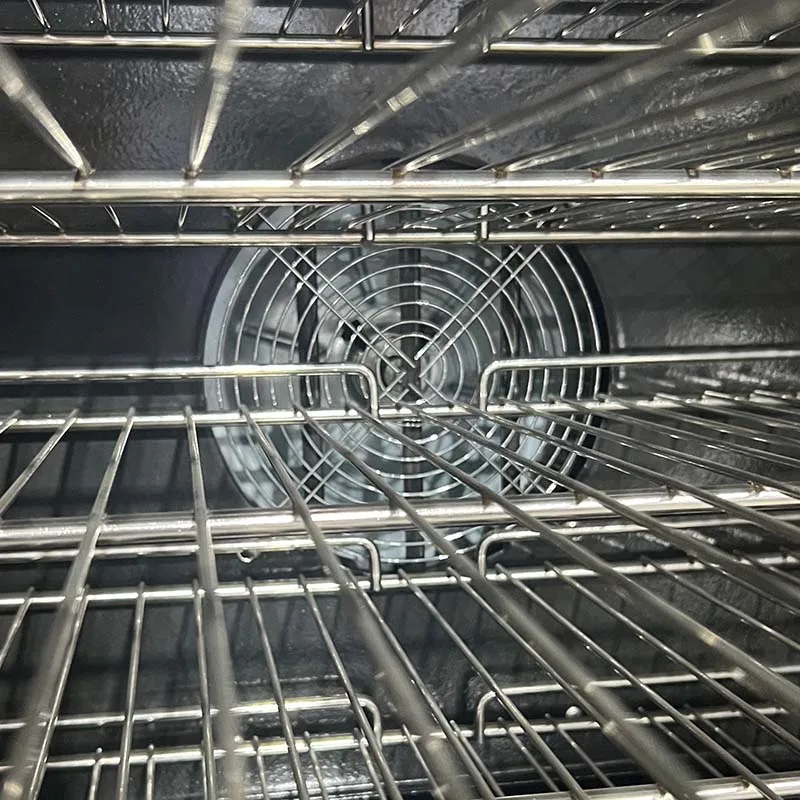

Dual-speed fan
A powerful dual-speed fan delivers thorough hot air circulation, allowing for flexible baking control and reducing baking time by 20%–30%.

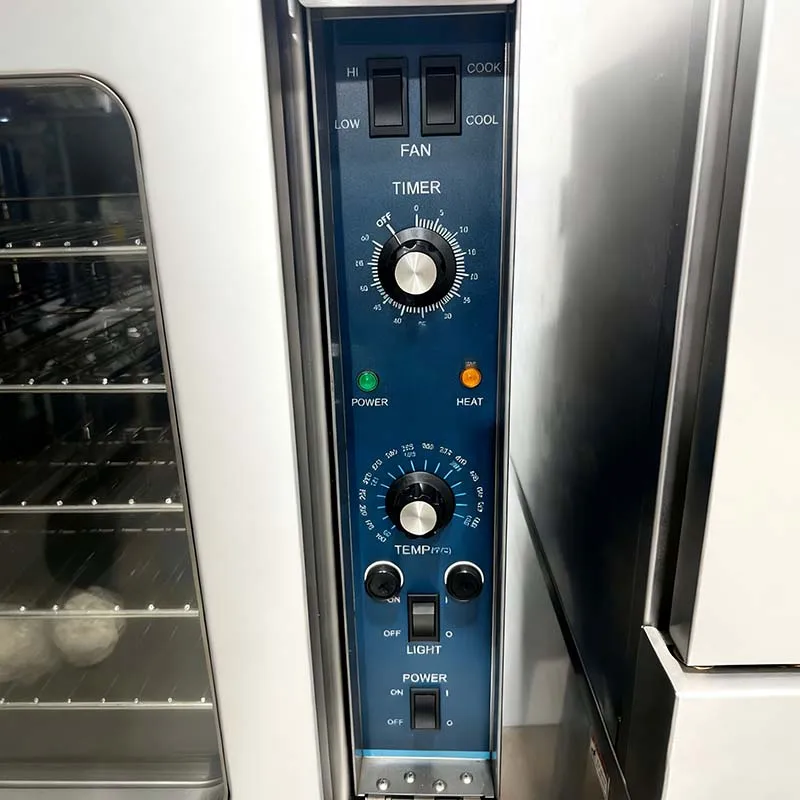

Operation control panel
The knob and related controls on the oven's operation control panel allow users to set the temperature with precision.
Double-layer tempered glass door
Equipped with a double-layer tempered glass door and two lights, the oven allows for convenient monitoring of internal baking status.

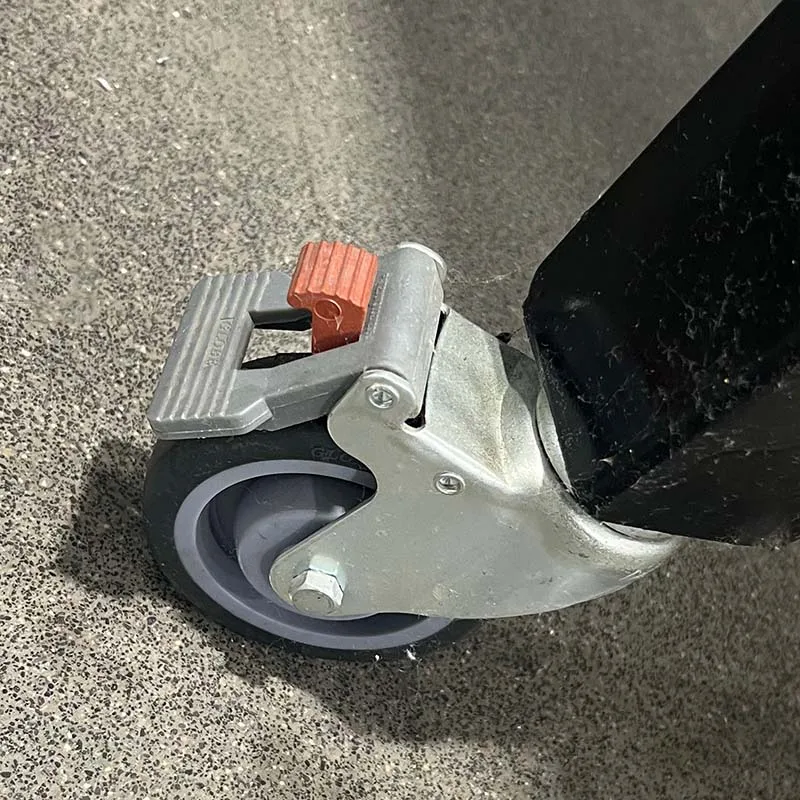

Swivel caster
Swivel casters elevate the equipment, reducing friction between the base and the floor while extending the device’s service life.
Company Profile
Shandong Kochef Commercial Kitchen Equipment Co., Ltd.
As a leading provider of integrated commercial kitchen solutions, KOCHEF is committed to delivering innovative, high-quality products and services to global foodservice enterprises.We offer comprehensive solutions that include kitchen design, equipment R&D & customization, and engineering services.
Headquartered in China, KOCHEF operates advanced R&D facilities and a commercial kitchen design studio, alongside our proprietary online 3D kitchen design platform, Chulian, which enhances our design capabilities. Our products are certified with CE, ETL,UKCA and ISO9001 ensuring compliance with global standards of quality and safety.
With service hubs in Singapore and Los Angeles, we currently serve North America and Southeast Asia, and our products are exported to over 40 countries and regions across Europe, the Americas, Africa, the Middle East, and Southeast Asia.We specialize in creating tailored kitchen solutions for five-star hotels, restaurant chains, and independent dining establishments, consistently exceeding client expectations.
Our products are manufactured under strict QA & QC systems with standardized production processes. Each item undergoes multiple rigorous inspections to ensure superior quality and full compliance with EU & US export standards, delivering reliable performance for commercial use.
Certifications
Exhibition

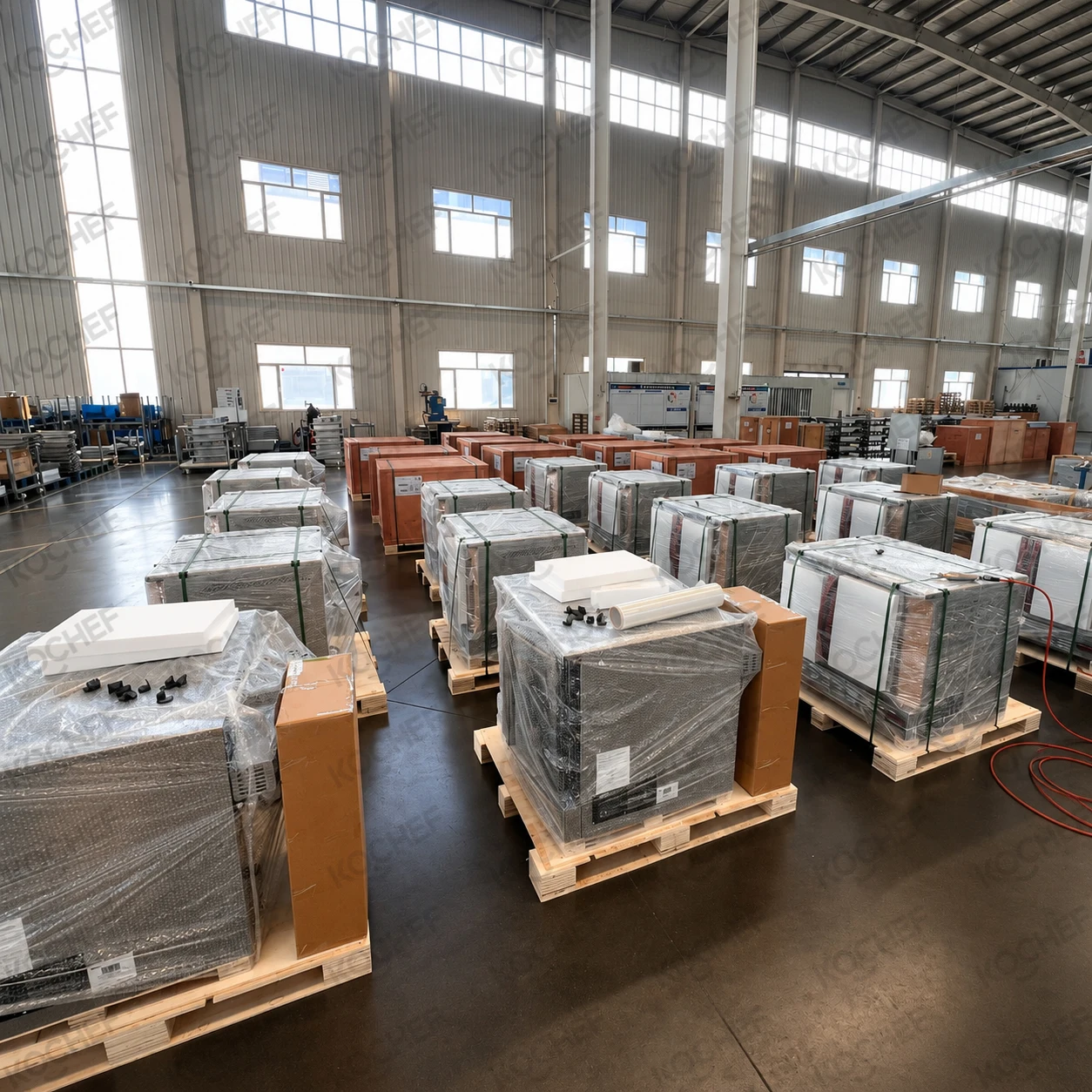

Product packaging
