Weifang Hanhong Energy-Saving Temperature Control Equipment lists this cross flow fans with its own published specification, unedited. Supplier profile: 10 years on the platform. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Cross Flow Fans
- 工作温度范围: -35 ~ 45 ℃
- 电压: 220V/380V
- 机械测试报告: 可提供
- 保修: 1年
- 出厂视频检验: 可提供
- 核心卖点: 环保, 自动, 高精度, 操作简便, 价格富有竞争力, 高生产率, 远程监控, 使用寿命长, 双色, 远程控制, 专利产品, 节能, 维护保养成本低, 知名品牌PLC, R410a, 精准温度控制, Digital, 物联网, 其他
Technical Specifications
| 工作温度范围 | -35 ~ 45 ℃ |
|---|---|
| 电压 | 220V/380V |
| 机械测试报告 | 可提供 |
| 保修 | 1年 |
| 出厂视频检验 | 可提供 |
| 核心卖点 | 环保, 自动, 高精度, 操作简便, 价格富有竞争力, 高生产率, 远程监控, 使用寿命长, 双色, 远程控制, 专利产品, 节能, 维护保养成本低, 知名品牌PLC, R410a, 精准温度控制, Digital, 物联网, 其他 |
| 产地 | Shandong, China |
| 功率 (W) | 22.6KW |
| 品牌名称 | HANHONG |
| 型号 | LYBKLNJ-060 |
| 尺寸 (长*宽*高) | 800x800x1060mm, 450x1500x700mm |
| 制冷剂 | R410a |
| 加热能力 | 22.6KW |
| 冷却能力 | 17.5KW |
| 压缩机类型 | 涡旋变频压缩机 |
| 安装 | 自由站立 |
| 保修后服务 | 在线支持 |
| 工作环境温度 | -35 ℃ ~ 43 ℃ |
| 营销类型 | EVI空气源热泵 |
| 姓名 | 空气对空气热泵 |
| 销售单位 | 单个商品 |
| 单个包装尺寸 | 80X80X135 厘米 |
| 单个产品毛重 | 220.000 公斤 |
Product Details
Product Description

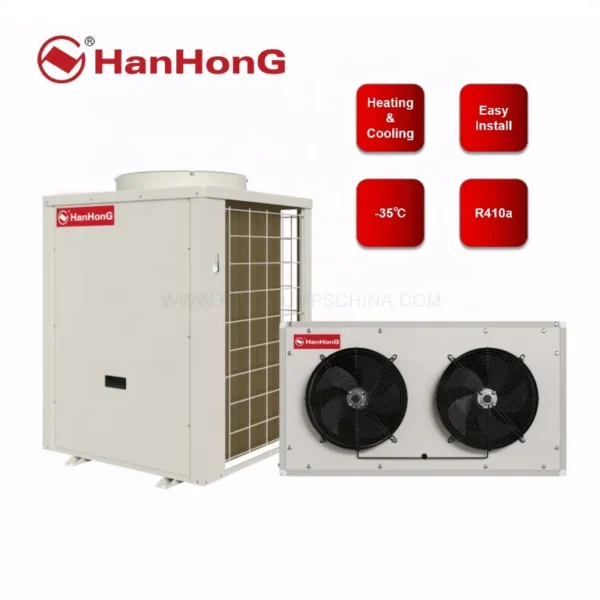

EVI R410a Air-to-Air Heat Pump

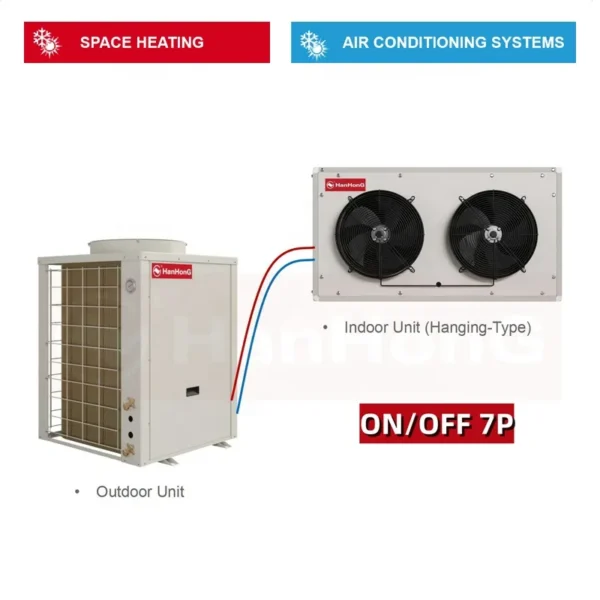

HANHONG Air-to-air heat pumps transfer heat from the outside air to the air inside, increasing the air temperature in each room. This warm air enters your home through a series of fan coil units, or ‘blowers’. Air-to-air heat pumps are sometimes referred to as air conditioning. While many people think of air conditioning as a way of cooling buildings, it can also be used for heating.

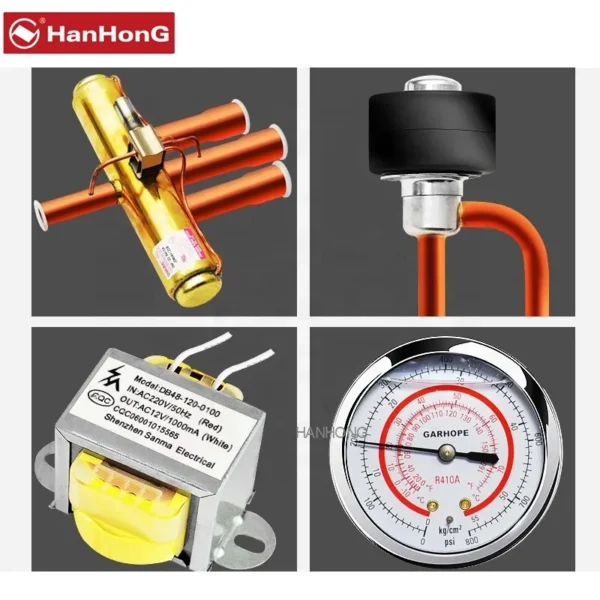

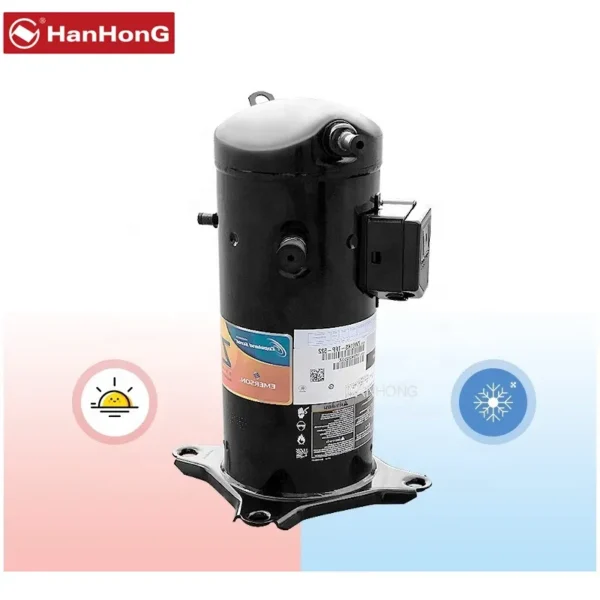

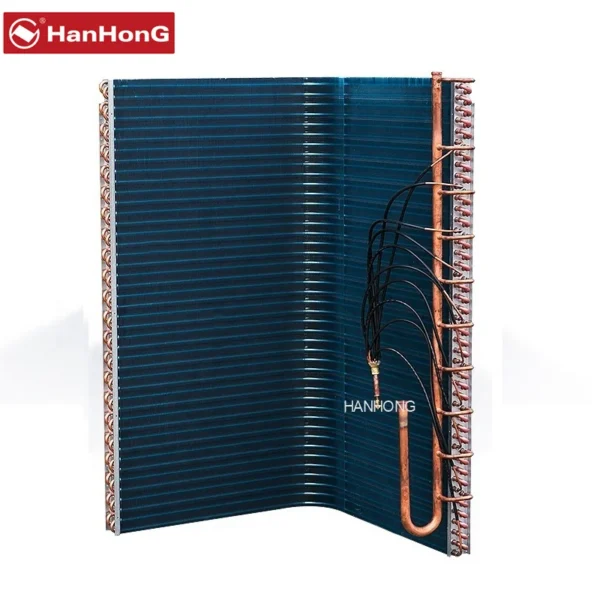

Unit Mainly Components Includes: Panasonic Brand Rotary Twin-Cylinder EVI Low Temp DC Inverter Compressor, Danfoss Brand Electric Expansion Valve SANHUA Brand Four way valve, Sensata Brand Pressure Transducer, Wolong Brand Dc Motor, Hydro-philic Aluminium foil & Inner-Grooved Copper Evaporator, Refrigerant valve and De-Ice Heater so on parts.
● Heating in Summer
● Cooling in Winter
HEAT PUMP TYPE | Air to Air Heat Pump, EVI Heat Pump, Air Souce Heat Pump, | ||||||
Function | Heating & Cooling | ||||||
Frequency | ON/OFF 7HP, DC inverter 8HP, ON/OFF 25HP | ||||||
*Rated Heating Capacity (7°C/45°C) | 22.6kw/25.2kw/75kw | ||||||
*Rated Cooling Capacity (35°C/7°C) | 17.5kw/20kw/65kw | ||||||

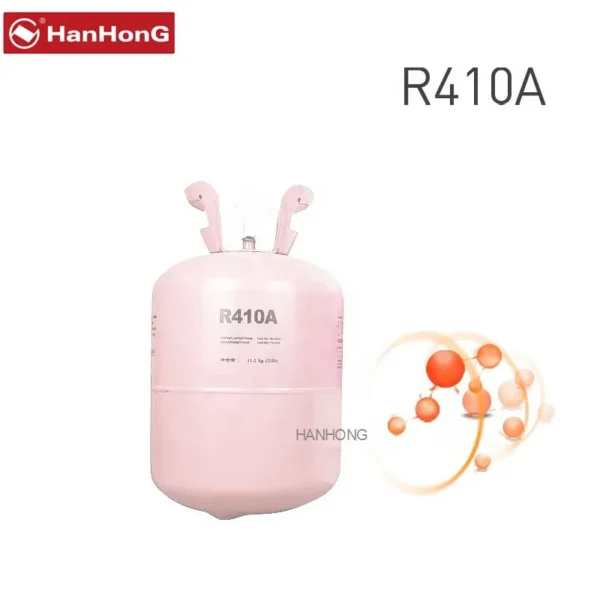

*Refrigerant | R410a | ||||||
*Heating & Hot Water Temp | 30℃~60℃ | ||||||
*Outdoor Temperature limit | -35℃~43℃ | ||||||
>>>7HP ON/OFFAir -to-Air Heat Pump
>>>8KW DC-Inverter Air-to-Air Heat Pump
Our Advantages
SIMPLE INSTALLATION & MAINTENANCE
It’s just as easy as installing a regular air conditioner. No complex pipe fittings or systems are required, saving installation, use and maintenance costs.
-30℃ ULTRA-LOW TEMP. HEATING TECHNOLOGY
Gas injection technology, Lower discharge temperatures, increasing capacity and expanded operating envelop for enhanced performance. • Min operating ambient temperature: -30°C • Max operating ambient temperature: 45°C
ENERGY SAVINGS
EVI compressor, patented high efficient heat exchanger, hydrophilic aluminum foil fin heat exchanger with internal thread copper and advanced control technology, COP up to 5.
INTELLIGENT DEFROSTING RAISES HEAT CAPACITY
Intelligent defrosting program to judge the defrosting time according to the system real requirement, reduce the heating loss by unnecessary defrosting and make the indoor side more comfortable.
HIGH RELIABILITY
The heat pump is developed with multiple functions to ensure safe and efficient running, especially including Compressor Current Detect and Over current Protection, Modbus RS485/BMS or DTU, Peak Shifting Function and so on.
Project Reference
● Commercial Application
Very suitable for factory, warehouse etc.
● Agricultural Application
Greenhouse, poultryhouse etc.
Specification
Parameter | LYKRFJ-070 | LYKRFJ-080 | LYKRFJ-250 | |||
Electric Parameter(V/PH/HZ) | 380V/3N~/50HZ | 380V/3N~/50HZ | ||||
Type | Heating & Cooling | |||||
①Rated Heating Capacity (KW) | 22.6 | 25.2 | 75 | |||
①Power Input (KW) | 6.5 | 7.1 | 21 | |||
①COP | 3.48 | 3.55 | 3.57 | |||
②Rated Cooling Capacity (KW) | 17.5 | 20.0 | 65 | |||
②Power Input (KW) | 6.2 | 7.1 | 23.04 | |||
②EER | 2.82 | 2.82 | 2.82 | |||
③Nominal Heating Capacity (KW) | 14.6 | 18.6 | 52 | |||
③Power Input (KW) | 5.6 | 6.94 | 20 | |||
③COP | 2.61 | 2.68 | 2.60 | |||
④-20℃ Heating Capacity (KW) | 12.6 | 14.07 | 41.9 | |||
④Power Input (KW) | 6 | 6.7 | 19.95 | |||
④COP | 2.1 | 2.1 | 2.1 | |||
Max. Current Input (A) | 18 | 26 | 55 | |||
Rated Water Flow Volume (m³/H) | 4.5 | 6.0 | 9.0 | |||
Net Weight (KG) | 220 | 240 | 900 | |||
Nosie (DB) | ≤65 | ≤56 | ≤65 | |||
Working Condition (℃) | -35~45 | |||||
①Rated Heating working condition: Dry/Wet bulb temp. 7℃/6℃. ②Rated Cooling working condition: Dry/Wet bulb temp. 35℃/24℃. ③Norminal working condition: Dry/Wet bulb temp. -12℃/-14℃. ④-20℃ working condition: Dry/Wet bulb temp. -20℃/-. | ||||||
Packing & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
WEIFANG HANHONG ENERGY-SAVING TEMPERATURE CONTROL EQUIPMENT CO.,LTD.
is a technology and quality oriented HVAC manufacturer in China, specializing in R&D, manufacturing, sales and service of central air conditioning products.
Established in 2003, by performing for 8 years in HVAC industry, HANHONG has made great success in China domestic market and began to take its place in global markets. We have played an important role in supplying our HVAC products to various projects including stadium, exhibition cener, automobile manufacturers, pharmaceuticals, hospitals, microelectronics, hotels and municipal engineering.
HANHONG has a complete heat pump industry chain, and its products involves Commercial & Industrial High Temperature Water Heating Solution, Industrial and Agricultural Heat Pump, Swimming Pool Heat Pump, House Heating & Cooling Heat Pump, Domestic Hot Water Heat Pump, Heat Pump Dehumidifier, ,etc. Among them, the export volume of super greenhouse heat pumps has been among the best and ranking the top place in China for many years.
The ultra-low temperature EVI heat pump has been widely used for house heating in Northern China. What’s more, because of its advantages such as safety, efficiency, environmental protection and low energy consumption, it has become a government recommended solution to replace traditional boilers. The core of HANHONG’s culture is innovation, in the past years we’ve been focusing on technology and design innovation, therefore we won a lot of patents on the technology and design for our products and enjoyed a good reputation in HVAC industry. HANHONG has been making an implement of continuous quality improving program. In cooperation with senior management team and professional expertise, HANHONG has evolved not only R&D and processing engineering standard, but also manufacturing and quality control system.
