Cross flow fans — 380V, capacity 100kg bread per hour. The complete factory specification follows. Made by Shanghai Hongzhong Industry Co., Ltd. (6 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Cross Flow Fans
- Power: Electric, Diesel, Gas
- Voltage: 380V
- Capacity: 100kg bread per hour
- Raw Material: Corn, Egg, Fruit, Milk, Nuts, Soybean, Sugar, Vegetables, Water, Wheat
- Material: Stainlee Steel
- Warranty: 1 Year
Technical Specifications
| Application Fields | Snack Food Factory, Commercial Catering, Dairy Products Factory |
|---|---|
| Loaf Size | 1.5 lb, 3 lb, 0.5 lb, 1 lb, 2 lb, 2.5 lb, 3.5 lb |
| Power | Electric, Diesel, Gas |
| Plug Type | Japanese Plug, Us Plug, Swiss Plug, European Plug, Australian Plug, British Plug |
| Key Selling Points | Long Service Life |
| Raw Material | Corn, Egg, Fruit, Milk, Nuts, Soybean, Sugar, Vegetables, Water, Wheat |
| Warranty | 1 Year |
| Condition | New |
| Place Of Origin | Shanghai, China |
| Machinery Function | bakery oven |
| Brand Name | hongzhong |
| Dimension(L*W*H) | 2000x2900x2500mm |
| Output Product Name | bakery bread |
| Voltage | 380V |
| Weight | 2000 |
| Application | Bread Bakery Machine |
| Energy | electric/gas |
| Material | Stainlee Steel |
| Suitable For | restaurant |
| Function | Baking Bread Food |

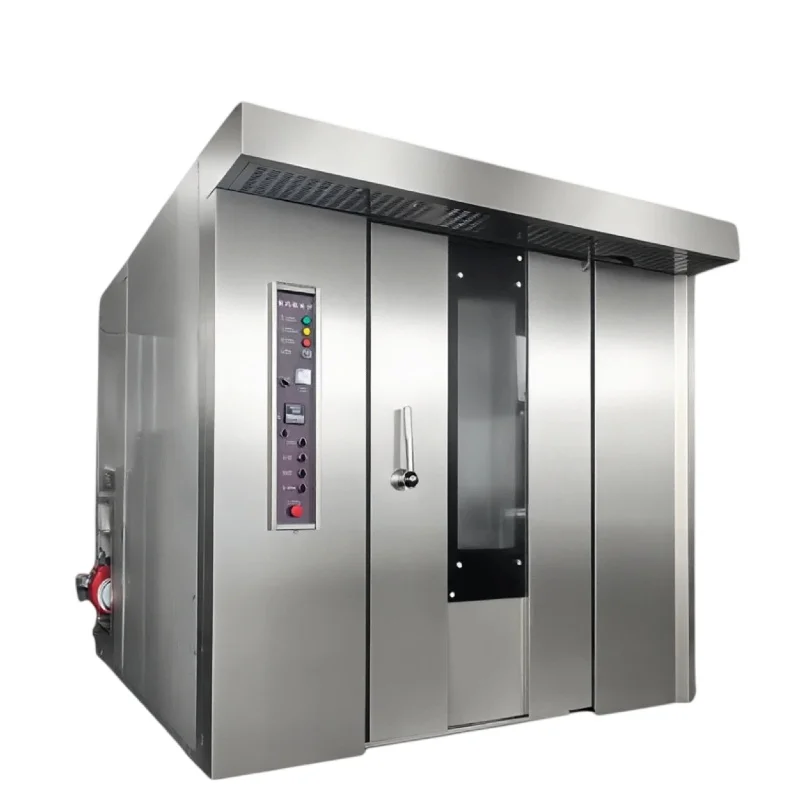

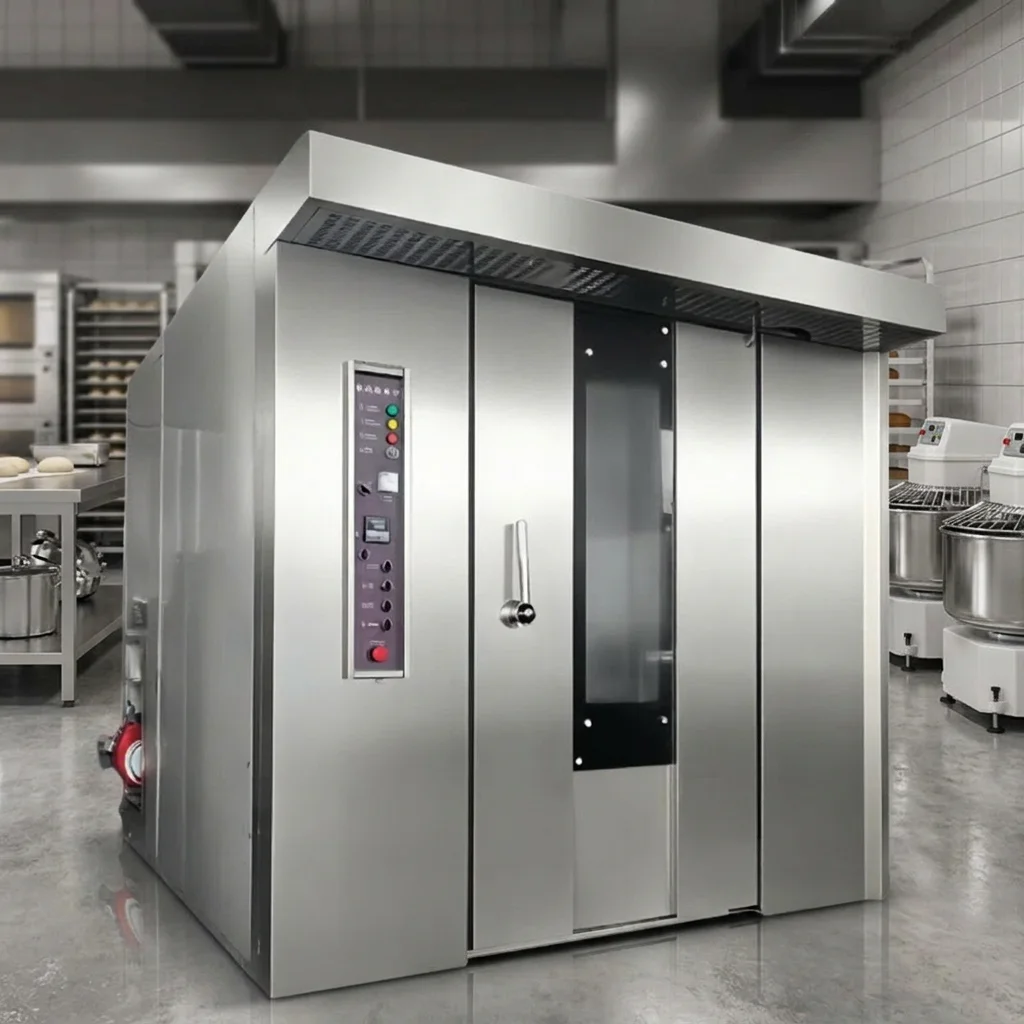

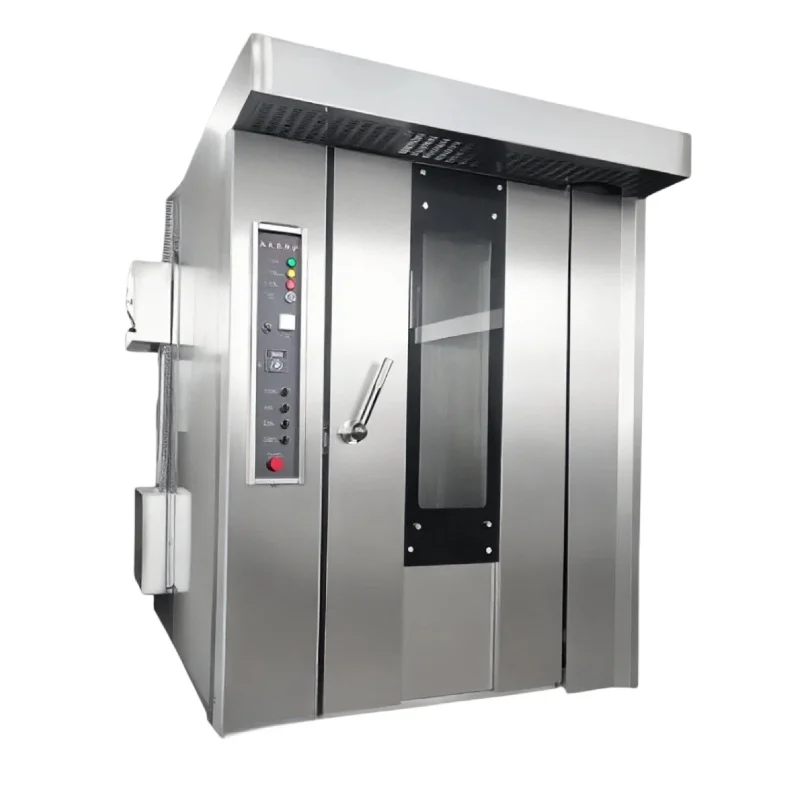

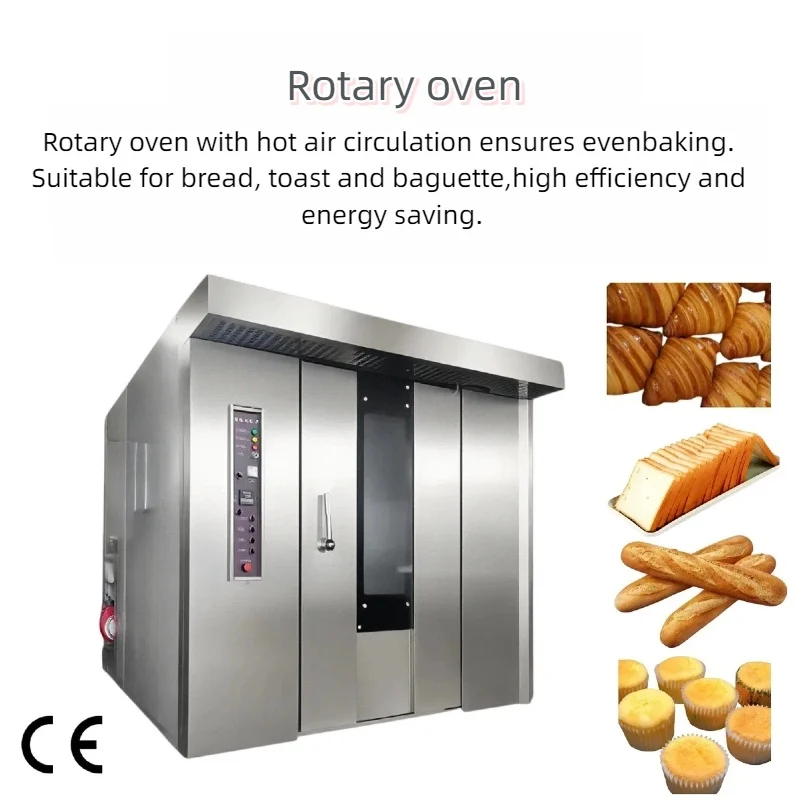

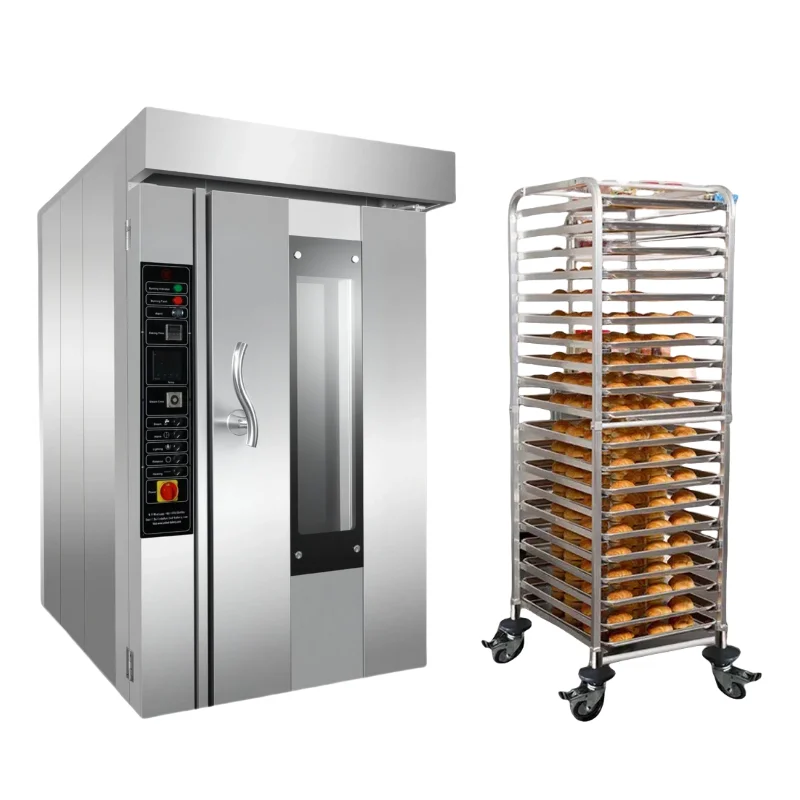

| Product Name | Rotary Oven |
| Capacity | 100kg bread per hour |
| Advantage | Energy Conservation |
| Color | Sliver |
| Selling Units | Single item |
| Single Package Size | 20X10X20 cm |
| Single Gross Weight | 20.000 kg |
Product Details
Detail display

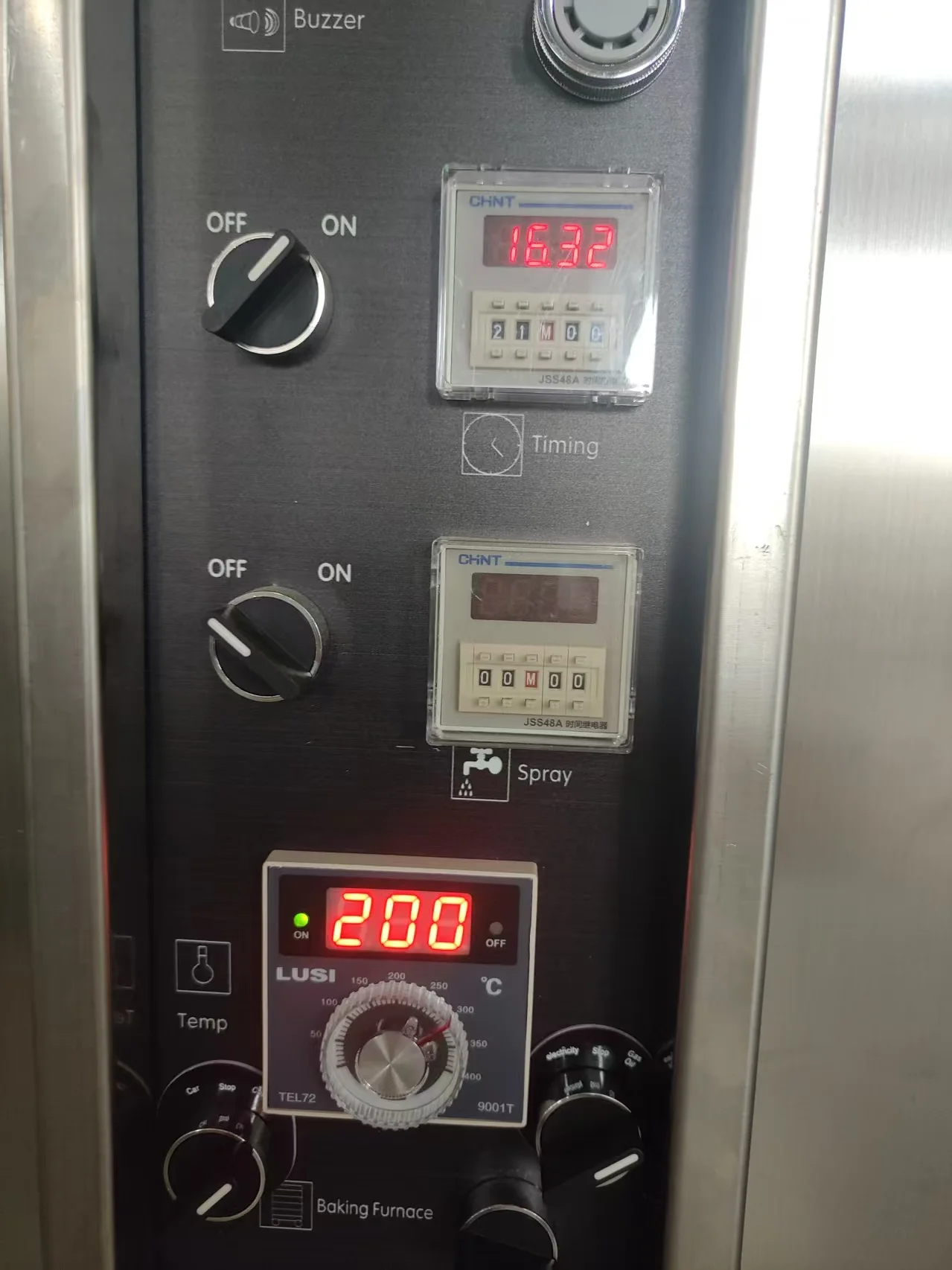

It takes 17 minutes for the actual temperature to rise from room temperature to 200 degrees Celsius.

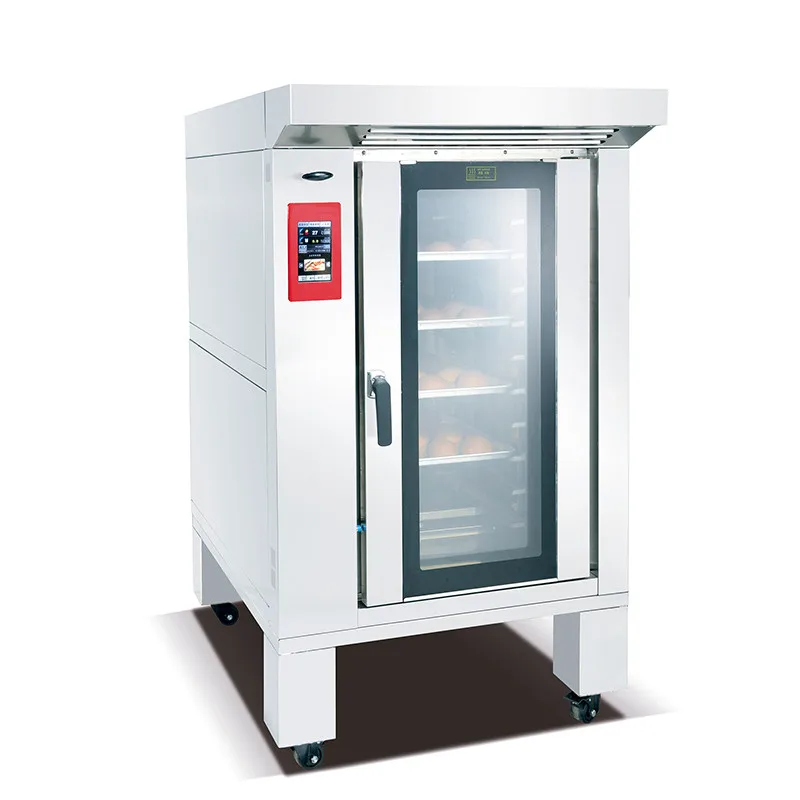

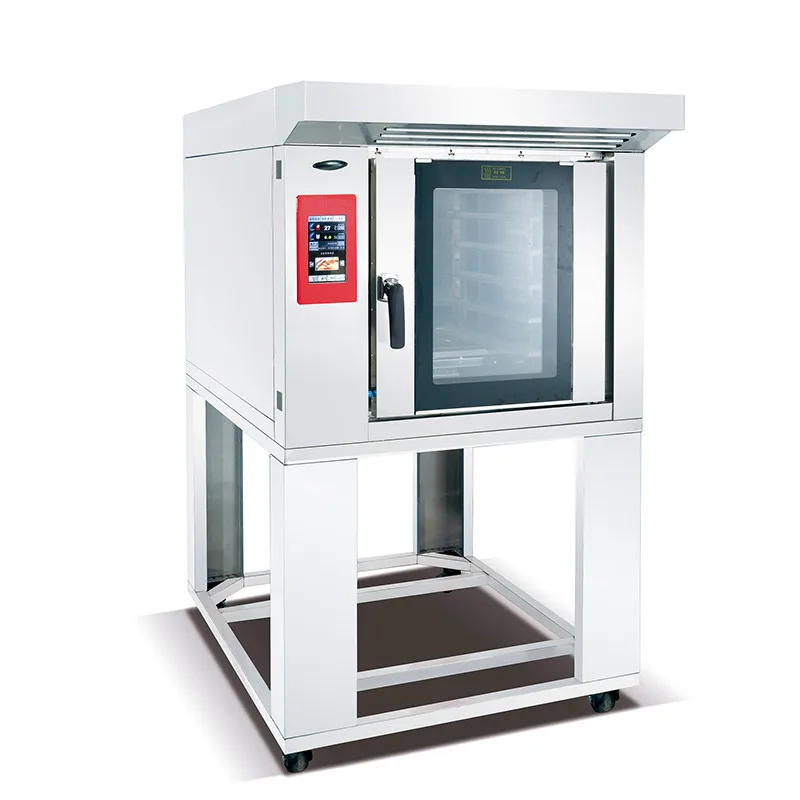

Models:5/8/10/12/15/16/32/64 Trays available.
Heating Methods:
12/16/32/64 Trays: Electric / Gas / Diesel optional.
5/8/10/15 Trays: Electric / Gas optional.
5/8/10/15 Trays: Electric / Gas optional.
Reject uneven baking, low-temperature inefficiency and frequent repairs! Precise temperature control + uniform browning + stable durability—efficient and worry-free, isn’t this the high-quality choice you expect?
Reject uneven baking, low-temperature inefficiency and frequent repairs! Precise temperature control + uniform browning + stable durability—efficient and worry-free, isn’t this the high-quality choice you expect?
Click below to view detailed equipment information

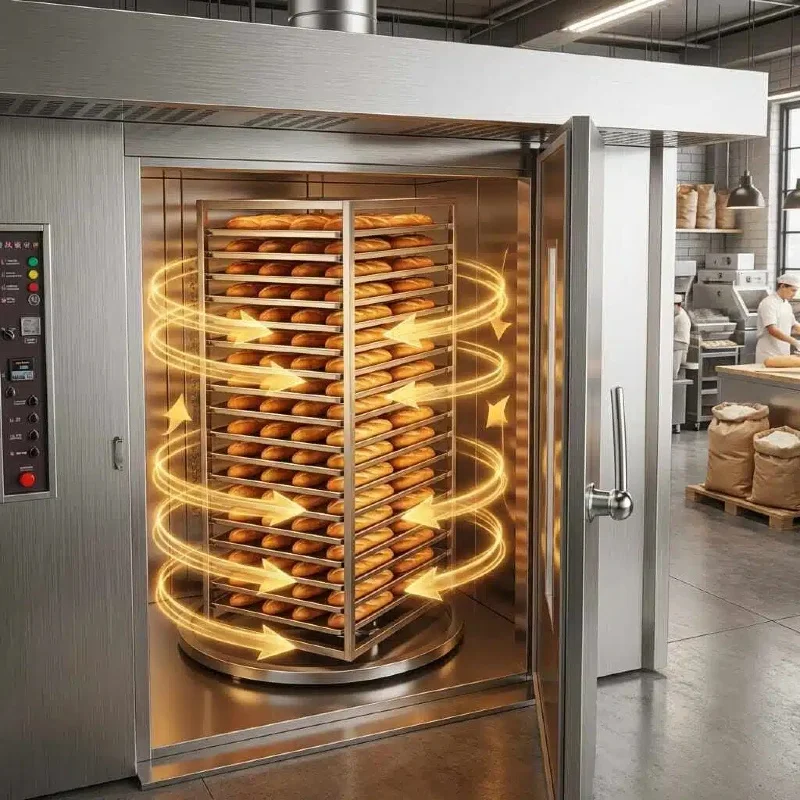

360° hot air circulationguarantees consistent bakingresults across the entire batch.
Adopting laser cutting technology, every component boasts exceptional precision
Advanced Laser Welding Technology Precision in every joint. Seamless, stronger, and aesthetically perfect.

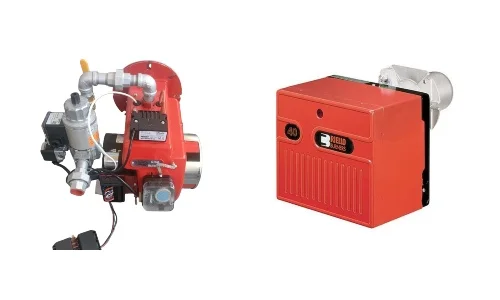

Imported high-performance burners deliver exceptional combustion efficiency and energy savings

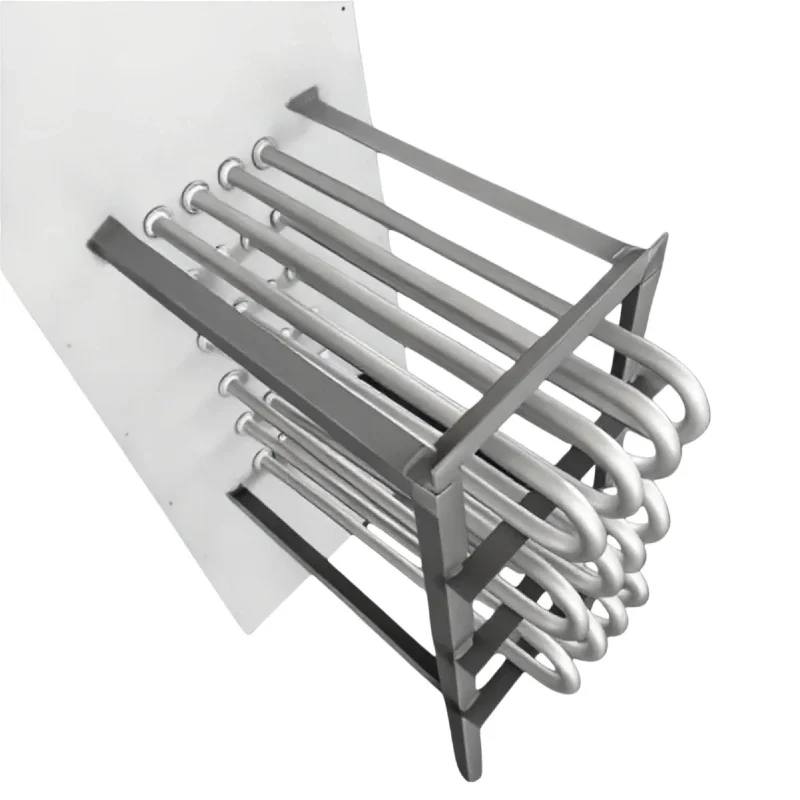

Equipped with multi-tube parallel stainless steel heating tubes, the oven delivers reliable heating power and an extended service

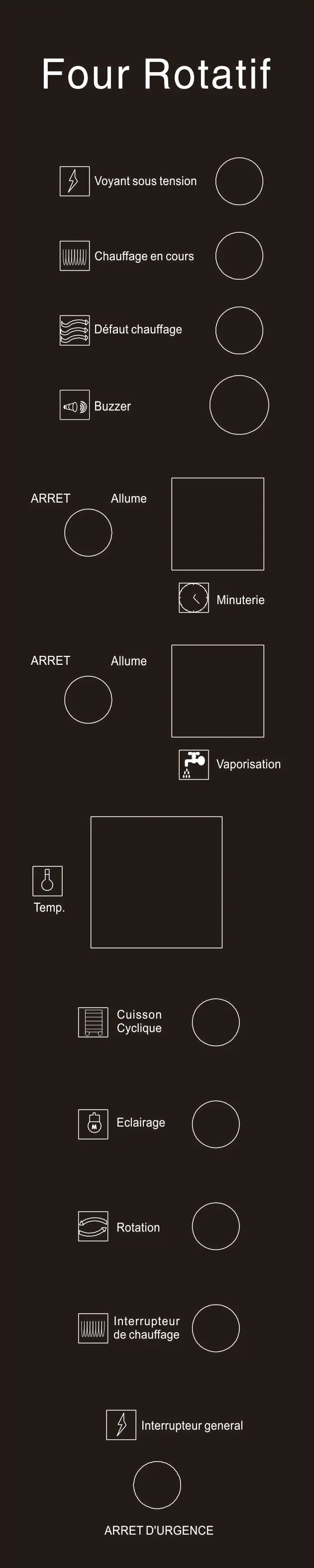

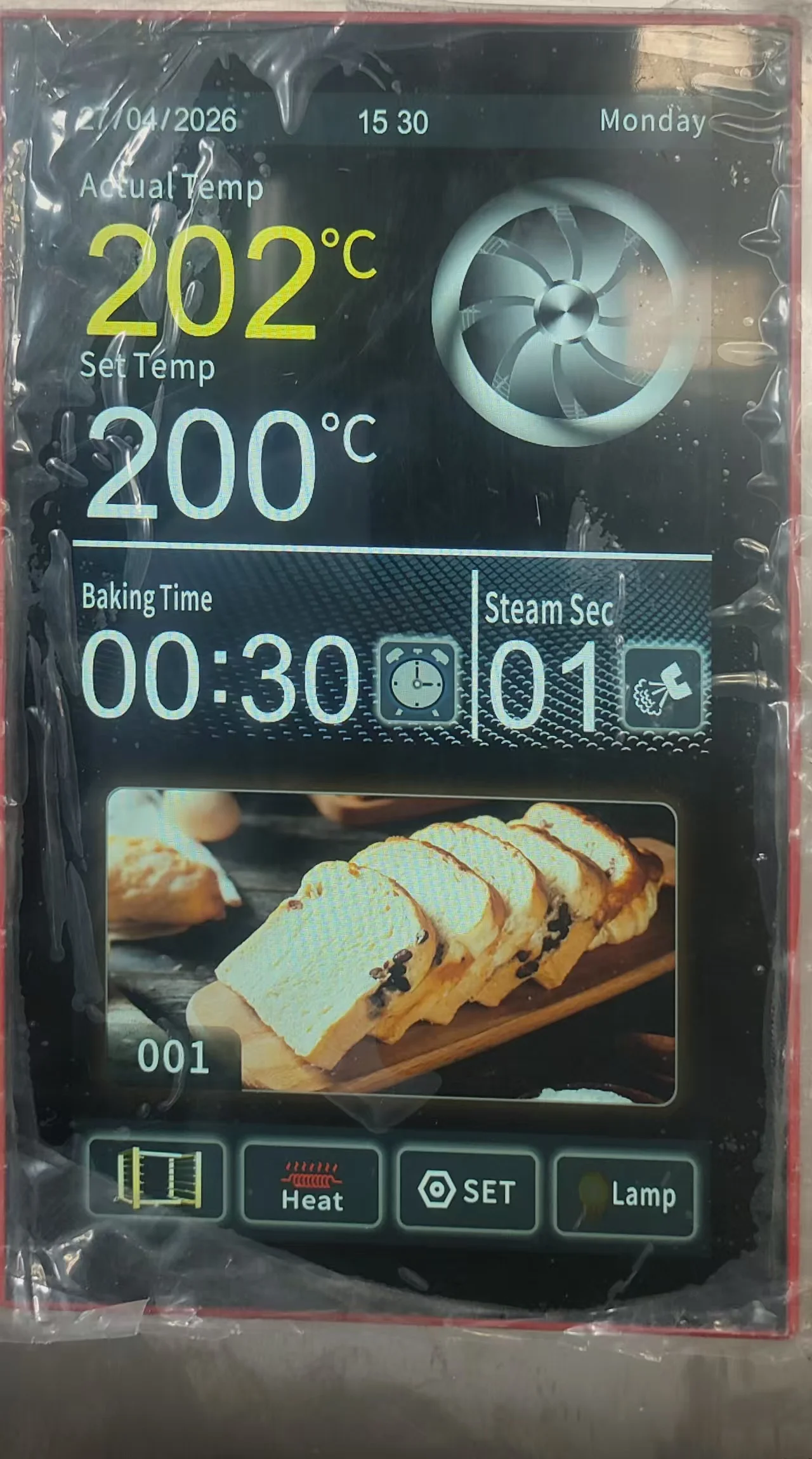

The touch control panel enables sectional heating adjustment and allows users to customize and store preset menus
The touch control panel enables sectional heating adjustment and allows users to customize and store preset menus
PRODUCT SPECIFICTION
Item-No. | HZ-X5 | ||
specified voltage | 220V/380V | ||
power | Electric | 8.5KW | |
Gas | 1-2m³/H 0.35KW | ||
temperature range | room temperature-400℃ | ||
production | 20KG/H | ||
grill layers | 5layers×1=5tray | ||
overall size | 1000*1300*1050MM | ||
net weight | 360 | ||
material | stainless steel | ||
dish demension | 400*600mm | ||
Item-No. | HZ-X10 | ||
specified voltage | ~3N380V/50Hz | ||
power | Electric | 15KW | |
Gas | 2-3m³/H 0.6KW | ||
temperature range | room temperature-400℃ | ||
production | 30KG/H | ||
grill layers | 10layers×1=10tray | ||
overall size | 1000*1300*1790MM | ||
net weight | 540 | ||
material | stainless steel | ||
dish demension | 400*600mm | ||
Item-No. | HZ-X16 | ||
specified voltage | ~3N380V/50Hz | ||
power | Electric | 36KW | |
Gas | 5-6m³/H 3.5KW | ||
Diesel | 3.5L/H 3.5KW | ||
temperature range | room temperature-400℃ | ||
production | 50KG/H | ||
grill layers | 16layers×1=16tray | ||
overall size | 1500*1450*2150MM | ||
net weight | 1400 | ||
material | stainless steel | ||
dish demension | 400*600mm | ||
Item-No. | HZ-X32 | ||
specified voltage | ~3N380V/50Hz | ||
power | Electric | 54KW | |
Gas | 7-8m³/H 4.5KW | ||
Diesel | 4.5L/H 4.5KW | ||
temperature range | room temperature-400℃ | ||
production | 100KG/H | ||
grill layers | 32layers×1=32tray | ||
overall size | 2000*2950*2500MM | ||
net weight | 1800 | ||
material | stainless steel | ||
dish demension | 400*600mm | ||
Item-No. | HZ-X64 | ||
specified voltage | ~3N380V/50Hz | ||
power | Electric | 73KW | |
Gas | 10-12L/H 7.5KW | ||
Diesel | 6.0L/H 7.5KW | ||
temperature range | room temperature-400℃ | ||
production | 200kg/H | ||
grill layers | 32 layers×2=64tray | ||
overall size | 2150*3550*2500MM | ||
net weight | 2500 | ||
material | stainless steel | ||
dish demension | 400*600mm | ||

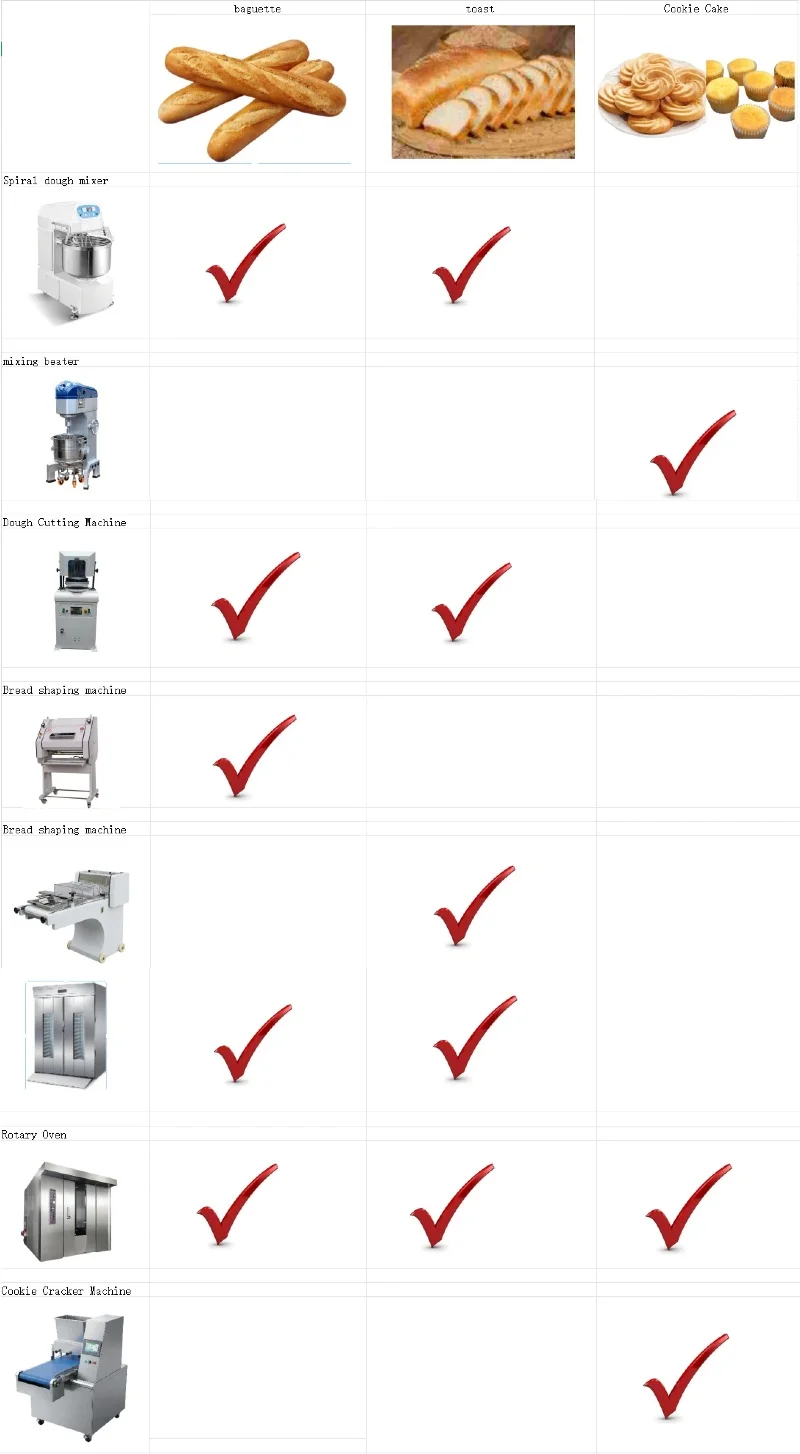

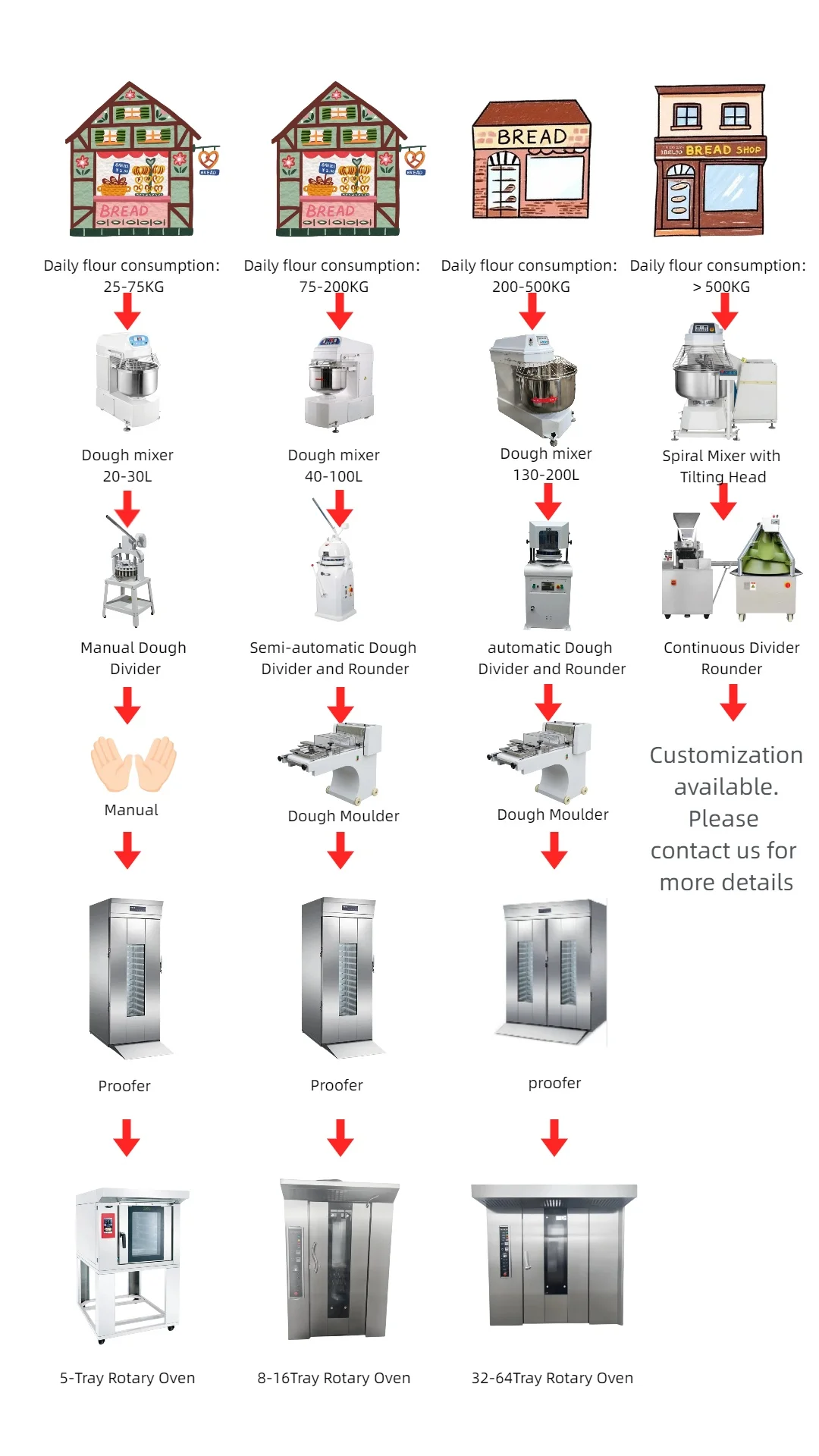

One-stop purchasing
Contact us for a quote

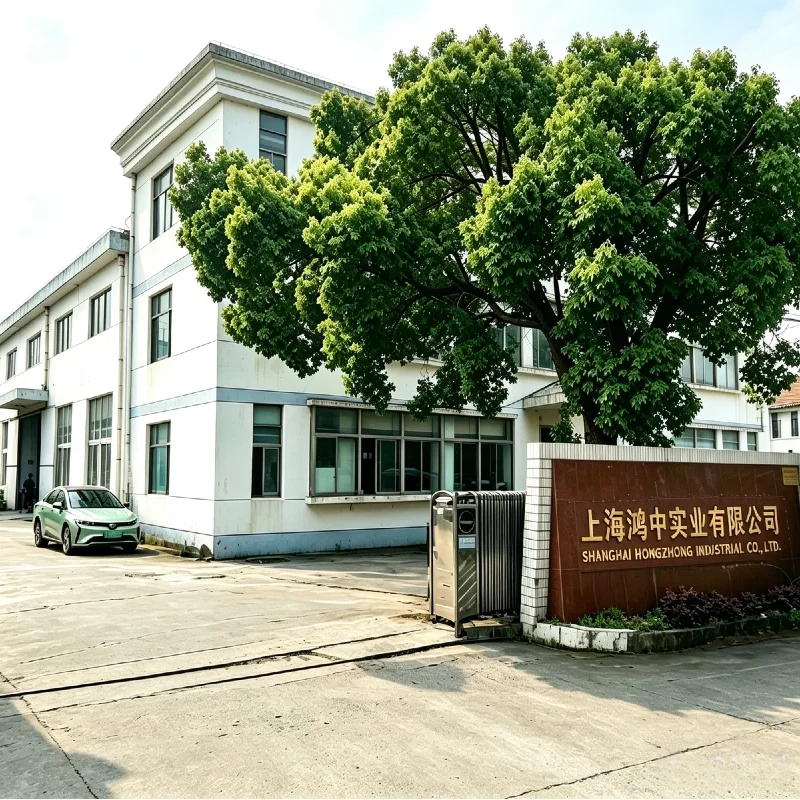

About us
Shanghai Hongzhong Industrial Co., Ltd. specializes in R&D and manufacturing of baking & food processing machinery. Our core product — rotary oven is optimized with advanced heating system. It only takes 18 minutes to heat up from room temperature to 200℃, and the internal temperature difference is within ±5℃. With stable heating and even heat distribution, it is ideal for various baking production.
Our products have passed international certifications. We support customized equipment and whole production line solutions, and our goods are exported to dozens of countries worldwide. We focus on technology, quality and full-range service for global clients.
Our products have passed international certifications. We support customized equipment and whole production line solutions, and our goods are exported to dozens of countries worldwide. We focus on technology, quality and full-range service for global clients.

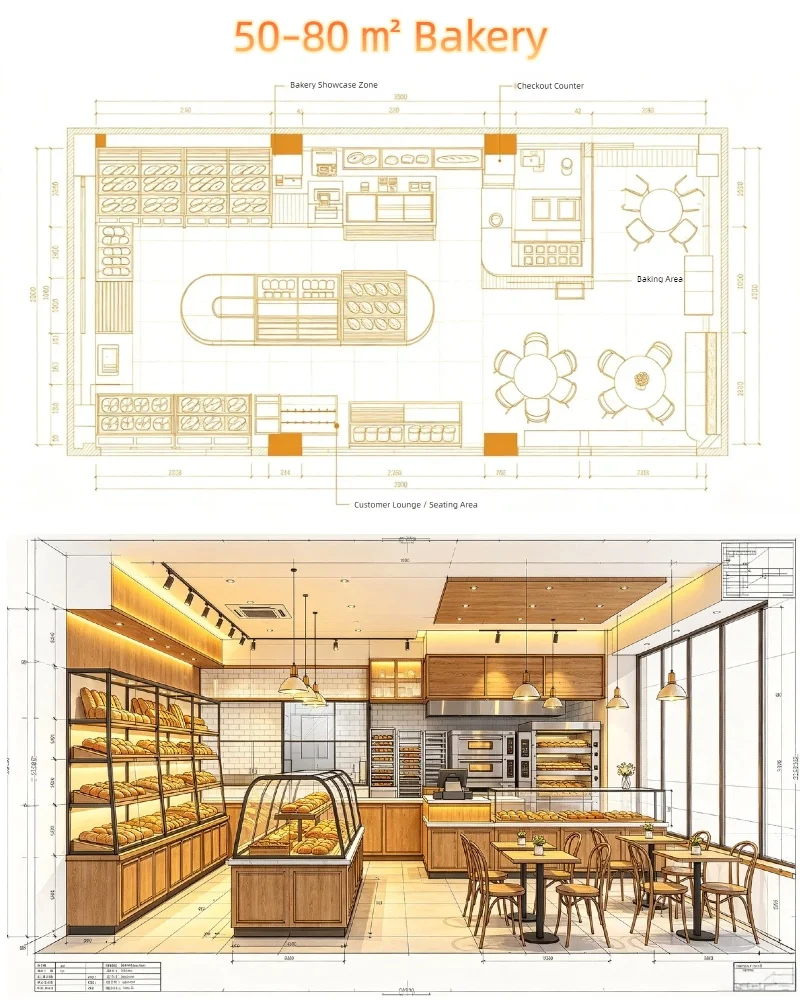

On-site discussion on detailed design by the technical team

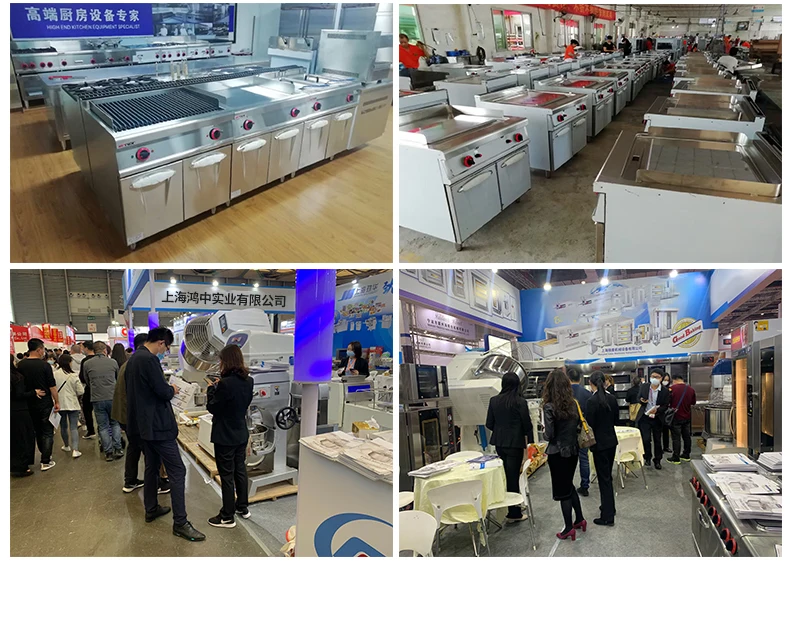

Exhibition
PACKING AND DELIVERY
Contact us for logistics quotes
Customer Photos
FAQ
Q:What's my consideration when I choose this machine?
A: -The size of your bakery or factory.
-The food you produce.
-The power supply,voltage,power and capacity.
Q:Can I be a distributor of Hongzhong?
A: Of course you can.
Q:What are the benefits of being a distributor?
Q:What are the benefits of being a distributor?
A: – Special discount .
– Marketing protection.
– Priority of launching new design.
– Point to point technical supports and after sales services.
Q: How can I become a distributor of Hongzhong?
Q: How can I become a distributor of Hongzhong?
A: Contact us immediately for further details by sending us an inquiry bread production line,CE certification rotary bake oven,bread making machine
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $5500 / set
- 20–99 set: US $5300 / set
- 100–999 set: US $5100 / set
- 1000+ set: US $2550 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cross flow fans be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
