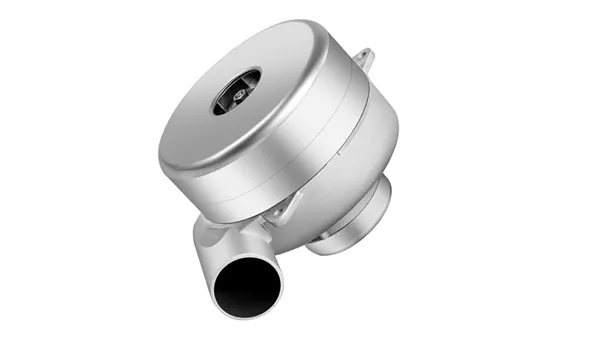

This cross flow fans is published with the manufacturer’s full specification — rated voltage 230VAC, type Brushless Motor. Made by Ningbo Newthink Motor Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Cross Flow Fans
- Model Number: NXK60Z
- Rated Power: 1200W
- Rated Voltage: 230VAC
- Speed Rpm: 28500rpm
- Speed(RPM): 28500rpm
- Warranty: 12 months
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | 230VAC |
| Rated Power | 1200W |
| Speed Rpm | 28500rpm |
| Speed(RPM) | 28500rpm |
| IP Rating | IP00 |
| Efficiency | IE 1 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | / |
| Motor Mounting Type | / |
| Protect Feature | / |
| Usage | Commercial |
| Warranty | 12 months |
| Continuous Current(A) | 7.5 |
| Model Number | NXK60Z |
| Torque | / |
| Place Of Origin | Zhejiang, China |
| Brand Name | NEWTHINK |
| Selling Units | Single item |
| Single Package Size | 25X25X20 cm |
| Single Gross Weight | 4.500 kg |
Product Details

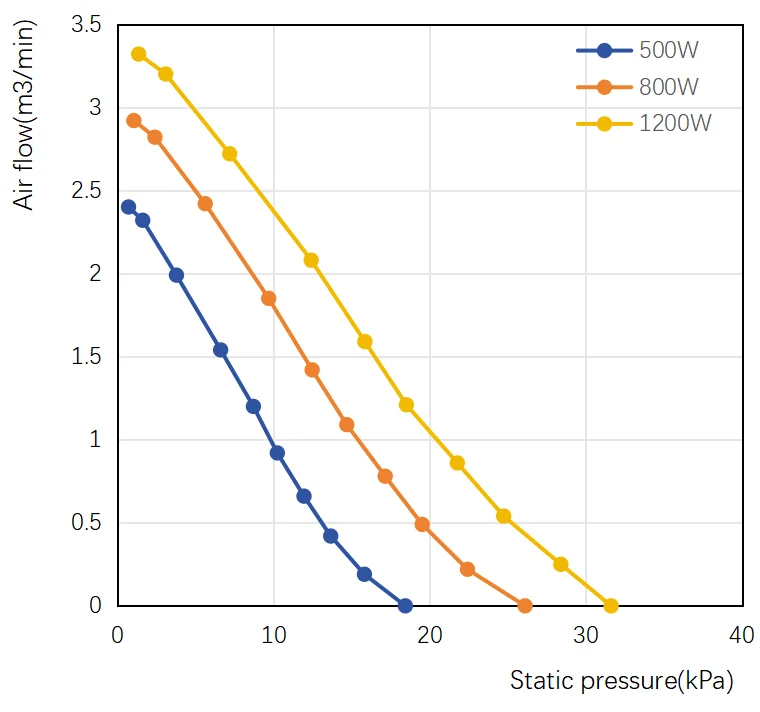

Item | NXK60-1200-FZ03 | ||||
Rated Voltage (VAC) | 220 | ||||
Frequency (Hz) | 50/60 | ||||
Rated Power (W) | 500 | 800 | 1200 | ||
Air Flow (m3/min) | 2.34 | 2.93 | 3.14 | ||
Static Pressure (kPa) | 17 | 25 | 30 | ||
Speed Range (rpm)[wide open] | — | 19000～30000 | 21000～34000 | ||
Insulation Class | F | ||||
Protection Class | IP00 | ||||
We are based in Zhejiang, China, start from 2011,sell to Domestic Market(70.00%),Western Europe(28.00%),Eastern Asia(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Motor, Blower
4. why should you buy from us not from other suppliers?
Cooperative with skill-full and know-how engineers, Newthink Motor has become one of the important bases in brushless motor manufacture and R&D in China. Brush less motor for vacuum cleaner is compatible with world well-known Enterprises.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $180 / set
- 100+ set: US $150 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 months warranty. Spare parts and technical support remain available after the warranty period.
Can the cross flow fans be supplied for my local voltage?
The standard configuration is 230VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Newthink Motor Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Newthink Motor Co., Ltd. range on HVACR Nexus.
