Jiangsu Baode Heat-Exchanger Equipment lists this cross flow fans with its own published specification, unedited. Supplier profile: 20 years on the platform, factory-assessed. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Cross Flow Fans
- 电压: —
- 材质: 铜
- 机械测试报告: 可提供
- 保修: 1年
- 出厂视频检验: 可提供
- 核心卖点: 高精度
Technical Specifications
| 电压 | — |
|---|---|
| 材质 | 铜 |
| 机械测试报告 | 可提供 |
| 保修 | 1年 |
| 出厂视频检验 | 可提供 |
| 核心卖点 | 高精度 |
| 产地 | Jiangsu, China |
| 重量（千克） | 1 |
| 品牌名称 | Baode |
| 最高工作压力 | 4.5Mpa |
| 尺寸 (长*宽*高) | — |
| 提供售后服务 | 提供海外服务中心 |
| 产品名称 | 空调中的热交换器 |
| 热交换器类型 | 铜板钎焊换热器 |
| 主要应用 | 冷凝器 |
| 板材 | 不锈钢AISI316 |
| 连接 | 不锈钢AISI 316, 304 |
| 设计数据 | 最大45 bar至225C，测试压力60 bar |
| 优势 | 高效率 |
| 应用程序 | 加热冷却 |
| 连接类型 | 定制 |
| 包装细节 | 空调热交换器用胶合板箱 |
| 销售单位 | 单个商品 |
| 单个包装尺寸 | XX 厘米 |
| 供应能力 | 空调中的热交换器 |
Product Details

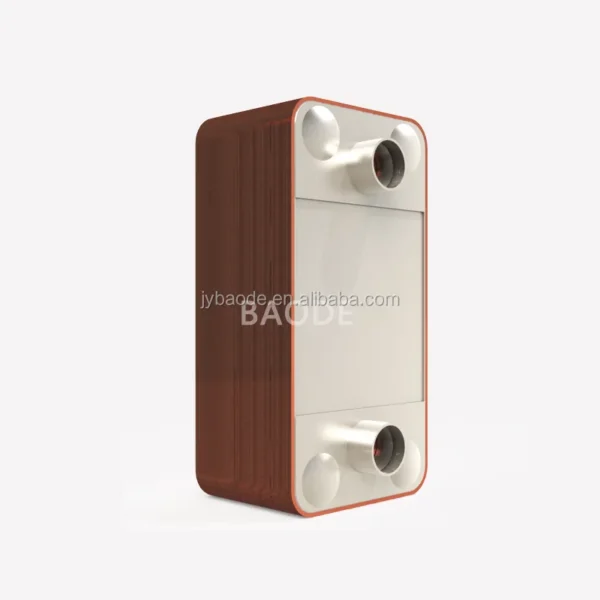

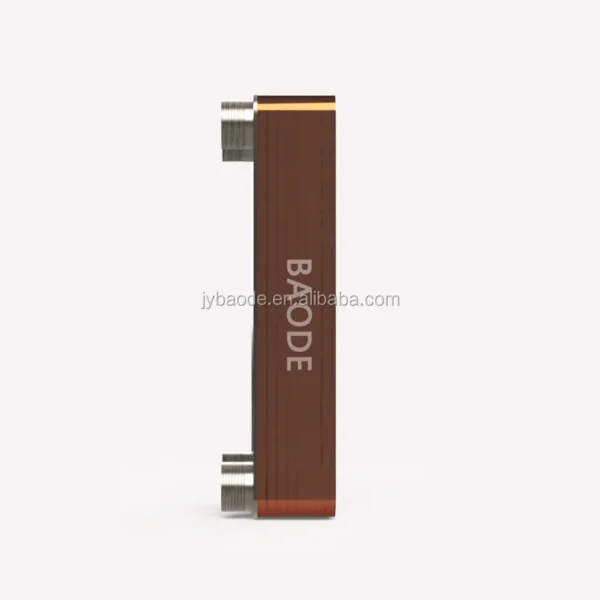

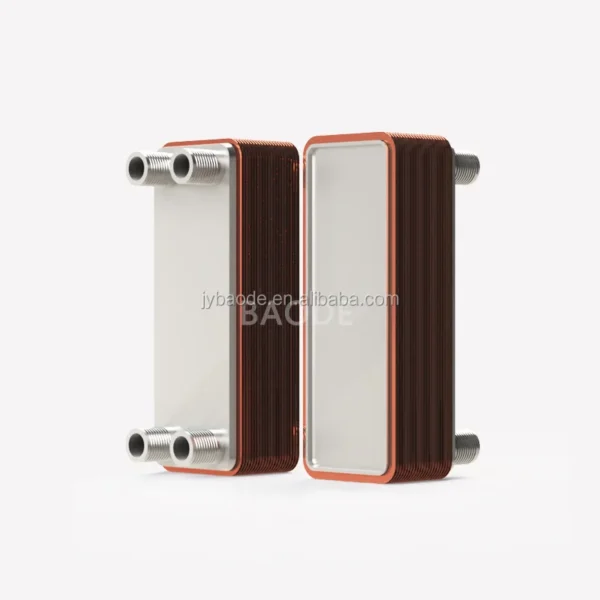

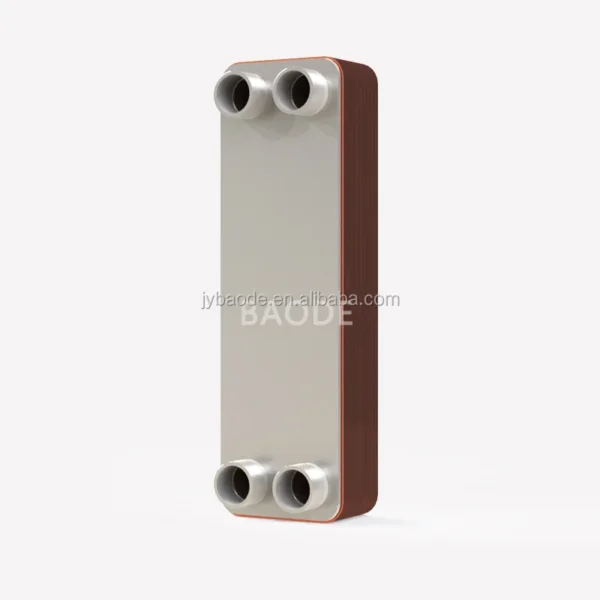

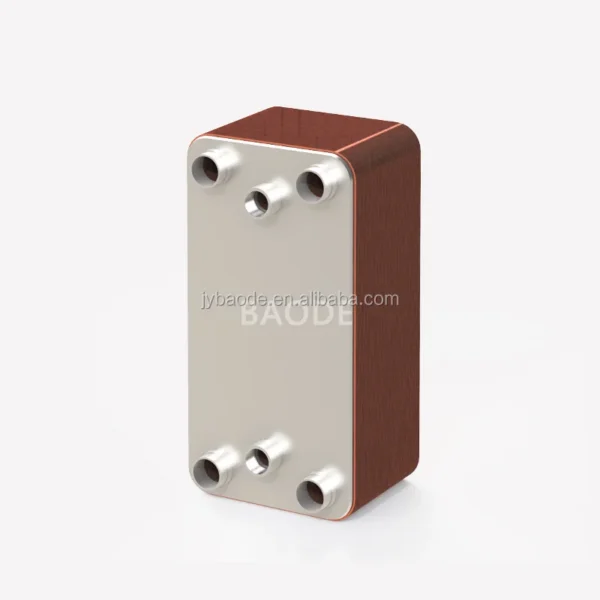

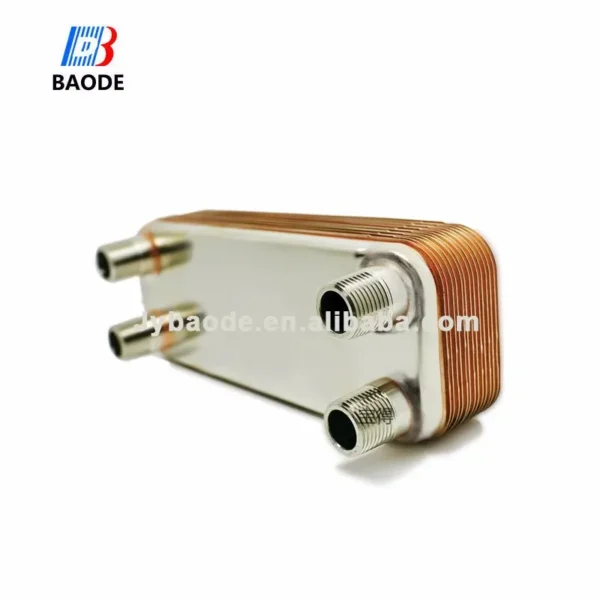

palm heat pump heat pump air to water heat exchanger in air conditioner
| Brazed plate heat exchangers specification | |||
| Model | BL14 | BL20 | BL26 |
| Width (mm) | 78 | 76 | 111 |
| Height (mm) | 206 | 310 | 310 |
| Length (m) | 9+2.3n | 9+2.3n | 10+2.36n |
| Horizontal port distance (mm) | 42 | 42 | 50 |
| Vertical port distance (mm) | 172 | 282 | 250 |
| Max pressure [Mpa] | 3 | 3 | 3/4.5 |
| Max flowrate (M3/h) | 3.6 | 3.6 | 8.1 |
| Weight(kg) | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n |
| Model | BL26C | BL50 | BL95 |
| Width (mm) | 124 | 111 | 191 |
| Height(mm) | 304 | 525 | 616 |
| Length (m) | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance (mm) | 70 | 50 | 92 |
| Vertical port distance (mm) | 250 | 466 | 519 |
| Maxpressure(Mpa) | 3 | 3/4.5 | 3/4.5 |
| Max flowrate (M3/h) | 8.1 | 12.7 | 39 |
| Weight[kg] | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 |
| Width (mm) | 246 | 307 | 321 |
| Height(mm) | 528 | 696 | 738 |
| Length (mm) | 13+2.36n | 13+2.75n | 13+2.7n |
| Horizontalportdistance (mm) | 174 | 179 | 188 |
| Vertical port distance (mm) | 456 | 567 | 603 |
| Max pressure [Mpa] | 3 | 3 | 21 |
| Max flowrate [M3/h] | 42 | 100 | 100 |
| Weight[kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n |
| Model | BL600 | BL100 | BL210 |
| Width [mm] | 429 | 248 | 322 |
| Height [mm] | 1398 | 495 | 739 |
| Length [mm] | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontalportdistance[mm] | 220 | 157 | 205.2 |
| Vertical port distance [mm] | 1190 | 405 | 631 |
| Max pressure [Mpa] | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 300 | 42 | 100 |
| Weight[kg] | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of heat exchanger flate plate for fireplaces. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger flate plate market and has developed a big range of heat exchanger flate plate for fireplaces for any task
Our main products are Brazed heat exchanger flate plate for fireplace & Gasket heat exchanger flate plate for fireplace & Air cross heat exchanger flate plate for fireplace (Flat heat exchanger flate plate for fireplace and frame and heat exchanger flate plate for fireplace, welded heat exchanger flate plate for fireplace). Braze heat exchanger flate plate for fireplace include Copper brazed heat exchanger flate plate for fireplace and Nickel brazed heat exchanger flate plate for fireplace.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the heat exchanger flate plate for fireplace industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
FAQ
Q : 1. Can I have a sample order?
A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : 2. What is the lead time?
A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we are support different product mix wholesale.
Q : 4. How do you ship the goods and how long does it take arrive?
A : For sample order ,we usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.
Q : 5. Can you provide container packed in wooden cases if I order more products?
A : Yes,we are can provide a set of wooden packaging products,but only in big quantity.
Q : 6. We want to visit your company?
A : No problem,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $100 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Baode Heat-Exchanger Equipment Co., Ltd., based in China. The company 20 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Baode Heat-Exchanger Equipment Co., Ltd. range on HVACR Nexus.
