Product Introduce

Grain drying tower is an indispensable drying equipment in large-scale grain storage projects. The huge drying capacity can meet the requirements of large-scale grain storage projects and maintain the efficient operation of the entire grain storage project. It has the characteristics of large processing capacity, high cost performance and direct storage of grain after drying.



Difference between grain dryer and grain drying tower

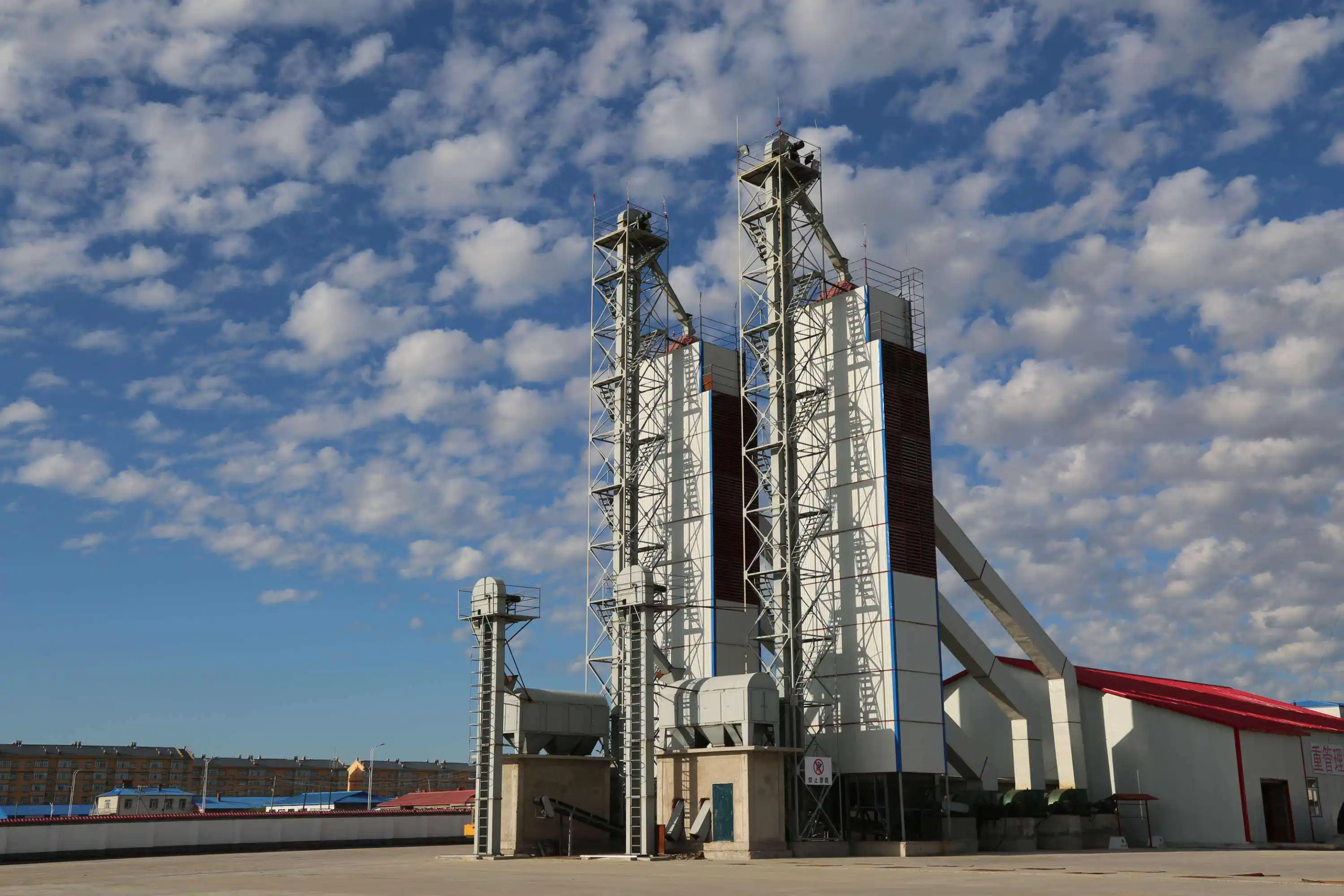

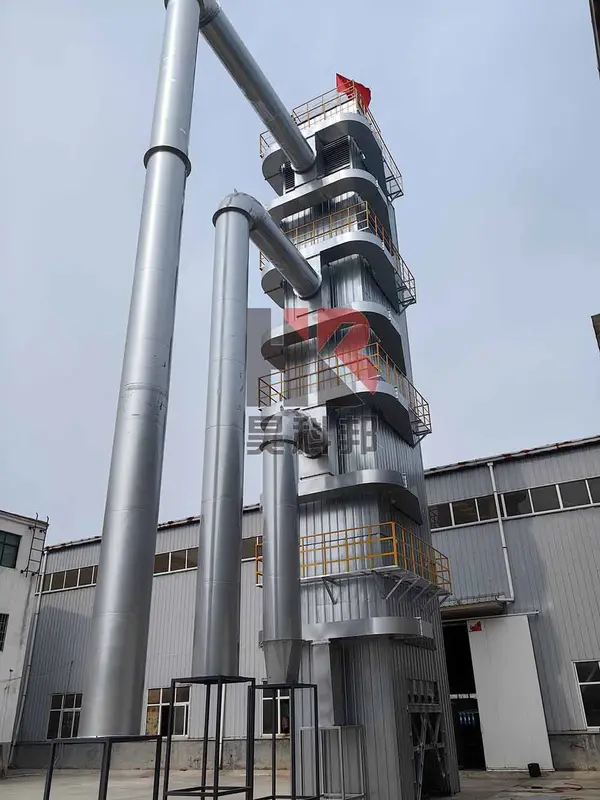

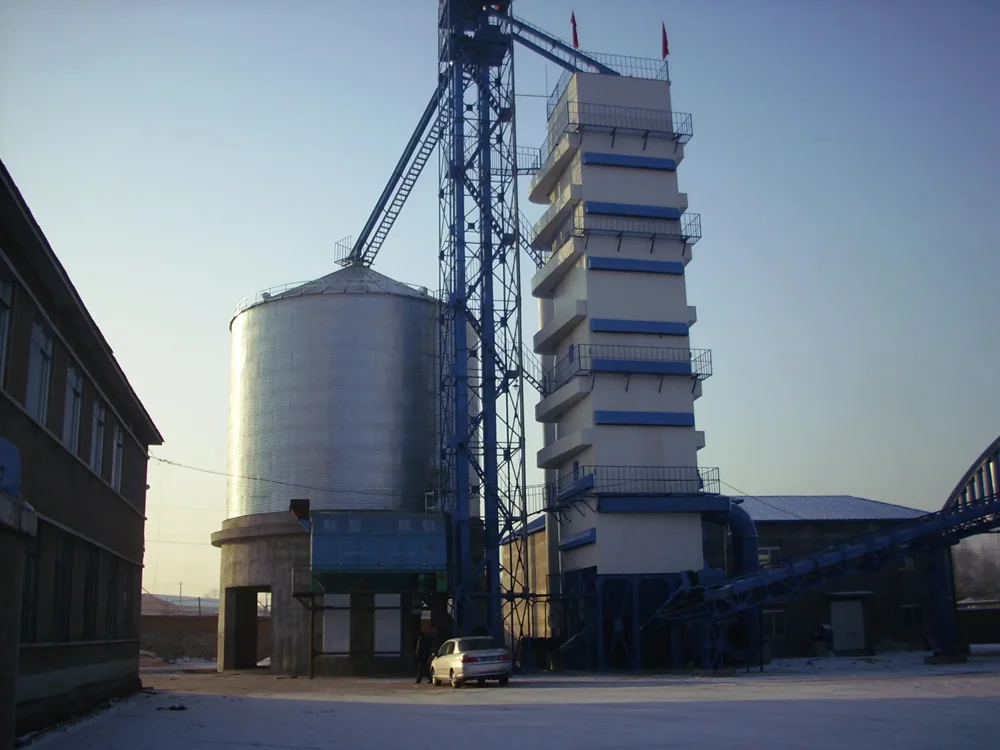

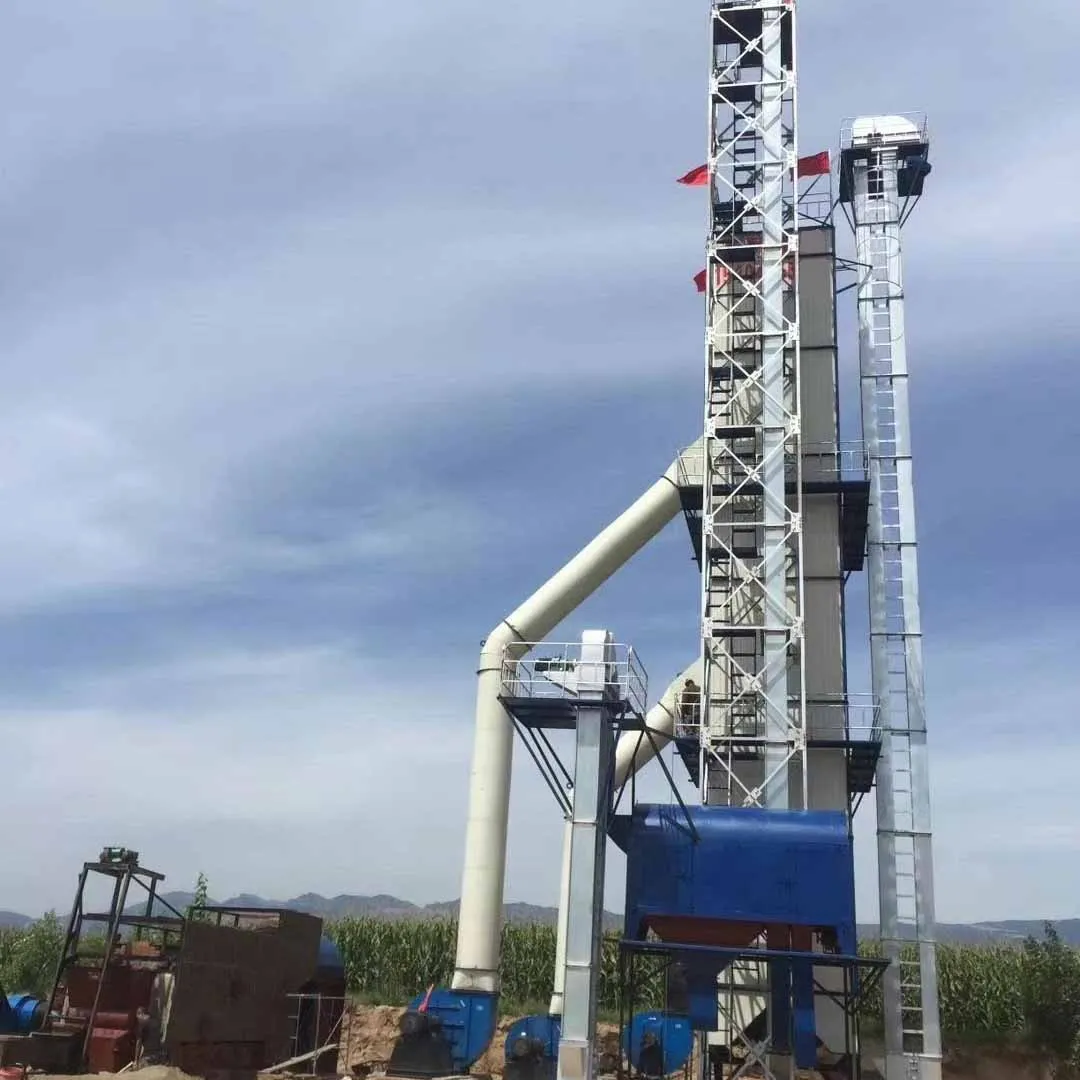

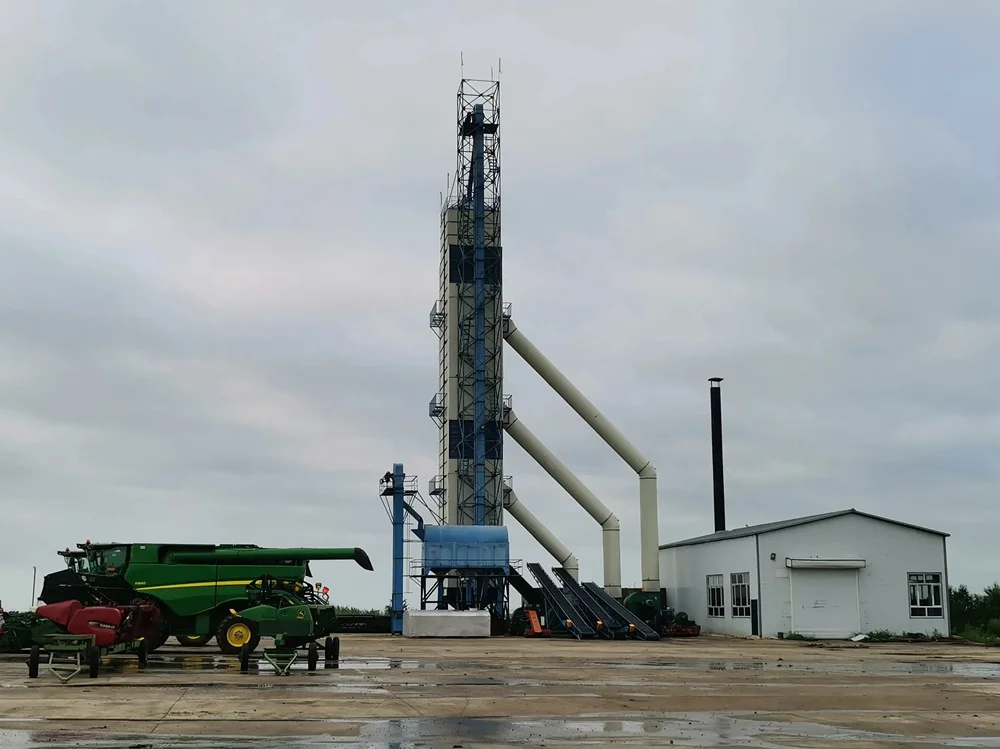

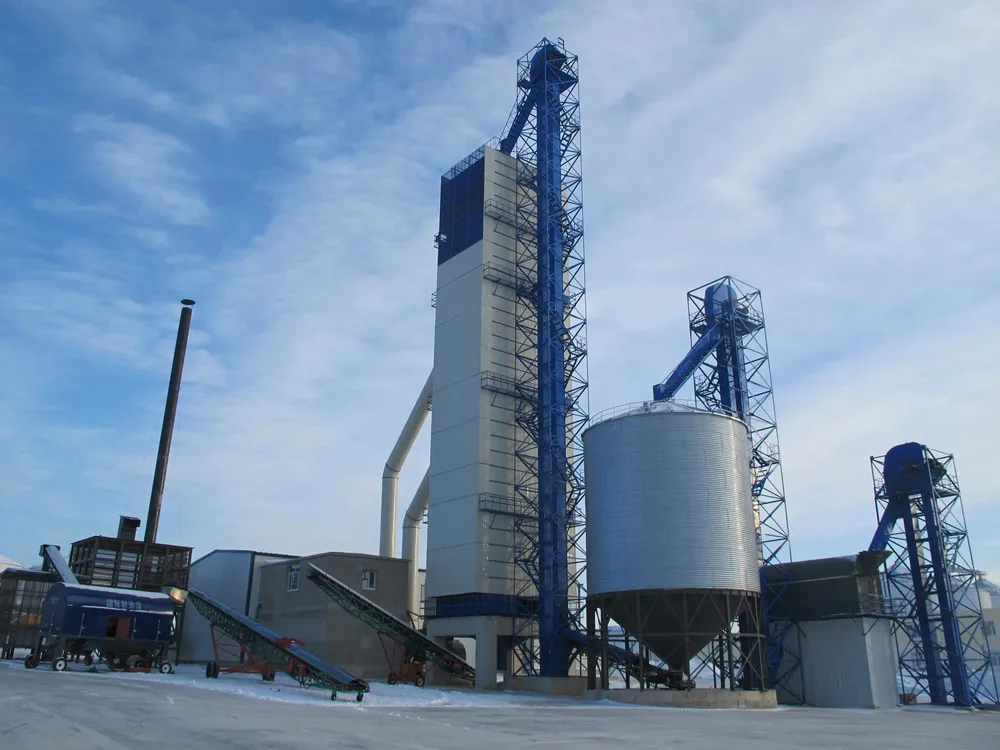

Grain Drying Towers Grain drying towers are usually used in large-scale grain storage projects, and are essential grain drying and processing equipment to maintain the normal and efficient operation of large-scale grain storage projects. High-output drying is its main feature. Haokebang grain drying tower can reach 1000T/ D. It is suitable for high-quality drying of various grains such as rice and corn.

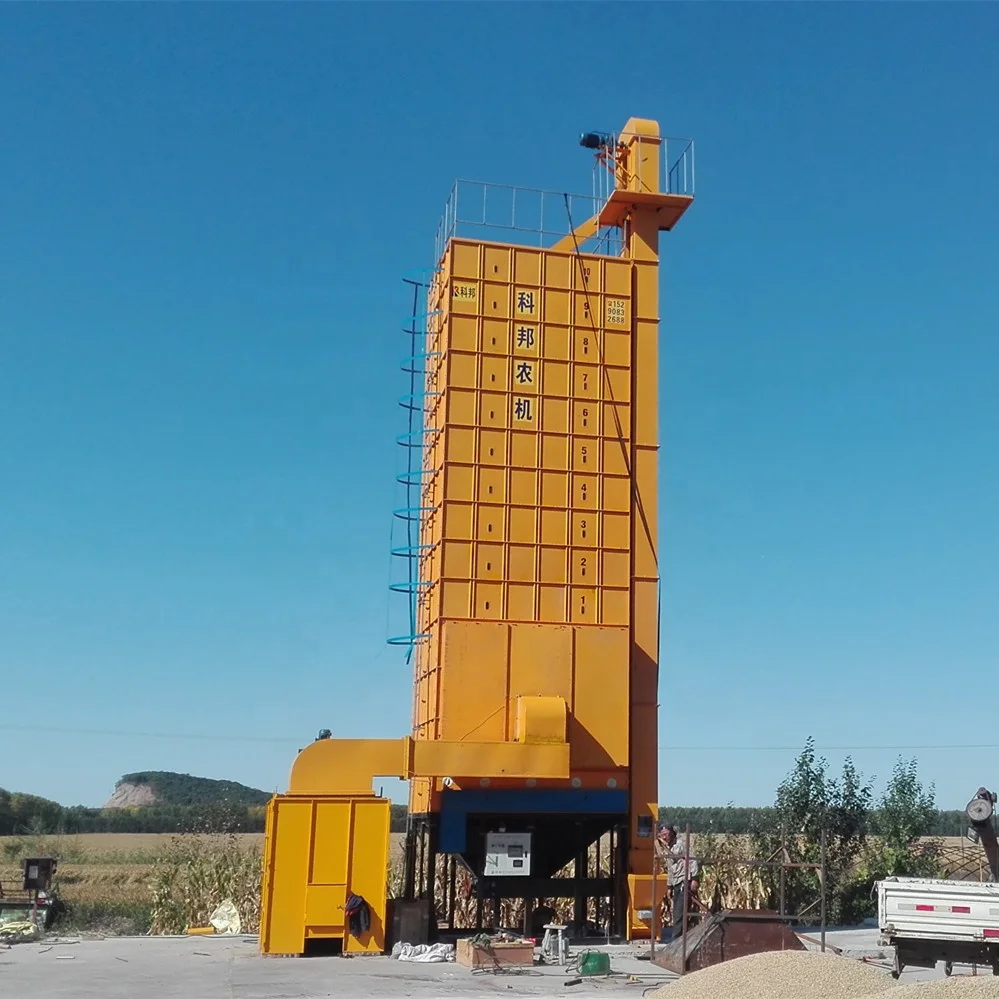

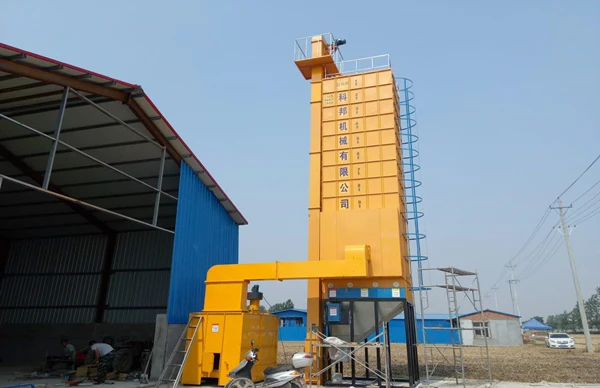

Batch Type Grain Dryer   Haokebang batch circulating grain dryer is usually suitable for farms, grain supply centers, etc. The output can provide 10-50 tons per batch. It is suitable for high-quality drying of high-moisture rice, wheat, corn, soybeans and other grains.

Features

– The precipitation range is large, and the maximum precipitation range of a single corn dryer can reach 25%.
– Mechanized continuous operation of corn dryer, stable performance, convenient operation, saving civil construction investment.
– It has strong adaptability and can take into account the drying of many varieties of grains.
– The corn dryer can use waste heat to recycle to reduce energy consumption.
– The grain is dried thoroughly and evenly, with sufficient slow down and thorough cooling, and the dried grain can be put into storage directly.
– Applying a number of energy-saving technologies, the drying energy consumption is low and drying costs are saved. After baking, the grain quality is good and pollution-free.
– A variety of heat sources can be used for heating: natural gas, steam, coal, fuel oil, biomass particles, etc.

Working Principle

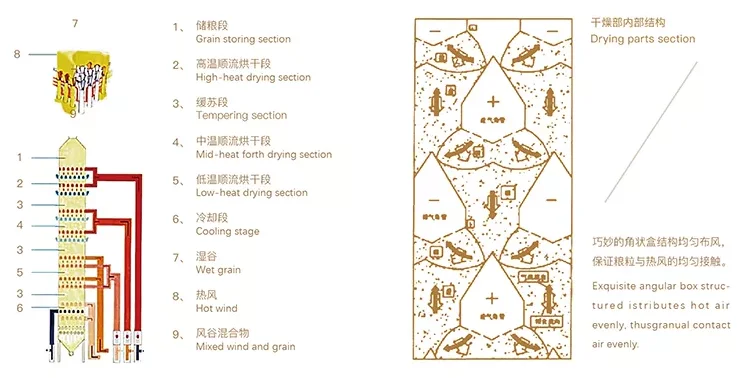

This model adopts the downstream drying process and is a downstream dryer. The downstream dryer uses hot air as the heating medium to dry the grain. Its interior is mainly composed of air intake ventilation joints and angular ventilation boxes. The corner box is filled with grain, and the grain flows from top to bottom. The hot air enters through the air intake and ventilation section and passes through the grain layer in the downward direction. The exhaust gas is discharged through the exhaust corner box. The hot air flows in the same direction as the grain flow, which is called mixed flow. When the hot air passes through the grain layer, it transfers heat and moisture with the grain: the hot air transfers heat to the grain to increase its temperature. When the grain is heated, the moisture evaporates into the air and becomes exhaust gas. The dried hot grain flows down to the slow-supply section, and after the slow-supply section, the temperature and moisture of the inner and outer layers of the grains tend to be balanced to achieve uniform precipitation. After the grain has slowed down, it enters the cooling section. After cooling, the grain is cooled to the storage temperature, and then discharged from the grain discharge section.

Technical Parameter

Model	HKB100	HKB150	HKB200	HKB300	HKB400	HKB500	HKB600
Capacity (T/D)	100	150	200	300	400	500	600
Moisture Expected Lowed Down (%)	3~5
Heated Media	Cleaning Air
Heated Air Tempereture (℃)	<65
Maximum Heating Temperature of Grain (℃)	35
Drying Evenness (%)	>98
Unit Heat Consumption (kj/kgH2O)	5450~6700
Coal Consumption (Standard) (kg/h)	110~180	160~260	230~350	340~520	450~680	560~850	700~1000
Installation Capacity	According to the environment, conditions, expected moisture lowed down and configuration.
Dryer Size(M)	4×3	4×3	5.5×3.2	5.5×4	5.5×4	6.2×6	6.2×6
Dryer Height(M)	9~12	12~15	14~17	16~18.5	18~20	16~19	18~21

Related Products

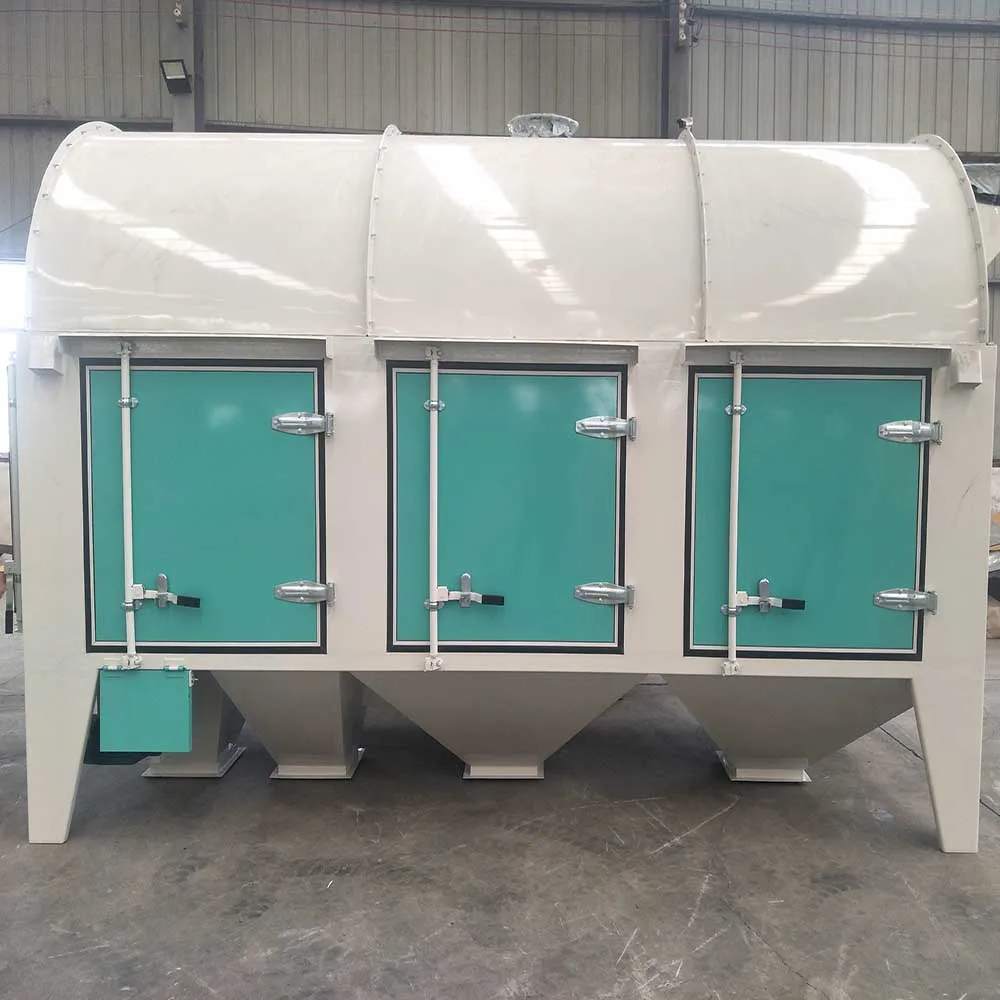

Tower Grain Drying	10-50 Ton Grain Dryer	100-10000 Ton Silo	Grain Pre-cleaner

After-sale Service

– Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. Maturity is the first.
– 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
– Routinely telephone track to remove all might be problems or issues guarantying the whole system long-lasting safety and reliability.
– HKB will consider all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentation, etc. So our respected Users feel so relaxed and easy to get the grain drying system well.

Company Profile

Henan Haokebang Machinery Equipment Co., Ltd. is located in Henan Province, China, covering an area of 32,000 square meters and having a standardized heavy-duty industrial plant of 15,000 square meters. The company specializes in the production of grain dryers, silos, tubular dryers, mesh belt dryers, grain cleaning screens and other grain processing equipment. Products have passed ISO, CE and other certifications, attracting customers from all over the world with efficient sales team and competitive price advantage, we have exported to more than 50 countries, including the United States, Russia, South Korea, Nigeria, Tanzania, Uganda , Colombia, Thailand, Philippines, Zimbabwe, Kenya and other countries and regions.

Our service purpose: "Serve users, be responsible for users, and satisfy users!". Looking forward to get more cooperation.

One-stop Service

HKB has a large number of skilled technicians, professional overseas installation teams and experienced after-sales service teams, which can provide users with solutions and equipment from a single equipment to a complete set of grain cleaning, drying, storage, and selected systems. And professional customized service technical support, reliable spare parts supply and high-quality after-sales service.

Workshop

Our company is well-equipped with more than 20 large and medium-sized machining, riveting, and assembly equipment, including fully automatic bending machines, laser cutting machines and other modern production equipment. Our company has more than 100 management personnel and engineering and technical personnel with intermediate and senior professional titles. It is a modern enterprise integrating R&D, production, sales and maintenance.

FAQ

Q1: What Fuel can I use?

A: Multiple choice fuel type: coal, wood, gas LPG or NG, biomass such as rice husk, pressed straw bricks, corn cob, coconut shell, wood chip, coffee hull.

Q2: How long does it take to dry the grains?
A: The drying time is determined by the yield and moisture content, and the national standard stipulates that the moisture is reduced by about 1% in one hour. For example, the water is 25% dried to 13%, and the drying time is about 12 hours.
Q3: The reason you choose HKB Grain Dryer?
A:1. Can provide a complete solution according to customer requirements
2. Can make market planning for customers after grain drying
3. Harvesting, peeling, threshing, transportation, drying, storage, bagging, one-stop service
4. 24 hours after-sales service, feel free to contact, solve problems at any time
5. Provide OEM, ODM service.
Q4. My people don't know how to install and use this machine.
A: Don't worry. We have detailed installation and operation instructions.
Q5: How to ensure the quality of products?
A: All products will be inspected before shipment.
