This air conditioner is published with the manufacturer’s full specification — voltage –, material Copper. Made by Jiangsu Baode Heat-Exchanger Equipment Co., Ltd. (20 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Conditioner
- Voltage: —
- Material: Copper
- Plate Material: Stainless steel AISI316
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Main Application: condenser
Technical Specifications
| Voltage | — |
|---|---|
| Material | Copper |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High-Accuracy |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 1.6 |
| Brand Name | Baode |
| Maximum Working Pressure | 4.5Mpa |
| Dimension(L*W*H) | — |
| After-Sales Service Provided | Overseas service center available |

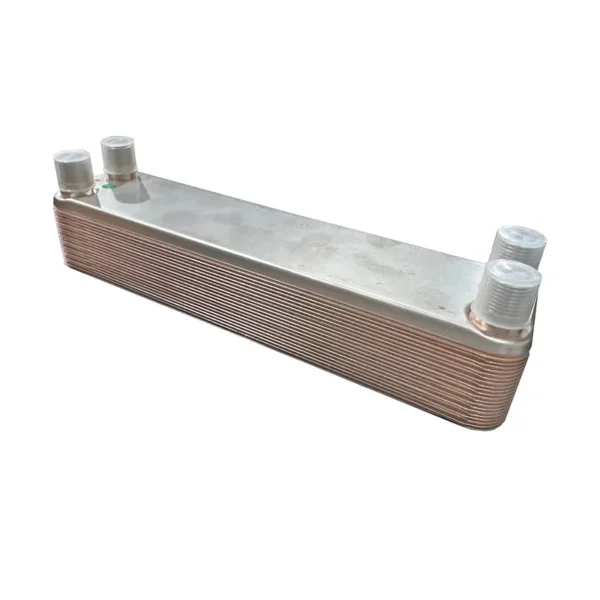

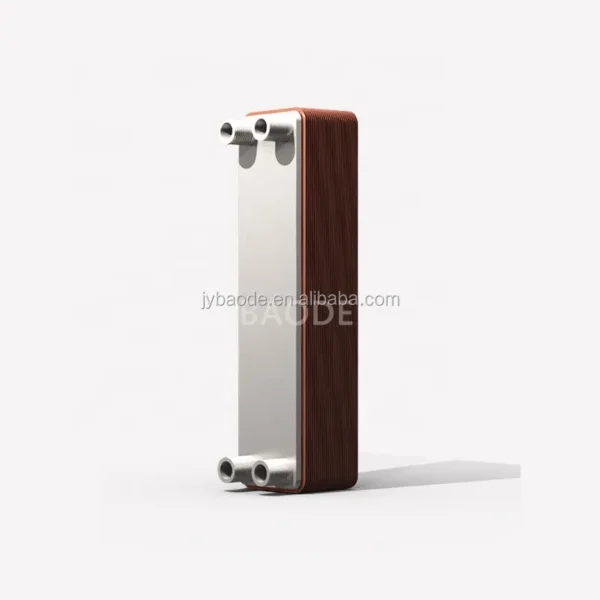

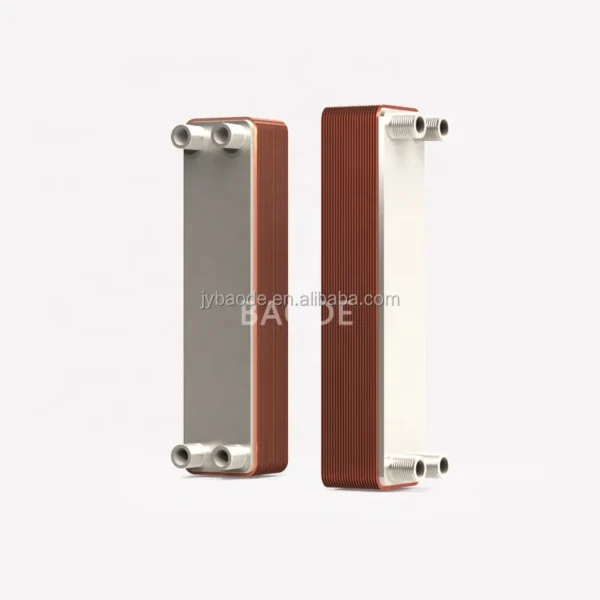

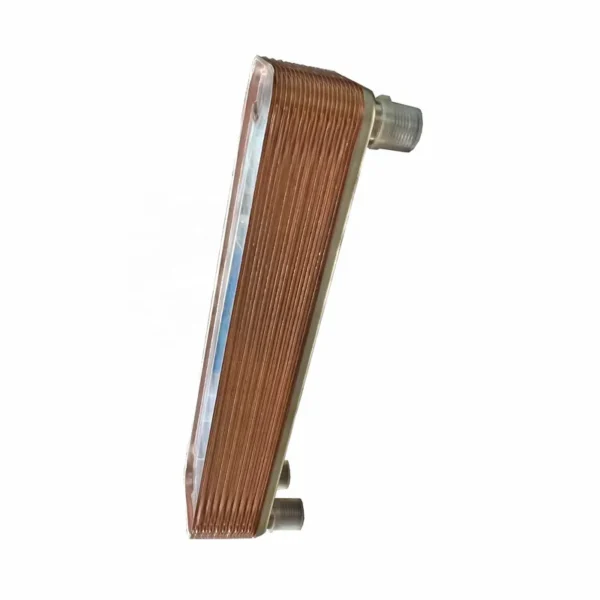

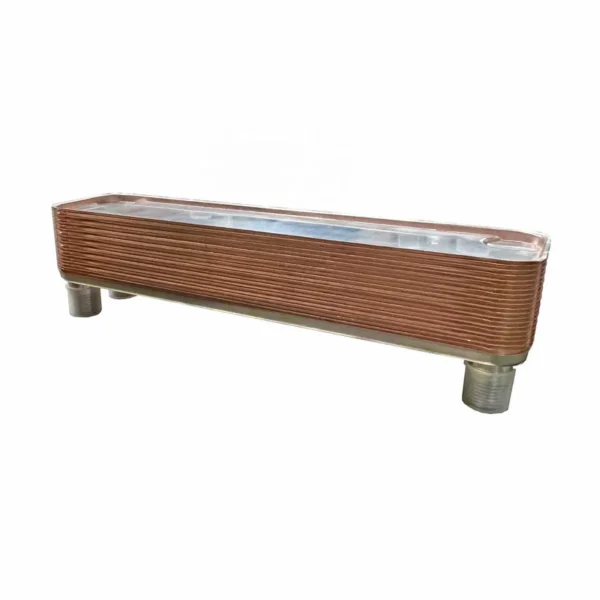

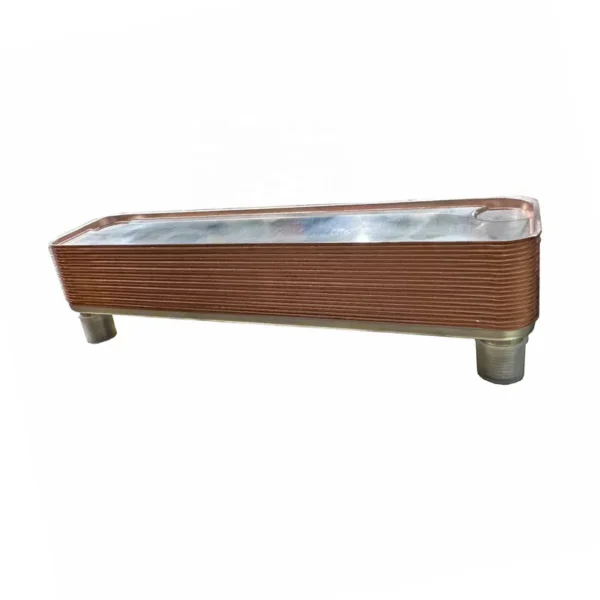

| Product Name | BL20 |
| Heat Exchanger Type | Copper brazed plate heat exchanger |
| Main Application | condenser |
| Plate Material | Stainless steel AISI316 |
| Connections | Stainless steel AISI 316, 304 |
| Design Data | Max 45 bar up to 225C, testing pressure 60 bar |
| Advantage | high efficient |
| Application | heating cooling |
| Connection Type | customized |
| Selling Units | Single item |
| Single Package Size | XX cm |
Product Details
Model | BL14 | BL20 | BL26 | BL26C | BL50 | BL95 |
Width (mm) | 78 | 76 | 111 | 124 | 111 | 191 |
Height (mm) | 206 | 310 | 310 | 304 | 525 | 616 |
Length (m) | 9+2.3n | 9+2.3n | 10+2.36n | 13+2.4n | 10+2.35n | 11+2.35n |
Horizontal port distance (mm) | 42 | 42 | 50 | 70 | 50 | 92 |
Vertical port distance (mm) | 172 | 282 | 250 | 250 | 466 | 519 |
Max pressure [Mpa] | 3 | 3 | 3/4.5 | 3 | 3 | 21 |
Max flowrate (M3/h) | 8.1 | 12.7 | 39 | 8.1 | 12.7 | 39 |
Weight(kg) | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n | 2.6+0.19n | 2.6+0.19n | 7.8+0.36n |
Model | BL120 | BL190 | BL200 | BL600 | BL100 | BL210 |
Width (mm) | 246 | 307 | 321 | 429 | 248 | 322 |
Height (mm) | 528 | 696 | 738 | 1398 | 495 | 739 |
Length (m) | 13+2.36n | 13+2.75n | 13+2.7n | 10+2.15n | 10+2.15n | 13+2.55n |
Horizontal port distance (mm) | 174 | 179 | 188 | 220 | 157 | 205.2 |
Vertical port distance (mm) | 456 | 567 | 603 | 1190 | 405 | 631 |
Max pressure [Mpa] | 3 | 3 | 21 | 1.5 | 3/4.5 | 3/4.5 |
Max flowrate (M3/h) | 42 | 100 | 100 | 300 | 42 | 100 |
Weight(kg) | 7.2+0.52n | 12.5+0.72n | 13+0.75n | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $60 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air conditioner?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air conditioner be supplied for my local voltage?
The standard configuration is –. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
