Cutter with stepper motor — voltage 220-380v, model number RTP-1325. The complete factory specification follows. Made by Jinan Robotec Machinery Co., Ltd. (1 year on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cutter With Stepper Motor
- Model Number: RTP-1325
- Voltage: 220-380v
- Warranty: 1 Year
- Place Of Origin: China
- Application: Sheet Metal Industry
- Motor Type: Stepper Motor
Technical Specifications
| Voltage | 220-380v |
|---|---|
| Motor Type | Stepper Motor |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine |
| Key Selling Points | Easy to Operate |
| Place Of Origin | China |
| Weight (Kg) | 1500 |
| Model Number | RTP-1325 |
| Dimension(L*W*H) | 1300*2500*200MM |
| Product Name | RTP-1325BR |
| Function | cutting metal |
| Cutting Mode | Plasma Cutting+ Flame Cutting |
| Control System | Starfire Control System |
| Application | Sheet Metal Industry |
| Plasma Cutting Thickness | 0–30mm |
| Name | Cnc Plasma Cutting Machine Table |
| Selling Units | Single item |
Product Details

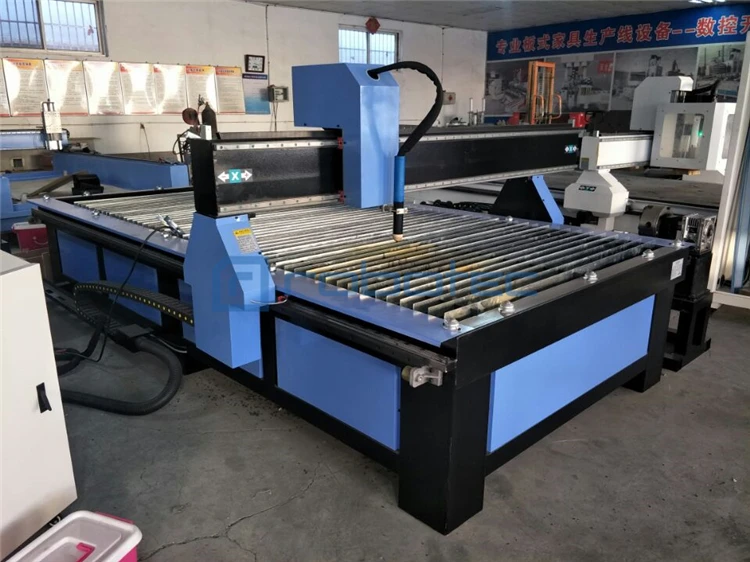

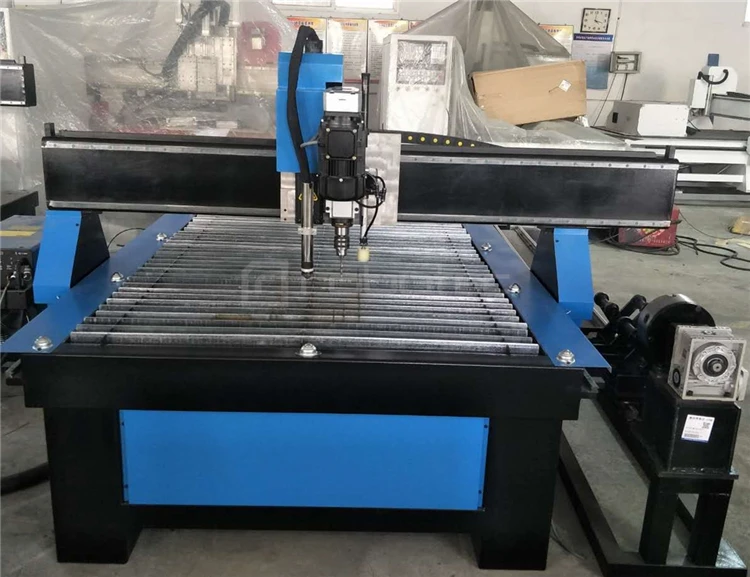

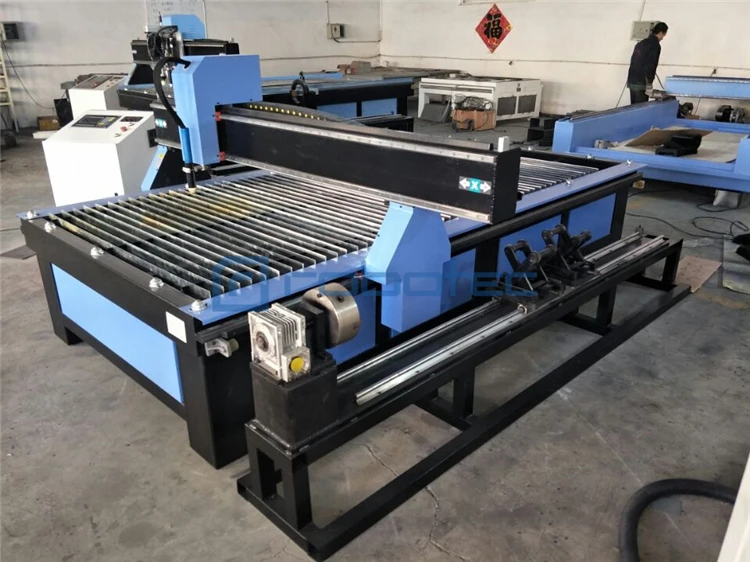

ROBOTEC 1325/1530/1560/2030 accurate tools plasma cutter cnc plasma cutting machines
cnc plasma cutter machine
| Motor driver | RTP-1325 |
| Working Area(X*Y) | 1300×2500mm / 1500*3000mm |
| Frame | Square tube Integral guide |
| X Y Z Rail | Taiwan HIWIN Linear guide |
| Transmission | X/Y rack and pinion,Z Taiwan TBI Ball Screw |
| Motor driver | Stepper Motor driver |
| Control System | DSP/START |
| Cutting Thickness | 3mm-40mm Stainless steel |
| Plasma Power Supply | 63A/100A/120A/160A/200A |
| Working Speed | 8000mm/min |
| Working Voltage | 380V/220V/110V |
| Software | ArtCAM/Type 3/Ucancam |
Features portable cnc plasma cutter machineROBOTEC 1325/1530/1560/2030 accurate tools plasma cutter cnc plasma cutting machines
1.Fastcutting speed,high precisionandlow cost.
2.Withfirm and reasonable structure,the machine iseasy to operateand durable for use.
3.Thecutting incisionisthin and tidilyand canavoid the second processing.
4.High configurated CNC system,auto arc-striking andstable performance.
5.Together with other advertising equipments,they form an advertisement producing line which completely solve the problem of traditional manual mode.
6. Working with computer andsupport G codeand files ofUncannest software(specilized in cutting metal material) (optional Fastcam software)
7.It cancut metalplate of advertising3D lighting letterand flute profile letter withhigh cutting precision.(USA power is optional)
8.Start control system and Start THC device

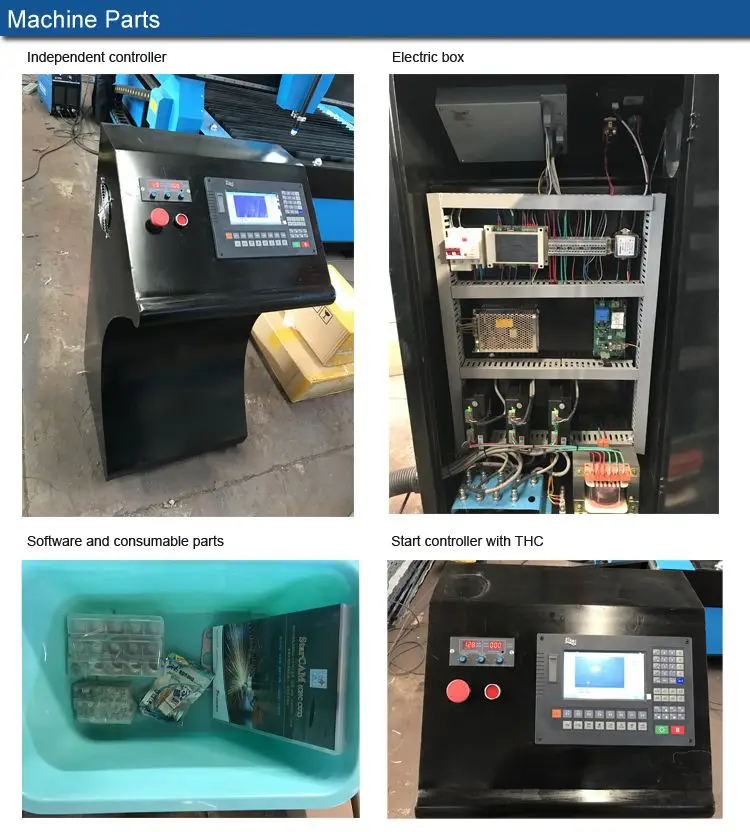

Componentsportable cnc plasma cutter machine63a 100a 120a 160a 200a ce high definition plasma cutting machine with optional table size factory price
A : Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.
B : Rail assembly including : 6 pairs of main rail and assistant rail and accessories, 2 meters per pair.

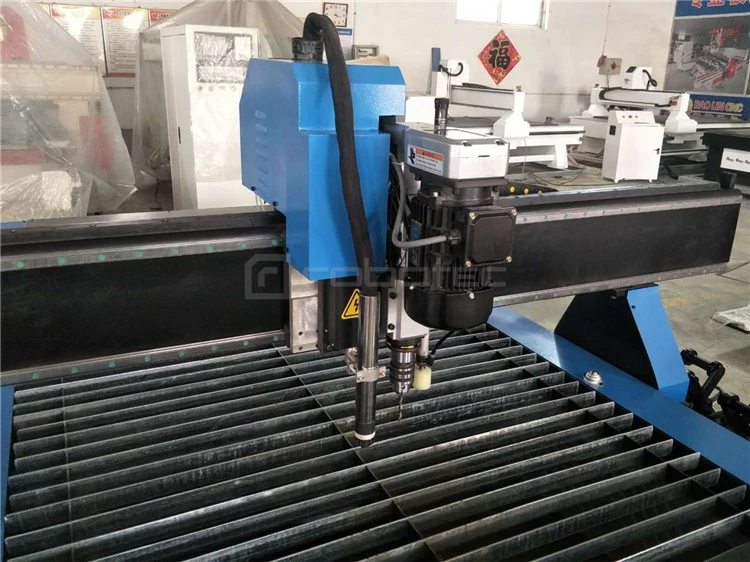

C :Plamsa torch or flame torch
D : Electric control assembly including : electric cabinet, longitudinal and transverse motors and accessories.
E: Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.
F: Height adjustment: Torch Height Controllor (can cut different height material ).
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $5500 / set
- 5+ set: US $5200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cutter with stepper motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cutter with stepper motor be supplied for my local voltage?
The standard configuration is 220-380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jinan Robotec Machinery Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Jinan Robotec Machinery Co., Ltd. range on HVACR Nexus.
