Industrial centrifugal ventilation fan — 220V/380V, air flow 1300-3300CMH. The complete factory specification follows. Made by Fujian Huada Electric Co., Ltd. (12 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Industrial Centrifugal Ventilation Fan
- Model Number: 11-62-2.5A
- Voltage: 220V/380V
- Rated Voltage: 380v/220V
- Air Flow: 1300-3300CMH
- Blade Material: carbon steel
- Speed: 1450RPM
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220V/380V |
| Blade Material | carbon steel |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM |
| Place Of Origin | Fujian, China |
| Brand Name | Huada |
| Model Number | 11-62-2.5A |
| Diameter | 250mm/10inchs |
| Motor | 0.75kw high temperature,H class |
| Speed | 1450RPM |
| Air Flow | 1300-3300CMH |
| Full Pressure | 450-350 Pa |
| Fan Blade | carbon steel |
| Fan Housing | carbon steel |
| Rated Voltage | 380v/220V |
| Protection Class | IP55 |
| Insulation Class | Class H |
| Packaging Details | ply wood |
| Port Of Dispatch | Fuzhou Port |
| Selling Units | Single item |
| Single Package Size | 68X68X55 cm |
| Single Gross Weight | 28.000 kg |
| Supply Ability | 200000 sets per Month |
Product Details

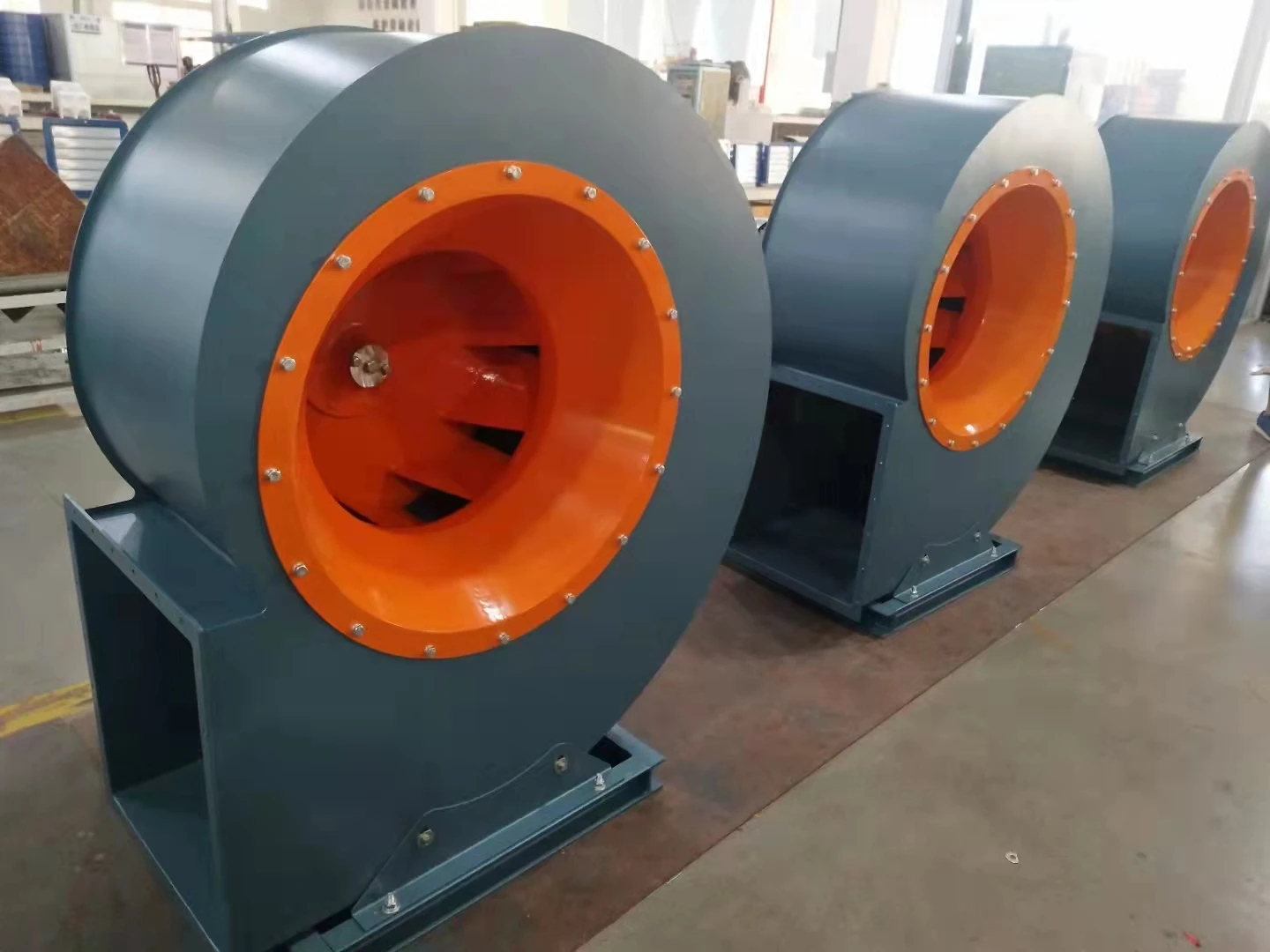

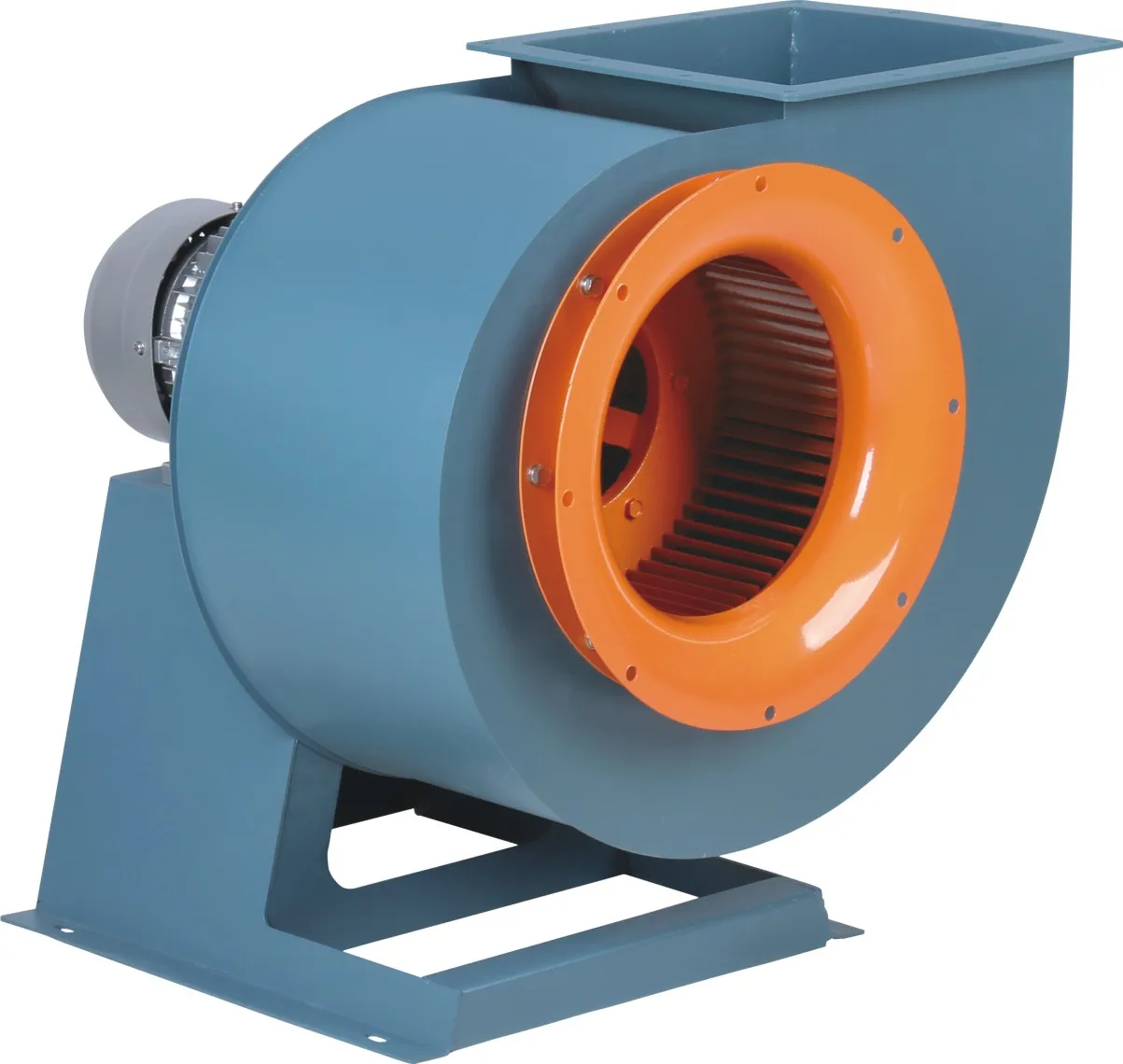

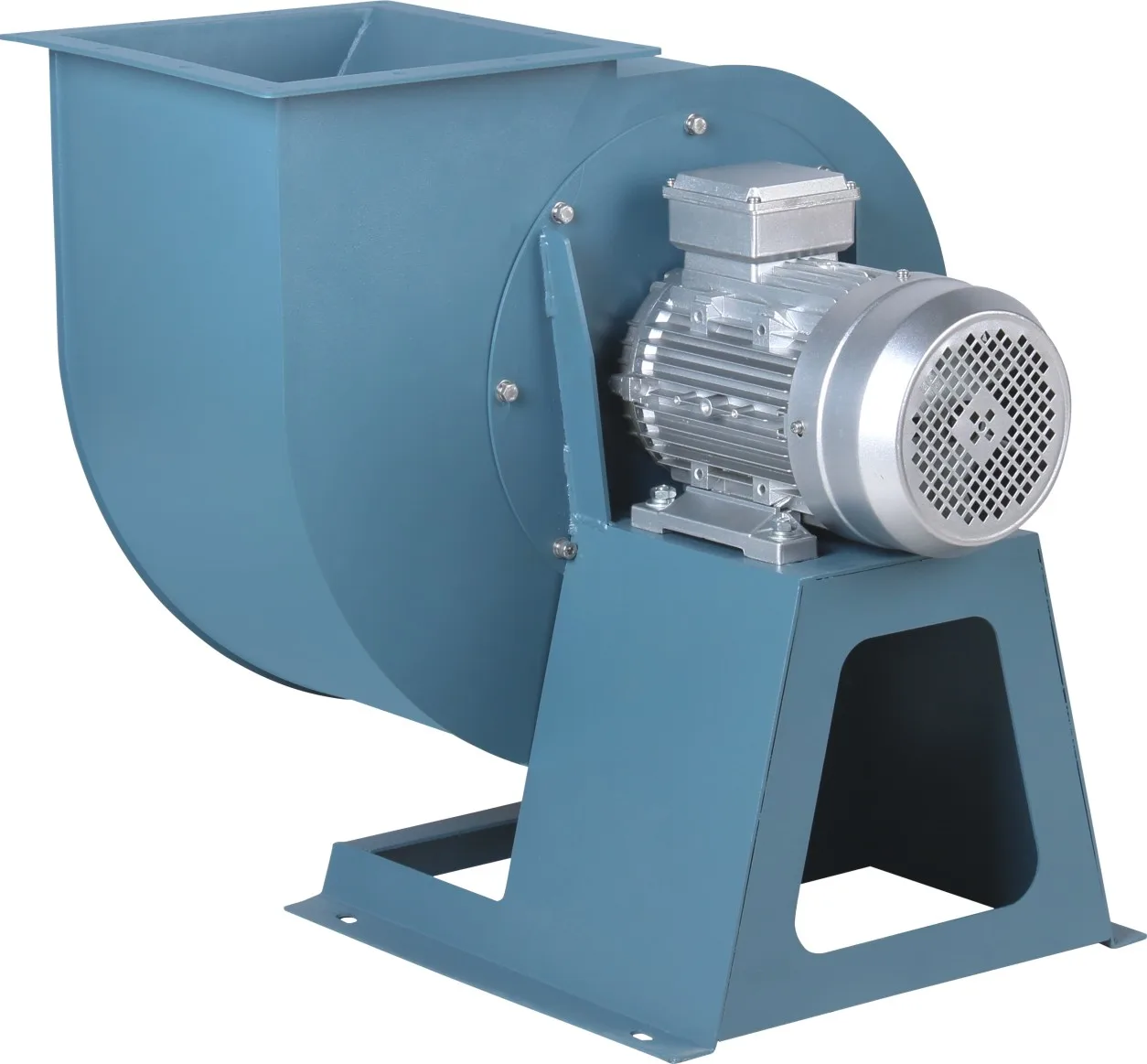

11-62 industrial centrifugal fan
11-62 series multi-vane low noise centrifugal fan is designed for the company which is suitable the evolving trend of requirements,what is purification of industrial,environmental protection and noise reduction.According the fan noise,efficiency and other aerodynamic parameters of multi-objective optimization design methods,the centrifugal fan match other machines can achieves the best performance.The impeller and the belt pulley are tested by strict dynamic balance emendation,the fan has the characteristic of smooth operation,low noise,small vibration ,long-use time and so on.
Application:It can be widely used in the dinning room,guesthouse,restaurant,eating house for kitchen ventilation,exhaust.And the centrifugal fan is suitable for cereal processing machinery,chemical engineering machinery,plastic machinery of the manufacturing equipment.
Parameter List
11-62 Series low noise multi wings centrifugal fan | ||||||||||
Frame NO. | Matching motor （KW-P） | Speed （r.p.m） | Flow (m³/h) | Total Pressure (Pa) | Noise （dB） | |||||
2.5 | 0.75-4 | 1450 | 1300-3300 | 450-350 | ≤65 | |||||
2.8 | 1.1-4 | 1450 | 2200-5600 | 570-440 | ≤69 | |||||
0.55-6 | 960 | 1430-3600 | 240-230 | ≤60 | ||||||
3 | 2.2-4 | 1450 | 3000-5000 | 600-450 | ≤71 | |||||
0.75-6 | 960 | 2000-3500 | 300-250 | ≤61 | ||||||
3.2 | 3.0-4 | 1450 | 3400-8900 | 760-570 | ≤73 | |||||
1.1-6 | 960 | 2180-5700 | 310-230 | ≤63 | ||||||
3.5 | 4-4 | 1450 | 4500-9900 | 910-700 | ≤76 | |||||
1.5-6 | 960 | 2900-6400 | 380-290 | ≤68 | ||||||
4 | 2.2-6 | 960 | 4445-10500 | 522-395 | ≤73 | |||||
3.0-6 | 960 | 4600-11800 | 550-430 | ≤75 | ||||||
4.5 | 4.0-6 | 960 | 6600-14880 | 555-440 | ≤76 | |||||
5 | 4.0-6 | 960 | 8680-17880 | 815-616 | ≤77 | |||||
5.5-6 | 960 | 9800-19300 | 920-640 | ≤79 | ||||||
6 | 7.5-6 | 960 | 10425-21473 | 1170-887 | ≤81 | |||||
3-8 | 720 | 10068-16104 | 658-493 | ≤78 | ||||||
High temperature resistant H class motor
1 100% copper motor , with H class insulation ( with modified polyester imine enamelled wire). 2 According the analysis methods of advanced thermodynamic,it not only reduce the electromagnetic loads of motor,but also increase the performance efficiency,energy saving. 3 The motor can resistant to ageing and burn out .It can be operated in the high temperature and high humidity vapor environment. 4 The motor adopts external structure injected lubricating oil.It is not only increase the service life of bearing,but also avoids the oillingdisassembly. 5 It is designed based on the characteristic of blower-pump load. shell adopt aluminum alloy material,fastening piece adopts stainless steel and copper,attractive appearance. 6 The motor structure adopts the straight shaft extension and subulate shaft-extension,special grease lubricant of resistant to high temperature bearing,low noise and small vibration.

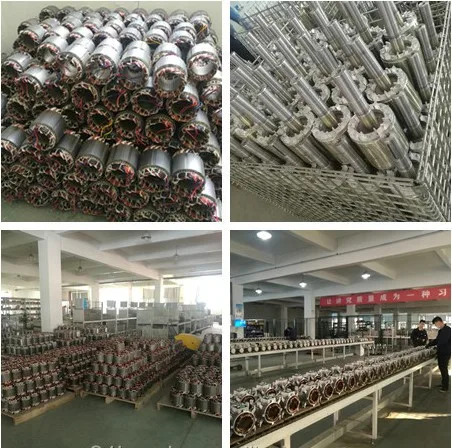

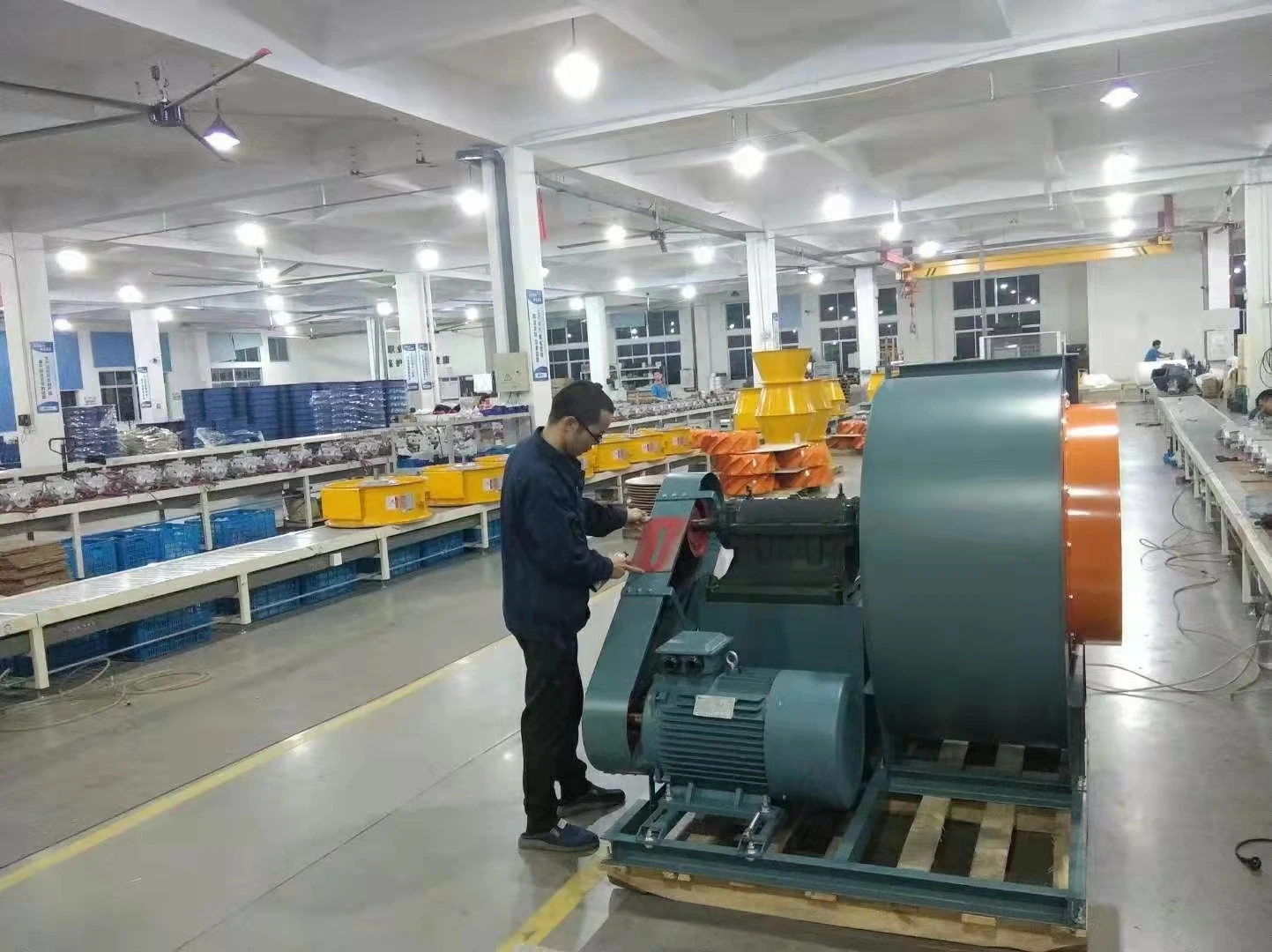

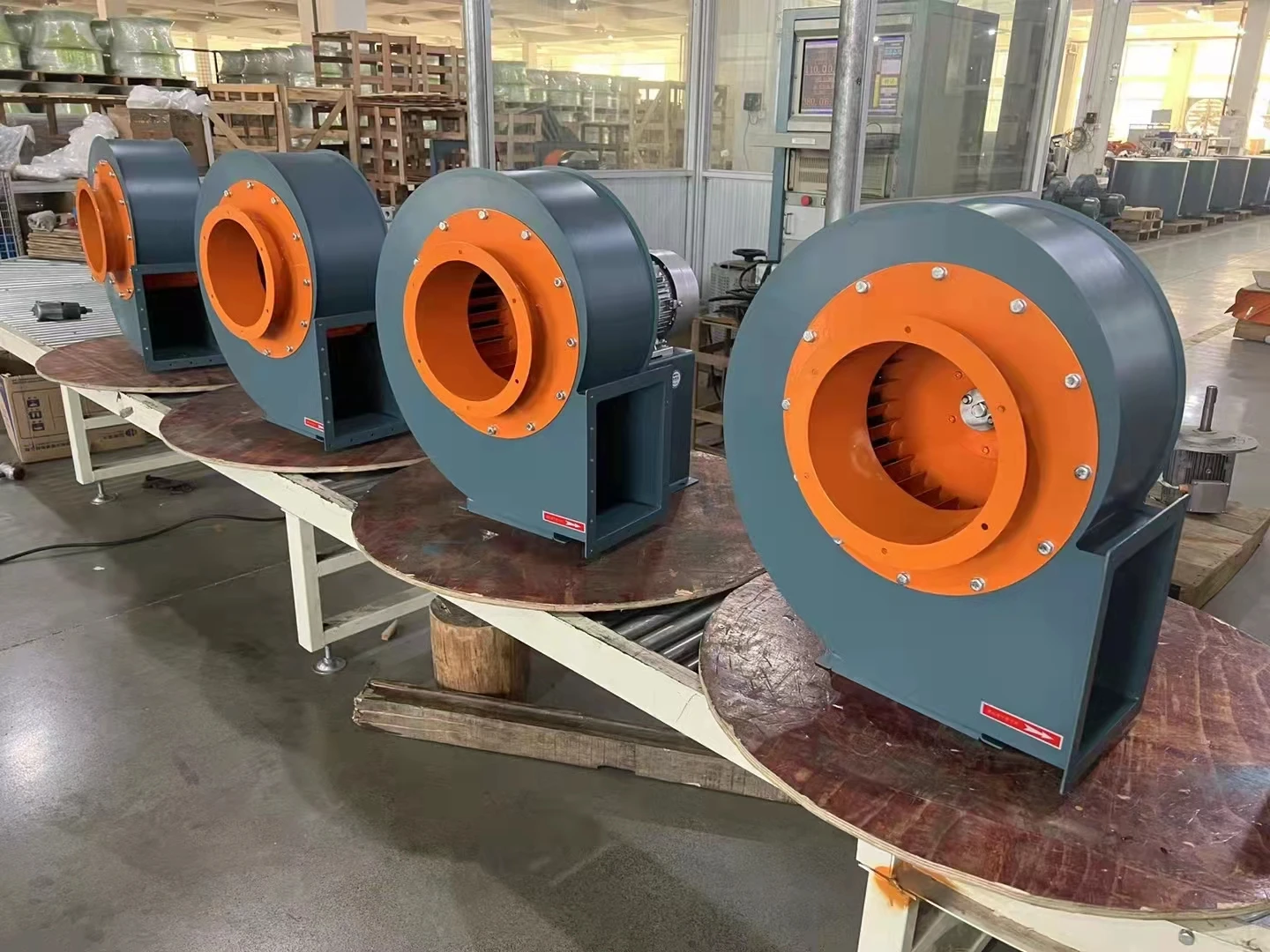

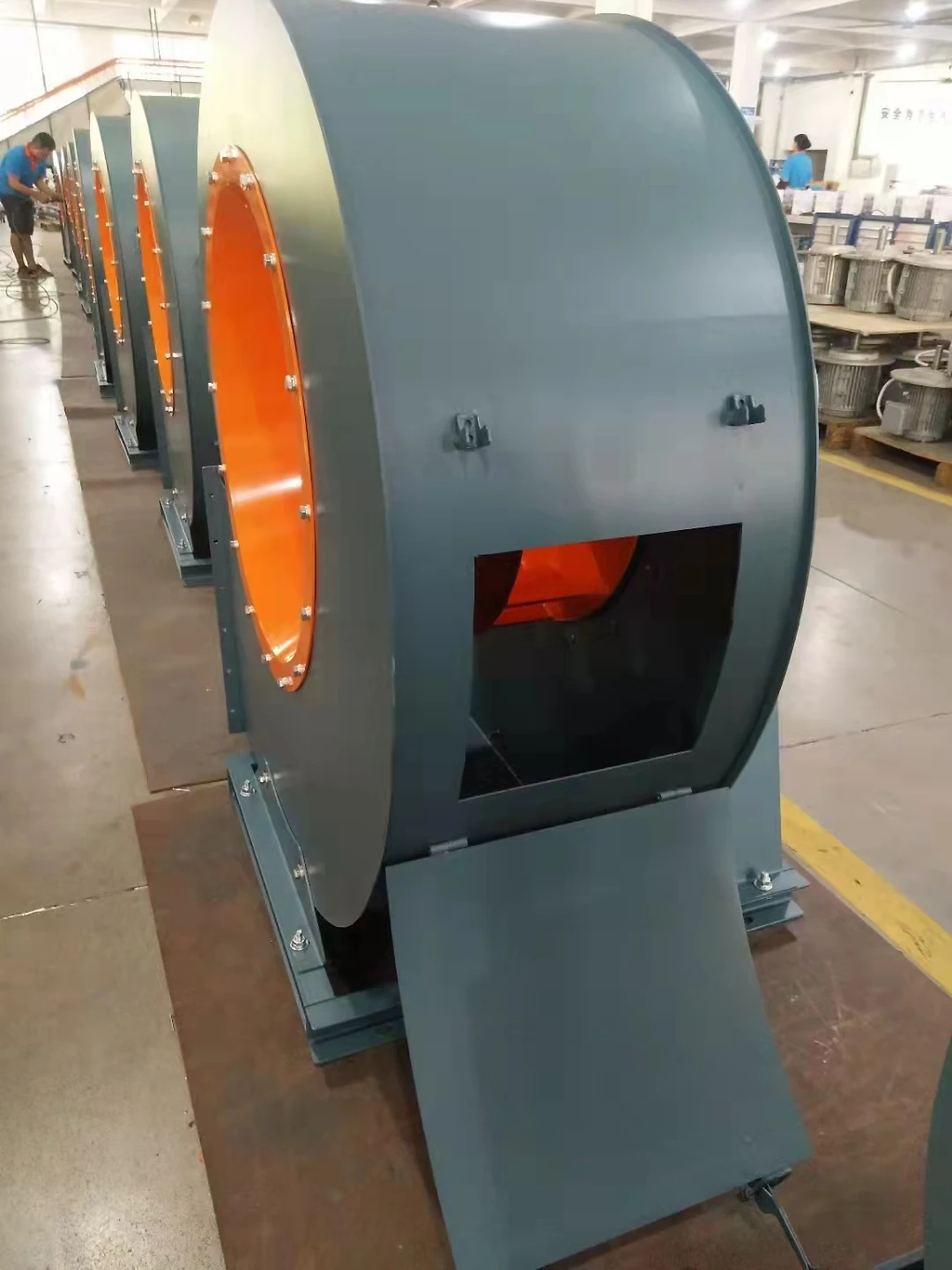

Production Line
Packing
Company Profile
Fujian Huada Motor Factory established in 1998,registered as Fujian Huada Electric CO.,LTD,located in Fujian Province.It is a modern enterprise which engaged in Scientific research,production,sales and service.Covering an area of 50,000 square meters,of which 40,000 square meters are standard workshop. Huada is more than ten years to focus on the research and development of high temperature motor,high temperature fan;Strictly control the production process ,making the high-quality goods.Products are included MSW series high temperature motor,GKF series flue-cured tobacco special-purpose fan,GKW series full aluminum high temperature and high humidity fan,CRF series grain drying dedicated fan,DJF series multistage high -pressure fan,DRF series diversion type high temperature fan,HTF series high temperature fire smoke exhaust fan,SWF series mixed flow fan and all kinds of high temperature and centrifugal fan and so on. Besides our products passed the CCC certification,European Union CE certification. Best selling in China and overseas markets,Huada as well known brand reputation in the domestic complete set of drying industry.GKF series fan was chosen as the industry standard by the national tobacco administration in 200p.The project of Flue-cured tobacco asynchronous motor with variable speed multistage won the third prize in Ningde science and technology progress and the second prize in Fuan Science and technology progress.
Ordering and Pricing
- Minimum order quantity: 10 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial centrifugal ventilation fan?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial centrifugal ventilation fan be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
