The cooling centrifugal ventilation fan listed here carries voltage AC 220V~380V, power 2.2-110, documented exactly as the manufacturer publishes it. Made by Hricc Industrial Equipment (Shandong) Co., Ltd. (2 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Centrifugal Ventilation Fan
- Power(KW): 2.2-110
- Voltage: AC 220V~380V
- Blade Material: FRP
- Speed: 2900, 1450, 960, 720
- Rotating Speed(R/Min): 750-2900
- Warranty: 1 Year
Technical Specifications
| Type | Forward Curved Blade Radial Fan, Backward Curved Blade Radial Fan, Radial Blade Radial Fan, Multi-Vane Radial Fan, High-Pressure Radial Fan |
|---|---|
| Voltage | AC 220V~380V |
| Speed | 2900, 1450, 960, 720 |
| Blade Material | FRP |
| Mounting | Duct Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | HRICC |
| Product Name | HRC919 centrifugal fans |
| Power(KW) | 2.2-110 |
| Rotating Speed(R/Min) | 750-2900 |
| Air Volume(M3/H) | 824-42000 |
| Pressure(Pa) | 3500-15000 |
| Color | Red/white/grey/yellow/blue/customized |
| Package | Wooden case |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

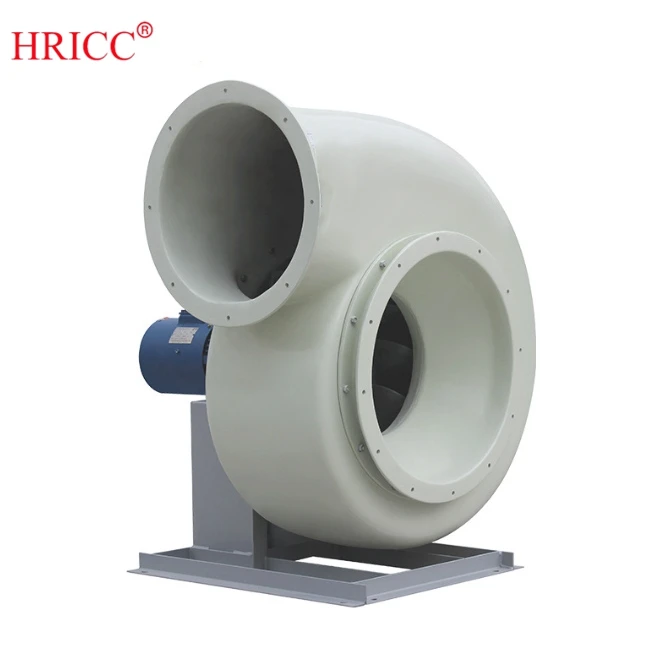

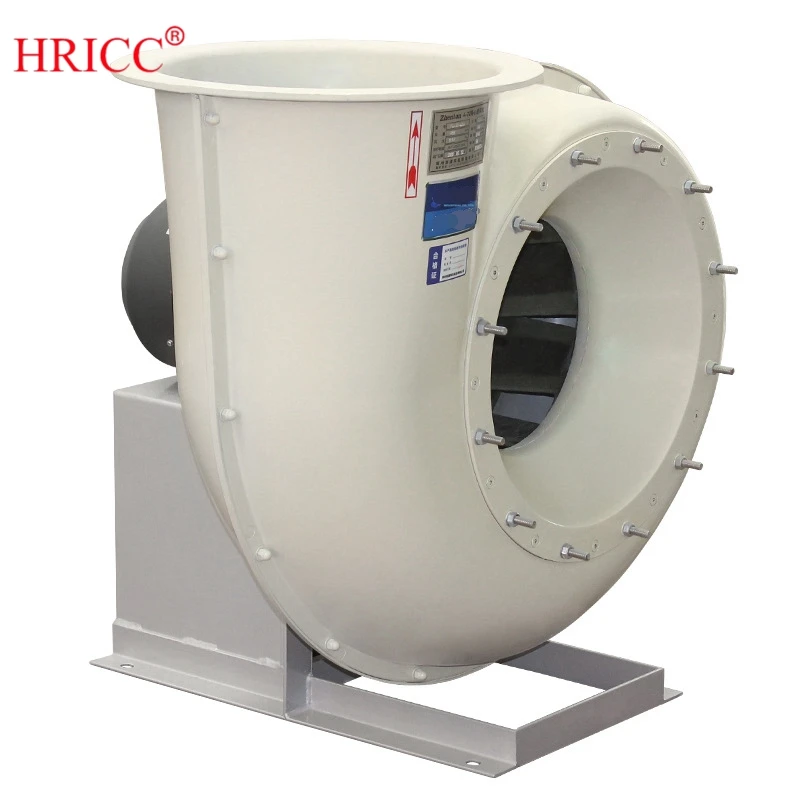

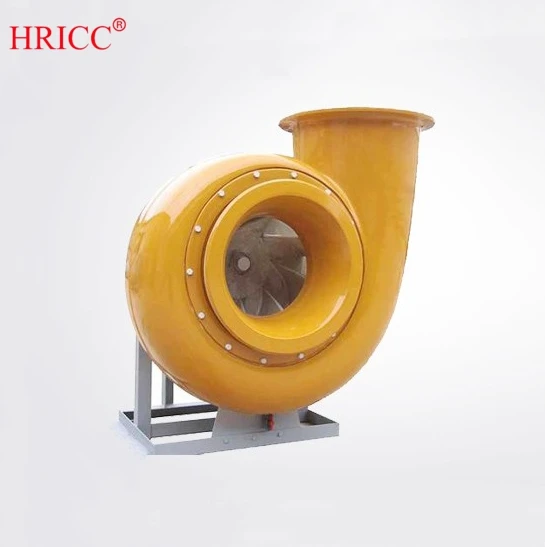

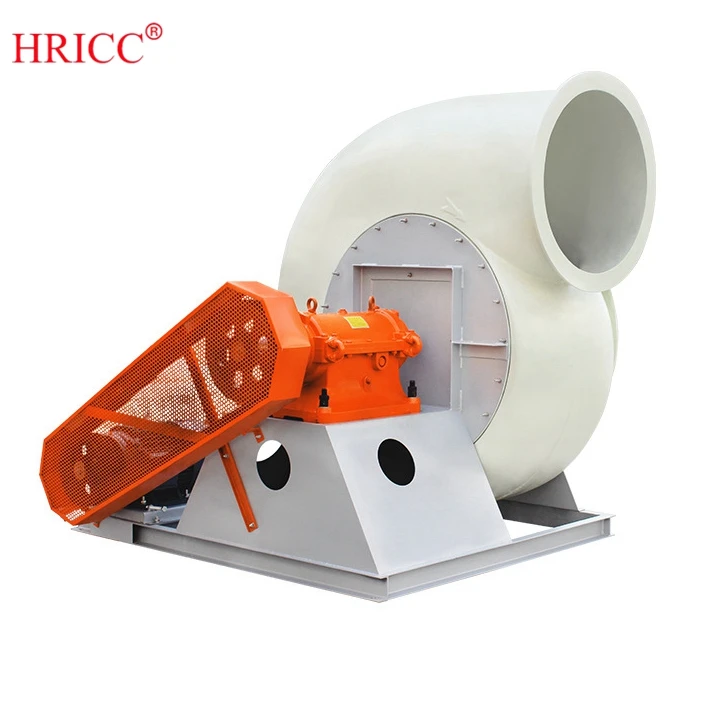

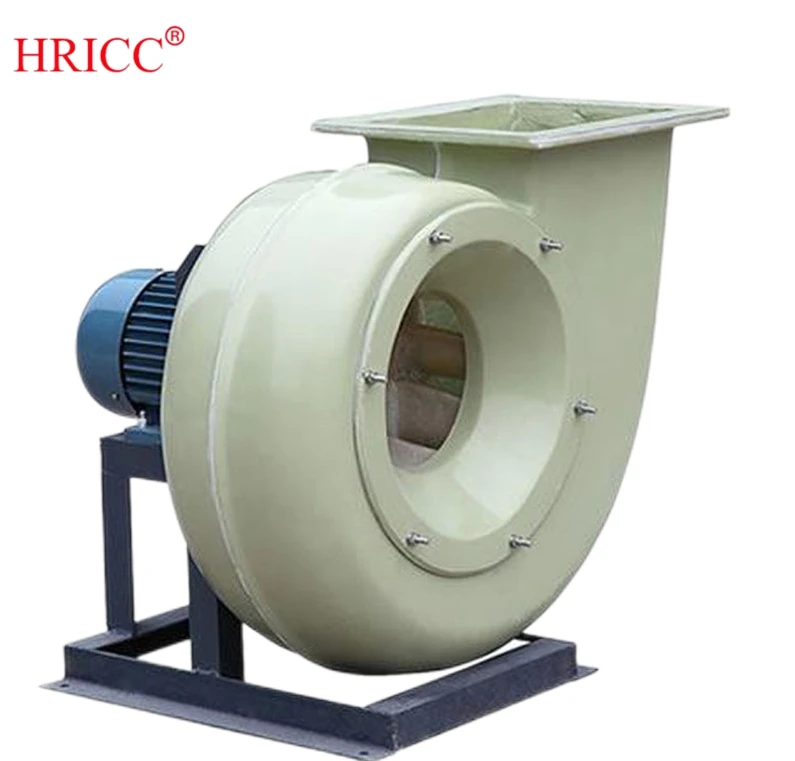

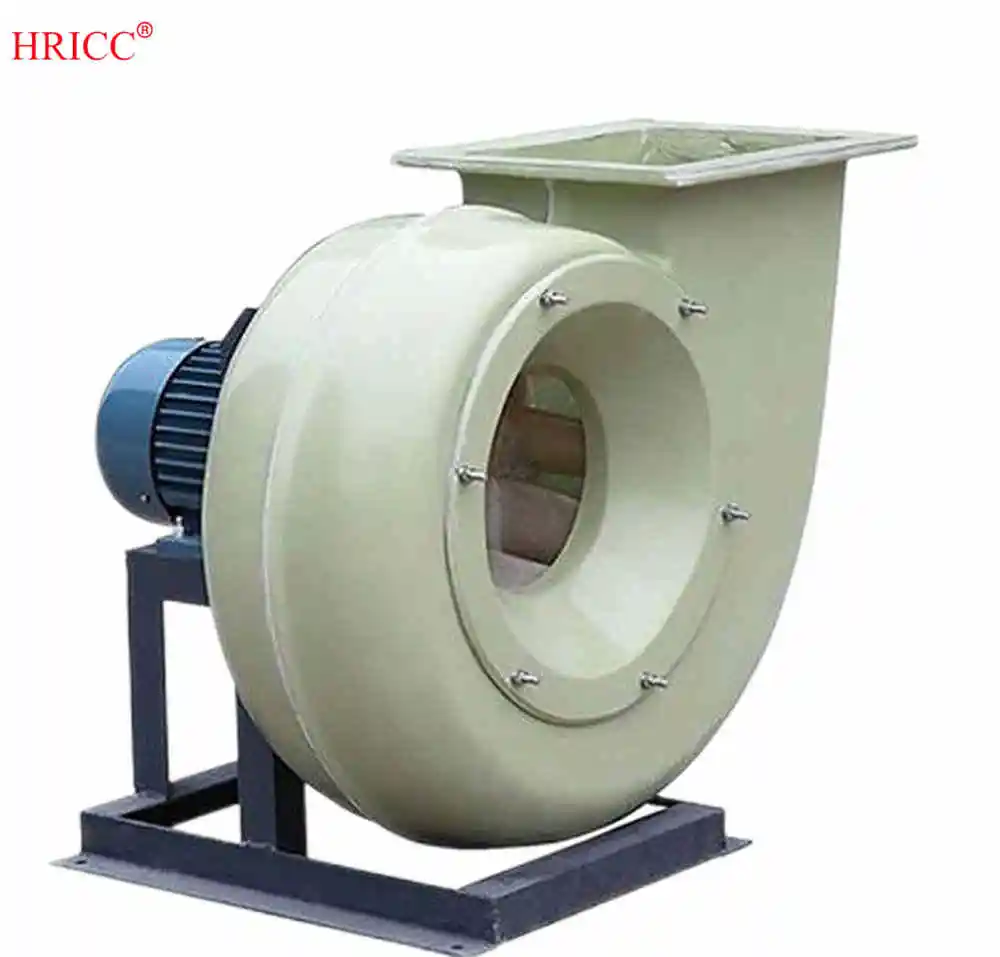

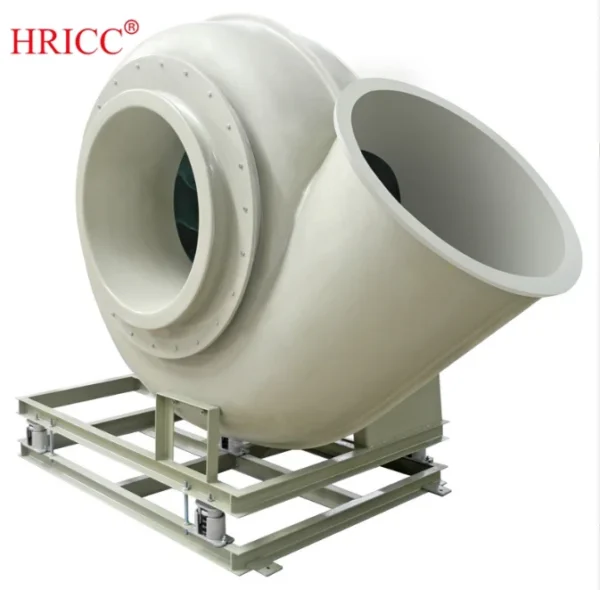

Unleash Superior Corrosion Resistance & Performance with Our FRP Centrifugal Fans
Tailor fan configurations to your needs:
Non-Standard Sizes: Impeller diameters from 280 mm to 2,240 mm to fit constrained spaces.
OEM/ODM Services: Custom branding, packaging, and technical documentation available.

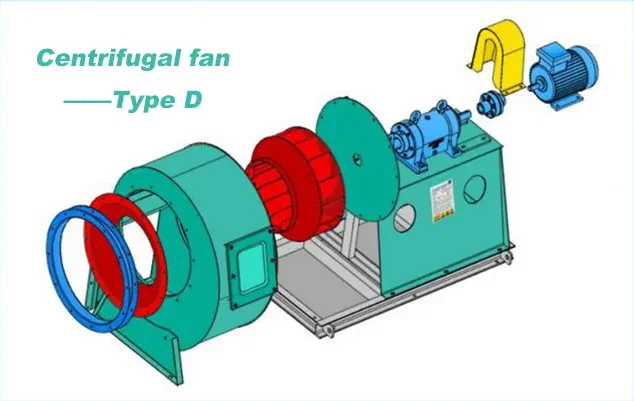

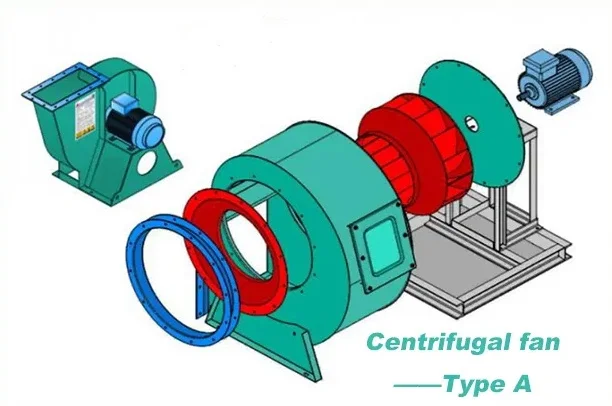

Fan type | RPM (r/min) | Pressure (pa) | Air Volume (m³/h) | Motor power (kw) |
4A | 2,900 | 3584-3597 | 824-1264 | 2.2-2 |
4A | 2900 | 3507-3253 | 1410-1704 | 3-2 |
4.5A | 2,900 | 4603-4447 | 1174-2062 | 4-2 |
4.5A | 2,900 | 4297-4112 | 2281-2504 | 5.5-2 |
5A | 2,900 | 5697-5323 | 1610-3166 | 7.5-2 |
5A | 2,900 | 5323-5080 | 3166-3488 | 11-2 |
5.6A | 2,900 | 7182-7109 | 2262-3619 | 11-2 |
5.6A | 2,900 | 6954-6400 | 3996-4901 | 18.5-2 |
6.3A | 2,900 | 9149-9055 | 3220-5153 | 18.5-2 |
6.3A | 2,900 | 8857-8148 | 5690-6978 | 30-2 |
7.1D | 2,900 | 11717-11596 | 4610-7376 | 37-2 |
7.1D | 2,900 | 11340-10426 | 8144-9988 | 55-2 |
8D | 2,900 | 15034-14546 | 6594-11649 | 75-2 |
8D | 2,900 | 14021-13362 | 12968-14287 | 110-2 |
8D | 1,450 | 3620-3647 | 3297-4616 | 7.5-4 |
8D | 1,450 | 3584-3231 | 5257-7144 | 15-4 |
9D | 1,450 | 4597-4551 | 4695-7511 | 15-4 |
9D | 1,450 | 4453-4101 | 8294-10171 | 22-4 |
10D | 1,450 | 5941-5495 | 6440-12450 | 30-4 |
Why Choose Us?
Cost Efficiency: Direct factory pricing (save 20–30% vs. distributors)
Fast Lead Time: 7-day standard production (expedited shipping options available)

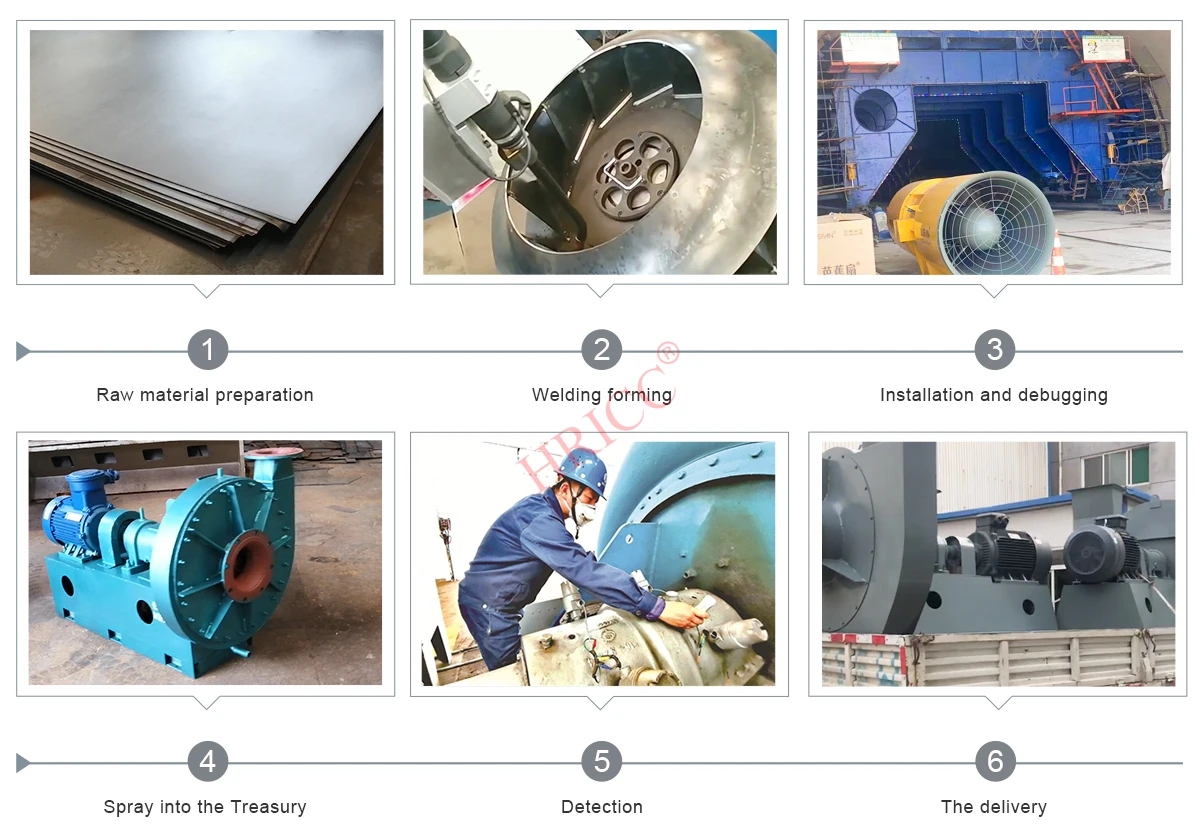

QC Assurance: 100% factory testing (pressure curve report provided with each unit)
Other Products
Proof Fan, Etc, Welcome To Contact Us To Learn More Details.
Q2:Where is your factory located? How can I visit there?
A: Our factory is located in Zibo City, Shandong Province, China.Contact us ahead before you go visit,then we can fully arrange the schedule and meet you.Welcome to visit us!
Q3: How does your factory do regarding quality control?
A: Quality is the most important principle. Hricc people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q:ls the product customized?
A4:Varous types can be customlzed.
Q5. What is your warranty?
A.Our warranty is 12 months after received the centrifugal fans. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure.continuous safe and high-quality equipment operation.
Q6. What are your terms of payment?
A. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
B. 100% IRREVOCABLE L/C AT STGHT.
Q7 . What products do you produce?
A. Industrial fan,Motor
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $300 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling centrifugal ventilation fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling centrifugal ventilation fan be supplied for my local voltage?
The standard configuration is AC 220V~380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
