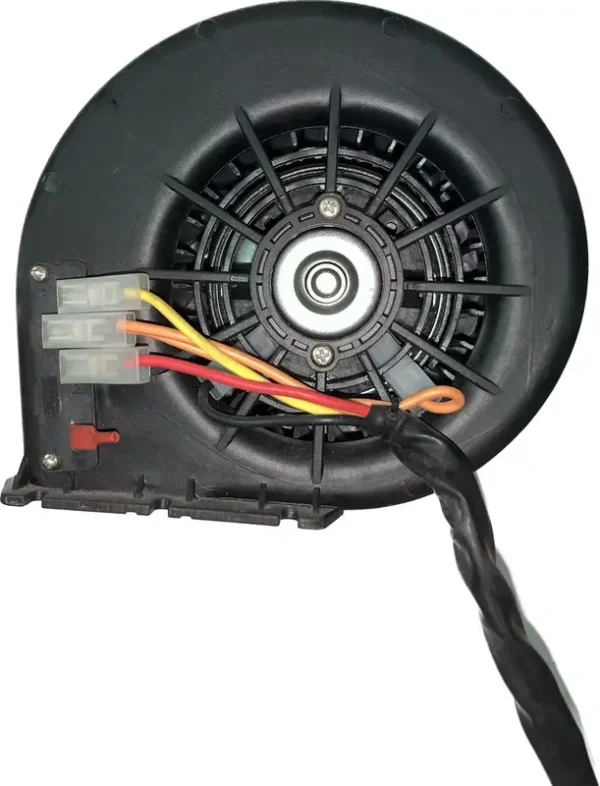

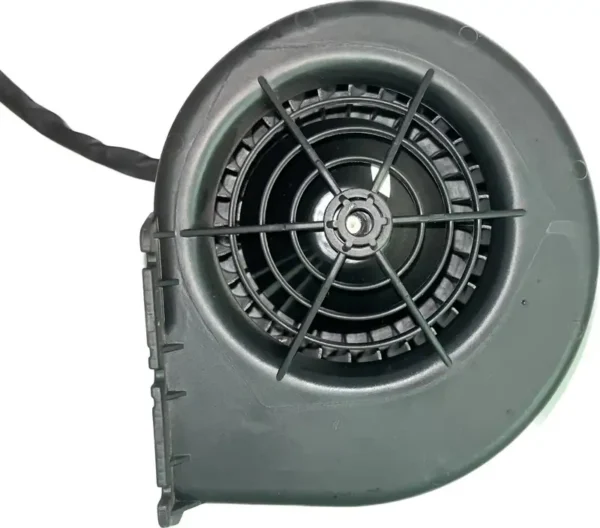

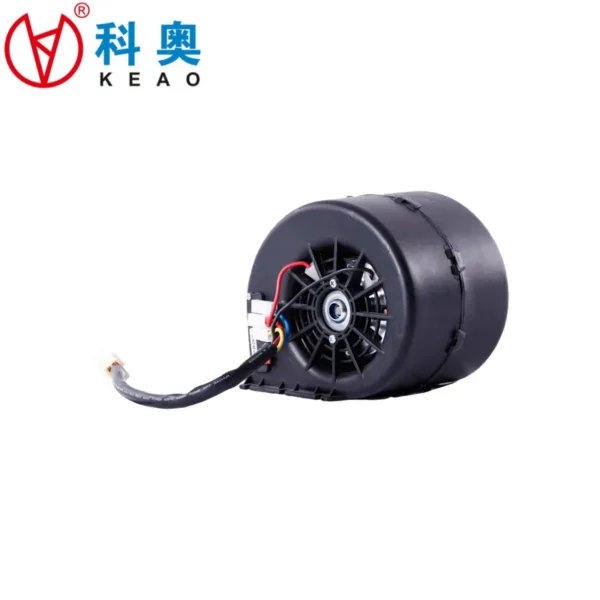

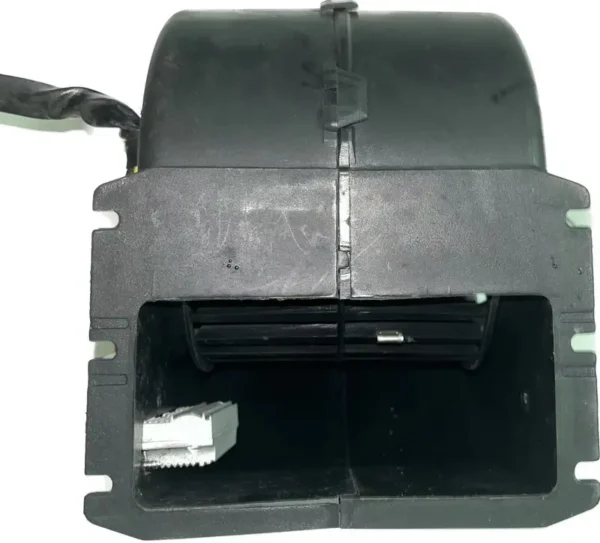

Dc12v24v brushed centrifugal evaporator — voltage DC12V/24V, 12v brushed centrifugal blower. The complete factory specification follows. Made by Guangzhou Keao Mechanical & Electrical Co., Ltd. (19 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Dc12v24v Brushed Centrifugal Evaporator
- Voltage: DC12V/24V
- Speed: 3600±200rpm
- Warranty: 13 months
- Place Of Origin: Guangdong, China
- Type: 12v brushed centrifugal blower
- Size: Standard Size
Technical Specifications
| Type | 12v brushed centrifugal blower |
|---|---|
| Purpose | for manufacturing |
| Condition | New |
| OE NO. | 008-A37/C-42D |
| Warranty | 13 months |
| Place Of Origin | Guangdong, China |
| Size | Standard Size |
| Brand Name | KEAO |
| Car Model | bus |
| Voltage | DC12V/24V |
| Current | ≤12.0A/6.0A |
| Air Volume | ≥400m3/h |
| Speed | 3600±200rpm |
| Static Pressure | 100pa |
| Selling Units | Single item |
| Single Package Size | 25X20X20 cm |
| Single Gross Weight | 3.0 kg |
Product Details
* Customized speed without additional cost.
* Good price & Long term cooperation deep discount.
* Low noise levels and a long life working.
* Fast delivery, easy installation,Mounting kits included .
* Product specification sheet (including air volume curve).
* Provide photos or videos of today's factory production.
Part NO. | KZFF166R | Static pressure | 100pa |
Name | Blower | Air Flow | 400m3/h |
Place of Origin | Guangdong, China | Warranty | 13 months |
Voltage | DC12V | Life Time | ≥6000 hrs |
Current | ≤12A | Packing | 8 pcs/carton |
Speed | ≥3600±200rpm |
Find Your Perfect Brushed Fan | |||||||||
Model number | Size | Air volume | Voltage | speed | Attached resistor | ||||
KZFF161 | 82X96 mm | 600 m³/h | 12V/24V | 3500 rpm | / | ||||
KZFF161R | 82X96 mm | 600 m³/h | 12V/24V | 3500 rpm | with resistor | ||||
KZFF167 | 86X86 mm | 400 m³/h | 12V/24V | 3500 rpm | / | ||||
KZFF162 | 86X86 mm | 660 m³/h | 12V/24V | 4500 rpm | / | ||||
KZFF162R | 86X86 mm | 660 m³/h | 12V/24V | 4500 rpm | with resistor | ||||
KZFF162B | 86X86 mm | 660 m³/h | 12V/24V | 4500 rpm | / | ||||
KZFF162BR | 86X86 mm | 660 m³/h | 12V/24V | 4500 rpm | with resistor | ||||
KZFF185 | 105X89 mm | 800 m³/h | 12V/24V | 3500 rpm | / | ||||
KZFF193 | 105X89 mm | 1000 m³/h | 12V/24V | 3800 rpm | / | ||||
KZFF193R | 105X89 mm | 1000 m³/h | 12V/24V | 3500 rpm | with resistor | ||||
KZFF194 | 105X89 mm | 1000 m³/h | 12V/24V | 3500 rpm | / | ||||
KZFF194R | 105X89 mm | 1000 m³/h | 12V/24V | 3500 rpm | with resistor | ||||
KZFF195 | 105X89 mm | 1000 m³/h | 12V/24V | 3800 rpm | / | ||||
KZFF195R | 105X89 mm | 1000 m³/h | 12V/24V | 3800 rpm | with resistor | ||||
KZFF166 | 113×111 mm | 400 m³/h | 12V/24V | 3300 rpm | / | ||||
KZFF166R | 113×111 mm | 400 m³/h | 12V/24V | 3300 rpm | with resistor | ||||
KZFF163 | 130X98 mm | 560 m³/h | 12V/24V | 2600 rpm | / | ||||
KZFF141 | 239X85 mm | 600 m³/h | 12V/24V | 2500 rpm | / | ||||
Find Your Perfect BRUSHLESS Fan | |||||||||
Model number | Size | Air volume | Voltage | speed | Attached resistor | ||||
KZFFW193 | 105X89 mm | 1000 m³/h | 12V/24V | 3800 rpm | / | ||||
KZFFW194 | 105X89 mm | 1000 m³/h | 12V/24V | 3400 rpm | / | ||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $21 / piece
- 50–499 piece: US $19 / piece
- 500+ piece: US $18 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this dc12v24v brushed centrifugal evaporator?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 13 months warranty. Spare parts and technical support remain available after the warranty period.
Can the dc12v24v brushed centrifugal evaporator be supplied for my local voltage?
The standard configuration is DC12V/24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
