The delivery pure titanium evaporator listed here carries 220 V, material Pure Titanium, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Delivery Pure Titanium Evaporator
- Voltage: 220 V
- Flow Capacity: Max 50 M3/h
- Material: Pure Titanium
- Warranty: 1 Year
- Certification: CE/ISO9001:2008
- Place Of Origin: Jiangsu, China
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Flow Capacity | Max 50 M3/h |
| Fluid Compatibility | Compatible |
| Material | Pure Titanium |
| Maximum Operating Temperature | 130 |
| Voltage | 220 V |
| Core Components | tube |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Corrosion resistant |
| Working Temperature Range | 0-130℃(0-234℉) |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 38 |
| Brand Name | FEKS |
| Liquid Flow Rate | Max 50 M3/h |
| Maximum Pressure Rating | 4.5Mpa(652.67psi) |
| Dimension(L*W*H) | 820*200*260MM(32.28*7.87*10.24in) |
| Product Name | 18.6KW pure titanium shell and tube heat exchanger |

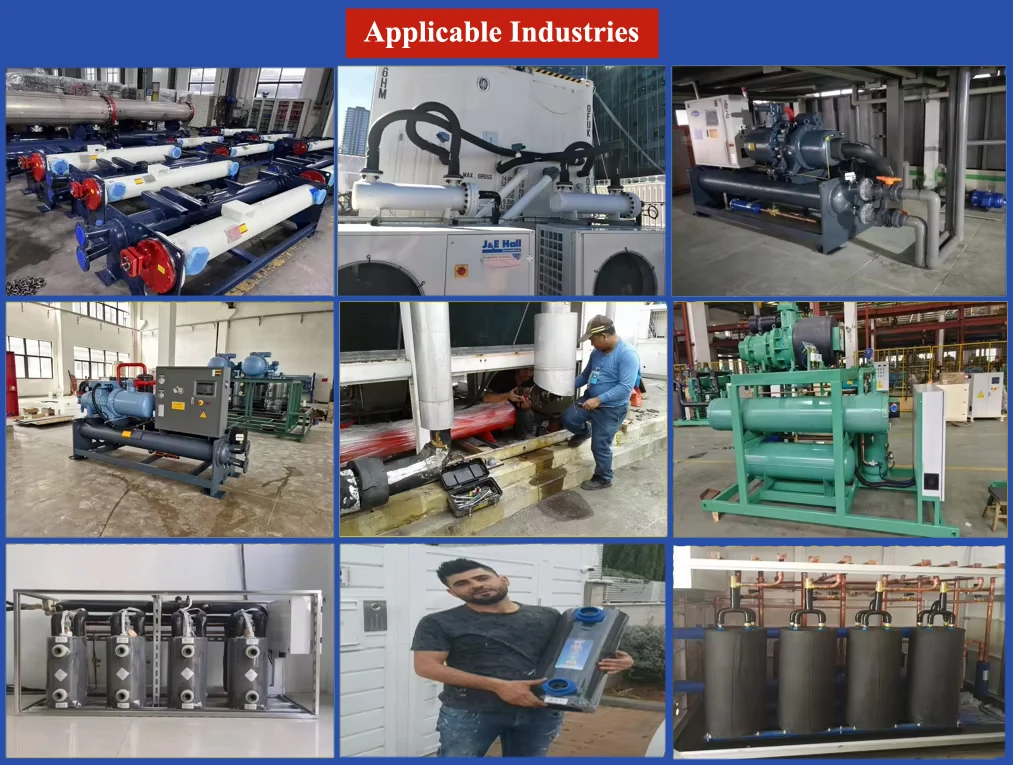

| Application | Cooling and heating |
| Feature | Corrosion resistant |
| System | Single system |
| Outer Shell | PP plastic |
| Package | Wooden Case |
| Is-Customized | Yes |
| After-Sales Service Provided | Video technical support/Online support |
| Certification | CE/ISO9001:2008 |
| Selling Units | Single item |
| Single Package Size | 92X30X56 cm |
| Single Gross Weight | 58.0 kg |
Product Details

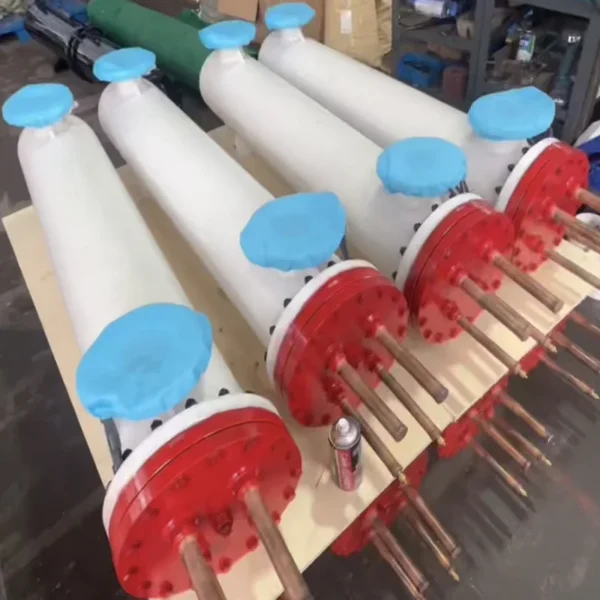

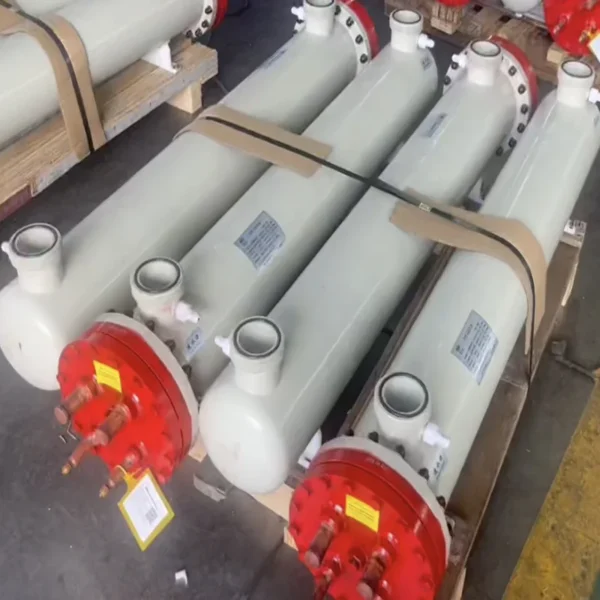

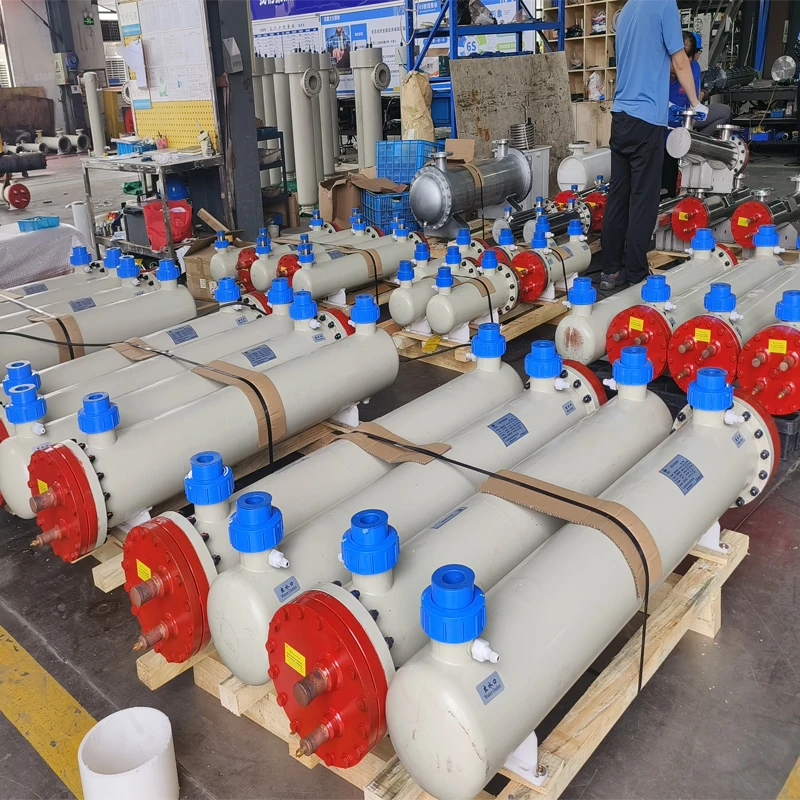

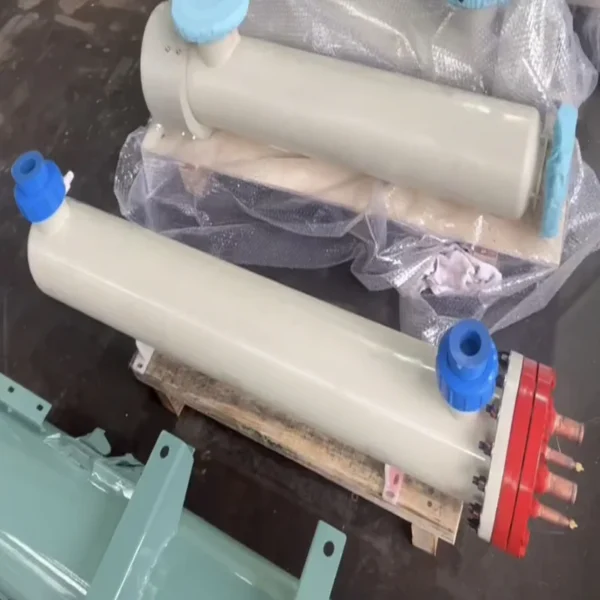

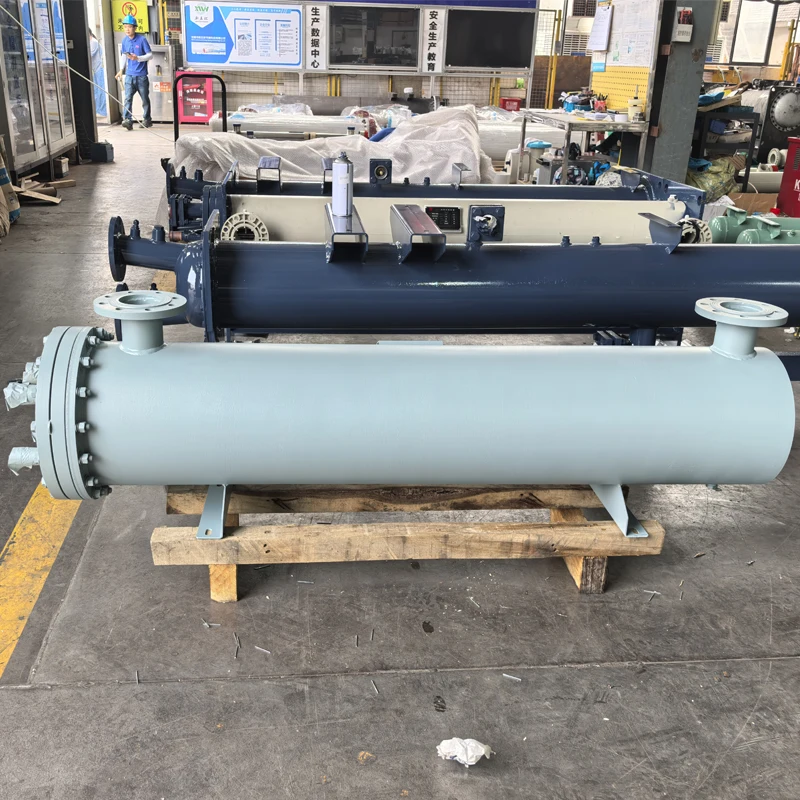

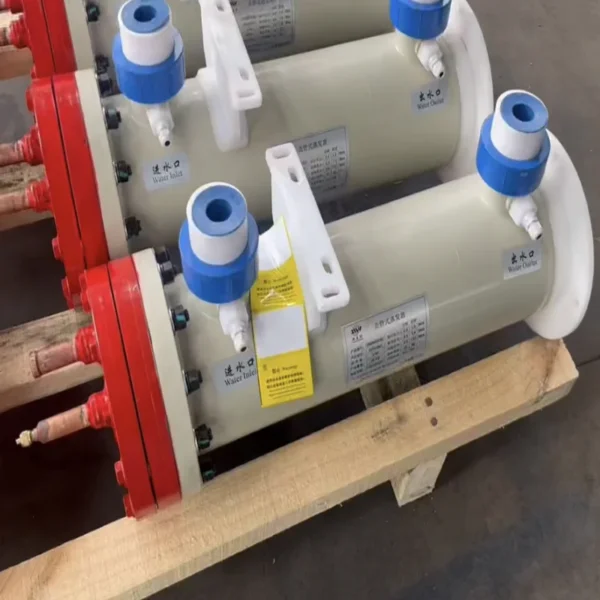

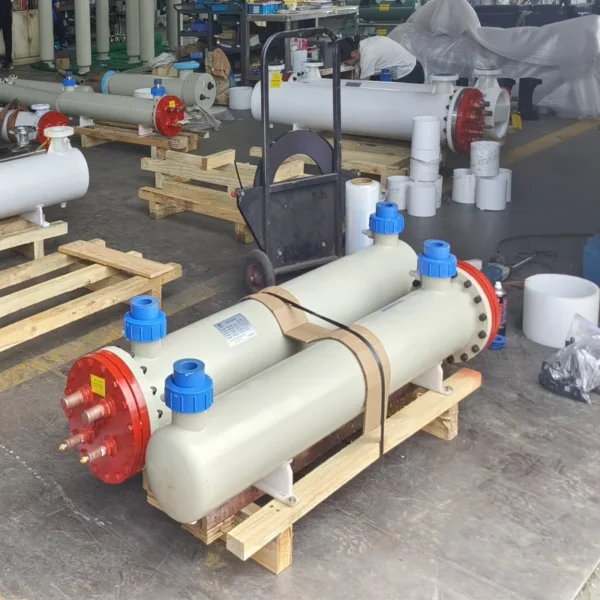

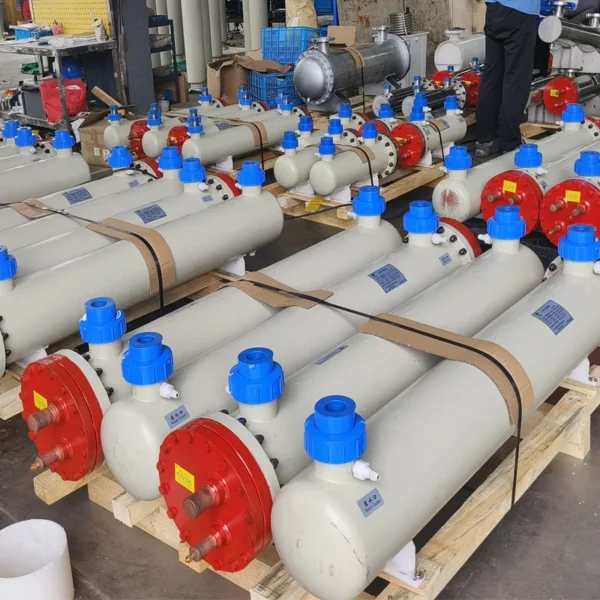

Air to Water Heat Exchanger Pure Titanium Evaporator Seawater Chiller Heat Exchanger

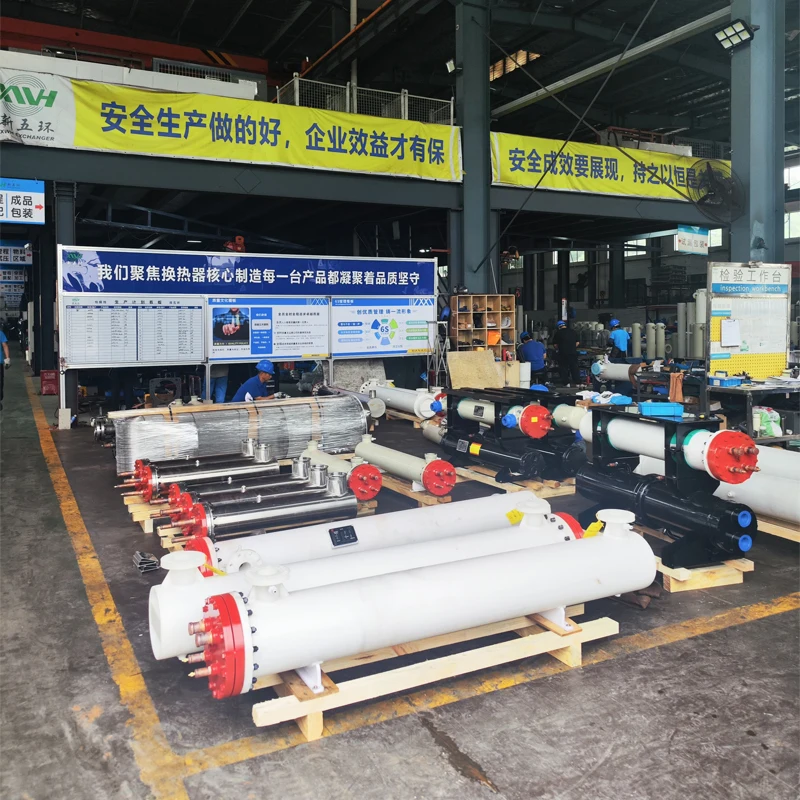

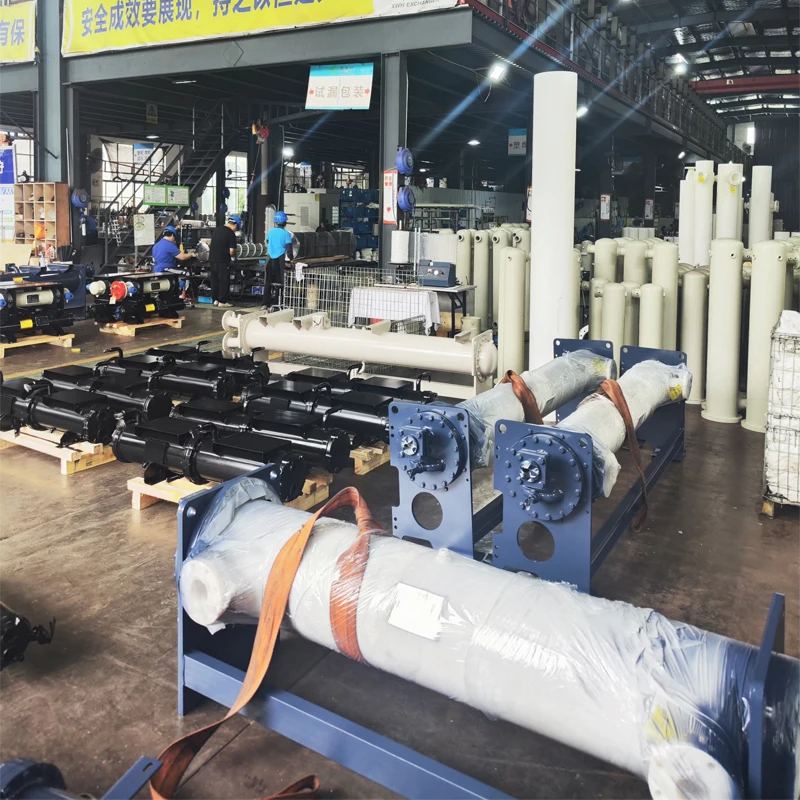

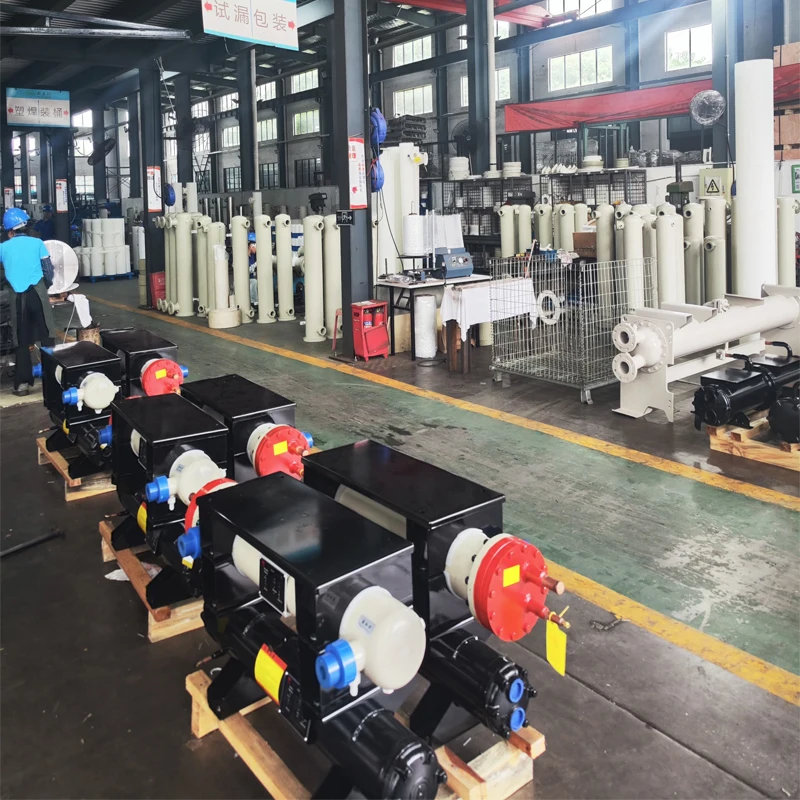

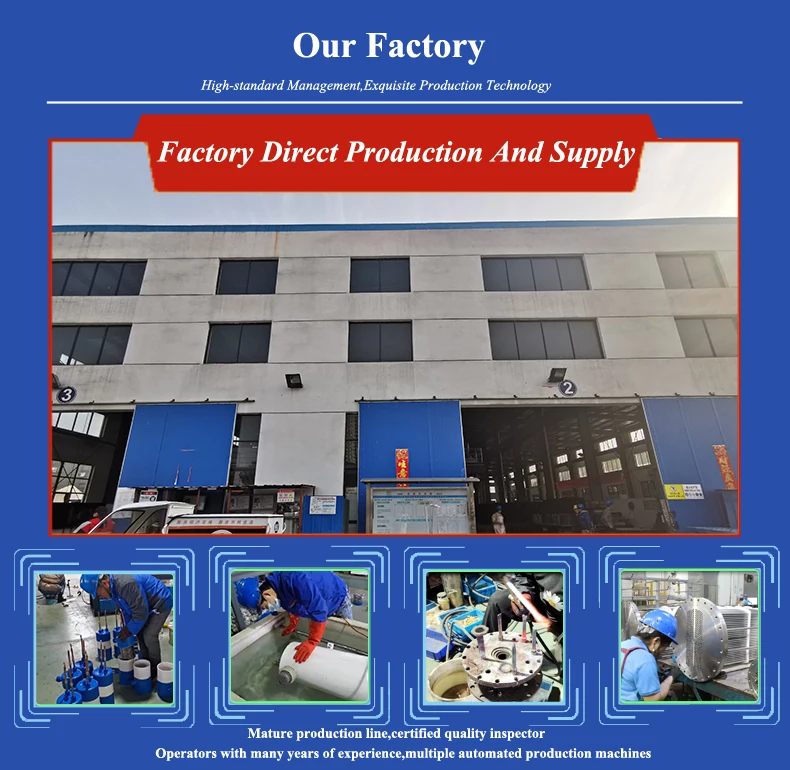

We are Factory
Model | Cooling Capacity | External and Installation Dimensions(mm) A B C D E F G H R L | Freon Out a1(Ø) | Freon In a2(Ø) | Water In/Out a3 | N.W kg |
WHC-5DKG | 11.6KW | 660 20 90 510 150 340 60 200 40 40 | 22 | 19 | 50 | 33 |
WHC-8DKG | 18.6KW | 820 200 90 660 150 500 60 200 40 40 | 28 | 19 | 50 | 38 |
WHC-10DKG | 23.2KW | 1050 200 90 900 300 600 60 200 40 40 | 28 | 19 | 50 | 42 |
WHC-12DKG | 27.9KW | 1200 200 90 1050 350 600 60 200 40 40 | 28 | 22 | 50 | 46 |
WHC-15DKG | 35.0KW | 1420 200 100 1270 400 800 60 200 40 40 | 28 | 22 | 63 | 52 |
WHC-20DKG | 46.5KW | 1500 225 100 1350 450 800 60 200 43 43 | 38 | 22 | 63 | 55 |
WHC-25DKG | 58.1KW | 1370 250 100 1220 350 800 60 260 53 53 | 38 | 28 | 63 | 57 |
WHC-30DKG | 69.7KW | 1600 250 100 1450 350 1000 60 260 53 53 | 38 | 28 | 63 | 62 |
WHC-40DKG | 93.0KW | 1920 250 110 1740 420 1200 60 260 53 53 | 54 | 38 | 75 | 70 |
WHC-50DKG | 116.3KW | 1550 315 110 1370 300 1000 60 300 65 65 | 54 | 38 | 75 | 97 |
WHC60DKG | 139.5KW | 1810 315 110 1630 360 1200 60 300 65 65 | 76 | 38 | 75 | 114 |
WHC-70DKG | 162.8KW | 2070 315 120 1870 550 1200 60 300 65 65 | 76 | 38 | 90 | 125 |
WHC-80DKG | 186.0KW | 2250 315 120 2070 450 1500 60 300 65 65 | 76 | 38 | 90 | 135 |
WHC-90DKG | 209.3KW | 2600 315 120 2420 350 2000 60 300 65 65 | 89 | 38 | 90 | 147 |
WHC-100DKG | 232.6KW | 2800 315 120 2620 500 2000 60 300 65 65 | 89 | 38 | 90 | 157 |

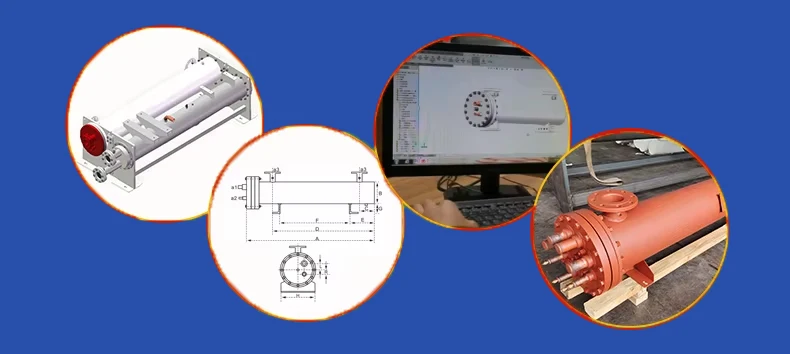

requirements, provide 3D design drawings, and the effect is intuitive
Our Product:Mature design,rigorous production process,Factory inspection, strict control,Long service life and stable performance.
follow pressure vessel manufacturing specifications

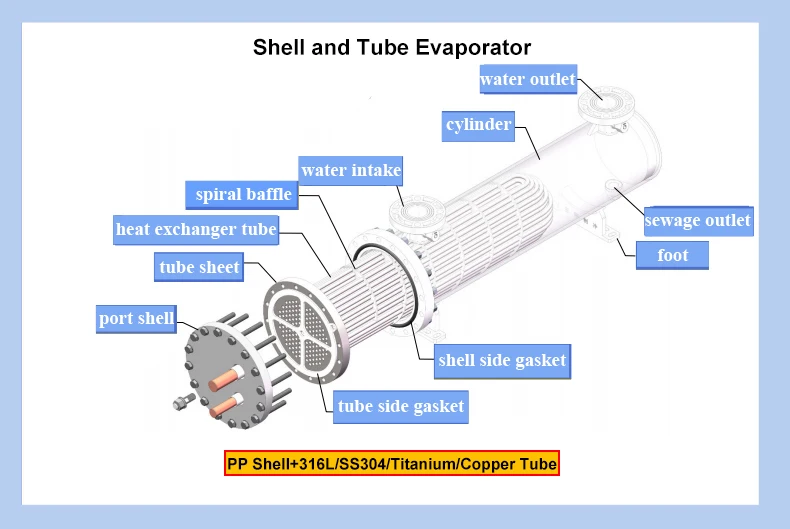

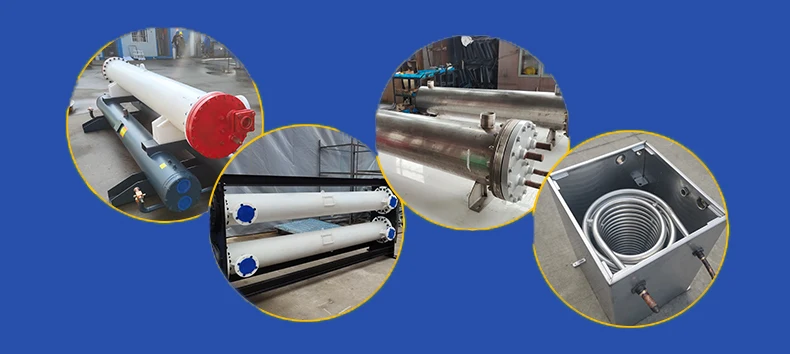

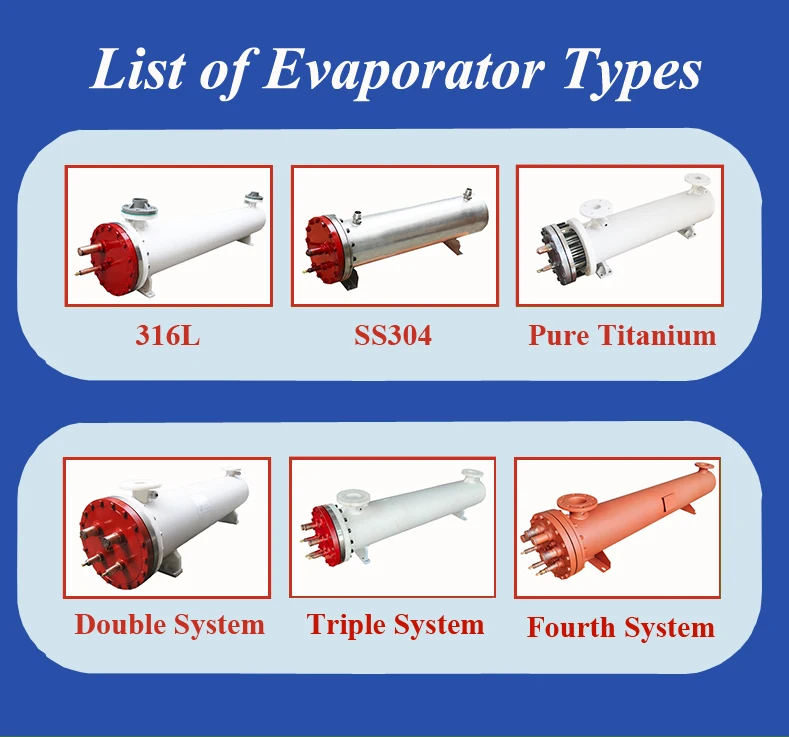

Tube material:aluminum brass,316L stainless steel,SS304 stainless steel,pure titanium
Outer Shell material:PP platsic, Carbon steel, Stainless steel
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $699 / set
- 10+ set: US $689 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this delivery pure titanium evaporator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this delivery pure titanium evaporator carry?
It is supplied with CE/ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the delivery pure titanium evaporator be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
