Shell and tube heat exchanger — 220 V, material Pure Titanium. The complete factory specification follows. Made by Jiangsu Friendship Heat Exchanger Technology Co., Ltd. (1 year on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Shell And Tube Heat Exchanger
- Voltage: 220 V
- Flow Capacity: Max 50 M3/h
- Material: Pure Titanium
- Warranty: 1 Year
- Certification: CE/ISO9001:2008
- Place Of Origin: Jiangsu, China
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Flow Capacity | Max 50 M3/h |
| Fluid Compatibility | Compatible |
| Material | Pure Titanium |
| Maximum Operating Temperature | 130 |
| Voltage | 220 V |
| Core Components | Tube |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Corrosion resistant |
| Working Temperature Range | 0-130℃ |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 82 |
| Brand Name | FEKS |
| Liquid Flow Rate | Max 50 M3/h |
| Maximum Pressure Rating | 4.5Mpa |
| Dimension(L*W*H) | 1124*250*374MM |
| Product Name | 35KW shell and tube condenser |
| Application | Cooling and heating |
| Feature | Corrosion resistant |
| System | Single system |
| Outer Shell | Carbon Steel |
| Package | Wooden Case |
| Is-Customized | Yes |
| After-Sales Service Provided | Video technical support/Online support |
| Certification | CE/ISO9001:2008 |
| Selling Units | Single item |
| Single Package Size | 93X30X42 cm |
| Single Gross Weight | 60.0 kg |
Product Details

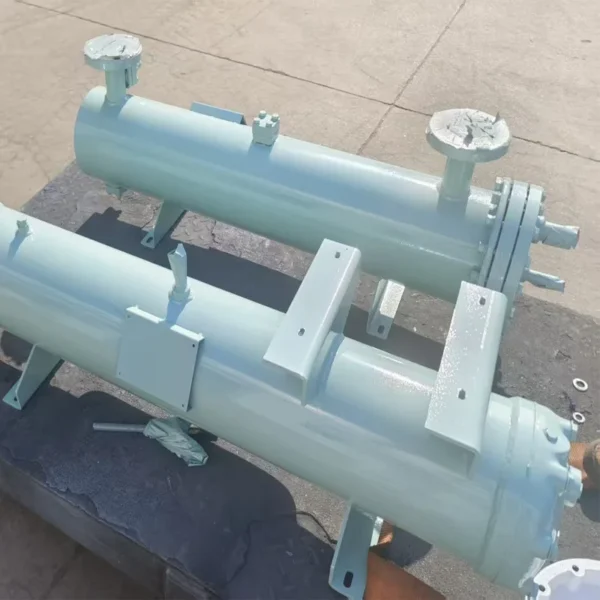

Manufacture Heat Exchanger Shell and Tube Condenser Refrigerant Freon Cooling

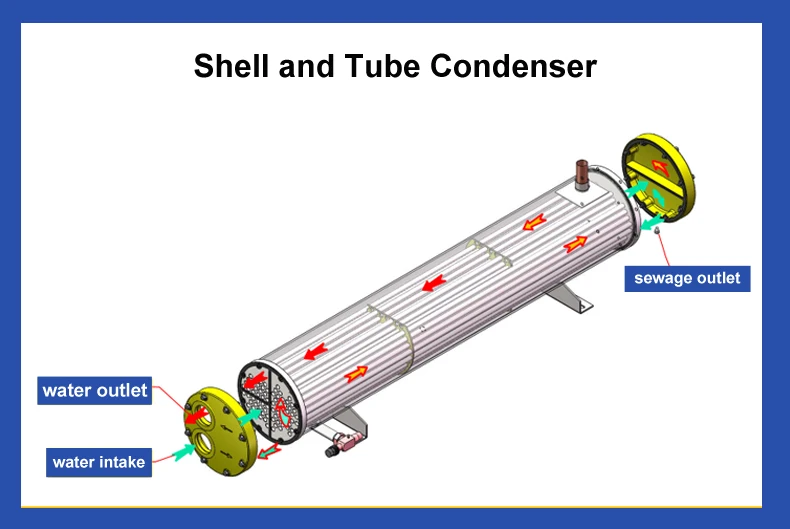

Tube sheets are welded to both ends of the shell to form a complete shell. Many tube holes are processed on the tube plate. After the heat transfer tube bundle penetrates into the tube hole, both ends are connected to the tube plate by expansion or welding,which has good air tightness.According to the spatial orientation (vertical or horizontal) of the shell and the heattransfer tube bundle, condenser can be divided into two types: vertical and horizontal.
We are Factory

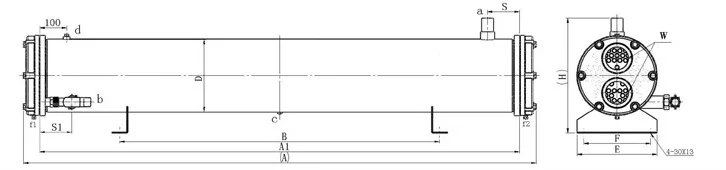

Model | Q KW | M M3/H | External and Installation Dimensions(mm) A B C D E F G H R L | Connection(mm) a b c(NPT) d(NPT) W | N.W kg |
WHT-WN3 | 11 | 2.3 | 140 686 600 350 200 150 295 70 70 | Φ16 Φ12 3/8 / | 30 |
WHT-WN5 | 17 | 3.8 | 140 986 900 600 200 150 295 70 70 | Φ16 Φ12 3/8 / | 30 |
WHT-WN6 | 21 | 4.5 | 168 986 900 600 200 150 313 80 80 | Φ16 Φ12 3/8 / | 45 |
WHT-WN8 | 28 | 6 | 168 986 900 600 200 150 313 80 80 | Φ22 Φ16 3/8 / | 49 |
WHT-WN10 | 35 | 7.7 | 168 1086 1000 600 200 150 313 80 80 | Φ22 Φ16 3/8 / | 52 |
WHT-WN12 | 42 | 9 | 168 1288 1200 800 200 150 313 80 80 | Φ28 Φ16 3/8 / | 62 |
WHT-WN15 | 53 | 12 | 219 1324 1200 800 250 200 374 100 100 | Φ28 Φ22 3/8 / | 92 |
WHT-WN20 | 70 | 15 | 219 1324 1200 800 250 200 374 100 100 | Φ35 Φ22 3/8 / | 96 |
WHT-WN25 | 87 | 19 | 219 1624 1500 1000 250 200 374 100 100 | Φ35 Φ22 3/8 / | 112 |
WHT-WN30 | 105 | 22.3 | 273 1624 1500 1000 300 250 433 120 120 | Φ42 Φ28 3/8 / | 158 |
WHT-WN35 | 122 | 26 | 273 1624 1500 1000 300 250 433 120 120 | Φ42 Φ28 3/8 / | 165 |
WHT-WN40 | 140 | 30 | 273 1924 1800 1200 300 250 433 120 120 | Φ42 Φ28 3/8 3/8 | 190 |
WHT-WN45 | 158 | 34 | 273 1924 1800 1200 300 250 433 120 120 | Φ42 Φ28 3/8 3/8 | 195 |
WHT-WN50 | 175 | 38 | 273 1924 1800 1200 300 250 433 120 120 | Φ42 Φ28 3/8 3/8 | 200 |
WHT-WN55 | 192 | 41 | 273 2124 2000 1200 300 250 433 120 150 | Φ42 Φ28 3/8 3/889 | 210 |
WHT-WN60 | 210 | 45 | 273 2124 2000 1200 300 250 433 120 150 | Φ54 Φ35 3/8 3/8 | 220 |
requirements, provide 3D design drawings, and the effect is intuitive
Our Product:Mature design,rigorous production process,Factory inspection, strict control,Long service life and stable performance.
follow pressure vessel manufacturing specifications
Tube material:aluminum brass,316L stainless steel,SS304 stainless steel,pure titanium
Outer Shell material:PP platsic, Carbon steel, Stainless steel
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $407 / set
- 10+ set: US $393 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shell and tube heat exchanger?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this shell and tube heat exchanger carry?
It is supplied with CE/ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the shell and tube heat exchanger be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
