Diagonal Flow Fan, CRF, 700mm, 220V, 230v, 3.0kw, Aluminum

The diagonal flow fan listed here carries 220V/380V, airflow 6000-11000 CBM/h, documented exactly as the manufacturer publishes it. Made by Fujian Huada Electric Co., Ltd. (12 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Diagonal Flow Fan

• Model Number: CRF-7
• Power: 3.0kw
• Voltage: 220V/380V
• Rated Voltage: 230v/380v
• Airflow: 6000-11000 CBM/h
• Blade Material: aluminum

Technical Specifications

Product Details

Grain Drying axial flow fan

CRF grain drying diagonal flow fan with high temperature resistance is widely used in grains drying,other
agricultural,food,industrial,mining enterprise,hotels,restaurants,museums,gymnasiums,high-rise building for ventilation.

CRF grain drying flow fan with high temperature resistance is a new type of optimal design and high-tech fan,which is similar between axial fan and centrifugal fan.The fan is made of cylindrical housing and three flanges.The outlet and inlet follow the air by connecting a pipe network.The inlet wind collector is made of gradually shrinking streamline form and a sound-absorbing plate.The outlet has a pre-rotation vane,whose gas has a good air flow-distribution and a stable pressure resistance.

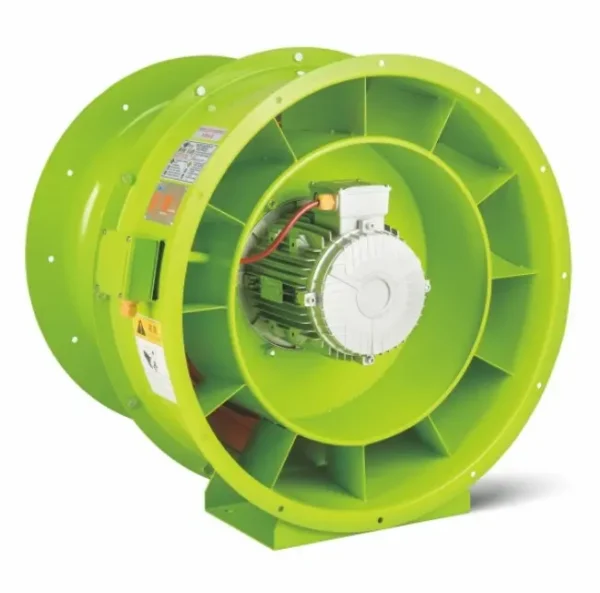

Back side of CRF Axial flow fan

Thanks to the new design of the meridian acceleration,the pressure is higher than axial fan and the air volume is larger than centrifugal fan.It features high efficiency,low noise,compact dimensions and convenient installation.This fan has obtained national patent for utility model and the patent number is ZL201320208067.5 and has applied for invention patent.

Tech Data

Model	Speed	Air flow(CBM/h)	Total pressure(Pa)	Power (kw)
6.5	1450	9500-5500	220-540	2.2
7	1450	11000-6000	300-640	3.0
7.5	1450	14000-10000	360-700	4.0
7.5	1450	14000-10000	360-760	5.5
8.0	1450	21000-17000	500-900	7.5

Product Detailed Introduction

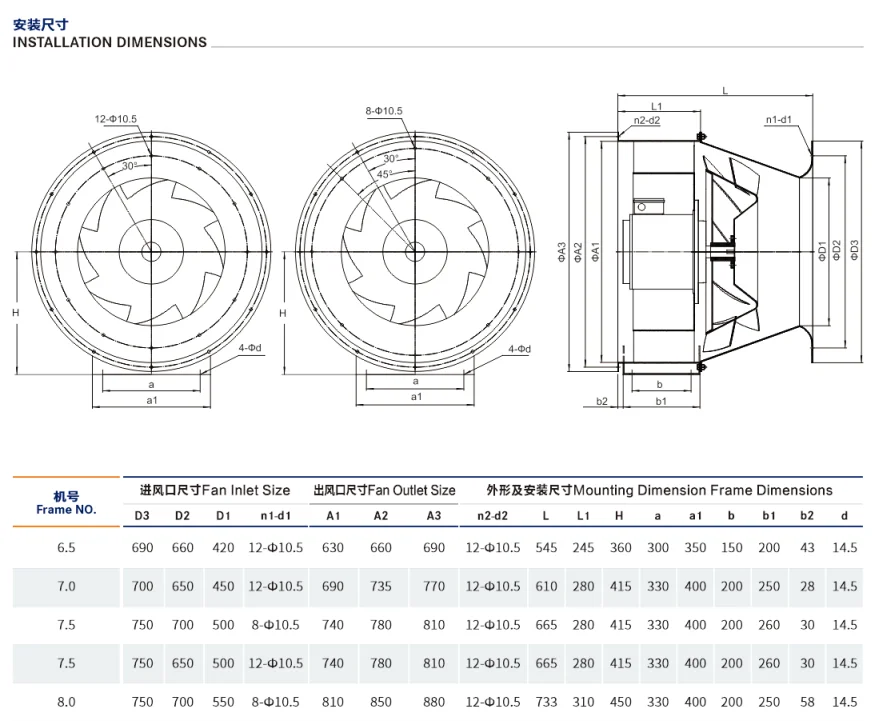

Installation

Company Introduction

Fujian Huada Motor Factory established in 1998,registered as Fujian Huada Electric CO.,LTD,located in Fujian Province.It is a modern enterprise which engaged in Scientific research,production,sales and service.Covering an area of 50,000 square meters,of which 40,000 square meters are standard workshop. Huada is more than ten years to focus on the research and development of high temperature motor,high temperature fan;Strictly control the production process ,making the high-quality goods.Products are included MSW series high temperature motor,GKF series flue-cured tobacco special-purpose fan,GKW series full aluminum high temperature and high humidity fan,CRF series grain drying dedicated fan,DJF series multistage high -pressure fan,DRF series diversion type high temperature fan,HTF series high temperature fire smoke exhaust fan,SWF series mixed flow fan and all kinds of high temperature and centrifugal fan and so on. Besides our products passed the CCC certification,European Union CE certification. Best selling in China and overseas markets,Huada as well known brand reputation in the domestic complete set of drying industry. GKF series fan was chosen as the industry standard by the national tobacco administration in 2009. The project of Flue-cured tobacco asynchronous motor with variable speed multistage won the third prize in Ningde science and technology progress and the second prize in Fuan Science and technology progress.

More Information

Application

Packing Method :Packed in cartons and then packed on pallets

Packing Details

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–19 set: US $389 / set
  • 20–99 set: US $350 / set
  • 100+ set: US $335 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this diagonal flow fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the diagonal flow fan be supplied for my local voltage?

The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Fujian Huada Electric Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Fujian Huada Electric Co., Ltd. range on HVACR Nexus.
