Double Sided Mesh Extractor, A.C. Source, Plastic Iron

The double sided mesh extractor listed here carries power source A.C. Source, material Plastic Iron, documented exactly as the manufacturer publishes it. Made by Jinan Retek Industries Inc (15 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Double Sided Mesh Extractor

• Power Source: A.C. Source
• Power (W): 26W
• Power: 25~90 W
• Material: Plastic Iron
• Warranty: 1 Year
• Place Of Origin: Shandong, China

Technical Specifications

Product Details

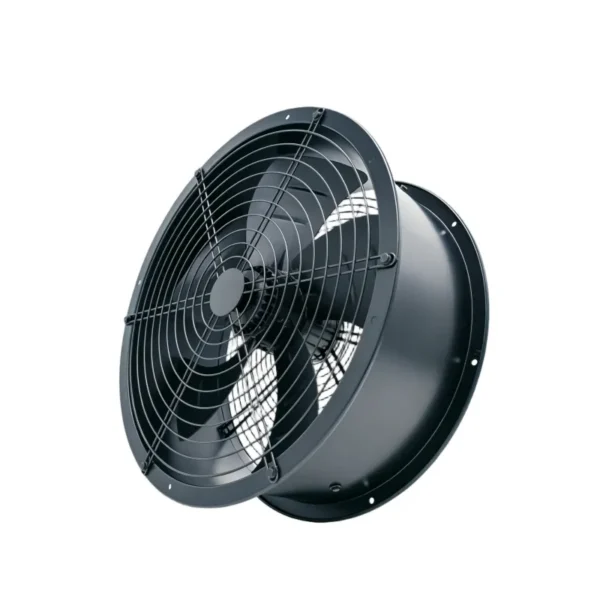

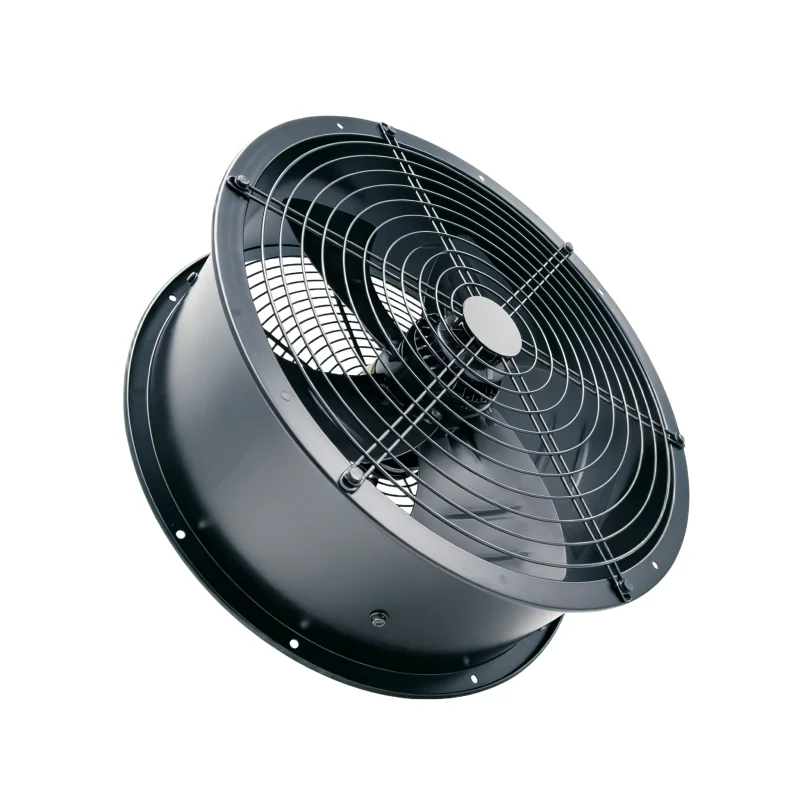

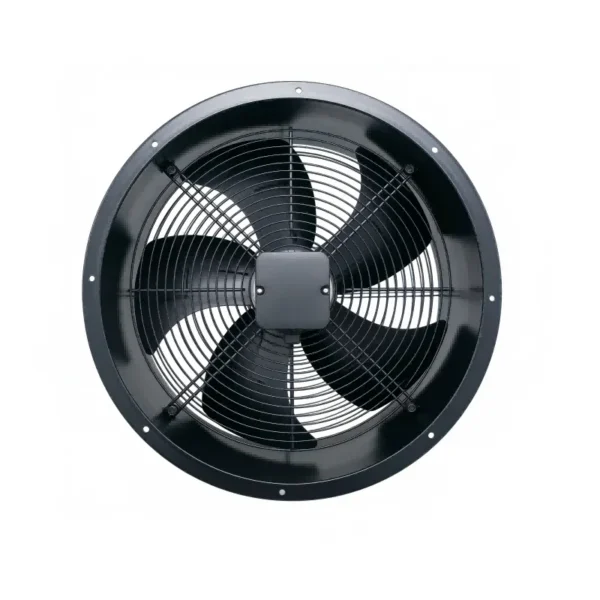

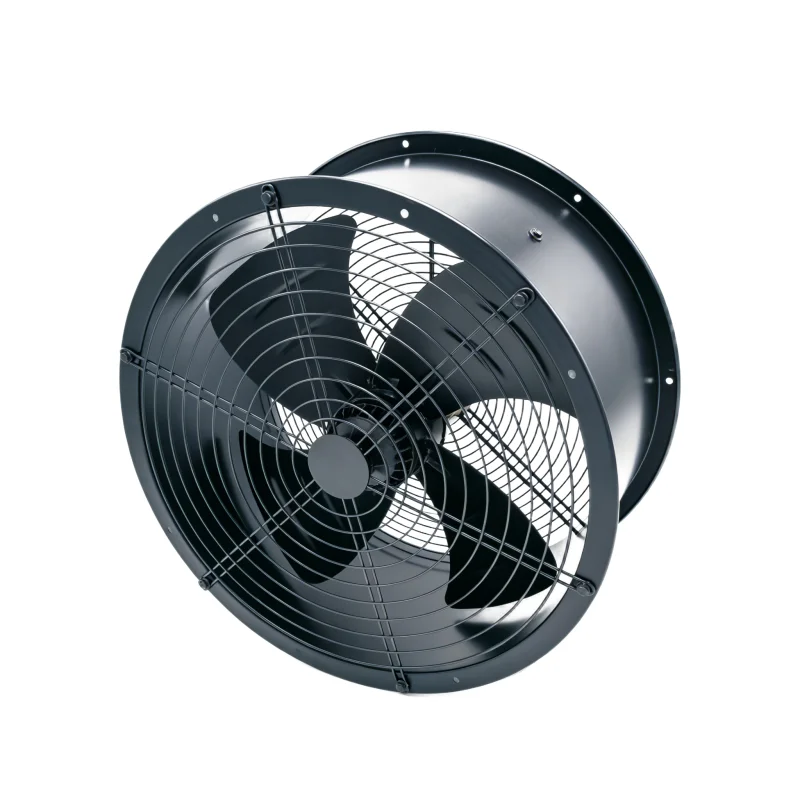

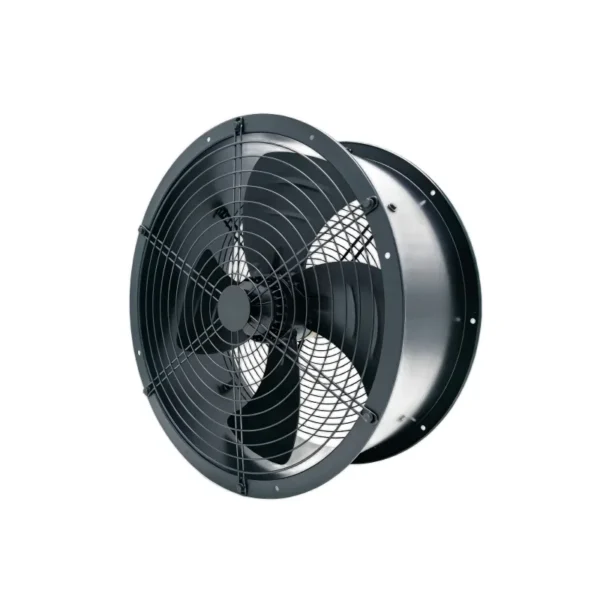

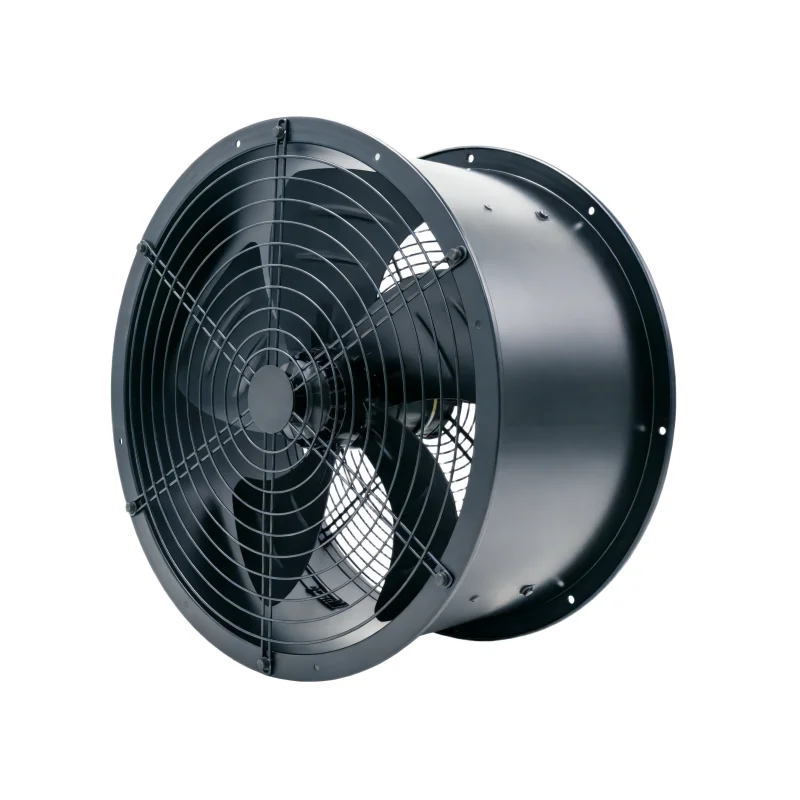

HBlack Metal 5 Blade Double Sided Mesh Extractor Fan 16 Inch Powerful Capacity for Clean Air in Parking Lots





Product Overview



Our industrial ventilation extractor fan is engineered for reliable, high-performance air movement in demanding environments. Built with a robust metal casing, energy-efficient motor, and precision-engineered blades, it delivers powerful airflow to remove heat, fumes, dust, and stale air from factories, warehouses, workshops, and commercial spaces. Designed for continuous operation, this fan ensures optimal air quality and workplace comfort while reducing energy costs.



---



Key Features



• High-Efficiency Motor: Equipped with a durable, low-noise motor for consistent performance and long service life.
• Powerful Airflow: Optimized blade design delivers high airflow rates to quickly ventilate large spaces.
• Robust Construction: Heavy-duty metal casing and corrosion-resistant components withstand harsh industrial conditions.
• Low Noise Operation: Precision-balanced blades and vibration-dampening design minimize operational noise.
• Easy Installation: Duct-mount or wall-mount design for seamless integration into existing ventilation systems.
• Energy Saving: Efficient motor technology reduces power consumption while maintaining peak performance.
• Versatile Application: Suitable for ventilation, exhaust, cooling, and smoke extraction in various industrial and commercial settings.



---



Technical Specifications



Specification	Details
Model	Customizable (e.g., 300mm, 400mm, 500mm, 600mm diameter)
Voltage	220V/380V (50/60Hz) – customizable to regional standards
Airflow	1,500 – 15,000 m³/h (varies by model size)
Noise Level	≤ 68 dB(A)
Motor Power	0.37kW – 3kW (depending on model)
Material	Galvanized steel casing, aluminum alloy blades
Protection Class	IP55
Mounting Type	Duct-mounted / wall-mounted / free-standing (optional)
Warranty	12 months



---



Applications



• Industrial factory ventilation and fume extraction
• Warehouse and storage facility air circulation
• Commercial kitchen exhaust and smoke removal
• Workshop cooling and dust control
• HVAC system auxiliary ventilation
• Construction site temporary ventilation



Tech data:

Model	Voltage V	Frequency Hz	Current A	Input Power W	Speed RPM	Max Air Flow m³/h	Capacitor uF	Noise dB(A)
YWF2E200	220	50	0.23	60	2550	780	2	50
YWF4E200	220	50	0.20	40	1450	540	1.5	45
YWF2E250	220	50	0.5	110	2550	960	3	56
YWF2D250	380	50	0.21	85	2550	960	/	56
YWF4E250	220	50	0.25	56	1400	770	2	52
YWF4D250	380	50	0.19	60	1400	770	/	52
YWF2E300	220	50	0.8	165	2300	2130	6	60
YWF2D300	380	50	0.3	160	2300	2130	/	60
YWF4E300	220	50	0.4	90	1400	1600	3	58
YWF4D300	380	50	0.28	90	1400	1600	/	58
YWF6E300	220	50	0.45	60	910	1260	2	50
YWF4E350	220	50	0.73	145	1380	2500	4	62
YWF4D350	380	50	0.4	145	1380	2500	/	62
YWF6E350	220	50	0.5	90	950	1650	3	58
YWF6D350	380	50	0.3	90	950	1650	/	58
YWF4E400	220	50	0.85	190	1380	3500	6	68
YWF4D400	380	50	0.52	190	1380	3500	/	68
YWF6E400	220	50	0.57	110	920	2510	4	58
YWF6D400	380	50	0.38	110	920	2510	/	58
YWF4E450	220	50	1.2	250	1350	4850	8	68
YWF4D450	380	50	0.62	250	1350	4850	/	68
YWF6E450	220	50	0.7	150	920	3550	6	60
YWF6D450	380	50	0.45	145	920	3550	/	60
YWF4E500	220	50	1.6	350	1350	6570	10	72
YWF4D500	380	50	0.96	390	1350	6570	/	72
YWF6E500	220	50	0.65	140	900	4900	6	68
YWF6D500	380	50	0.55	180	900	4900	/	68
YWF4E550	220	50	2.4	500	1300	8700	12	75
YWF4D550	380	50	1.25	500	1300	8700	/	75
YWF6E550	220	50	1.6	280	900	6430	10	70
YWF6D550	380	50	0.83	250	900	6430	/	70
YWF4E600	220	50	3.3	710	1350	10850	16	78
YWF4D600	380	50	1.61	750	1350	10850	/	78
YWF6E600	220	50	2.5	390	900	8100	12	72
YWF6D600	380	50	1.2	380	900	8100	/	72

---



Why Choose Our Industrial Ventilation Extractor Fan?



• OEM/ODM Support: Customizable models, sizes, and specifications to meet your project requirements.
• Quality Assurance: ISO 9001 certified manufacturing with strict quality control processes.
• Competitive Pricing: Factory-direct pricing for bulk orders, ensuring cost-effectiveness.
• Fast Delivery: In-stock models available for immediate shipment; custom orders produced within 15–25 days.
• After-sales Service: Comprehensive technical support and a 12-month warranty for peace of mind.

Ordering and Pricing

• Minimum order quantity: 100 unit
• Volume pricing:
  • 100+ unit: US $45.98 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this double sided mesh extractor?

The standard minimum order quantity is 100 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jinan Retek Industries Inc, based in China. The company 15 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Jinan Retek Industries Inc range on HVACR Nexus.
