Key specification for this duct ventil fan: 120V/60Hz, AC 220V~240V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Taizhou Qiou Mechanical And Electrical Co., Ltd. (3 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

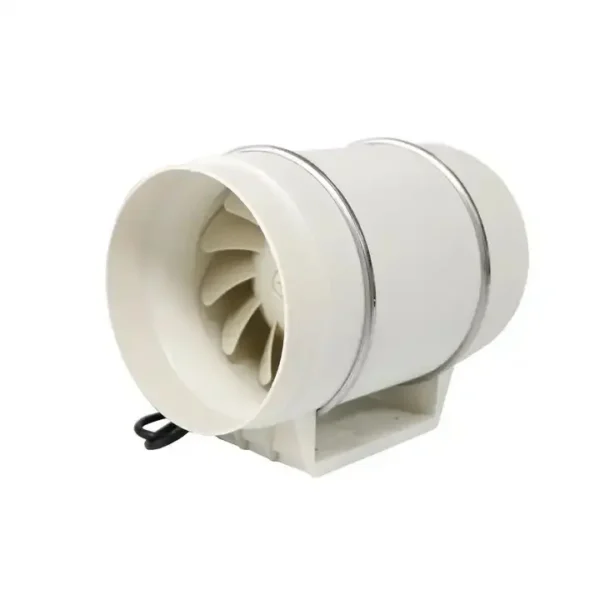

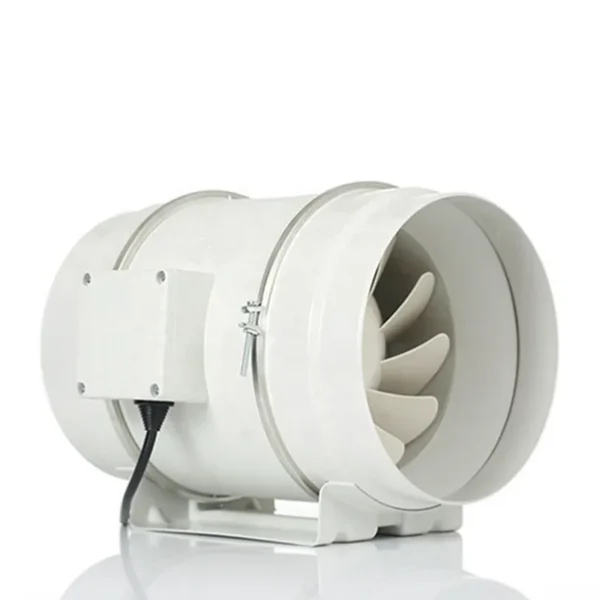

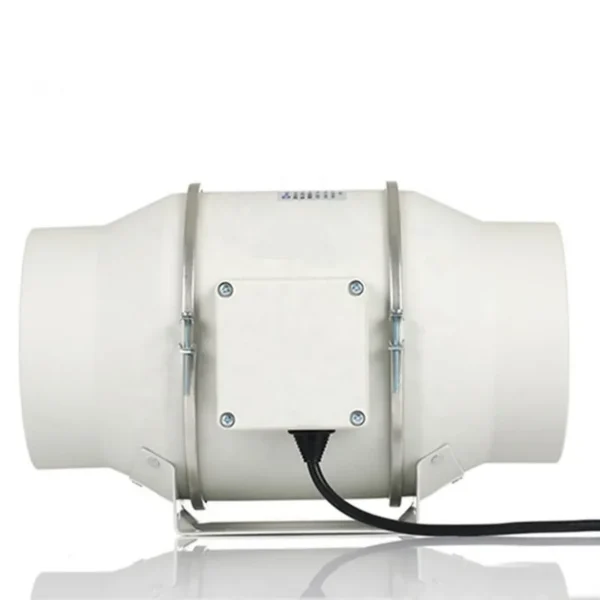

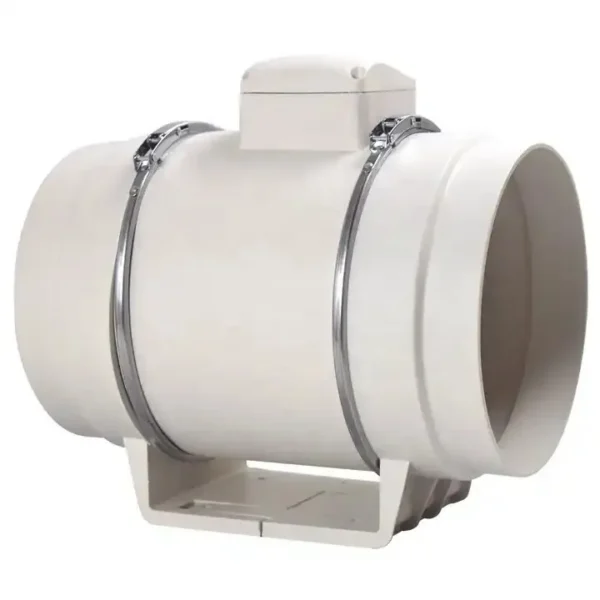

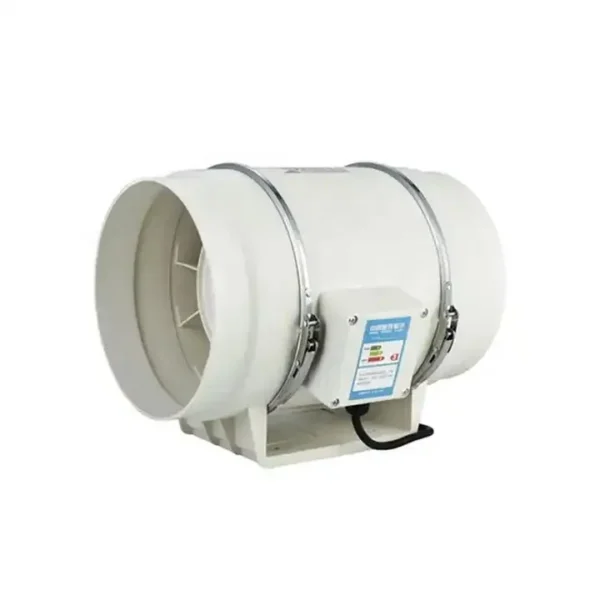

Key Features of This Duct Ventil Fan
- Model Number: HF-200
- Power Source: Electric
- Voltage: 120V/60Hz, AC 220V~240V
- Material: Plastic
- Blade Material: Plastic
- Warranty: 1 Year
Technical Specifications
| Voltage | 120V/60Hz, AC 220V~240V |
|---|---|
| Type | Duct Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Duct Fan |
| Bearing Type | DUAL BALL BEARING |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | QIOU |
| Model Number | HF-200 |
| Color | White, Black |
| Product Name | Ventilation Exhaust Fan,Axial Flow Fan,In-line Duct Fan |
| Frequency | 50/60hz Ac Axial Fan |
| Application | Ventilation Cooling |
| Keyword | Exhaust Cooling Fan |
| Motor | 100% Copper Motor |
| Installation | Duct Install |
| Certification | CE Certificate |
| Selling Units | Single item |
Product Details
* Suitable for the places with the requirements of low noise and high static pressure in the ceiling duct
* Good heat dissipation performance aluminum cover combine with sealed ball bearing motor, long life with low energy consumption
* Equip the removable fastener between fan casing and outlet/inlet, maintenance and cleaning are available
* Operating temperature range -20°C-50°C
* Long working life over 50000hours
* Insulation Class B
* Enclosure class IP44
* Perfect for homes, apartments, office, public place, hotel , gym and etc.
* This inline duct fan includes a plug,we also customize the pther plug type.

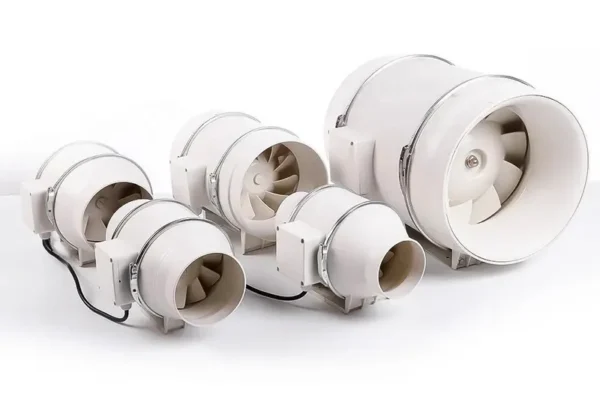

Model | Power | Air Flow | Pressure | Voltage | Frequency | Speed | Noise |
HF-100 | 35W | 220m3/h | 150Pa | 110V/220V | 50/60Hz | 2600rpm | 28dBA |
HF-125 | 45W | 310m3/h | 180Pa | 2600rpm | 30dBA | ||
HF-150 | 75W | 540m3/h | 300Pa | 2600rpm | 48dBA | ||
HF-200 | 130W | 900m3/h | 380Pa | 2600rpm | 52dBA | ||
HF-250 | 225W | 1450m3/h | 480Pa | 2450rpm | 53dBA | ||
HF-315 | 320W | 2900m3/h | 630Pa | 2500rpm | 60dBA |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $27 / piece
- 100–499 piece: US $25 / piece
- 500+ piece: US $21.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this duct ventil fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this duct ventil fan carry?
It is supplied with CE Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the duct ventil fan be supplied for my local voltage?
The standard configuration is 120V/60Hz, AC 220V~240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
