The type industrial air extractor listed here carries 1500w, blade material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Qingzhou Boost Temperature Control Equipment Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Type Industrial Air Extractor
- Model Number: BST1380
- Power: 1500w
- Blade Material: Stainless Steel
- Frame Material: Galvanized Sheet/Stainless Steel
- Warranty: 1 Year
- Certification: ce,ccc,other
Technical Specifications
| Blade Material | Stainless Steel |
|---|---|
| Electric Current Type | AC |
| Mounting Type | Wall Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Shandong, China |
| Brand Name | BOOST |
| Model Number | BST1380 |
| Product Name | Wall Mount Box Type Industrial Air Extractor Fan |
| Size | 1530*1530*450mm |
| Belt | Japanese Mitsuboshi |
| Frame Material | Galvanized Sheet/Stainless Steel |
| Motor Brand | China motor/Siemens motor/WEG motor/ABB motor |
| Blade Diameter | 1400mm |
| Balde Rpm | 325rpm |
| Power | 1500w |
| Opening Device | Centrifugal Push-Pull |
| Certification | ce,ccc,other |
| Selling Units | Single item |
| Single Package Size | 50X60X50 cm |
| Single Gross Weight | 30.0 kg |
Product Details
Products Description

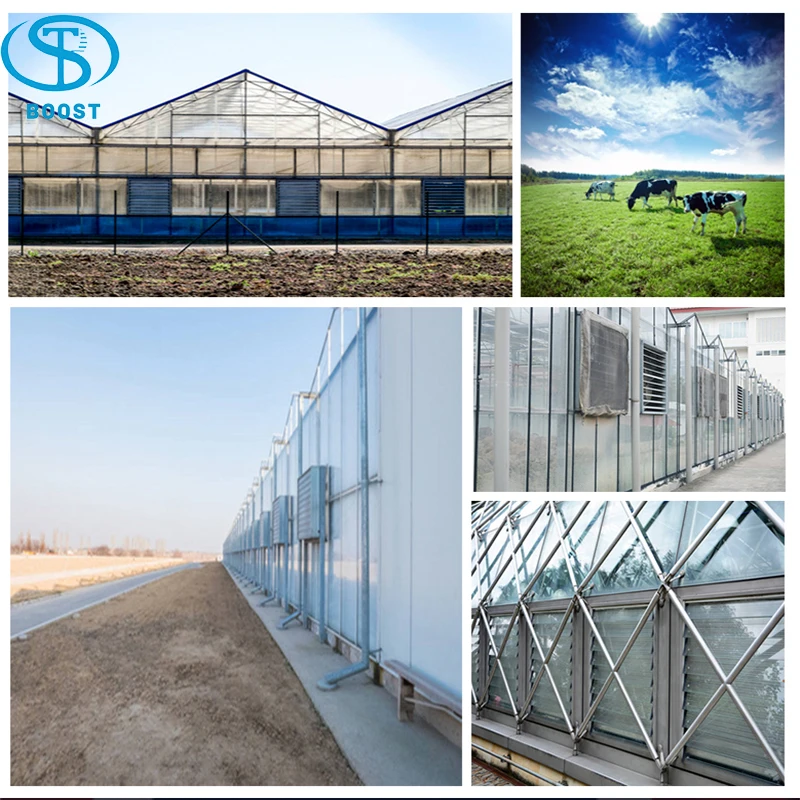

Application

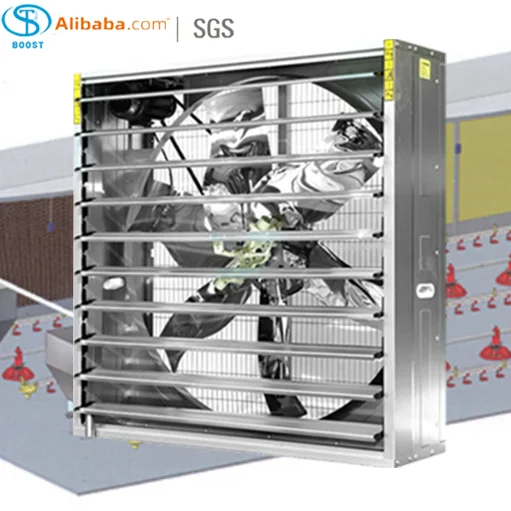

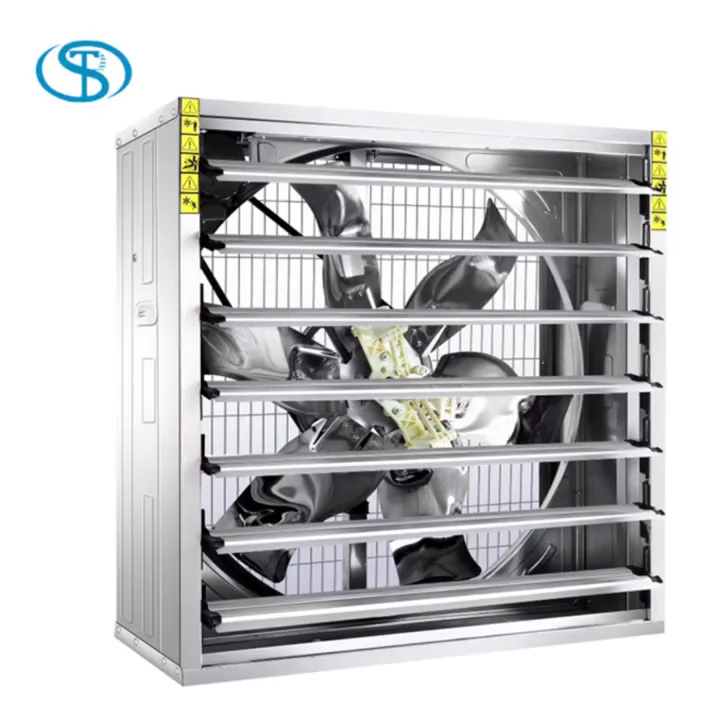

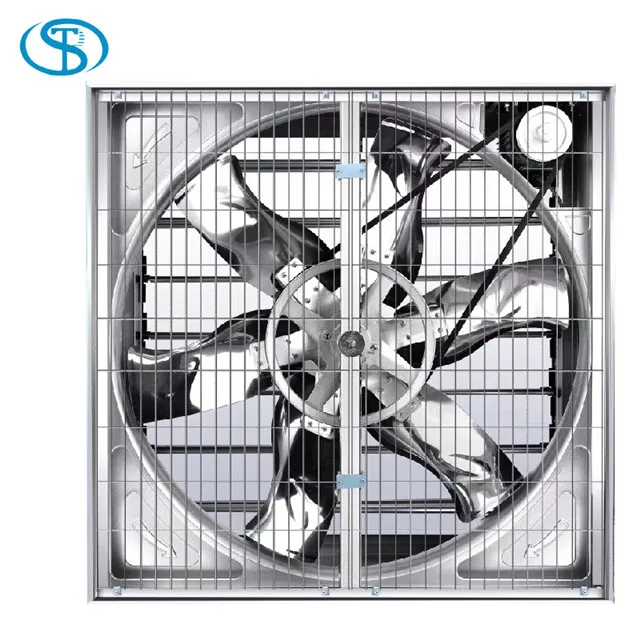

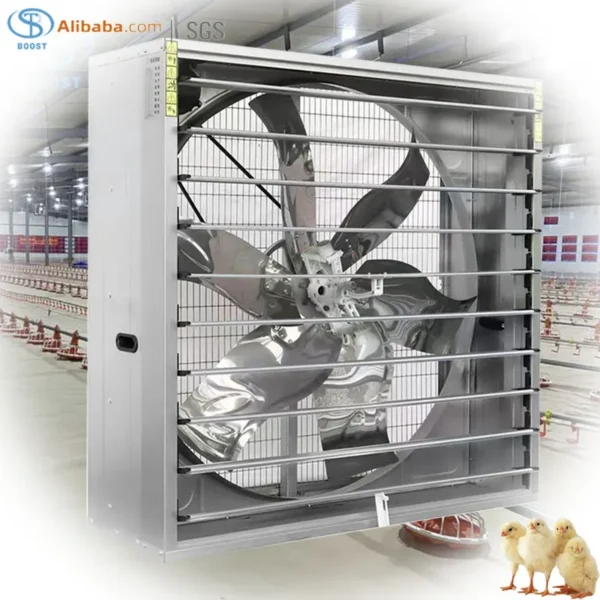

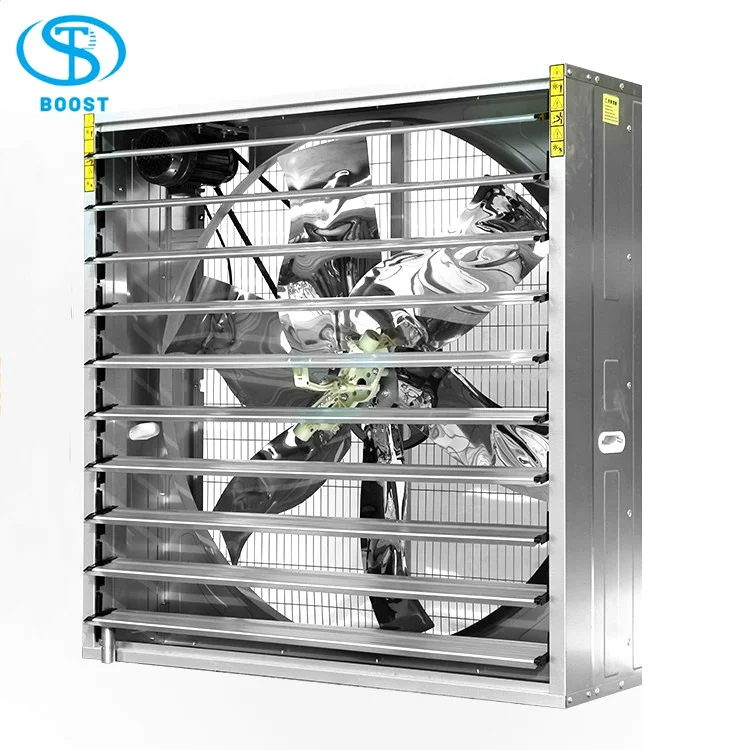

1380 Variable Sizes Wall Mount Box Type Industrial Air Extractor Poultry Greenhouse Ventilation Exhaust Fan
New type of plant ventilation and cooling equipment.
BOOST Exhaust fan are widely used in Agriculture,flowers,animal husbandry,factories,textiles,and mining,coal,chemical,shopping
malls,and supermarkets,medicine,food,tea,vegetables,wooding ,and other industries.
BOOST Exhaust fan are widely used in Agriculture,flowers,animal husbandry,factories,textiles,and mining,coal,chemical,shopping
malls,and supermarkets,medicine,food,tea,vegetables,wooding ,and other industries.
Model | BST1380 |
Blade diameter | 1270mm |
Blade rpm | 439rpm |
Motor rpm | 1400rpm |
Air flow | 44000m³/h |
Input power | 1100W |
Rated power | 220V/380V/Customized |
Size | 1380*1380*450mm |
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed(rpm) | Air flowm³/hr | Input power(W) | Noise(db) |
BST300 | Drive | 200 | 1400 | 1400 | 1000 | 120 | ＜70 |
BST400 | Drive | 300 | 1400 | 1400 | 2000 | 180 | ＜70 |
BST480 | Diect | 380 | 1400 | 1400 | 3000 | 180 | ＜70 |
BST600 | Direct | 500 (20inch) | 1400 | 1400 | 5700 | 370 | ＜70 |
BST800 | Belt | 710(28inch) | 660 | 1400 | 18000 | 370 | ＜65 |
BST900 | Belt | 750(30inch) | 630 | 1400 | 22000 | 370 | ＜65 |
BST1000 | Belt | 900(36inch) | 610 | 1400 | 25000 | 750 | ＜65 |
BST1100 | Belt | 1000(40inch) | 600 | 1400 | 32500 | 750 | ＜65 |
BST1220 | Belt | 1100(44inch) | 460 | 1400 | 38000 | 750 | ＜64 |
⭐BST1380 | Belt | 1270(50inch) | 439 | 1400 | 44000 | 1100 | ＜64 |
BST1530 | Belt | 1400(56inch) | 325 | 1400 | 55800 | 1500 | ＜64 |
Detail Images

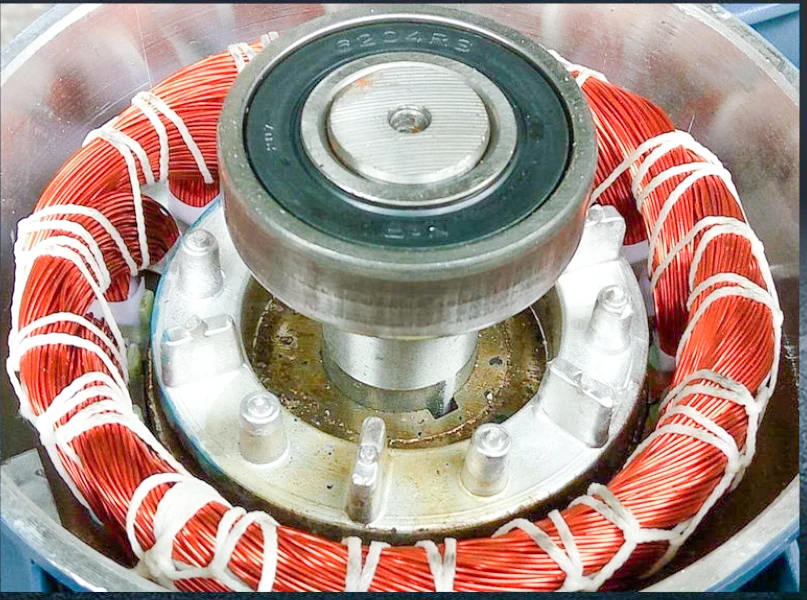

Motor
1380 Variable Sizes Wall Mount Box Type Industrial Air Extractor Poultry Greenhouse Ventilation Exhaust Fan
Brand: Chinese motor and Siemens motor Certificate: CCC Protection
class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.

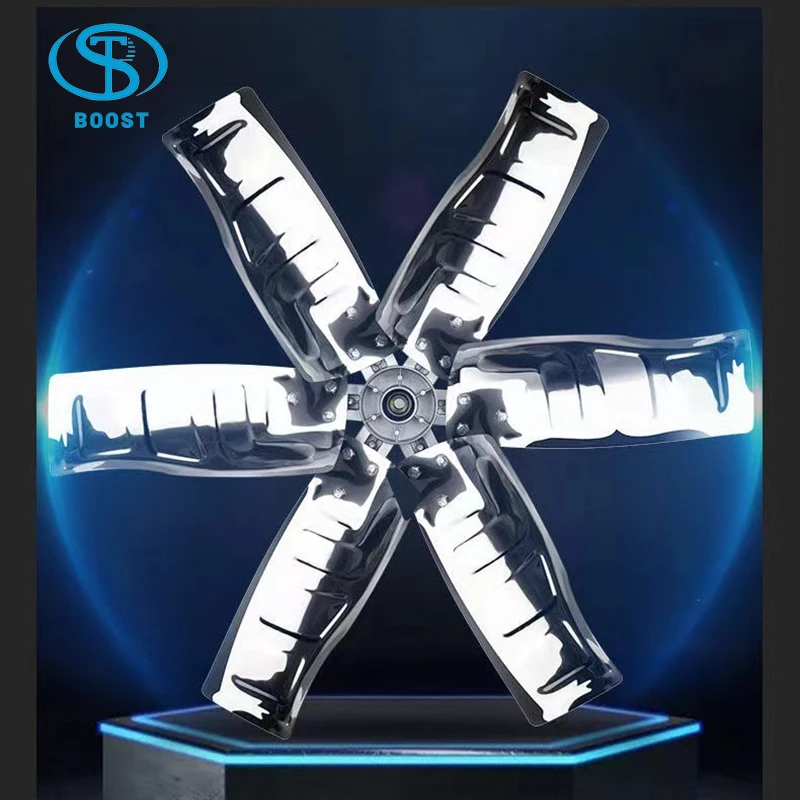

1380 Variable Sizes Wall Mount Box Type Industrial Air Extractor Poultry Greenhouse Ventilation Exhaust Fan
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mmAdvantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option

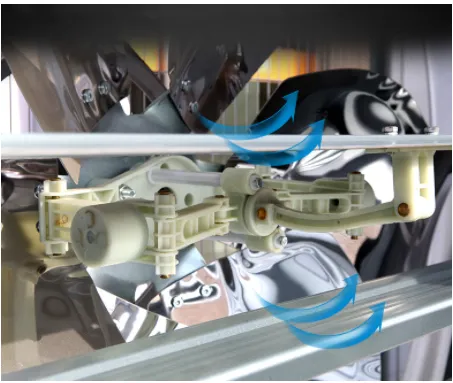

1380 Variable Sizes Wall Mount Box Type Industrial Air Extractor Poultry Greenhouse Ventilation Exhaust Fan
1.Material:High quality Nylon PA66
2.Guide Rod:304 stainless steel with special material outside,high strength,no rust,reduce friction.3.Rivet:304 stainless steel,wear-resisting,no rust.
Advantage:

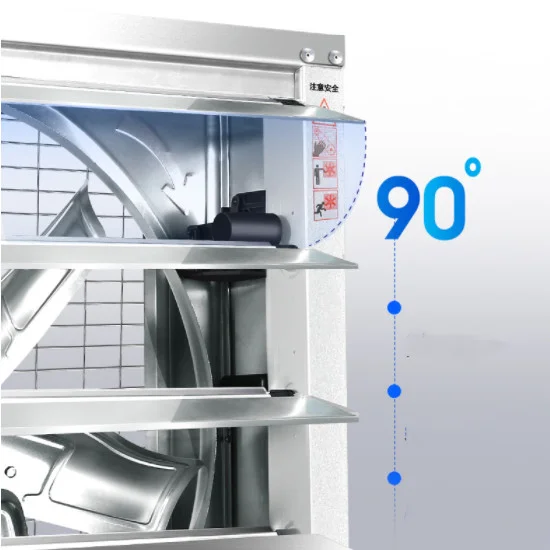

It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.When it is close,the tight sealing can efficiently block light and wind into the poultry house.The fasteners of centrifugal system are copper rivets,wear resisting,no rust,and flexible.Nylon oriented pole is made of stainless steel,ensuring the high strength and reducing fiction,rust-resistant.
It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.When it is close,the tight sealing can efficiently block light and wind into the poultry house.The fasteners of centrifugal system are copper rivets,wear resisting,no rust,and flexible.Nylon oriented pole is made of stainless steel,ensuring the high strength and reducing fiction,rust-resistant.

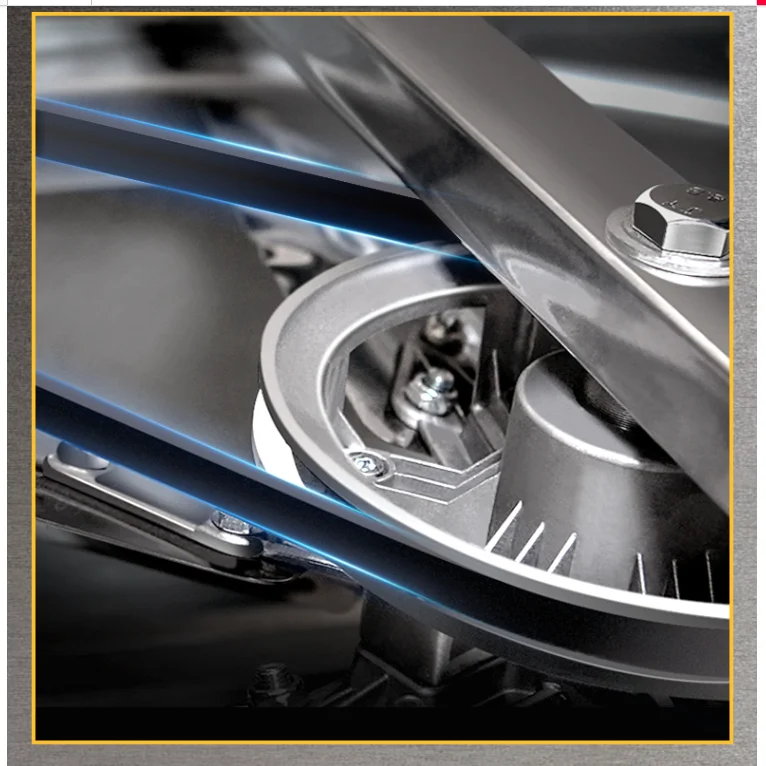

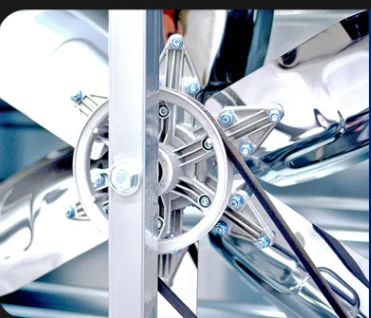

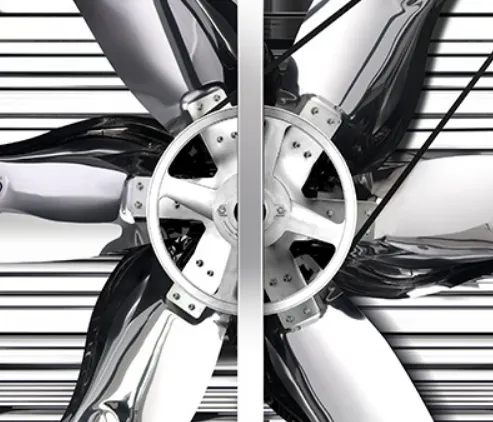

Fan belt pulley
1380 Variable Sizes Wall Mount Box Type Industrial Air Extractor Poultry Greenhouse Ventilation Exhaust Fan

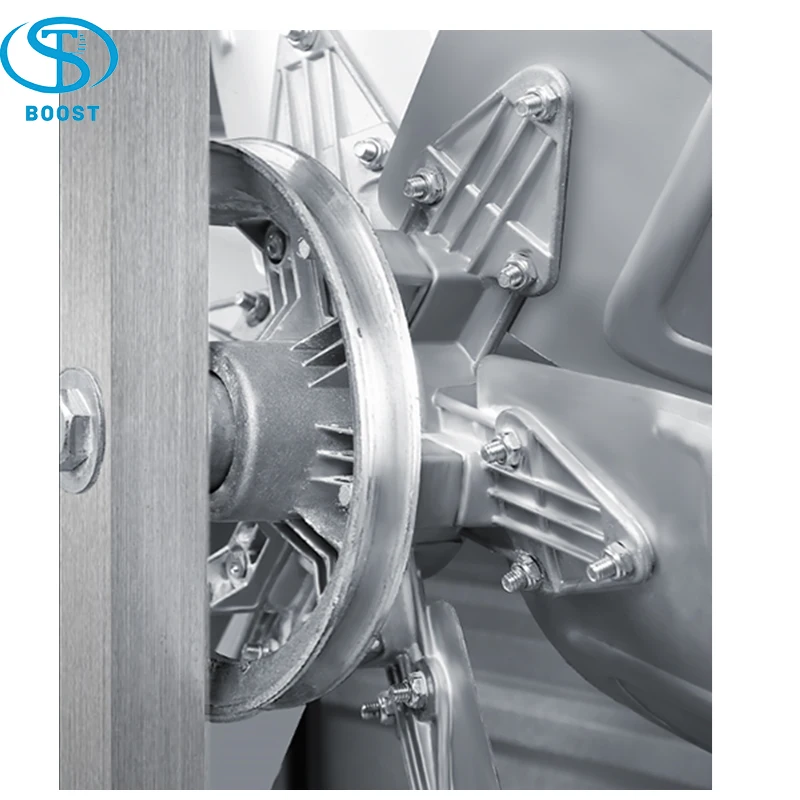

Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
The angle of blade hub is designed after double tested which can be fix with blade exactly.Advantage:
Small wind resistance,Large air flow, attractive and durable.
1380 Variable Sizes Wall Mount Box Type Industrial Air Extractor Poultry Greenhouse Ventilation Exhaust Fan
We has advanced production technology with automatic equipment. professional production line, NC-based professional equipment.Auto
punching and bending. Highly-accurate. Materials is made by 275g coating weight galvanized sheet.
Advantage:
High strength,Strong corrosion resistance
Advantage:
High strength,Strong corrosion resistance
Belt
1380 Variable Sizes Wall Mount Box Type Industrial Air Extractor Poultry Greenhouse Ventilation Exhaust Fan
We have Chinese belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3 times than Type A

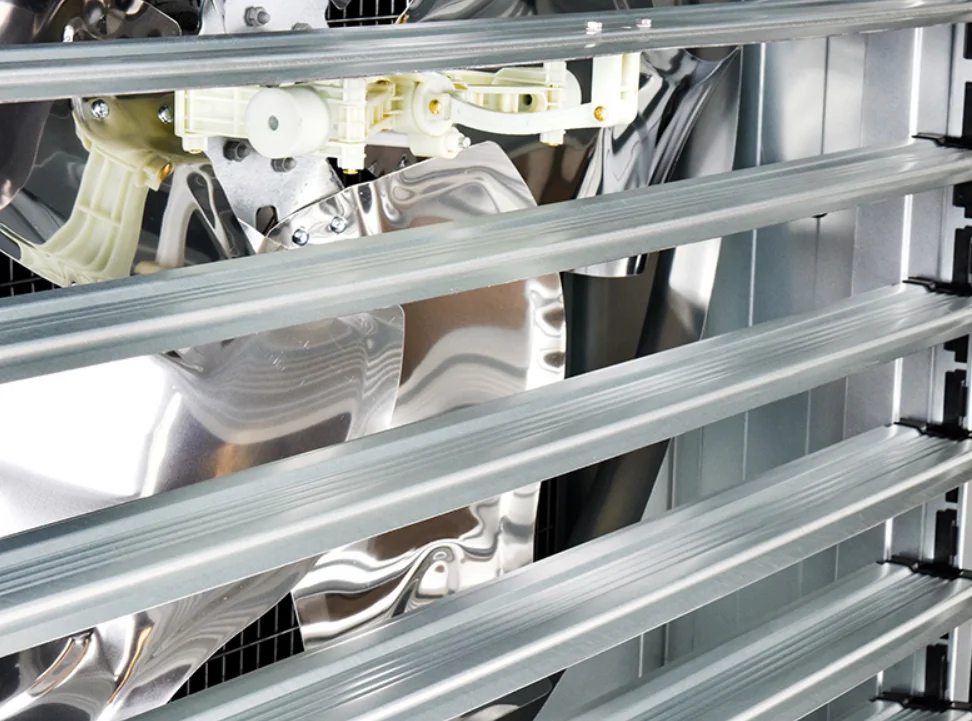

1380 Variable Sizes Wall Mount Box Type Industrial Air Extractor Poultry Greenhouse Ventilation Exhaust Fan
No electricity ventilation,Opening centrifugal push-pull system,then Shutters can open and close automatically.
Advantage:
Windproof ,Rainproof

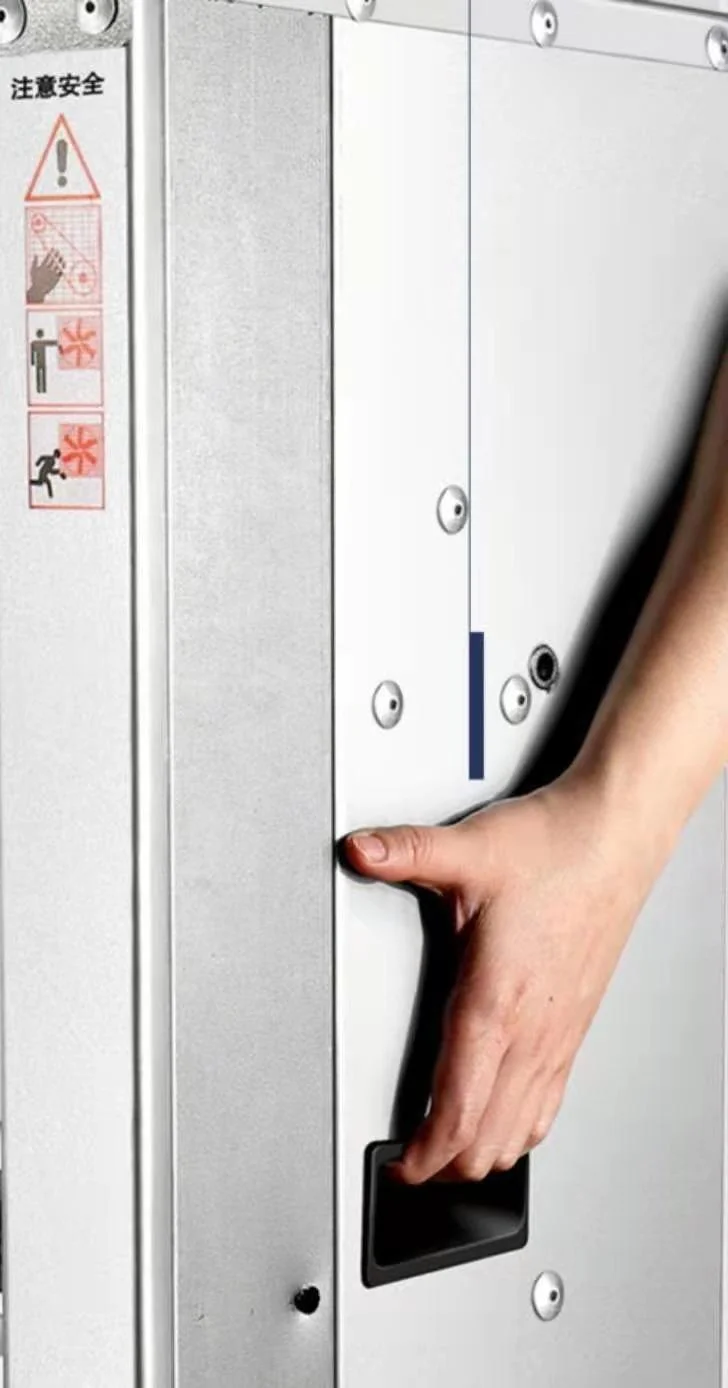

Handle design
1380 Variable Sizes Wall Mount Box Type Industrial Air Extractor Poultry Greenhouse Ventilation Exhaust Fan
More humanized design
Easy to move
Not to be broken

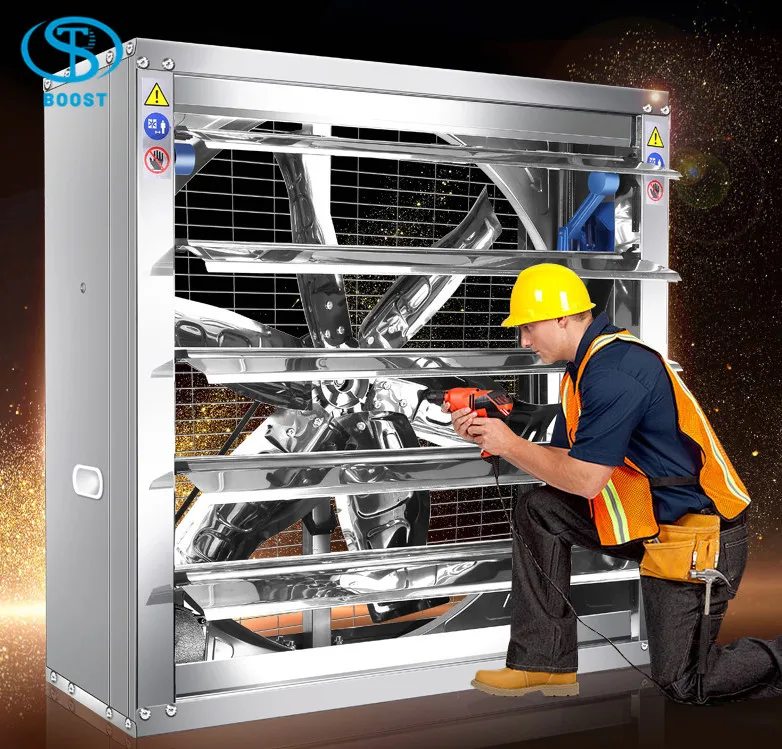

How to install Exhaust Fan
Remarks
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .

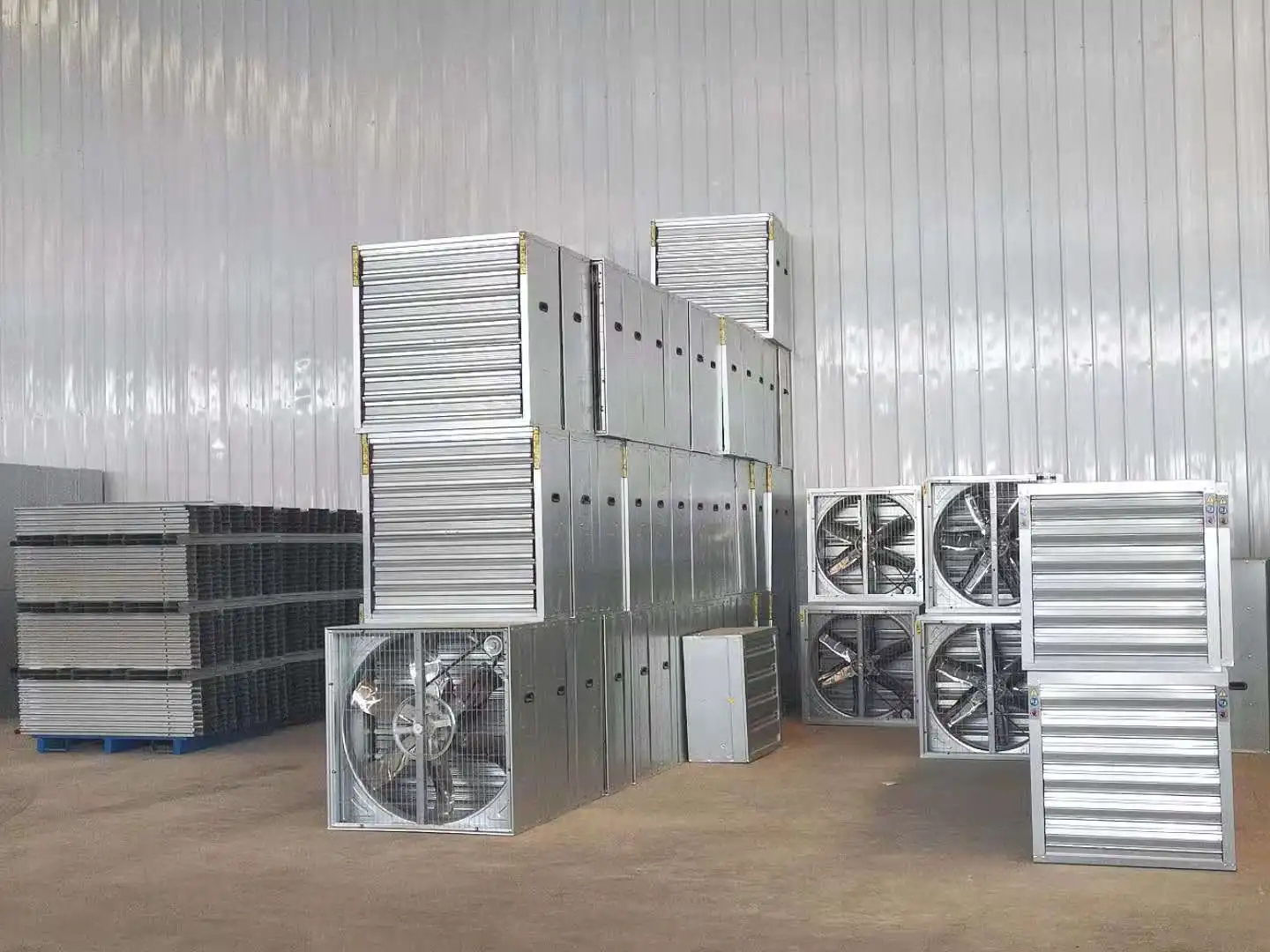

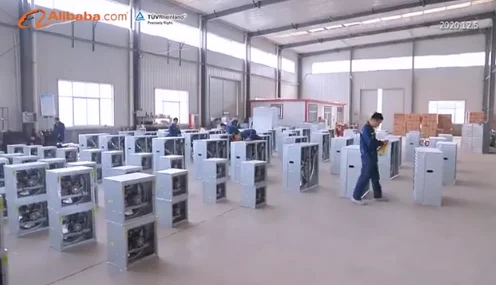

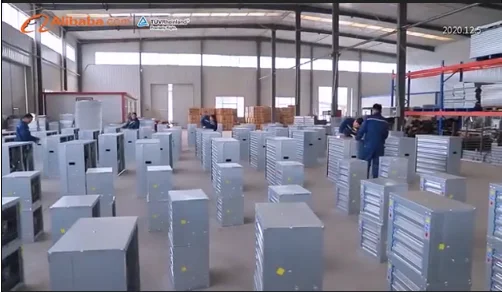

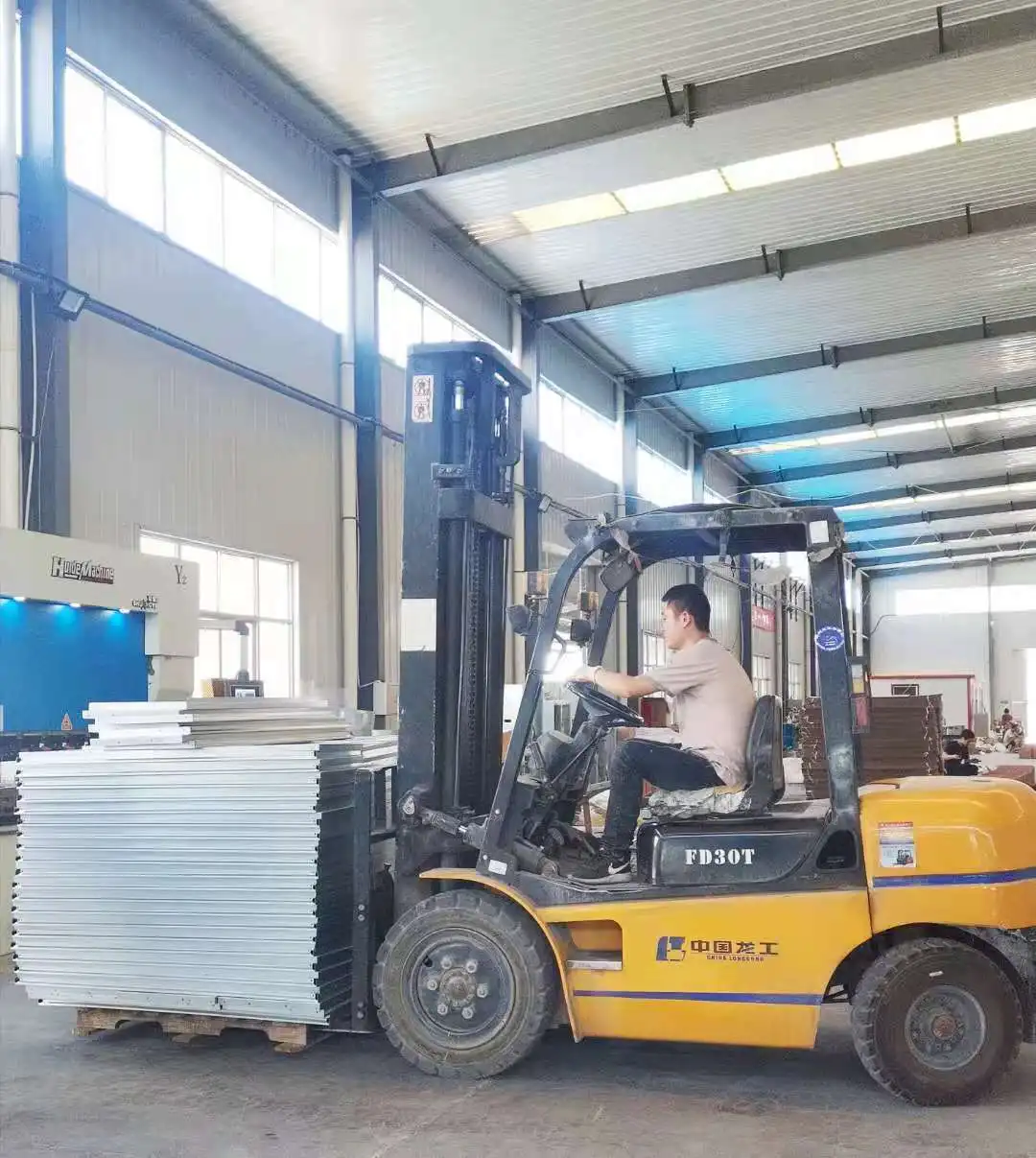

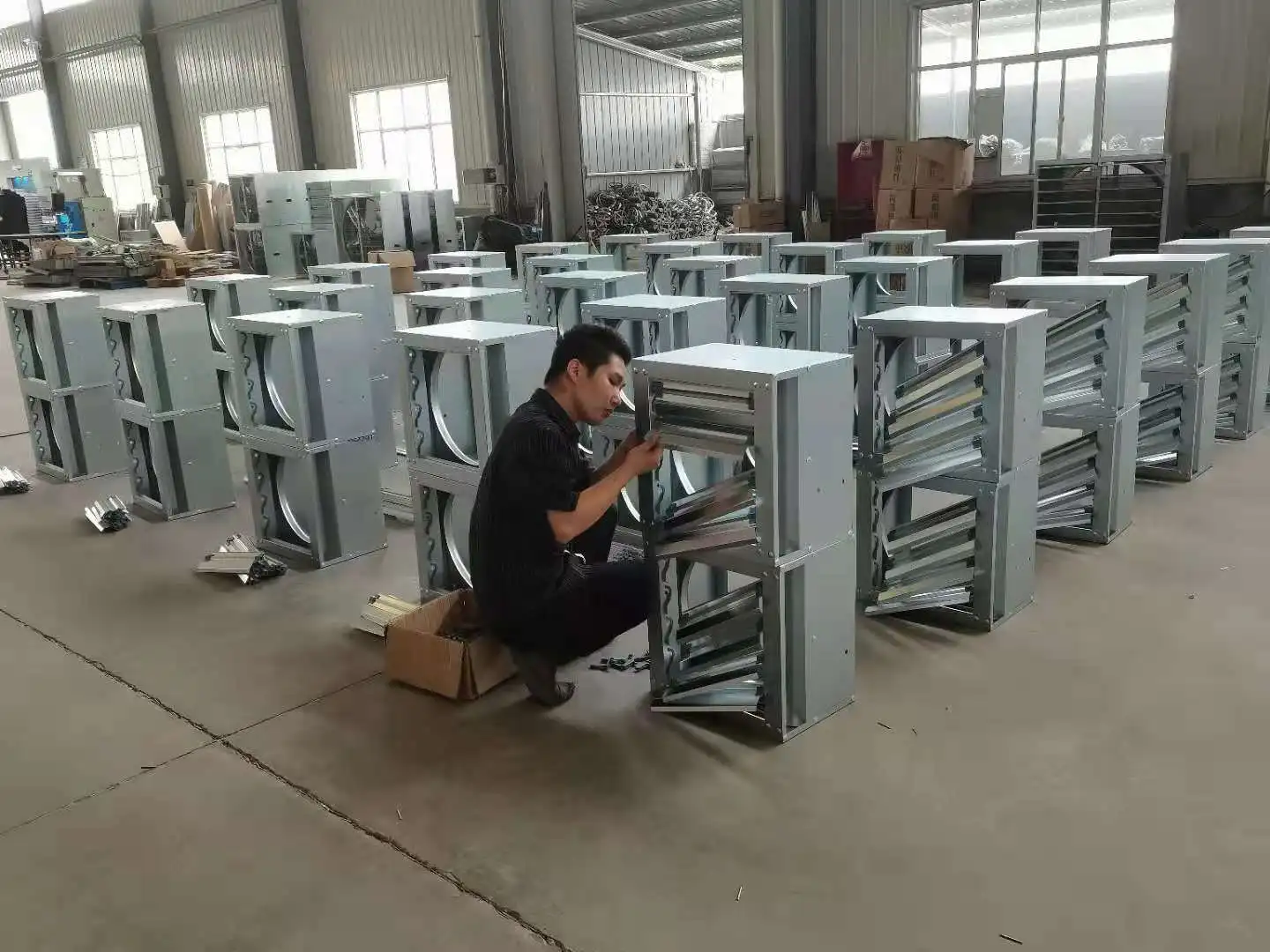

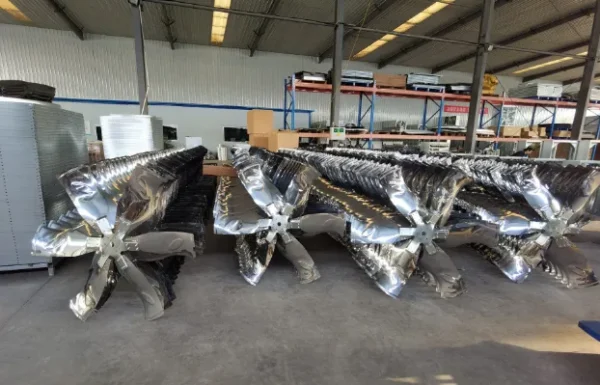

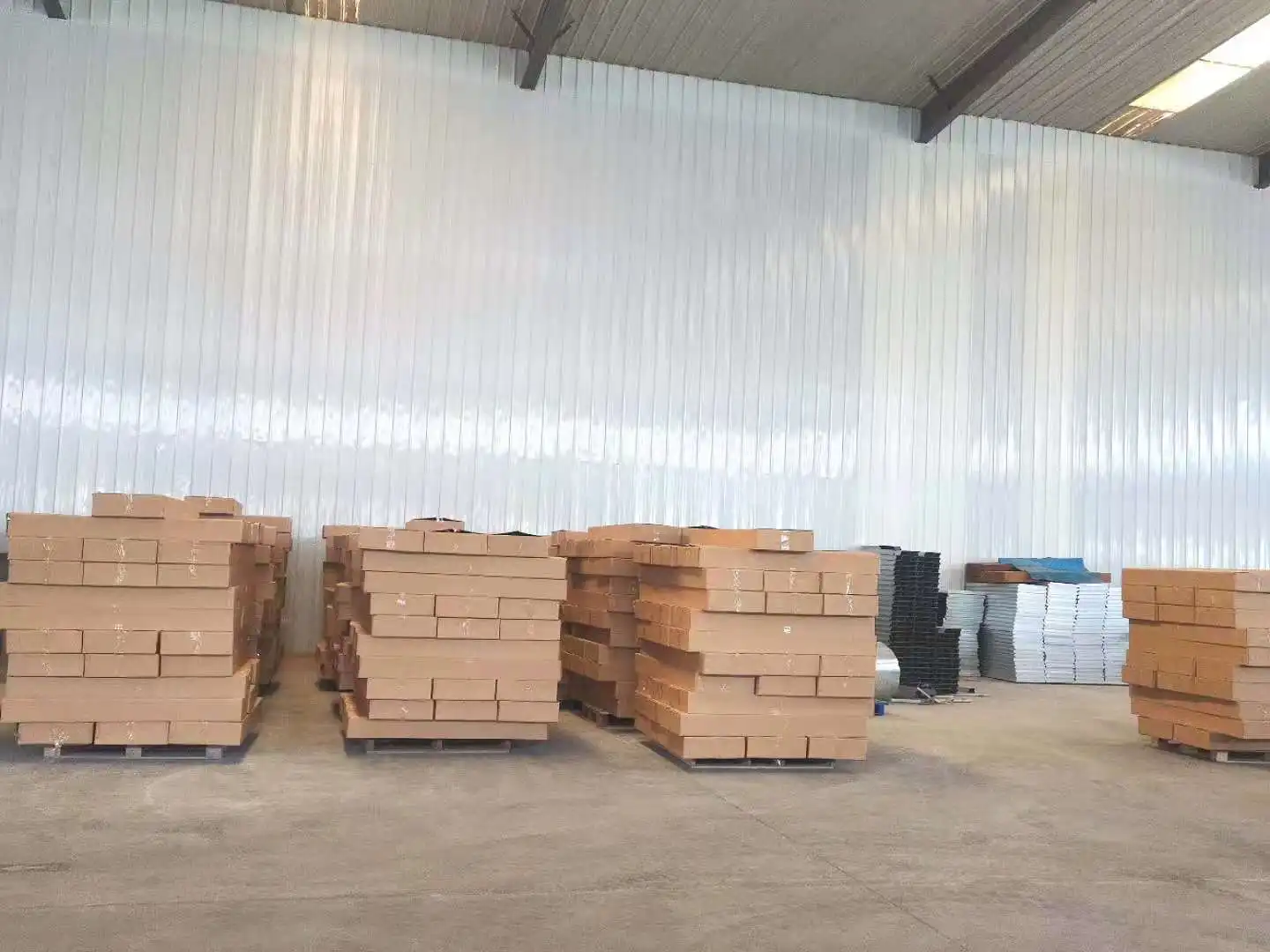

Factory&Workshop

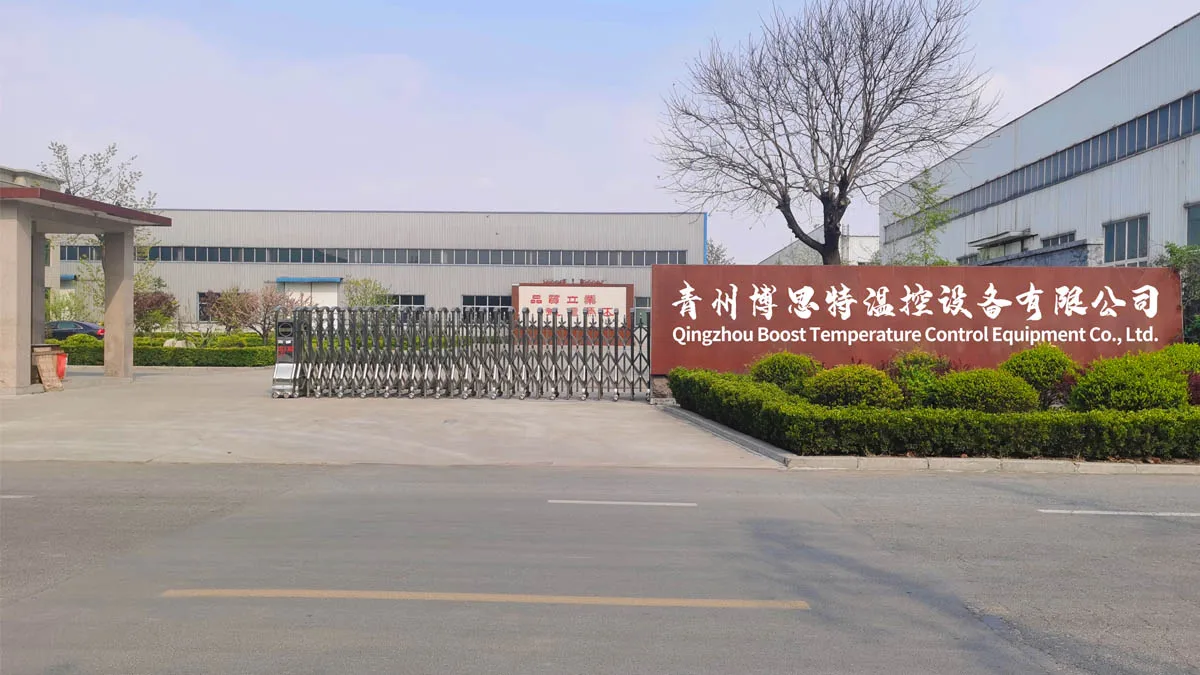

Company profile
Qingzhou Boost Temperature Control Equipment Co., Ltd. is the pioneer and leader of new type of plant ventilation and cooling equipment, standardized livestock and poultry houses, horticultural greenhouse ventilation and cooling, and heating equipment.
It has produced more than 30 "Boost" brand products in six series. The main products are cooling pad, livestock fans,negative pressure fans, garden fans, circulation fans, automatic roof ventilators, axial fans, hot blast stoves, etc.
WHY CHOOSE BOOST?
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.

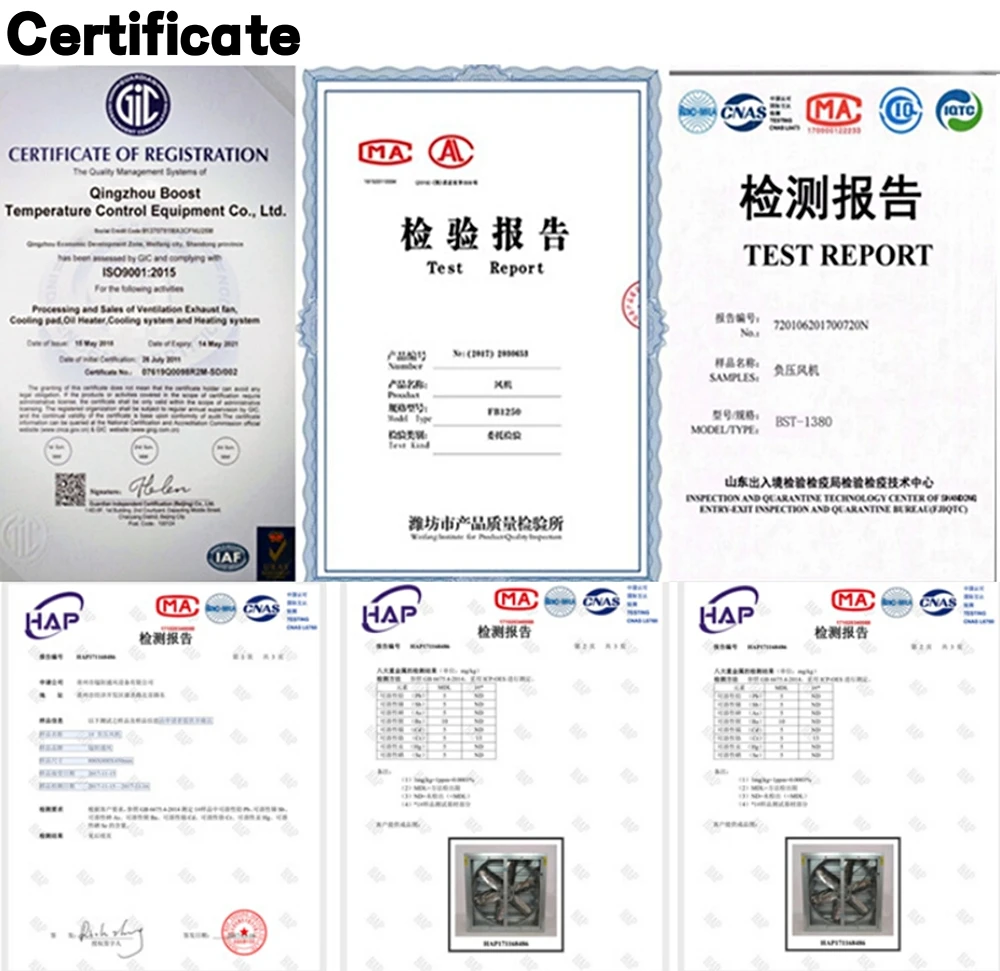

Certifications

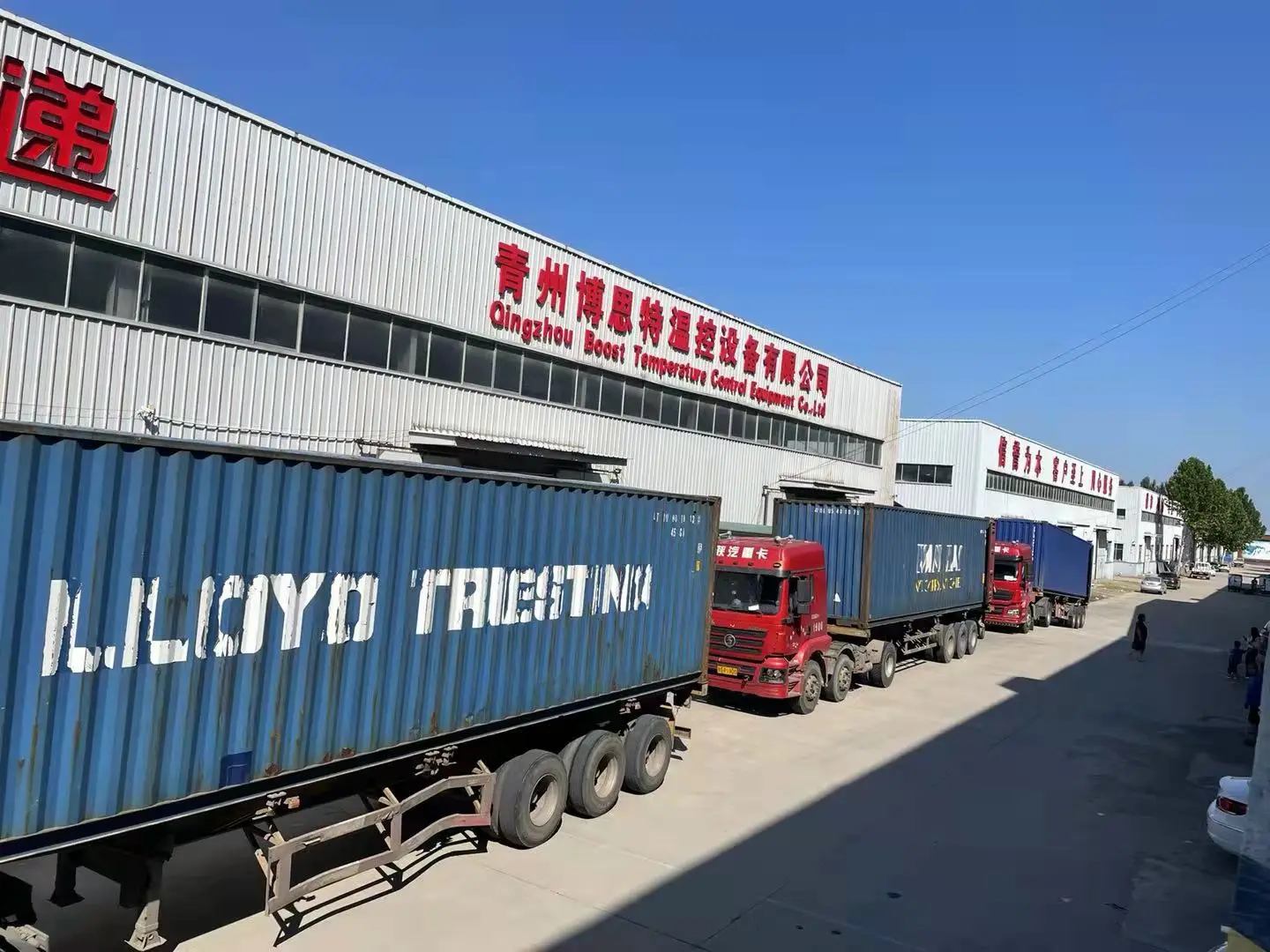

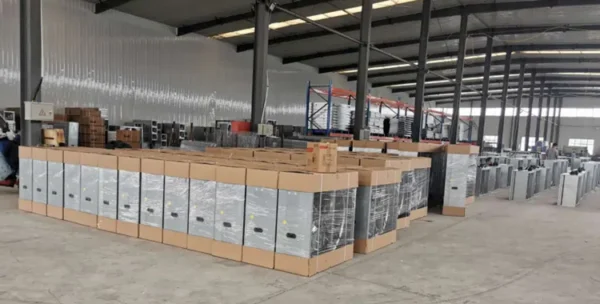

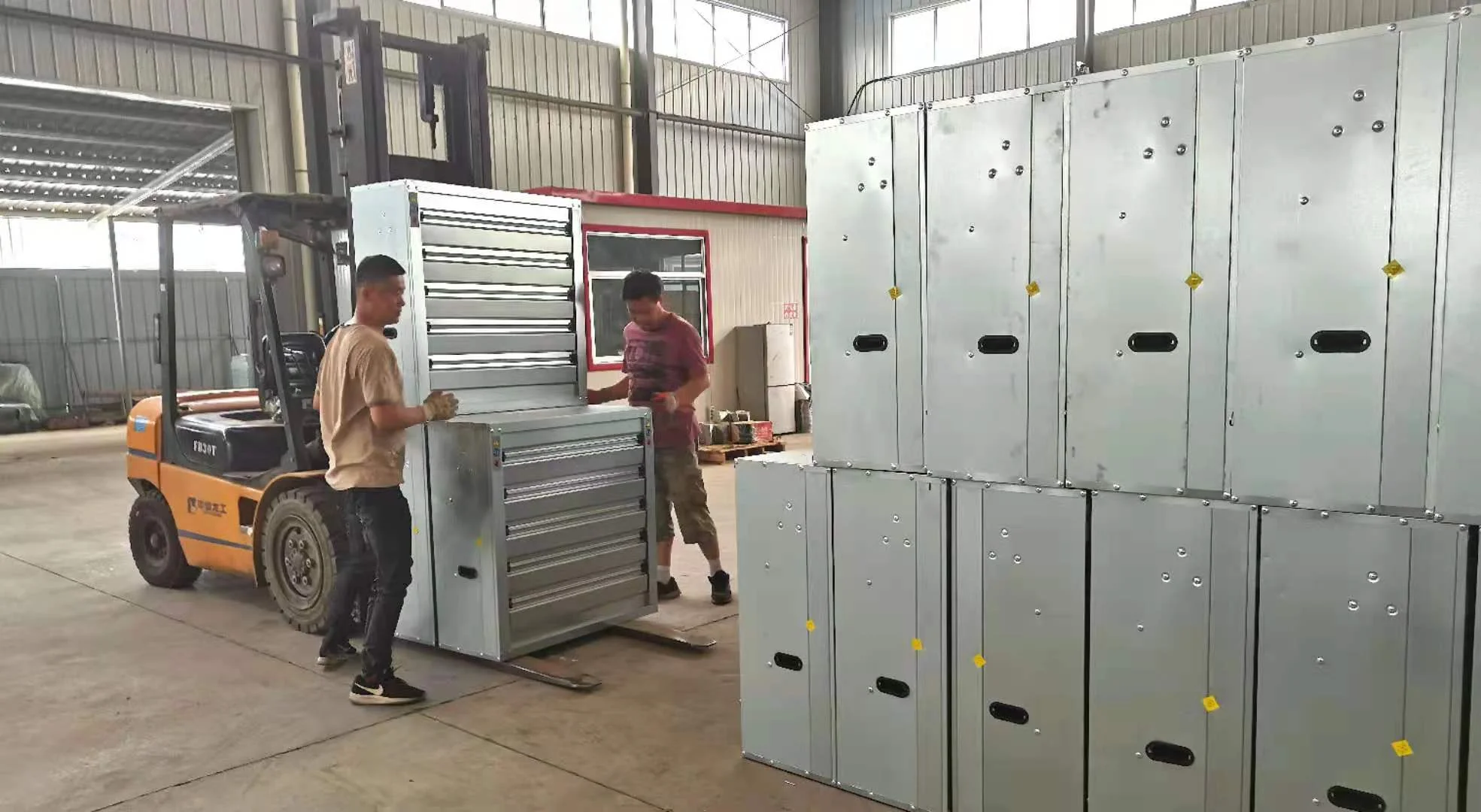

Packaging&Shipping
FAQ
After-sales service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–49 set: US $120 / set
- 50+ set: US $80 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this type industrial air extractor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this type industrial air extractor carry?
It is supplied with ce,ccc,other documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
