Key specification for this ec motors: 230V, blade material Stainless Steel. Everything below is reproduced from the factory data sheet. Made by Ningbo Jigu Motor Technology Co., Ltd. (12 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Ec Motors
- Model Number: 450
- Voltage: 230V
- Blade Material: Stainless Steel
- Speed Control: 0-10v or PWM signal
- Place Of Origin: Zhejiang, China
- Type Of Protection: IP44
Technical Specifications
| Mounting | Wall Fan |
|---|---|
| Voltage | 230V |
| Blade Material | Stainless Steel |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | GP MOTOR |
| Model Number | 450 |
| Bearing | NMB maintenance-free ball bearing |
| Impeller | Hot-dip galvanised sheet steel |
| Lead Wire | AWG#22 1007 (Controls), AWG#18 UL1007 (Mains) |
| Type Of Protection | IP44 |
| Safety | Electronic protection |
| Insulation Class | Class "B" or "F" |
| Speed Control | 0-10v or PWM signal |
| Life Time | 50000 hours (L10) at 40°C room |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

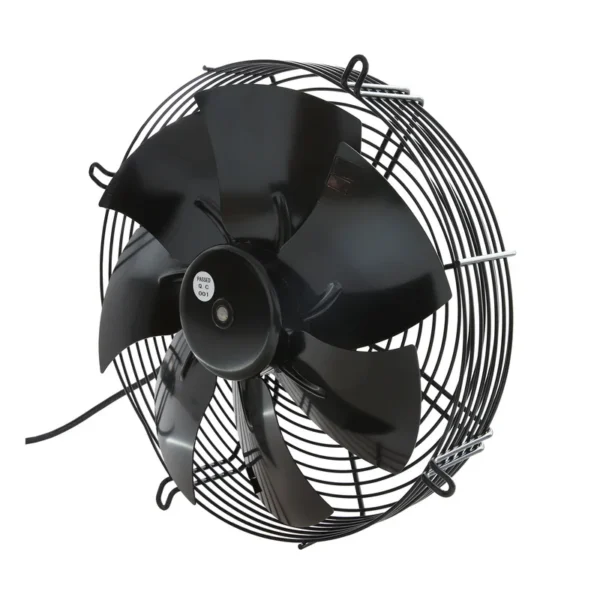

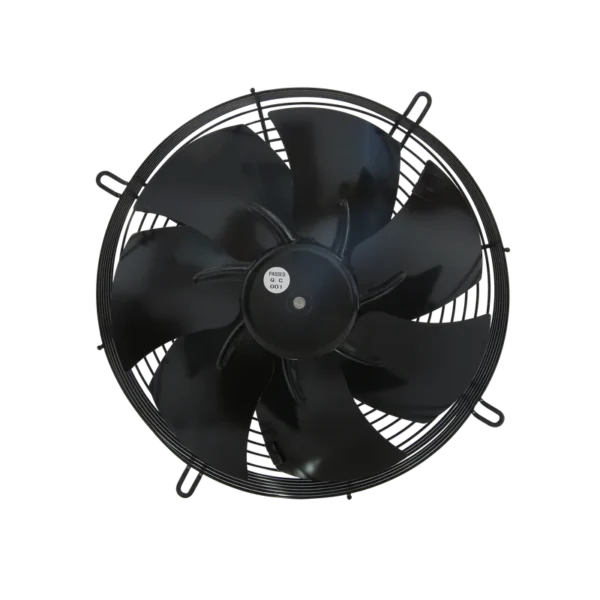

Low Noise Ac Ec Motor 48V 220V 230V 92Mm 630Mm Wall Cooler Axial Fan For Refrigeration Freezer Cold Room 120X120X38 80X80X38 Mm
| Centrifugal Fan Sizes | 133mm~630mm (or Customized) |
| Cross Flow Fan Sizes | 300mm~600mm (or Customized) |
| Inline Duct Fan Sizes | 100mm~315mm (or Customized) |
| Centrifugal Blower Sizes | 133mm~400mm (or Customized) |
| Axial Fan Sizes | 200mm~710mm (or Customized) |
| Voltage | AC Input: 210V,220V,230V,380V,400V DC Input: 12V,24V,48 EC input: 210V,220V,230V,380V,400V (or Customized) |
| Power | Up to 2300W (or Customized) |
| Speed | Up to 3300RPM (or Customized) |
| Air Flow | Up to 7000m3/h (or Customized) |
| Speed control | Speed Controller (AC) or PWM/0-10V Input (DC EC) |
| Specification | |||||||||
| Item Code: A3SE450 | |||||||||
| Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Net Weight (Kg) |
| 230V | 50/60 | ≤1.45 | 325 | 1310 | 3510 | 5950 | 105 | 69 | 2.8 |
| Electrical Parameters | |
| Motor | Brushless external rotor motor |
| Insulation Class | Class "B" or "F" |
| Speed Control | 0~10VDC / PWM Input |
| Type of protection | IP44 |
| Impeller Dimension | A3SE450 |
| Approval | CE, CCC, ErP2015 and Rosh compliance |
| Warrent | 18 months after delivery |
| Outline Drawing | |||||||||
|
| |||||||||
 |
| Characteristic Curves | Wire Diagran | |

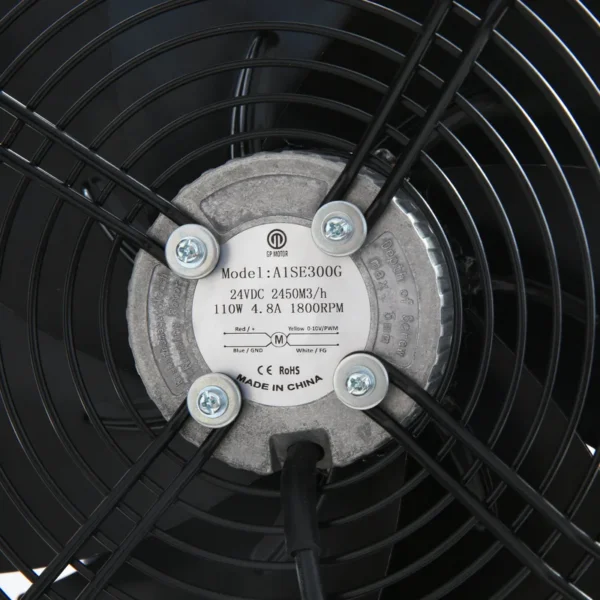

 | Cable Color | Function |
| Brown | L | |
| Blue | N | |
| Yellow/Green | PE | |
| Red | +10V output | |
| Yellow | 0-10VDC / PWM | |
| Blue | GND | |
| White | Tach output | |
| Customized Fan and Blower Solutions All of the designs in the GP Motors portfolio of Centrifugal Fans, Centrifugal Blowers, Axial Fans, Inline Duct Fans, Cross Flow Fans, Gas Blowers, Fan Motors and Fan Components are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the motors or fans in our portfolio, enables OEMs to meet their custom motor or fan requirements while allowing for faster development times. |
| Since 1991, GP Motors has designed and manufactured the highest quality Centrifugal Fans, Centrifugal Blowers, Axial Fans, Inline Duct Fans, Cross Flow Fans, Gas Blowers , Fan Motors and Fan Components in the industry. All of our Centrifugal Fans,Axial Fans,Inline Duct Fans,Cross Flow Fans,Centrifugal Blowers,Gas Blowers and Fan Components are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing facility located in Ningbo, Zhejiang. |
Low Noise Ac Ec Motor 48V 220V 230V 92Mm 630Mm Wall Cooler Axial Fan For Refrigeration Freezer Cold Room 120X120X38 80X80X38 Mm
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99 piece: US $80 / piece
- 100+ piece: US $40 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ec motors?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the ec motors be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
