This efficiency copper brazed plate is published with the manufacturer’s full specification — 220 V, 380 V, material Copper. Made by Guangzhou Heatcen Exchanger Co., Ltd (2 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Efficiency Copper Brazed Plate
- Voltage: 220 V, 380 V
- Flow Capacity: Customize on request
- Material: Copper
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: HVAC, Plant, Food industry, chemical, machinery, District Heating
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Flow Capacity | Customize on request |
| Fluid Compatibility | Customize on request |
| Material | Copper |
| Maximum Operating Temperature | Customize on request |
| Voltage | 220 V, 380 V |
| Core Components | coil |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Easy To Operate, leakproof |
| Working Temperature Range | Customize on request |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 30 |
| Brand Name | HEATCEN |
| Liquid Flow Rate | 2.5m/s |
| Maximum Pressure Rating | Variable |
| Dimension(L*W*H) | Request |
| Max Pressure | 45 Bar |
| Application | HVAC, Plant, Food industry, chemical, machinery, District Heating |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Feature | easy to maintain |
| Type | Brazed plate heat exchanger/Water Cooled Condenser |
| Name | Compact Brazed Plate Heat Exchanger/Evaporator |
| Certificate | CE, TUV |
| Medium | Water, Drinks, Oil, Milk, Refrigerant, Ethylene glycol |
| Whether To Accept Small Orders | Yes, any quantity is accepted |
| Selling Units | Single item |
Product Details

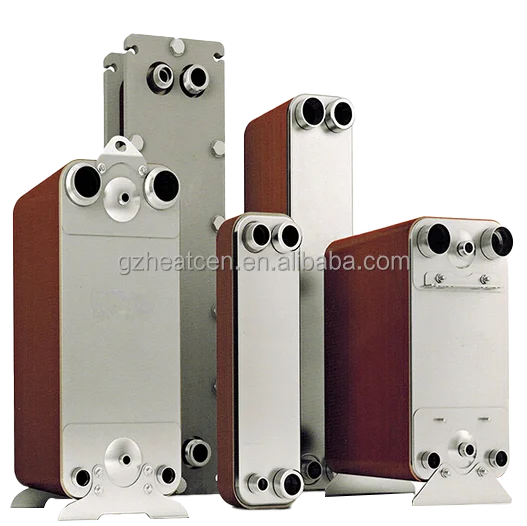

HEATCEN High Efficiency Brazed Plate Evaporator for Commercial Chillers and Heat Pump Systems

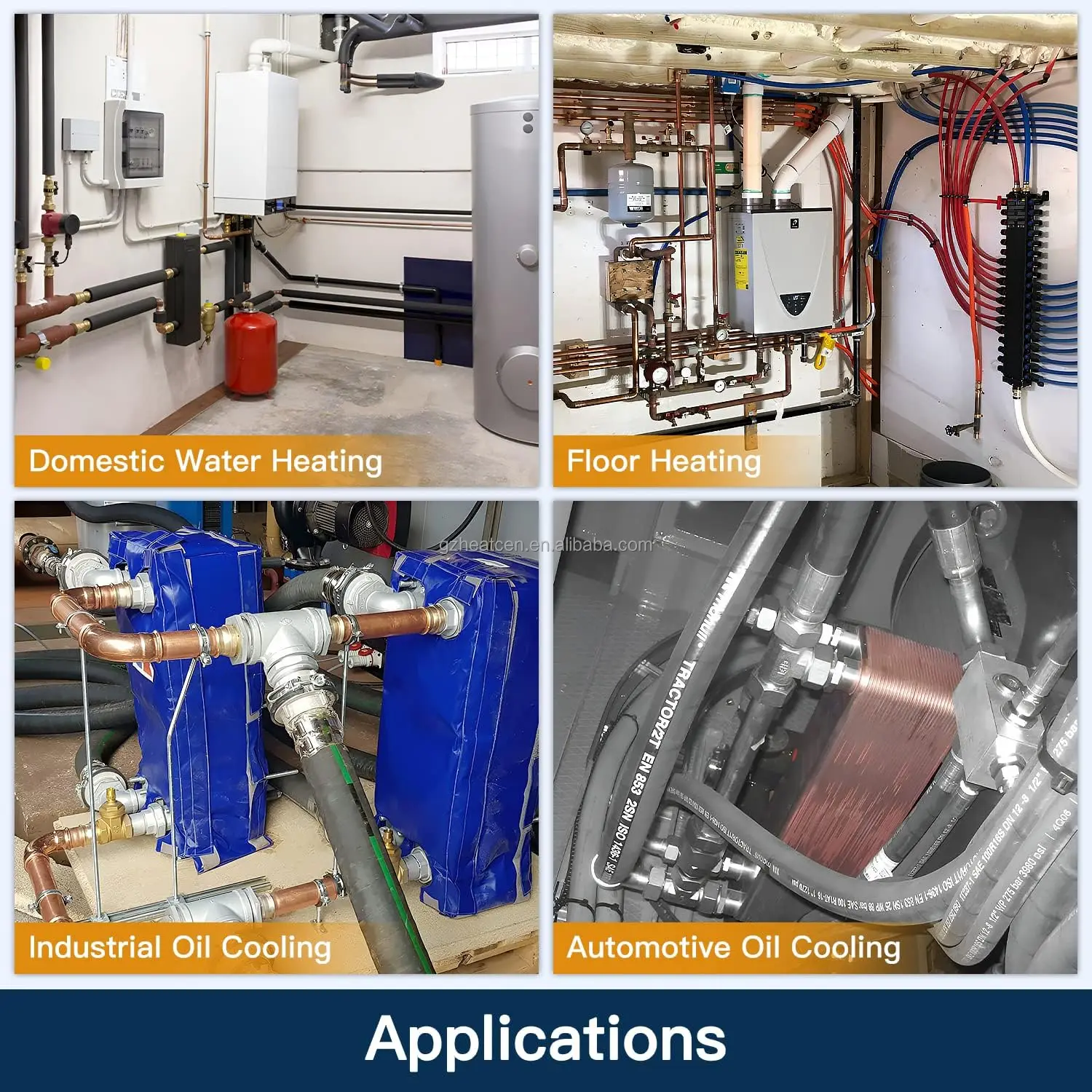

Applications:

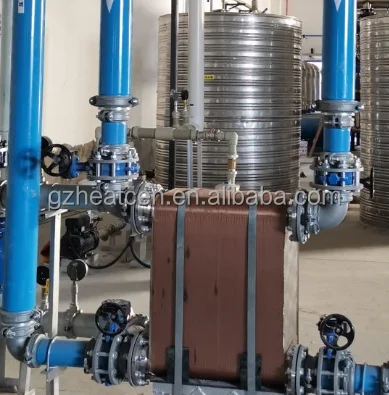

✅ HVAC Systems – Air conditioning, district heating, and ventilation.
✅ Refrigeration – Commercial chillers, freezers, and heat pumps.
✅ Industrial Processes – Chemical, oil & gas, power plants, and food processing.
✅ Renewable Energy – Solar thermal, geothermal, and waste heat recovery.
Space-saving design with high power density, reducing installation costs.
Suitable for high-pressure applications (up to 45 bar) and extreme temperatures

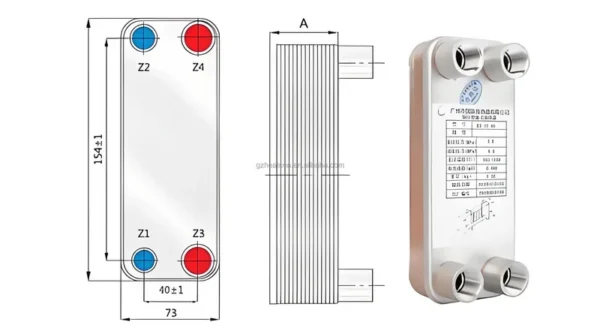

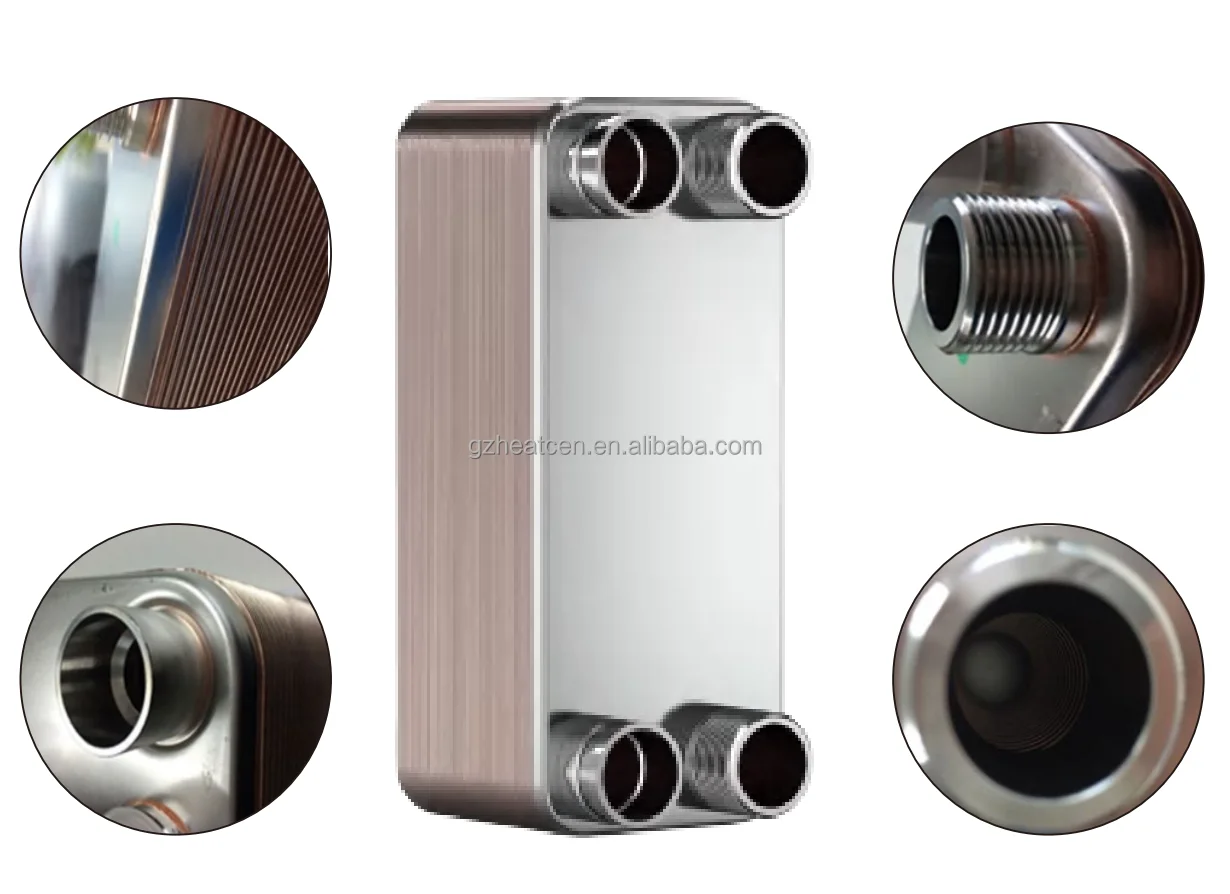

Various connections (PT/PNT/GB flange) and port positions are available

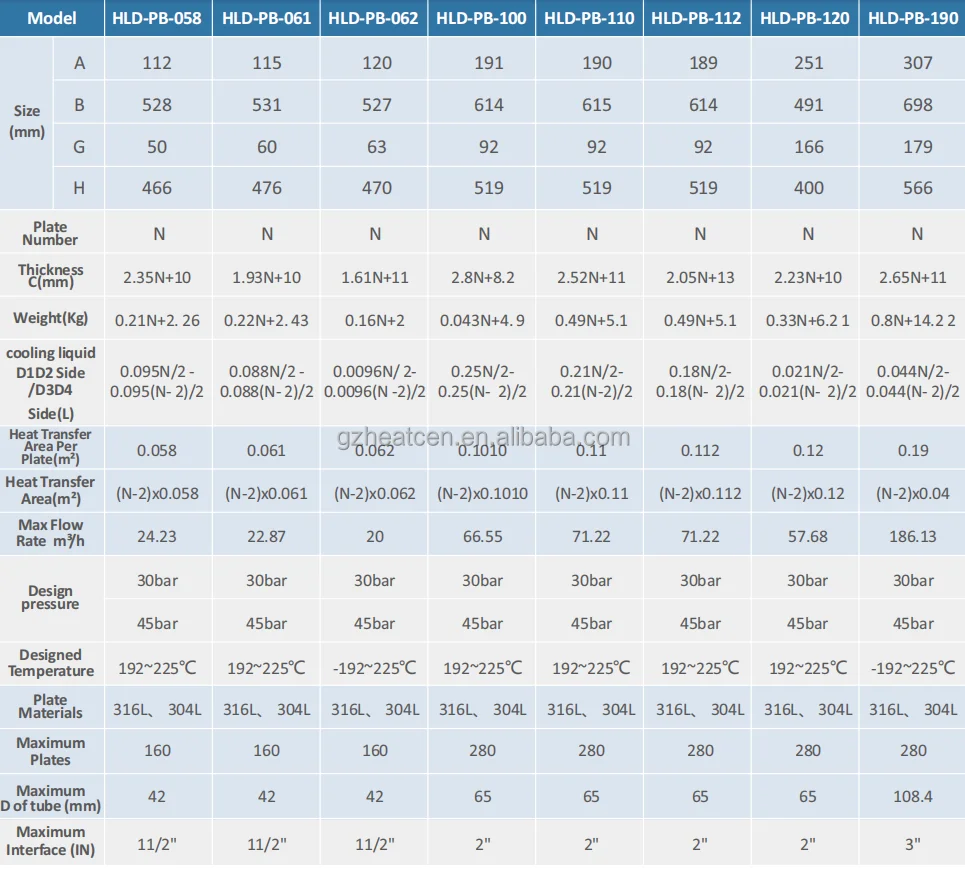

Technical Specifications | ||

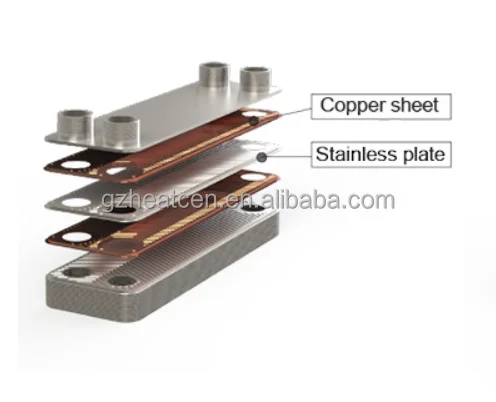

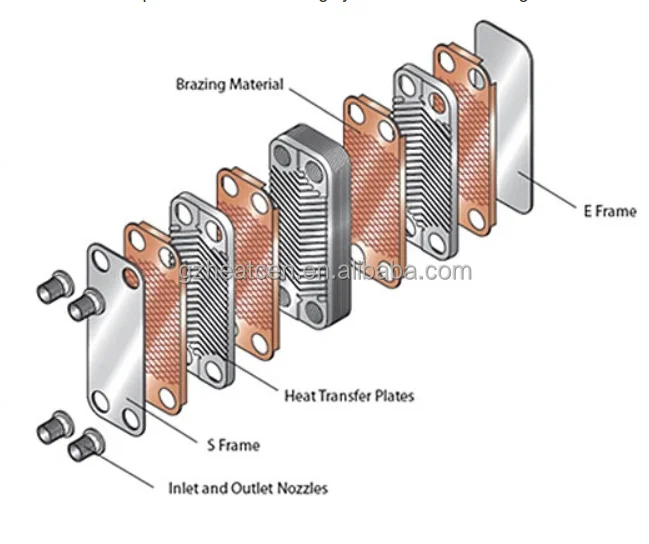

Material | Plates: Stainless Steel AISI 304 / 316L; Brazing Material: Copper / Nickel (Optional) | |
Design Pressure | Up to 45 bar (or customized per request) | |
Design Temperature | Up to 200°C (depending on brazing material) | |
Connection Sizes | DN25 – DN150 Flanged or Threaded connections available | |
Heat Exchange Capacity Range (per unit | Customized | |
* Professional Selection Support: Offers free technical consultation and product selection services. Recommends the most suitable model based on your project parameters.
* Global Supply Experience: Our products have been successfully applied in numerous large-scale commercial and district heating projects worldwide, proving their reliability.
* After-sales Guarantee: Provides comprehensive technical support and warranty service.
Quality Assurance: Use of premium materials and advanced manufacturing processes ensures long-term stable performance under demanding conditions.
Solution Provider: We don't just sell products; we offer professional heat exchange solutions for your projects.
Competitive Pricing: Leveraging economies of scale and an efficient supply chain to provide high cost-performance products.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $100 / set
- 10–99 set: US $90 / set
- 100–199 set: US $80 / set
- 200+ set: US $70 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this efficiency copper brazed plate?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this efficiency copper brazed plate carry?
It is supplied with CE, TUV documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the efficiency copper brazed plate be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Heatcen Exchanger Co., Ltd, based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Heatcen Exchanger Co., Ltd range on HVACR Nexus.
