This electric ducted air conditioner is published with the manufacturer’s full specification — capacity >30000, power type AC. Made by Sara Srl (1 year on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Electric Ducted Air Conditioner
- Model Number: fujitsu-canalizzato-kmtap-54000-trifase
- Power Type: AC
- Power Source: Electric
- Capacity (Btu): >30000
- Refrigerant: R32
- Place Of Origin: Italy
Technical Specifications
| Application | Commercial |
|---|---|
| Capacity (Btu) | >30000 |
| Cooling/Heating | Cooling/Heating |
| Refrigerant | R32 |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Recommended Room Size（Square Feet） | ≥ 501 ft² |
| Power Type | AC |
| App-Controlled | No |
| Remote Control | Yes |
| Timer | Yes |
| Private Mold | No |
| Power Source | Electric |
| Place Of Origin | Italy |
| Brand Name | Fujitsu |
| Model Number | fujitsu-canalizzato-kmtap-54000-trifase |
| Selling Units | Single item |
| Single Gross Weight | 5.000 kg |
Product Details

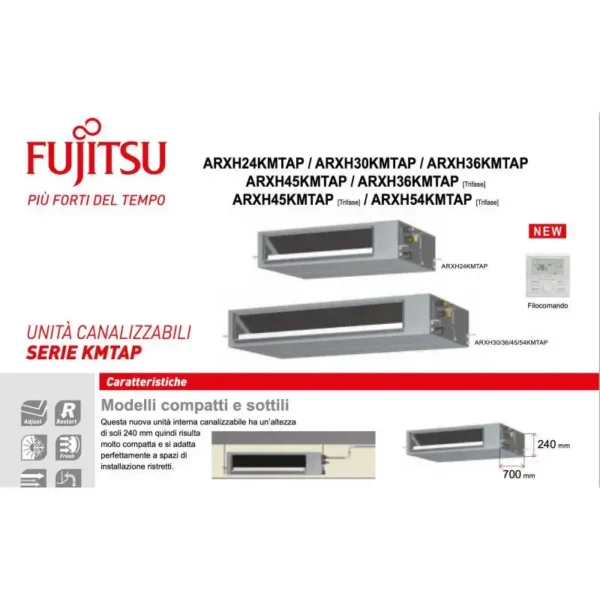

Fujitsu KMTAP 54000 BTU Three-Phase Ducted Air Conditioner ARXH54KMTAP R32 Inverter

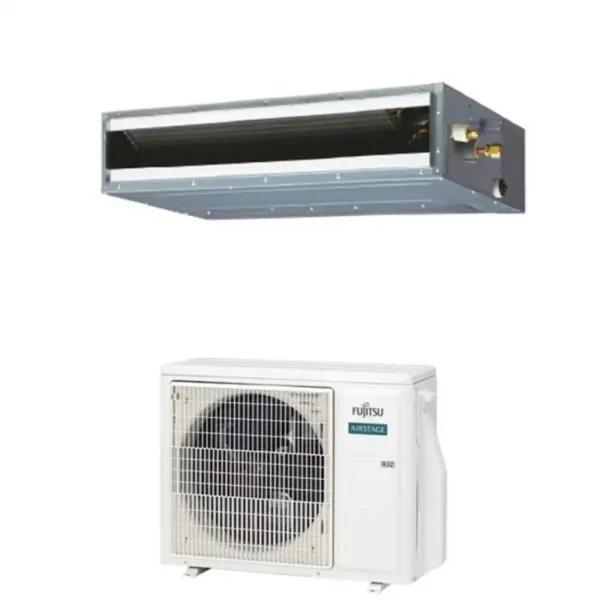

The Fujitsu 3NGF89870 Series KMTAP Three-Phase Monosplit Ducted Air Conditioner. The kit includes the indoor unit ARXH54KMTAP, outdoor unit AOEG54KRTA, and a wired remote control with cooling, heating (heat pump), and dehumidifying functions. Refrigerant Gas R32. Wired remote control included, model UTY-RLRY. Filter included, model UTD-LFDA.

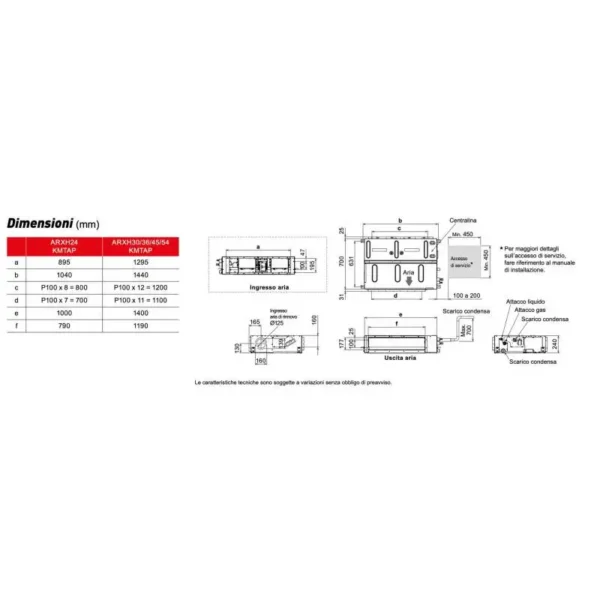

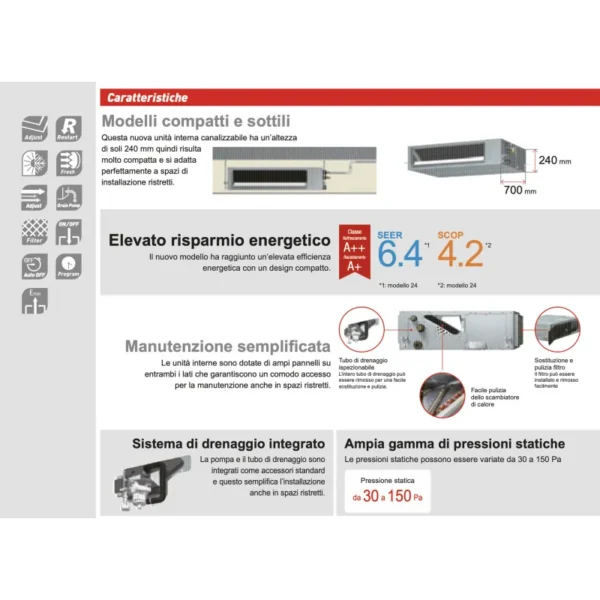

This new ducted indoor unit has a height of just 240 mm, making it very compact and perfect for installation in tight spaces.
Simplified Maintenance
The indoor units are equipped with large panels on both sides, ensuring easy access for maintenance even in confined spaces.
Inspection-friendly Drain Pipe: The entire drain pipe can be removed for easy replacement and cleaning.
Easy Heat Exchanger Cleaning.
Filter Replacement and Cleaning: The filter can be easily installed and removed.
Integrated Drainage System
The pump and drain pipe are integrated as standard accessories, simplifying installation even in tight spaces.
Wide Range of Static Pressures
Static pressures can be varied from 30 to 150 Pa.

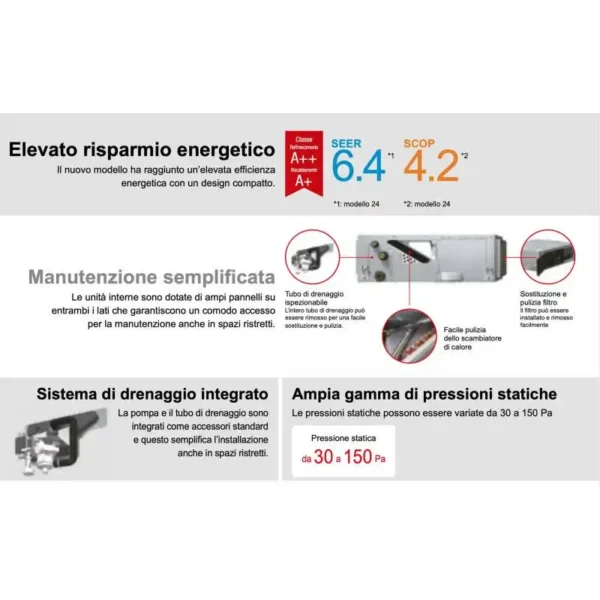

High Energy Efficiency
The new model has achieved high energy efficiency with a compact design.
Simplified Maintenance
The indoor units are equipped with large panels on both sides, ensuring easy access for maintenance even in confined spaces.
Inspection-friendly Drain Pipe: The entire drain pipe can be removed for easy replacement and cleaning.
Easy Heat Exchanger Cleaning.
Filter Replacement and Cleaning: The filter can be easily installed and removed. Integrated Drainage System
The pump and drain pipe are integrated as standard accessories, simplifying installation even in tight spaces.
Wide Range of Static Pressures: Static pressures can be varied from 30 to 150 Pa.
Optional Intelligent Control Device
Simply install the wireless LAN interface in the unit. By installing the AIRSTAGE Mobile App on your smart device, you can check and control the operational status of the air conditioner from anywhere.
| Power Source | Electric |
| Refrigerant | R32 |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Recommended Room Size（square feet） | ≥ 501 ft² |
| Power Type | AC |
| App-Controlled | No |
| Remote Control | Yes |
| Cooling/Heating | Cooling/Heating |
| Capacity (btu) | >30000 |
| Model Number | ARXH54KMTAP |
| Brand Name | Fujitsu |
| Timer | Yes |
| Private Mold | No |
| Application | Commercial |
| Company Name | Sara Srl |
| Company Address | XX September Street 72 |
| Company Country | IT |
| Company Zip | 87018 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $5125.56 / piece
- Ships from: IT
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric ducted air conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Sara Srl. The company 1 years as a verified Alibaba.com supplier. Browse the full Sara Srl range on HVACR Nexus.
