Electric heaters — material Quartz Glass, certification CE, ROHS , Reach, ISO9001. The complete factory specification follows. Made by Lianyungang O-Yate Lighting Electrical Co., Ltd (18 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Electric Heaters
- Input Voltage(V): AC 220V( ± 10%)
- Material: Quartz Glass
- Certification: CE, ROHS , Reach, ISO9001
- Place Of Origin: Jiangsu, China
- Application: Heating
- Base Type: LS650
Technical Specifications
| Input Voltage(V) | AC 220V( ± 10%) |
|---|---|
| Specifications | LS650 |
| Base Type | LS650 |
| Lifespan (Hours) | 5000 |
| Color Temperature(CCT) | 2400k |
| Application | Heating |
| Support Dimmer | Yes |
| Bulb Finish | Transparent |
| Color | Clear, White, Gold, Ruby |
| Material | Quartz Glass |
| Place Of Origin | Jiangsu, China |
| Brand Name | OYATE |
| Beam Angle(°) | 360 |
| Product Weight（Kg） | 0.25 |
| Business Type | Manufacturer, Trading |
| Volts | 12-600V |
| Watt | 50-8000W |
| Wavelength | 1.3-2.5um |
| Filament | Tungsten, Carbon fiber |
| Tube Color | Clear, White, Gold, Ruby, Frosted |
| Shape | Tubular, Shaped |
| Brand | OYATE |
| Certification | CE, ROHS , Reach, ISO9001 |
| Selling Units | Single item |
| Single Package Size | 75X5X5 cm |
| Single Gross Weight | 0.3 kg |
Product Details

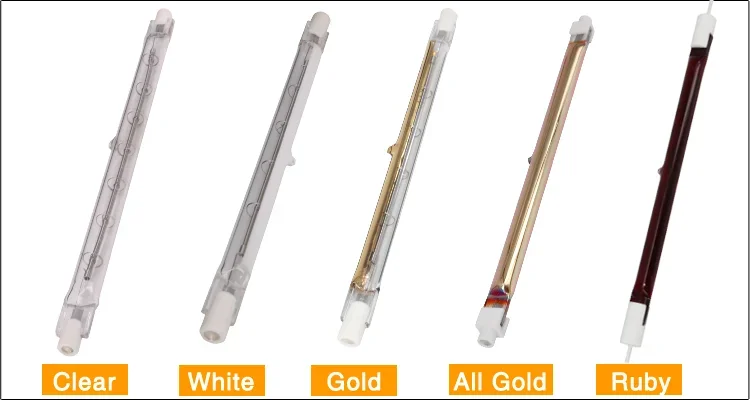

Infrared Halogen Heat Lamp
| Filament | Tungsten |
| Tube Color | Clear, White, Gold, Full Gold, Ruby |
| Wavelength | 1.3μm, 1.6µm |
| Voltage | 24-600V |
| Power | 50-4000W |
| Color Temp | 2450K, 1800k |
| Common Diameter | 10mm |
| Life Time | 5000Hours |
Features
*High efficiency.
*Economical to run.
*Have a fast response switching on and off time.
*Effectively transmit and focus heat on materials.
Applications

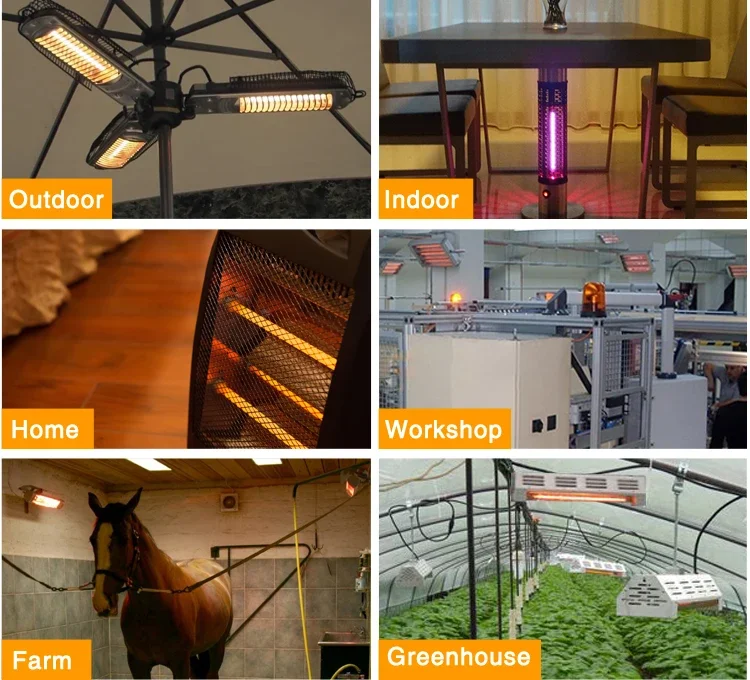

Infrared Heat Lamp For Heating
Especially use for patio, canopy, terrace, restaurant , bar, cafe, garden, outdoor sport, stadiums, churches, workshop, factories, home, farm,greenhouse.

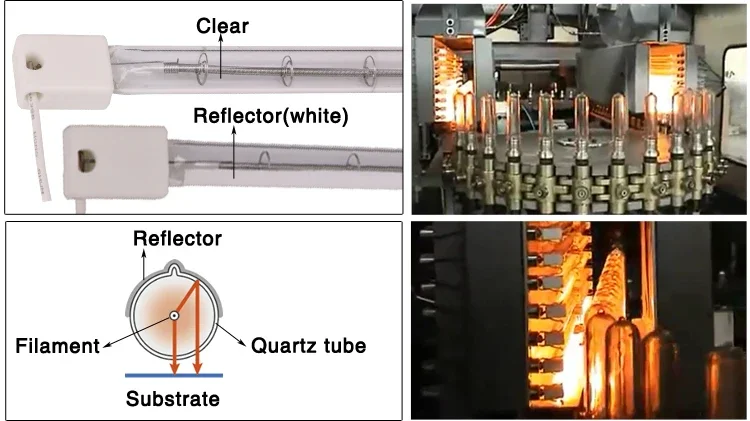

Infrared Heat Lamp For PET Manufacture

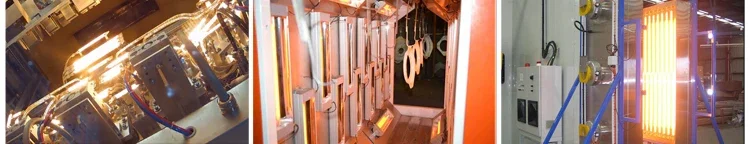

Reflector lamps focus infrared heat forward in the direction where it is required, reducing the loss of heat to the rear and improving efficiency. A reflective coating is applied to the surface of the lamp, usually covering 180° of the quartz tube. Infrared heat is emitted forward through the quartz tube, or is reflected off the back of the tube to then pass outfrom the front. Infrared heat lamps, with a reflector coating or clear heat lamp be used in various machines.

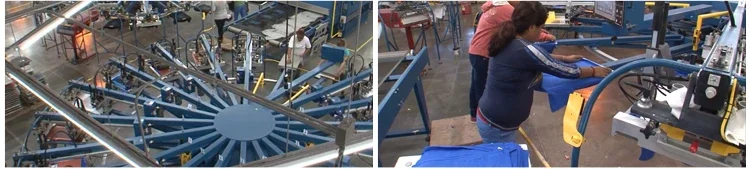

Infrared Heat Lamp For Pringting Equipment

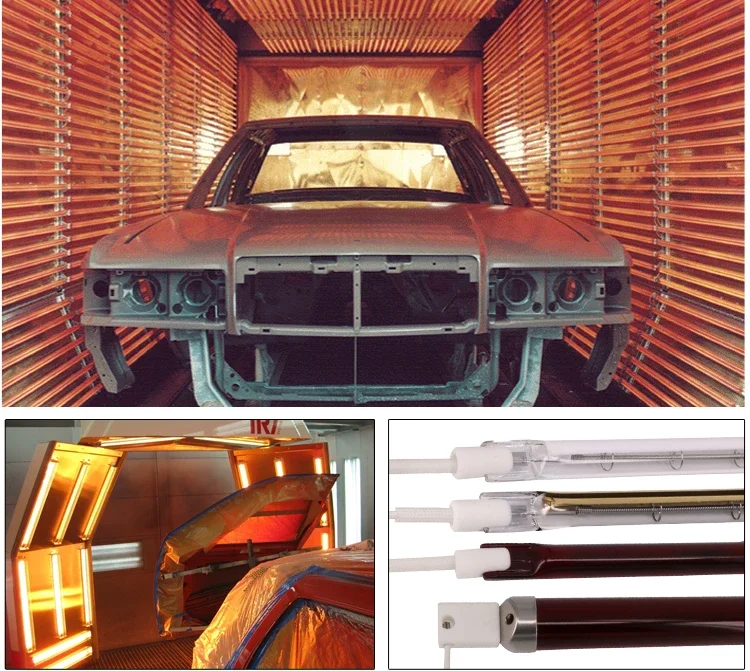

Infrared Heat Lamp For Paint Drying Systems
Infrared Heat Lamp For Drying Systems

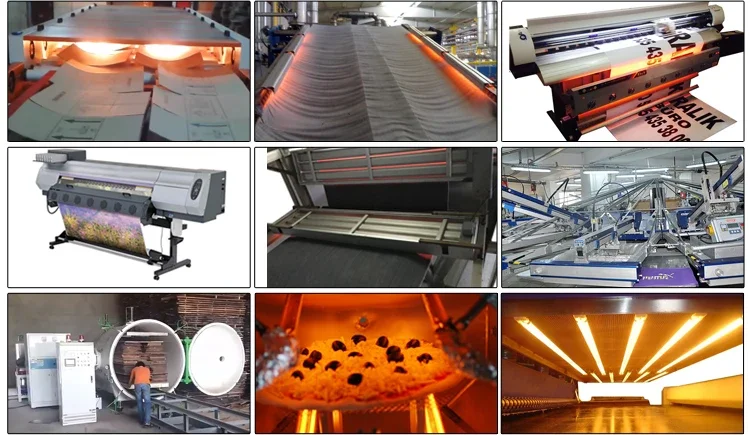

Infrared Heat Lamp For Industrial Processing
1.Infrared Heating For Plastics Process
| IR drying of coatings on plastics | IR stretching or shrinking plastics |
| IR Heating For Plastic Packaging | IR heating for blow moulding of PET bottles |
2.Infrared Heating For Photovoltaic Industry
| IR heating for string soldering | IR preheating for sputtering processes |
3.Infrared Heating For Printing Industry
| IR curing ink on cloth | IR drying for inkjet-based CTP plates |
| IR drying of printing products ,such as using in banners machine |
4.Infrared Heating For Food And Chemical Industry
| IR heating for disinfection of tableware | IR heating of chicken and vegetables |
| IR heating of natural herbal medicine | IR heating for removing snow and ice |
5.Infrared Heating For Glass Industry
| IR preheating of car glass | IR drying of coatings on glass |
| IR heating for manufacturing and cutting laminated glass |
6.Infrared Heating For Textiles Industry
| IR drying of coatings on textiles | IR heating for laminating of fabrics |
7.Infrared Heating For Electronic Industry
| Coatings on electronic components | The aging of the electronic components |
OYATE Infrared Heat lamp

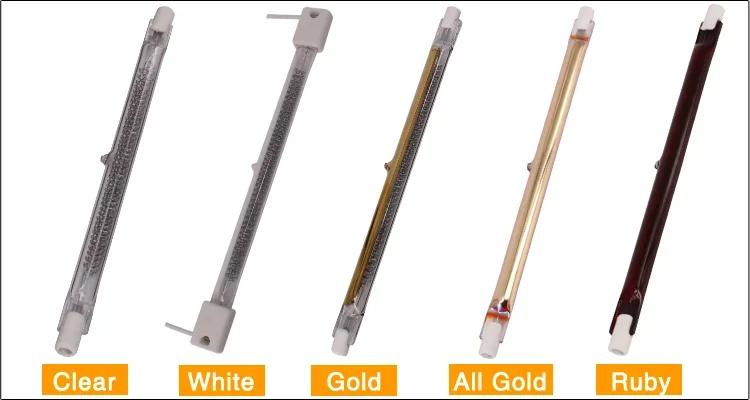

| Short Wave Halogen IR Lamp | Medium Wave Carbon IR Lamp | Short –Medium Wave IR Lamp |
| Clear IR Lamp | White IR Lamp | Gold IR Lamp | Ruby IR Lamp | Accessories |
| Twin Tube IR Lamp | Jacketed IR Lamp | Shaped IR lamp | Applications |

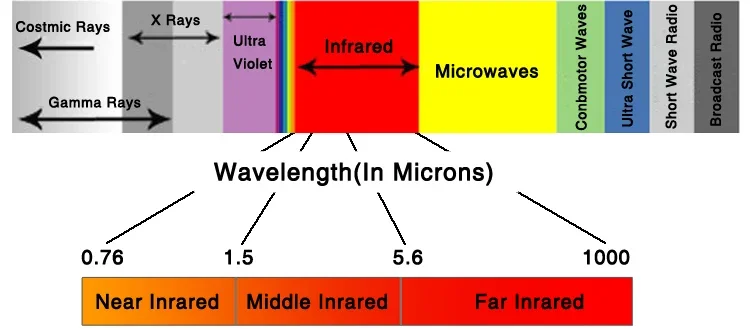

Infrared is divided into 3 segments by wavelengths measurements
*0.75 ~1.4 μm Near infrared
*1.4 ~ 3.0 μm Middle infrared
*3.0 ~1000 μm Far infrared
The Advantages Of OYATE Heat Lamp

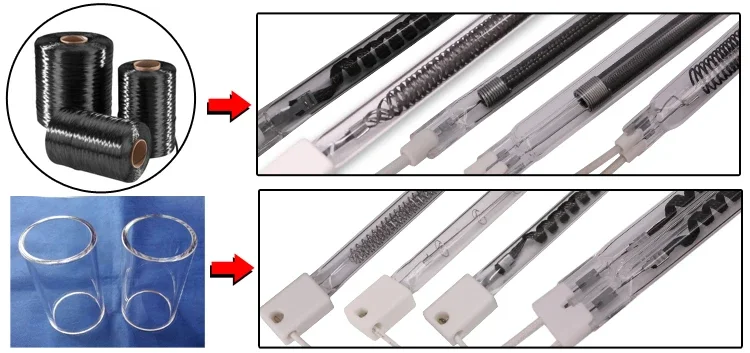

Carbon fiber heat lamp
*High-priced imported carbon fiber filament.
*The finished filament is smooth and does not fluff.
*The optimum power and maximum longevity.
Guartz glass tube
*High quality high-temperature quartz glass.
*Is totally transparent at IR radiation.
*Twin tube—more heat under the same conditions.

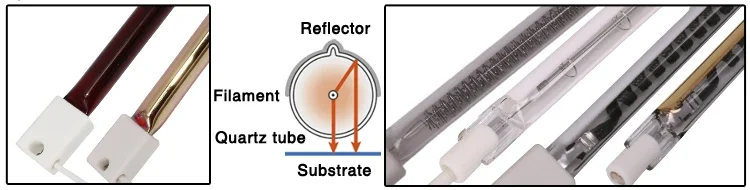

Reflector heat lamp
*To transmit and focus heat more efficiently on the material
*According to the specific application and customers’ needs.
*We usually applies gold, white and ruby reflectors on heat lamp.
Ruby & All gold heat lamp
*Reduce the brightness of visible light.
*Reduce wavelength, increase heat.
White heat lamp
*Imported ceramic white plating material.
*The white reflector coating is stable, not easy to fall off.
Gold heat lamp
*Imported gold plated material,gold water plated.
*Reflect heat use,Stronger reflection efficiency.
*Reflection effect is better than white plated.
About OYATE
OYate Lighting Electrical Co,Ltd Founded in 2008, Over 12 years of experience in the industry has enabled to acquire deep knowledge of production processes and solid skills in many areas of various applications.Is a leading manufacturer in quartz products ,infrared lamps in Lianyungang city of China.
Our customers includes some companies of World Fortune 500 ,such as China Hua Wei , China Dong Feng Motor , Canada ONEX, USA II-VI Group.
We believes that the quality control of the material, the product traceability and deep knowledge of production processes are essential to continue to operate with satisfaction on the market. Our production and packing are subjected to strict controls,and is able to meet every need, studying solutions for the more specific and complex applications.
OEM Service
Thanks to its long track record and wide set of products always in stock, We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
OYATE Factory Test Standards
| Life Test Standard |
| Rated voltage 1.3 times times power 72 hours (Ambient temperature 400 degrees) |
| Withstand voltage test |
| ≥1870VAC/3s/5mA (Actually through3000VAC/3s/5mA) |
| Insulation Resistance test |
| Cold resistance ≥200MΩ(500VDC) |
| Leakage Current Test |
| <0.3mA(Test results <0.05mA) |
| Wire tensile test |
| >60N |
Packaging & Shipping
| MOQ | 10Piece |
| Certification | CE, ROHS, Reach, ISO9001 |
| Payment | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal |

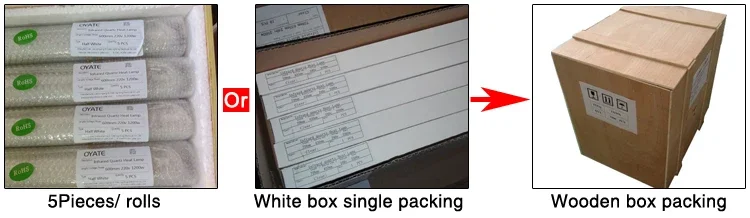

| Packaging Details | White box single packing, 5Pieces/rolls,Custom color box |
| Port | Shanghai ,Qingdao ,Lianyungang |
| Delivery Time | 3-8 Days(For Samples) 13-20 Days(For Mass Production) |
Contact Us
| »Home |
| »Contact Us |
Ordering and Pricing
- Minimum order quantity: 20 piece
- Volume pricing:
- 20–99 piece: US $10 / piece
- 100+ piece: US $7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric heaters?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this electric heaters carry?
It is supplied with CE, ROHS , Reach, ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the electric heaters be supplied for my local voltage?
The standard configuration is AC 220V( ± 10%). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Lianyungang O-Yate Lighting Electrical Co., Ltd, based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Lianyungang O-Yate Lighting Electrical Co., Ltd range on HVACR Nexus.
