This axial flow fan is published with the manufacturer’s full specification — 380V/660/1140V, power source Electric. Quantity and destination market determine the final price — tell us both for a firm quote.
This axial flow fan is listed with the manufacturer’s full published specification — voltage 380V/660/1140V, power source Electric, material Carbon Steel. It is produced by Hubei Yushan Ventilation Equipment Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Power Source: Electric
- Voltage: 380V/660/1140V
- Material: Carbon Steel
- Blade Material: Carbon Steel
- Speed: 2930rpm
- Warranty: 1 Year

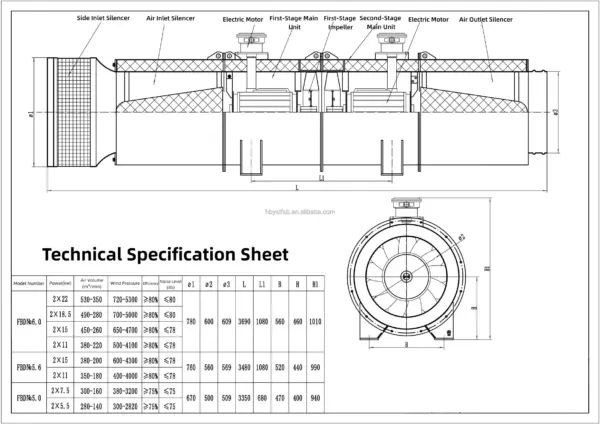

Technical Specifications
| Voltage | 380V/660/1140V |
|---|---|
| Material | Carbon Steel |
| Speed | 2930rpm |
| Type | Duct Axial Fan |
| Warranty | 1 Year |
| Blade Diameter | 560mm |
| Power Source | Electric |
| Blade Material | Carbon Steel |
| Bearing Type | Ball Bearing |
| Customized Support | ODM, OEM |
| After-Sales Service Provided | Field Maintenance and Repair Service |
| Place Of Origin | Hubei, China |
| Selling Units | Single item |
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial flow fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380V/660/1140V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This axial flow fan is produced by Hubei Yushan Ventilation Equipment Co., Ltd.. Browse the full Hubei Yushan Ventilation Equipment Co., Ltd. range on HVACR Nexus.
