This energy saving industrial fan is published with the manufacturer’s full specification — voltage 380/400 VAC, 15 kW(20.12hp). Made by Shenyang Jinchen Weiye Cooling & Heating Equipment Co., Ltd. (14 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Energy Saving Industrial Fan
- Power Source: Hot Water / Steam
- Voltage: 380/400 VAC
- Heating Capacity: 15 kW(20.12hp)
- Material: Stainless Steel
- Air Speed: 3.5 m/s
- Warranty: at least 1 year

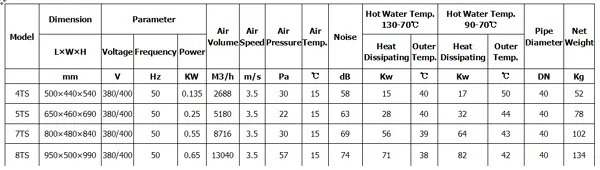

Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Hot Water / Steam |
| Voltage | 380/400 VAC |
| Material | Stainless Steel |
| Core Components | Motor |
| Key Selling Points | Easy To Operate |
| Warranty | at least 1 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | 15 kW(20.12hp) |
| Place Of Origin | Liaoning, China |
| Weight (Kg) | 52 |
| Brand Name | Jinchen |
| Dimension(L*W*H) | 500*440*540mm(19.69*17.32*21.26in) |
| Application | Industry Heating Process |
| Air Volume | 2688 m3/h |
| Air Speed | 3.5 m/s |
| Air Pressure | 30 Pa |
| Input Wind Temp. | 15 ℃ |
| Noise | 58 dB |
| Weight | 52 Kg |
| Pipe Diameter | 40 DN |
| Input Water Temp. | 65-85 ℃ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 54.0 kg |
Product Details

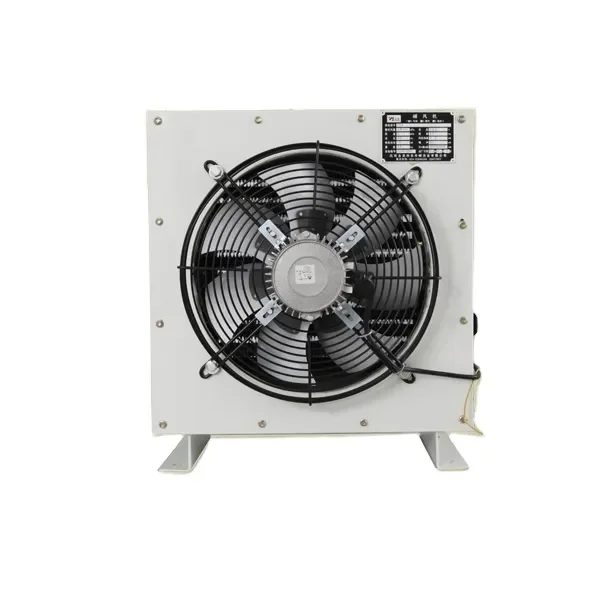

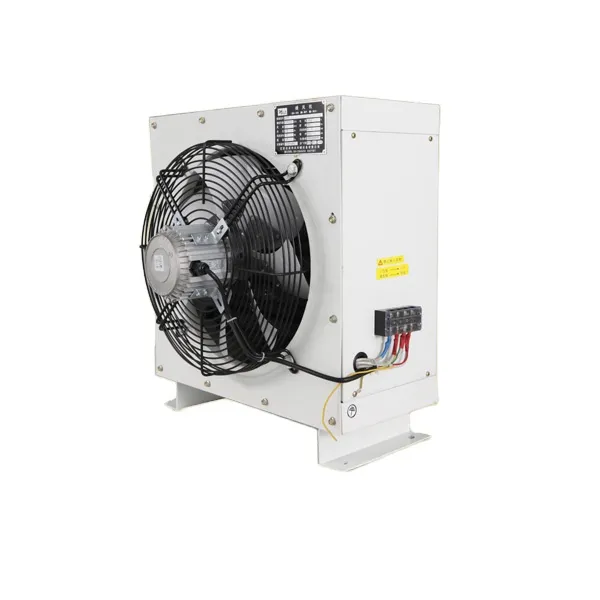

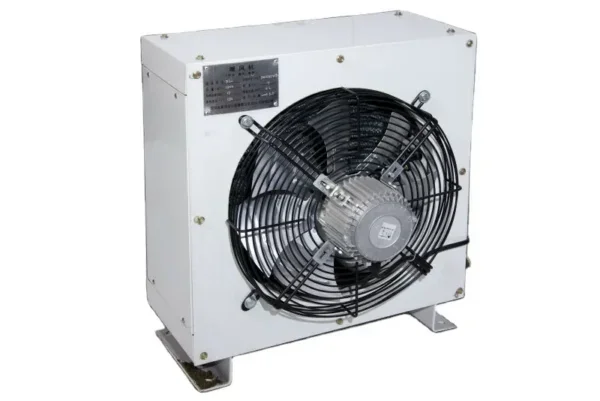

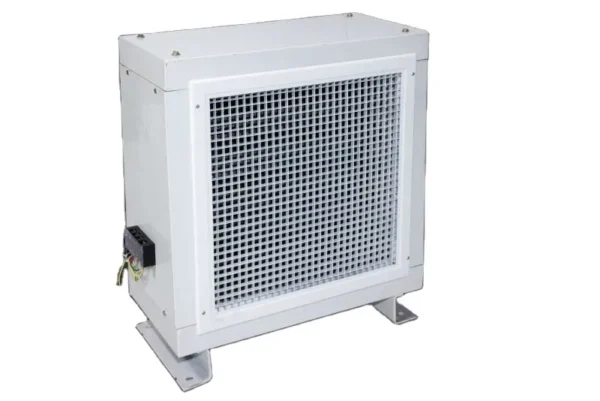

4TS Chinese Wall Mount Energy Saving Industrial Water Electric Cooling Heating Fan Heater
· 4TS Wall Mount Energy Saving Industrial Water Electric Cooling Heating Fan Heater , which is also called water eletric industrial air heater, water supply warm air blower, water supply heating element or industrial water electric heating system, enjoys good performance in central heating for medium/large-scale indurtrial plants or large public buildings, especially for chemical plants, ship-making factories, textile mills, and the spaces with pitch and curvature of roof.
· TS series Water Electric Cooling Heating Fan Heater consists of low noise axial motor, high efficient heat exchanger and patent outer cover.
· Using low temperature hot water as heating medium helps the using places save energy and reduce heating cost.
· The diameter of the seamless steel pipe is larger than the similar products of other brands, which makes the heating convertible rate higher than average level and generates high thermal efficiency.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–49 set: US $300 / set
- 50+ set: US $285 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this energy saving industrial fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a at least 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the energy saving industrial fan be supplied for my local voltage?
The standard configuration is 380/400 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenyang Jinchen Weiye Cooling & Heating Equipment Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenyang Jinchen Weiye Cooling & Heating Equipment Co., Ltd. range on HVACR Nexus.
