This evaporative air cooler is published with the manufacturer’s full specification — 5.3KW. Made by Xi Maike (guangdong) Refrigeration Technology Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Evaporative Air Cooler
- Capacity: 5.3KW
- Air Flow: 6400
- Warranty: Unavailable
- Place Of Origin: Guangdong, China
- Weight (Kg): 50
- Weight: 80Kg
Technical Specifications
| Core Components | Condenser |
|---|---|
| Machinery Test Report | Provided |
| Warranty | Unavailable |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 50 |
| Place Of Origin | Guangdong, China |
| Brand Name | XMK |
| Product Name | air cooler/evaporator |
| Color | White |
| Capacity | 5.3KW |
| Air Flow | 6400 |
| Inlet | 12 |
| Outlet | 16 |
| Air Volume | 5.9 |
| Air Throw | 13 |
| Weight | 80Kg |
| Packing | Wooden case |
| Selling Units | Single item |
Product Details
Evaporative air Cooler Industrial Cold Room Condenser and Evaporators

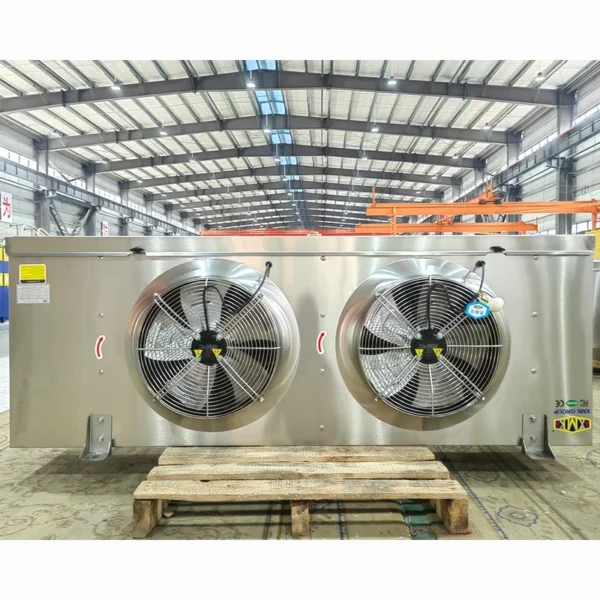

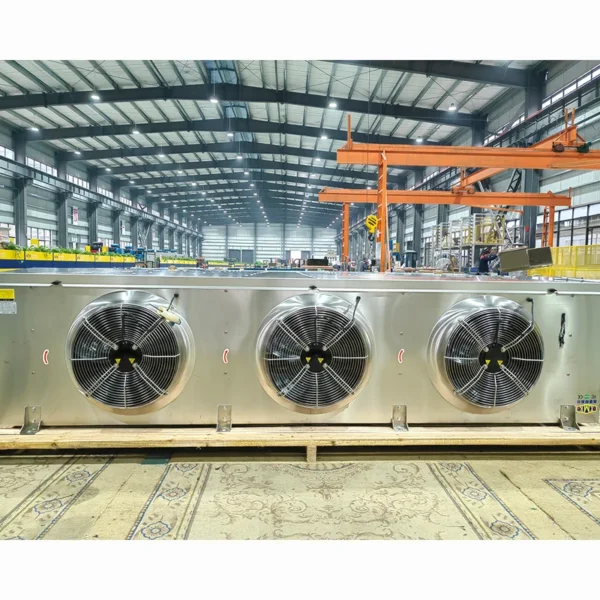

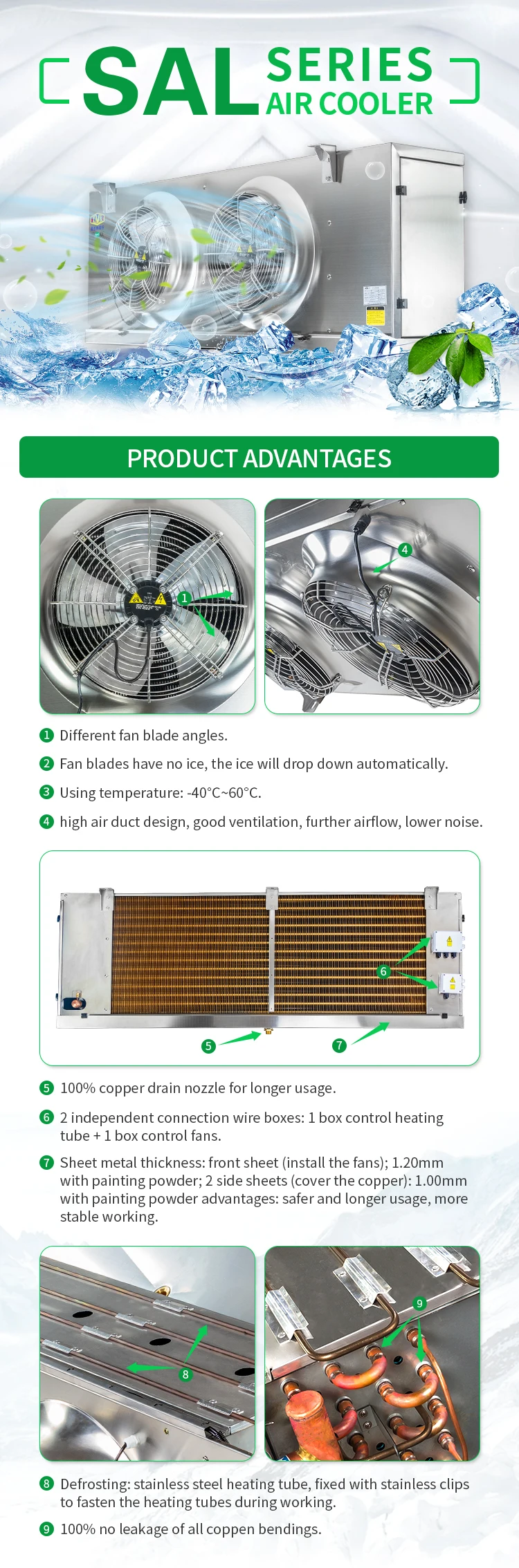

SAL series ceiling type air cooler
Housing:
Made of 304 stainless steel plate, with super strong anti-corrosion performance;
The cover plates on both sides and the outer water tray plate adopt a hinged structure, which is convenient and fast to operate;
Coil:
Using 304 stainless steel pipes φ 15. Pipe spacing 50 × 50 square arrangement, with a large heat transfer area and small heat transfer temperature difference;
The operating pressure of stainless steel pipes can reach up to 5Mpa, and the burst pressure can reach up to 50Mpa. Floating coil pipes are fully automatic argon arc welding Corrugated aluminum sheets with sheet spacing of 4.2mm, 6.4mm, and 9.0mm;
Direct expansion supply liquid Fan:
External rotor fan, designed for high power and high wind pressure; The mesh cover and fan blades are made of 304 stainless steel material
Operating temperature: -40 ℃~60 ℃;
The overall stretching high air duct design has good air guiding effect, long range, and low noise;
Independent junction box;
Fan specifications φ 350 φ 400 φ 500 φ six hundred and thirty
Defrosting:
The standard adopts electric defrosting, with stainless steel heating tubes evenly distributed in the fins of the coil and on the inner water plate, and an independent heating tube junction box.
Can meet the requirements for refrigerants such as R404A, R507A, R448A, R449A, R134a, , etc.
| 220V 60Hz XMK Evaporator Stainless steel casing with stainless steel motor, finned gold foil, U-shaped tube stainless steel | ||||||||
| Model | Tc 0degree | Tc (-18degree) | Surface | Volume | Airflow | Airthrow | Inlet | Outlet |
| SAL18/140L | 3 | 2.5 | 18 | 4.4 | 3200 | 8 | 12 | 22 |
| SAL24/140L | 4 | 3.3 | 24.1 | 5.9 | 2900 | 7 | 12 | 22 |
| SAL24/240L | 4.4 | 3.7 | 24.1 | 5.9 | 6600 | 13 | 12 | 22 |
| SAL36/240L | 6.3 | 5.3 | 36.1 | 8.2 | 6400 | 12 | 16 | 28 |
| SAL48/240L | 8.2 | 6.7 | 48.2 | 10.9 | 5800 | 11 | 16 | 28 |
| SAL56/340L | 9.4 | 7.9 | 55.6 | 12.3 | 9600 | 14 | 22 | 42 |
| SAL74/340L | 12.5 | 10.3 | 74.1 | 16.4 | 8700 | 13 | 22 | 42 |
| SAL72/440L | 12.9 | 10.7 | 72.3 | 15.8 | 12800 | 16 | 22 | 42 |
| SAL96/440L | 16.4 | 13.6 | 96.3 | 21.1 | 11600 | 15 | 22 | 42 |
| SAL120/540L | 20.9 | 16.6 | 120.4 | 26.2 | 14500 | 18 | 22 | 42 |
Click Me To See All Categories.
A1: We have a factory
Q2: Where is your factory located?
A2: Our factory is located in Zhaoqing, Guangdong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Palestine, Turk, Africa and so on.
Welcome to contact us for more details!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $991 / piece
- 5–9 piece: US $975 / piece
- 10+ piece: US $961 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xi Maike (guangdong) Refrigeration Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Xi Maike (guangdong) Refrigeration Technology Co., Ltd. range on HVACR Nexus.
