This evaporative air cooler is published with the manufacturer’s full specification — airflow 18000, type EVAPORATIVE AIR COOLER. Made by Aolan (Fujian) Industry Co., Ltd. (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Evaporative Air Cooler
- Airflow(M3/H): 18000
- Warranty: 1 Year
- Place Of Origin: Fujian, China
- Type: EVAPORATIVE AIR COOLER
- Mounting Type: Wall / Window Mount
- Fan Motors Type: AC
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Mounting Type | Wall / Window Mount |
| Fan Motors Type | AC |
| Key Selling Points | Remote Control |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Pressure Vessel, Pump |
| Place Of Origin | Fujian, China |
| Weight (Kg) | 85 |
| Brand Name | Aolan |
| After-Sales Service Provided | Overseas third-party support available |
| Airflow(M3/H) | 18000 |
| Pressure(Pa) | 190 |
| Output(Kw) | 1.1 |
| Rated Currency(A) | 5.6 |
| Fan Type | axial |
| Vent Size(LXW)(Mm) | 655*655 |
| Dimension(LXWXH)(Mm) | 1170*1170*960 |
| Control | LCD control |
| Function | water-shortage protection, auto cleaning, trouble detecting and timing |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
AOLAN 1.1KW 18000m3/h swamp air cooler with water
1. Characteristics
1.The casing is made of high strength weather ability polymers which is UV-proof,anti-aging,and resistant to deformation
2.Different air discharge type(including top,down and side)can meet different installation requirements of various applications.

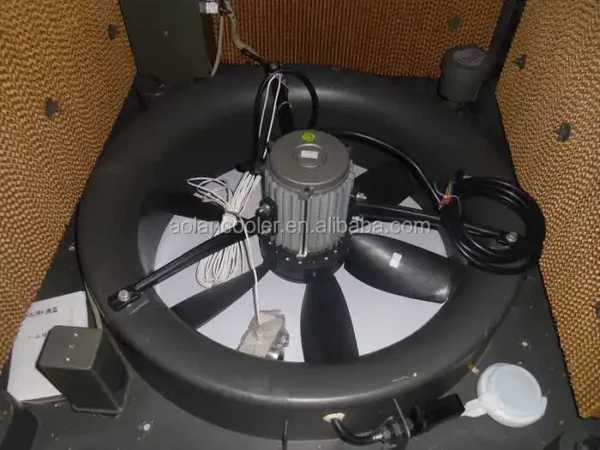

3.Using specially designed axial fan,with large airflow,low noise,low energy consumption and wide applicability.
4.Using high quality aluminum housing motor,with good heat dissipation,high protection grade,waterproof and moisture-proof
5.Using automatic control of water system and opean type water distributor, so water can flow smoothly and distributor is not easy to block
6.Using highly efficient cooling pads with large evaporation capacity,good cooling efficiency and easy cleaning
2. Specification
| Specification | AZL18-ZX10B |
| Airflow (m3/h) | 18000 |
| Pressure (Pa) | 190 |
| Output(kw) | 1.1 |
| Power Resource (V/Hz) | 220/50 |
| Rated Currency (A) | 5.6 |
| Fan Type | Axial |
| Vent size(LxW)(mm) | 655*655 |
| Fan Speeds | 1-phase,multi-speeds |
| Noise (dBA) | ≤76 |
| Dimension (LxWxH)(mm) | 1170*1170*960 |
| Pad size(LxWxH)(mm) | 655*655*100 |
| Net Weight (±3kg) | 84 |
| Operation Weight (kg) | 124 |
| Intellingt Cleaning | approval |
| Water Lack Protection | approval |
| Controller | LCD |
| Pre-dust Filter | Optional |
| Exhaust | Optional |
| Pre-cooling | Optional |
| Group-control | Optional |
| Tem&hum Control | Optional |
AOLAN Low Energy Evaporative Air Water Cooler

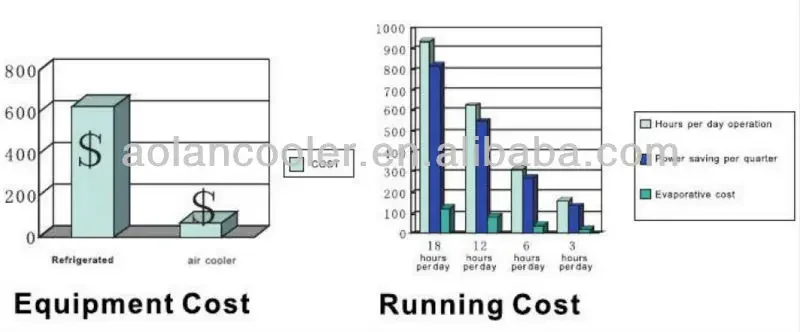

3. Energy and Cost Saving

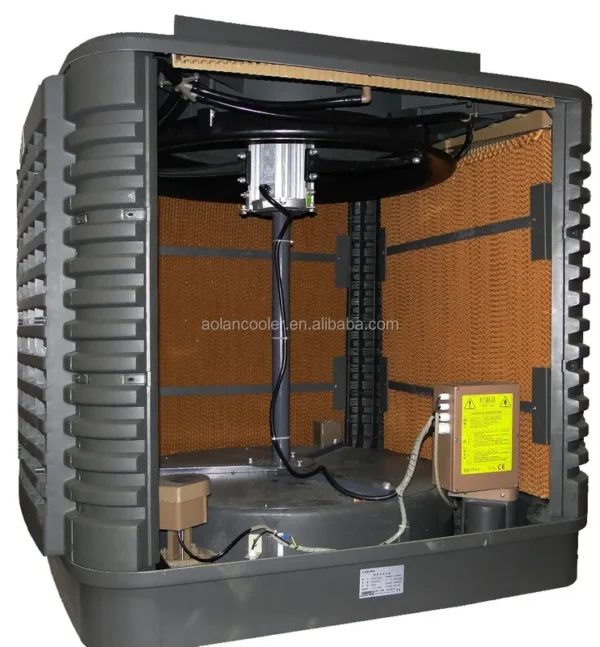

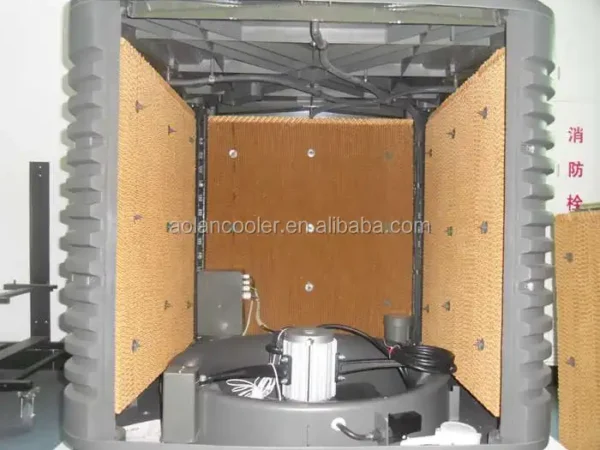

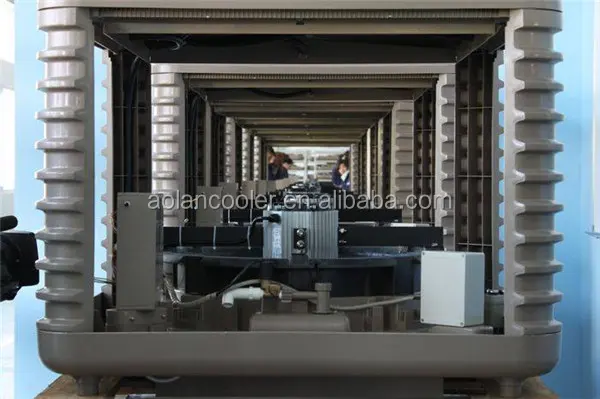

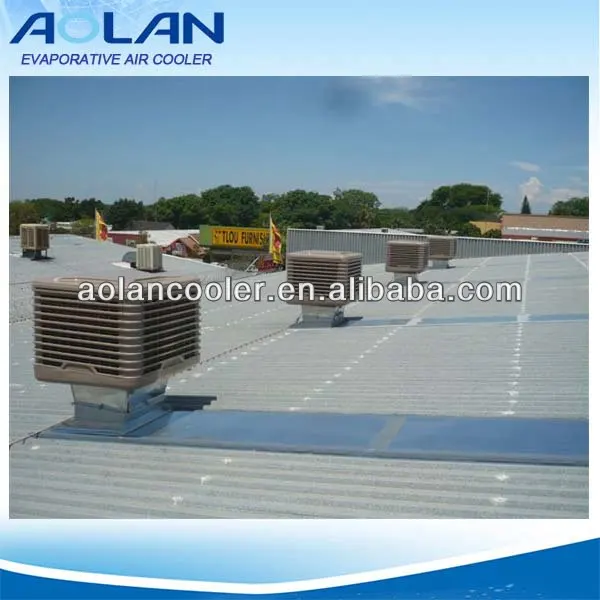

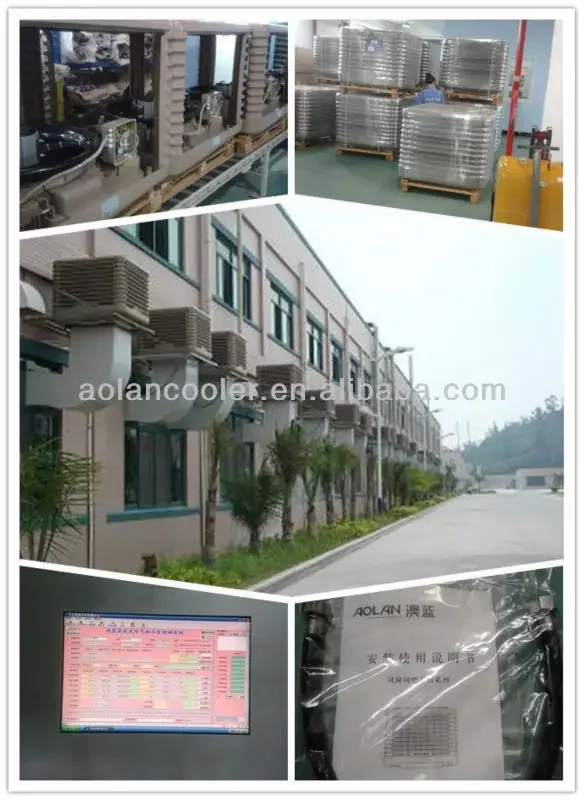

4. Product Show
5. About AOLAN
For details, pls visit our website: www.aolan-china.com
6. Sales Achievements and Certificates
7. Our Clients
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $999 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Aolan (Fujian) Industry Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Aolan (Fujian) Industry Co., Ltd. range on HVACR Nexus.
