Evaporative air cooler — voltage/frequency 220/50, type EVAPORATIVE AIR COOLER. The complete factory specification follows. Made by Aolan (Fujian) Industry Co., Ltd. (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Evaporative Air Cooler
- Voltage/Frequency (V/Hz): 220/50
- Fan Capacity (M3/H): 18000
- Fan Speeds: 1-phase,variable speeds
- Warranty: 2 Years
- Place Of Origin: Fujian, China
- Application Area (M2): 100-150
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Mounting Type | Floor Standing |
| Fan Motors Type | AC |
| Key Selling Points | Easy To Operate |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |

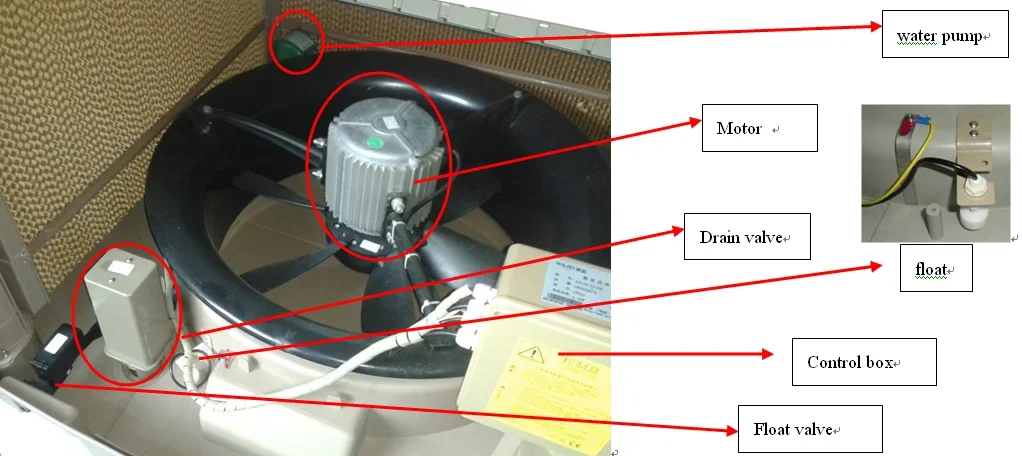

| Core Components | Motor, Pump |
| Place Of Origin | Fujian, China |
| Weight (Kg) | 110 |
| Brand Name | AOLAN |
| Fan Capacity (M3/H) | 18000 |
| Voltage/Frequency (V/Hz) | 220/50 |
| Rated Currency (A) | 5.6 |
| Fan Type | Axial |
| Fan Speeds | 1-phase,variable speeds |
| Noise (DB) | ≤76 |
| Application Area (M2) | 100-150 |
| Dimension (Mm) | 1150*1150*950 |
| Auto Cleaning | Yes |
| Marketing Type | Hot Product 2019 |
| Selling Units | Single item |
| Single Package Size | 115X115X95 cm |
| Single Gross Weight | 80.0 kg |
Product Details

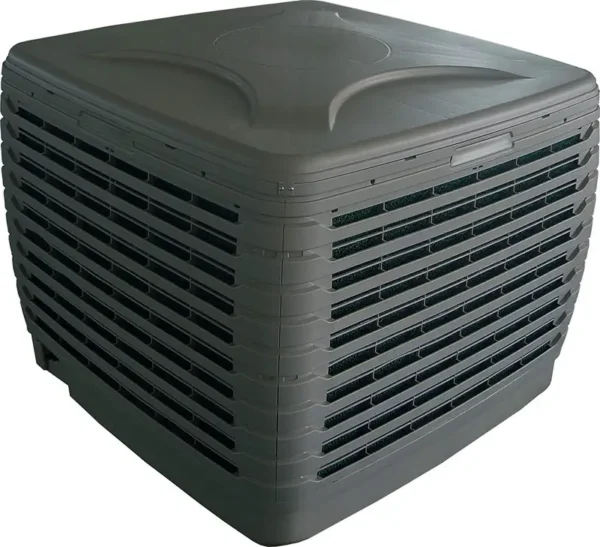

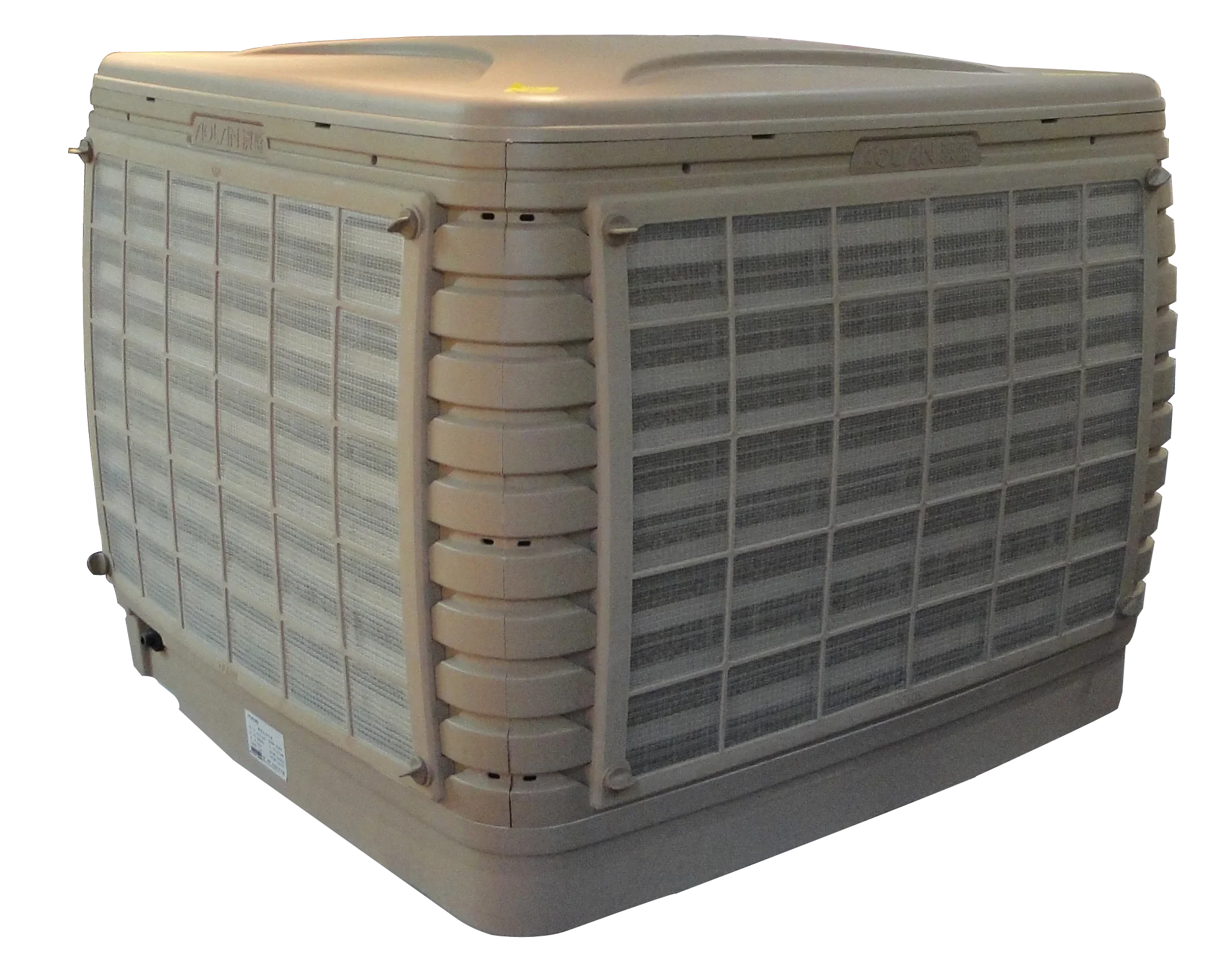

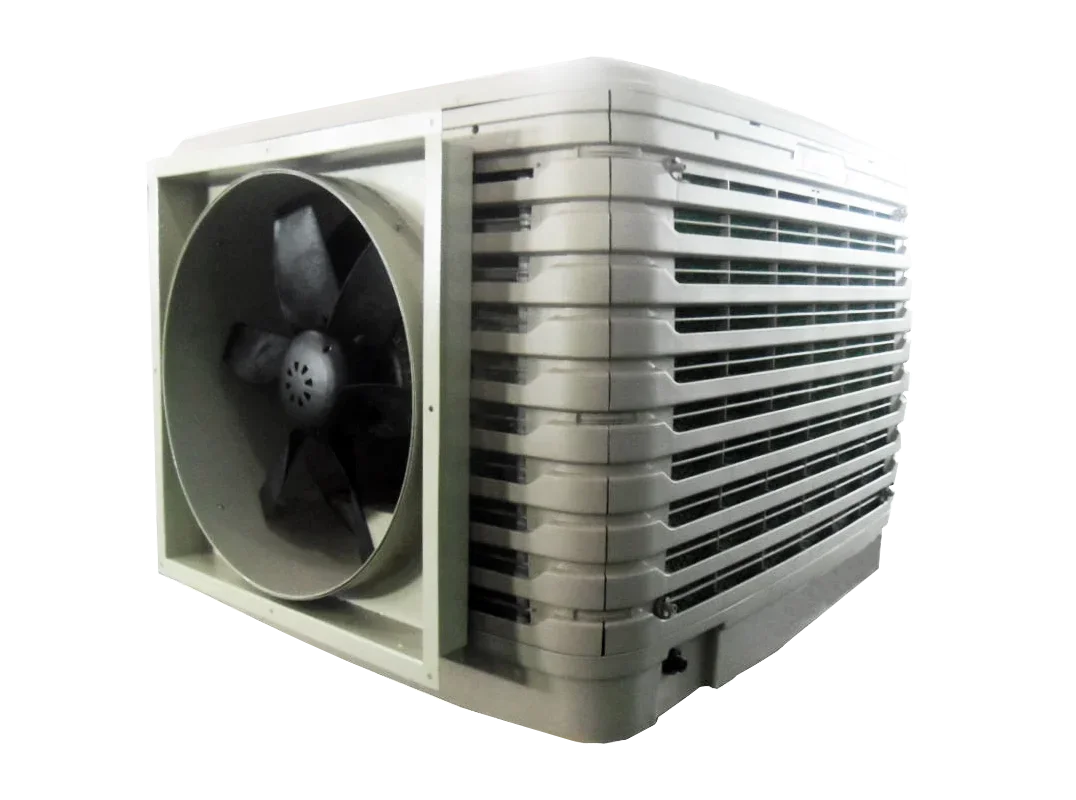

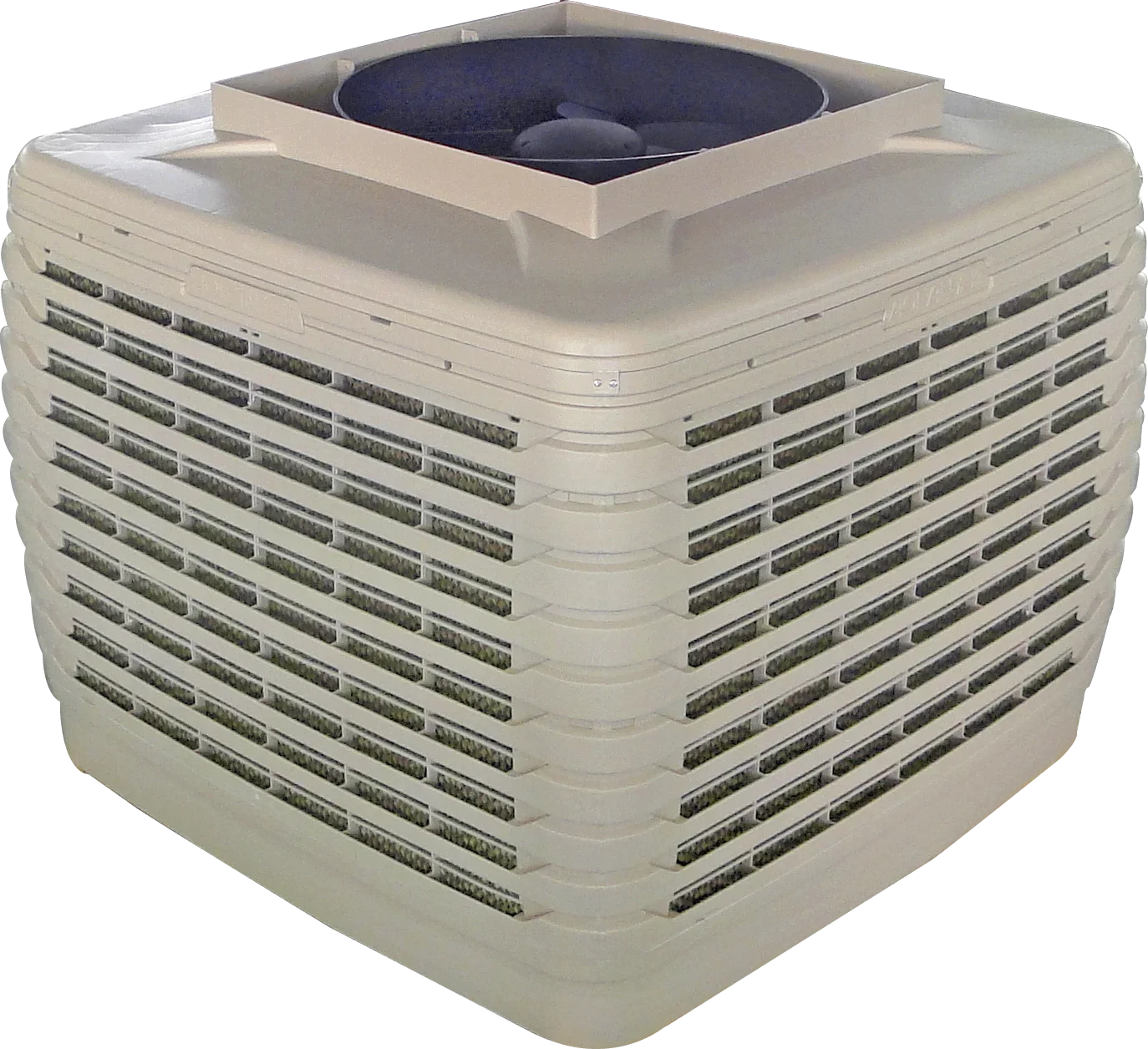

Aolan Air Cooler l Down discharge l AZL18-ZX10G
Model: AZL18-ZX10G with Fliter
Characteristics
1.Streamline design,durable and beautiful appearance

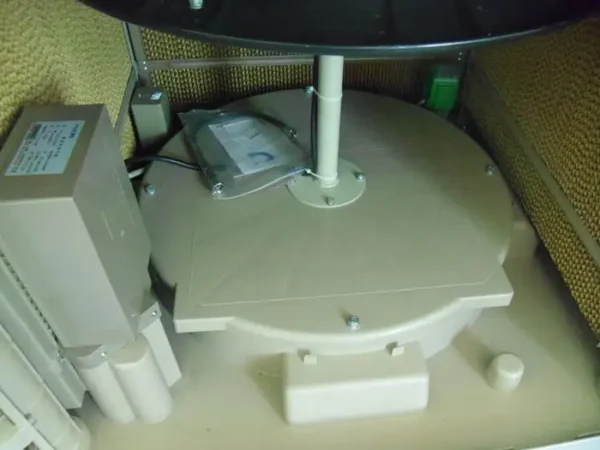

2.Swirl designed drain outlet,easy to let off sewage

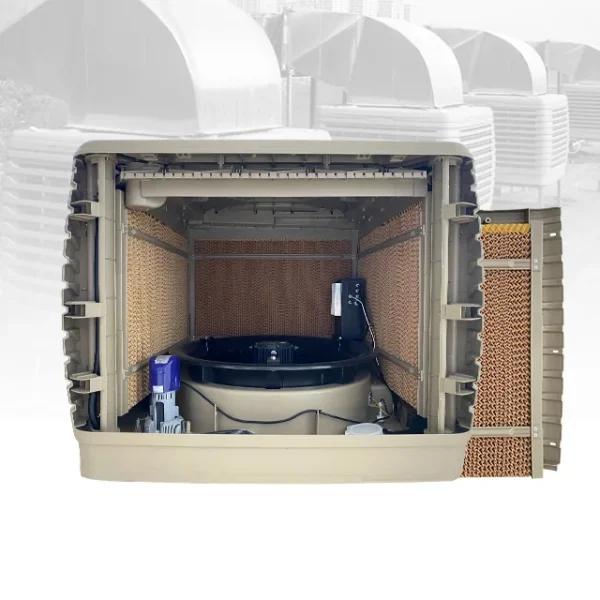

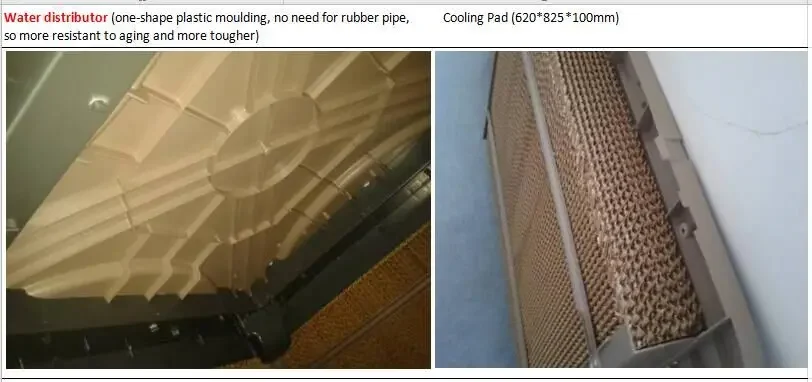

3.With integrate and special triangle water distribution structure,making the water distribute evenly
4.with concealed design,the water will not enter into the cooler when the pipe is accidentally detached or broken
5.With a damper to prevent warm air leakage in winter

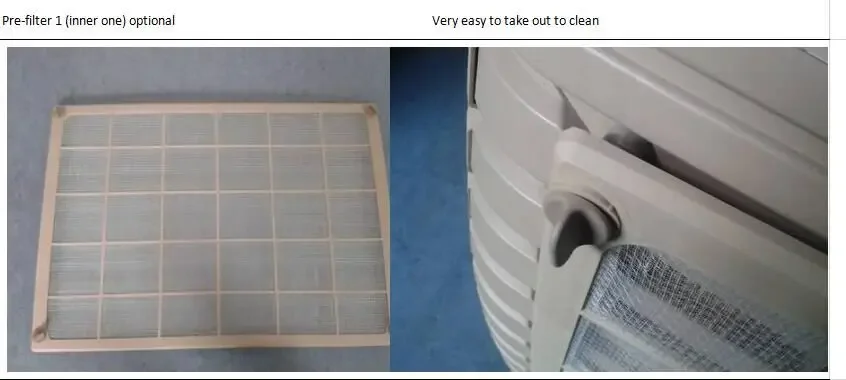

6.With a outside dust screen which can be easily removed and cleaned
7.Using intelligent LCD controller,which is easy to operate and understand
8.The casing is made of high strength weather ability polymers which is UV-proof,anti-aging,and resistant to deformation

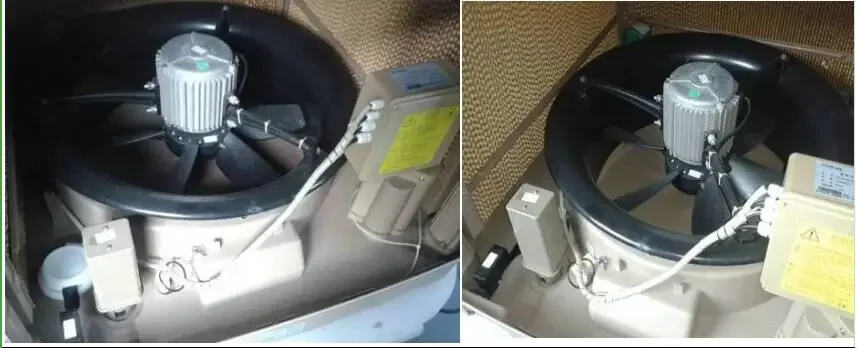

9.Using specially designed axial fan,with large airflow,low noise,energy-saving and large application.

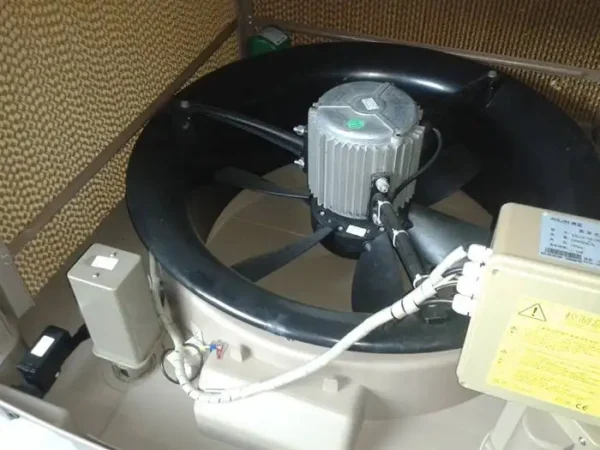

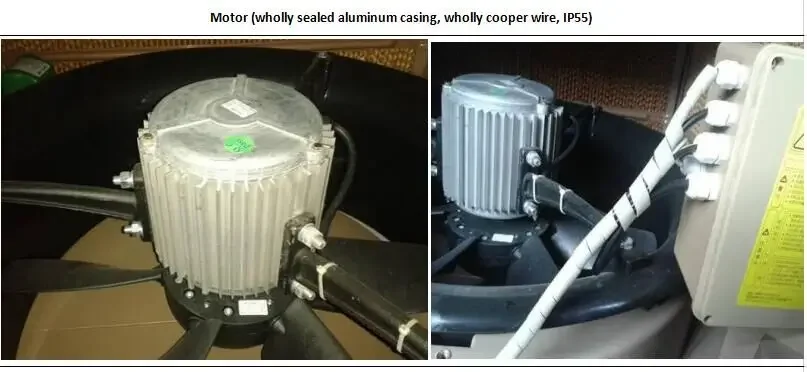

10.Using high quality aluminum housing motor,with good heat dissipation,high protection grade,waterproof and moisture-proof
Specification——AZL18-ZX10E
| Specification | AZL18-ZX10G |
| Fan Capacity (m3/h) | 18000 |
| Full Pressure (Pa) | 190 |
| Voltage/Frequency (V/Hz) | 220/50 |
| Rated Currency (A) | 5.6 |
| Fan Type | Axial |
| Fan Speeds | 1-phase,variable speeds |
| Noise (dB) | ≤76 |
| Fan Diameter | Φ600 |
| Water Consumption (L/h) | 15-25 |
| Water Capacity (L) | 30 |
| Application Area (m2) | 100-150 |
| Drive Distance (m) | 25-30 |
| Auto Cleaning | √ |
| Water Lack Protection | √ |
| Dimension (mm) | 1150×1150×950 |
| Net Weight (kg) | 80 |
| Operation Weight (kg) | 110 |
Details:

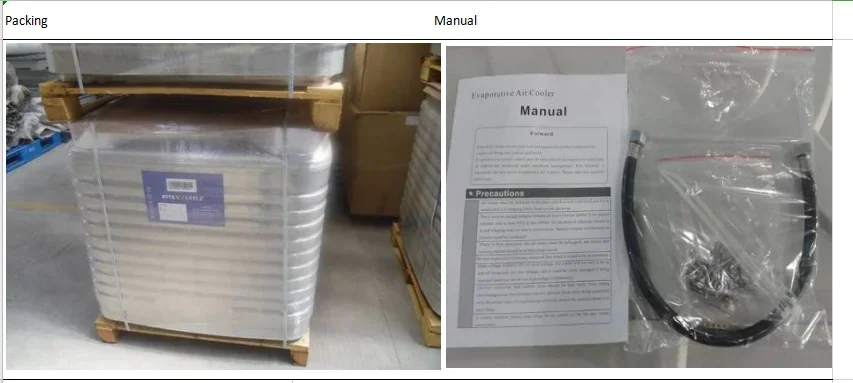

Packing: Evaporative Air Cooler is packed in Export Carton
Shipping: 30days

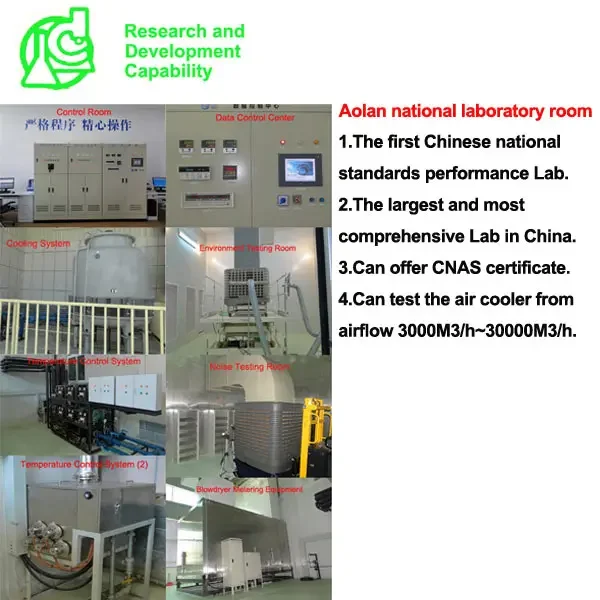

Aolan National laboratory room
Contact Us
If you are interested in our products, pls feel free to contact Bella Huang for more details at sales13at aolanchina.cn.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–99 unit: US $600 / unit
- 100+ unit: US $580 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the evaporative air cooler be supplied for my local voltage?
The standard configuration is 220/50. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Aolan (Fujian) Industry Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Aolan (Fujian) Industry Co., Ltd. range on HVACR Nexus.
