Evaporative Condenser, HANXIN, 304, Stainless, Steel

This evaporative condenser is published with the manufacturer’s full specification — voltage Customer Service Inquiries, type Counter Flow Evaporative Condenser. Made by Foshan Hanxin Import And Export Trading Co., Ltd. (1 year on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Evaporative Condenser

• Power(W): Customer Service Inquiries
• Voltage: Customer Service Inquiries
• Material: Customer Service Inquiries
• Noise Level: Customer Service Inquiries
• Warranty: 1 Year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

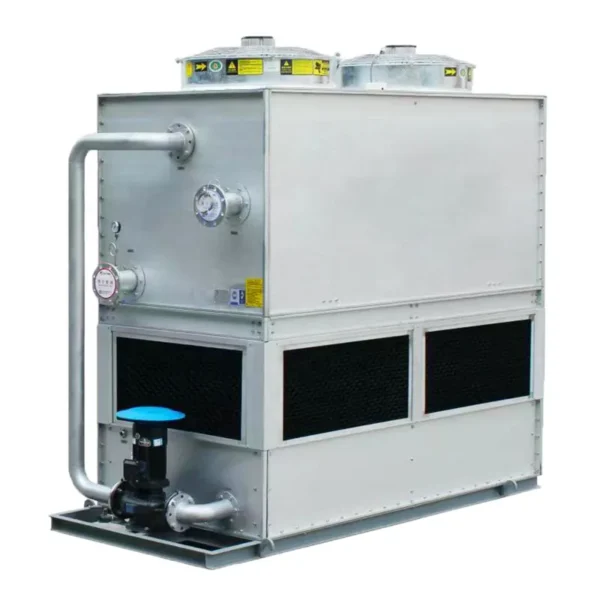

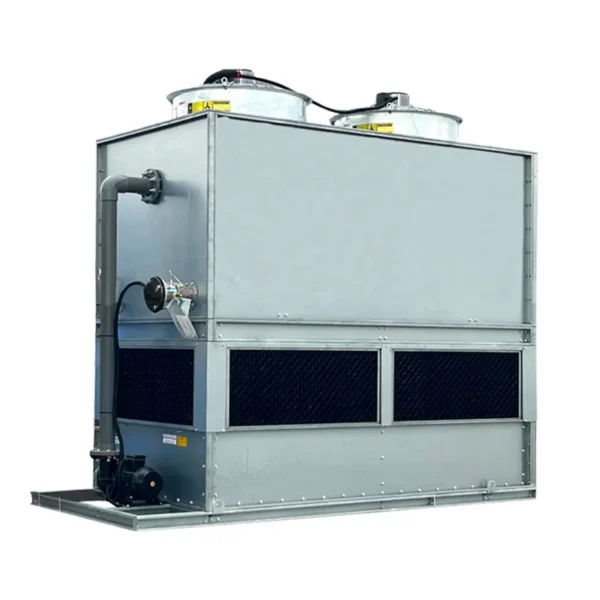

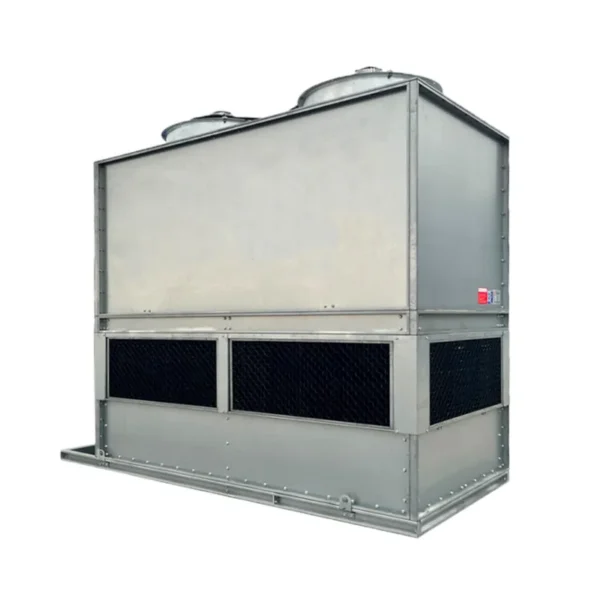

Industrial Closed-Loop Counter Flow Cooling Tower

This closed cooling tower adopts a closed-circuit circulation structure, with no direct contact between the cooling medium and air. It is equipped with integrated fans and circulating pump components, and the metal anti-corrosion shell balances heat dissipation and protection. Its integrated design saves installation space and adapts to clean cooling needs of media under complex working conditions. It is mainly used for circulating water cooling in air-conditioning systems, serving as a core supporting device for equipment heat dissipation in chemical and electronic fields.

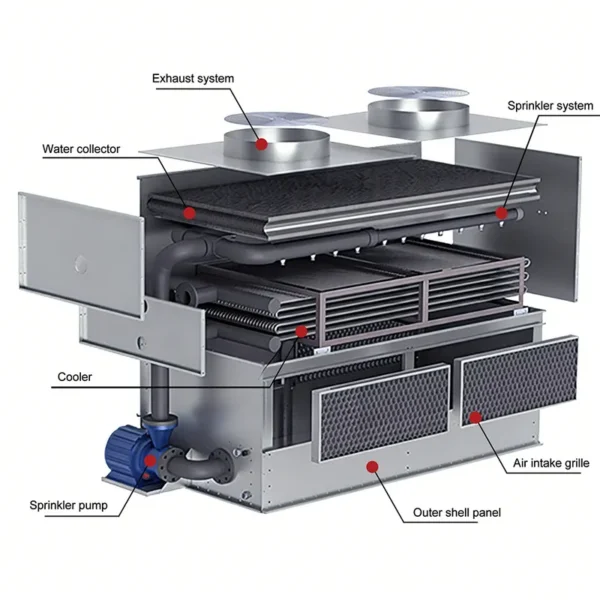

Structural Features

Adopts closed-circuit circulation + integrated components, with anti-corrosion shell and protective mesh; medium no air contact,
integrated installation saves space.

Core Performance

Cooling efficiency over 90%, low noise/energy consumption, anti-corrosion and durable; stable temperature control, avoids medium
pollution, low maintenance cost.

Applicable Scenarios

Suitable for medium cooling in air-conditioning systems, chemical equipment, electronic workshops; core supporting device for
commercial/industrial heat dissipation.

Specs	Row Spacing	Hole Pitch	Tube Material	Fin Material	Slice distance
Φ7	21.65	25	copper tube	plain aluminum fin hydrophilic aluminum fin golden aluminum fin nano anti – corrosion aluminum foil	1.6-6.5
Φ7.94	19.05	22	copper tube	plain aluminum fin hydrophilic aluminum fin golden aluminum fin nano anti – corrosion aluminum foil	1.6-6.5
Φ7.94	21.65	25	copper tube	plain aluminum fin hydrophilic aluminum fin golden aluminum fin nano anti – corrosion aluminum foil	1.6-6.5
Φ9	21.65	25	copper tube	plain aluminum fin hydrophilic aluminum fin golden aluminum fin nano anti – corrosion aluminum foil epoxy resin aluminum fin	1.6-6.5
Φ9.52	21.65	25	copper tube cupronickel tube stainless steel tube	plain aluminum fin hydrophilic aluminum fin golden aluminum fin nano anti – corrosion aluminum foil epoxy resin aluminum fin stainless steel fin	aluminum sheet（1.6-3.8） stainless steel sheet（1.8-3.5）
Φ9.52	22	25.4	copper tube cupronickel tube stainless steel tube	plain aluminum fin hydrophilic aluminum fin golden aluminum fin nano anti – corrosion aluminum foil epoxy resin aluminum fin stainless steel fin	aluminum sheet（1.6-3.8） stainless steel sheet（1.8-3.5）
Φ12.7	27.5	31.75	copper tube cupronickel tube stainless steel tube	plain aluminum fin hydrophilic aluminum fin nano anti – corrosion aluminum foil stainless steel fin	aluminum sheet（2.5-5.8） stainless steel sheet（1.8-3.5）
Φ15.88	33	38.1	copper tube cupronickel tube stainless steel tube	plain aluminum fin hydrophilic aluminum fin nano anti – corrosion aluminum foil stainless steel fin	aluminum sheet（2.5-6.0） stainless steel sheet（1.8-3.5）
Φ19	52	60	copper tube cupronickel tube stainless steel tube	plain aluminum fin hydrophilic aluminum fin nano anti – corrosion aluminum foil stainless steel fin epoxy resin aluminum fin copper foil	aluminum sheet（3.0-6.0） stainless steel sheet（1.8-3.5）
Φ22	52	60	copper tube cupronickel tube stainless steel tube	plain aluminum fin hydrophilic aluminum fin nano anti – corrosion aluminum foilstainless steel fin epoxy resin aluminum fin copper foil	aluminum sheet（3.0-6.0） stainless steel sheet（1.8-3.5）
Φ25	52	60	copper tube cupronickel tube stainless steel tube	plain aluminum fin hydrophilic aluminum fin nano anti – corrosion aluminum foilstainless steel fin epoxy resin aluminum fin copper foil	aluminum sheet（3.0-6.0） stainless steel sheet（1.8-3.5）

Tube

·Material：

Stainless steel, copper-nickel, titanium, Internal Thread, copper, nickel silver, brass, etc.

·Diameter：

7mm, 7.94mm, 9mm, 9.52mm, 12.7mm, 15.88mm, 19mm, 22mm, 25mm.

·Application：

It is mainly and widely used in industrial transmission pipelines and mechanical components of petroleum, chemical industry,
medical treatment, food, light industry, mechanical instruments, etc.

Fin

·Material：

Bare aluminum fins, hydrophilic aluminum fins, golden aluminum fins, nano anti-corrosion aluminum foil, epoxy resin aluminum fins,
nano anti-corrosion aluminum fins, stainless steel fins, copper foil fins, etc..

·Coating：
Electronic Coating > Epoxy Resin > Hydrophilicity

·Fin Pitch：

1.6-6.5mm

Aluminum fins：1.6-6.0mm

Stainless steel fins：1.8-3.5mm

Frame and Enclosure

·Materials：

Galvanized steel, aluminum, stainless steel,copper, brass, etc.

·Thickness：

Customized according to product dimensions.

·End plates with or without chucks

·Various designs of side plates
