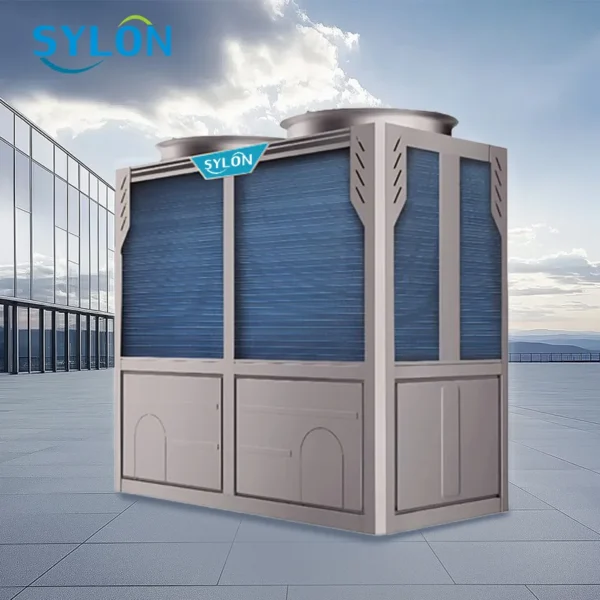

Evi Heat Pump, 30KW, 65KW, 130KW, HVAC

This evi heat pump is published with the manufacturer’s full specification — power supply 380-415V 3N~ 50Hz / 60Hz, capacity ≥ 30,100 BTU/h. Made by Foshan Sylon Electrical Appliance Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Evi Heat Pump

• Model Number: SLS-F130HW/ZR1A
• Power Source: Gas, Electrical
• Power (W): 130000
• Power Supply: 380-415V 3N~ 50Hz / 60Hz
• Capacity (Btu): ≥ 30,100 BTU/h
• Material: Metal

Technical Specifications

Product Details

Product Description

Technical Parameters

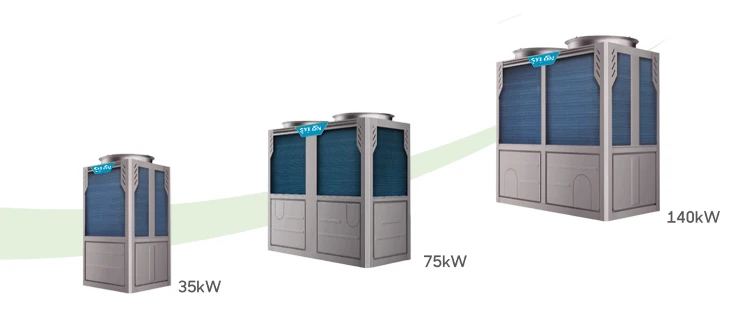

Model					CLS-E35HW/ZR1A	CLS-FE75HW/ZR1A	CLS-FE140HW/ZR1A
Power					380-415V/3N/50Hz
Rated heating (A7"C/W45℃)	Capocity	KW	36	77	142
		Power input	kW	10.3	226	44.3
		Currert input	A	19	40	82
		COP	W/W	349	341	3.21
Normindl heating (A-12"C/W41℃)	Capocity	kW	24	50	94
		Power input	KW	98	20	39.2
		Ourrert input	A	18	37	74
		COP	W/W	245	250	2.40
		PLV(HO)		282	282	2.82
Rated Cooling （A35°C/W7°C）	Capocity	KW	30	60	120
		Power input	kW	95	207	41.4
		Ourent input	A	18	38	76
		EER	W/W	316	290	2.90
		PLV(C)		342	322	3.26
Max.cument			A	34	72	150
Max.power npu			kW	15	34	68
Bnsc parameter
Refrigerart	Type		R410A	R410A	R410A
		Refrigerant control		EXV	EXV	BXV
		Charge	kg	7.5	65×2	6.5×4
Water side heat exchanger	Type		Shell tube heat echanger
		Max.pressure	MPa	1	1	1
		Water flow	m²/h	6.2	132	24.4
		Pressuredrop	KPa	30	30	40
		Water hlet dameter	mm	DN40	DN65	DN65
		Water outlet diameter	mm	DN40	DN65	DN65
		Joint Type		11/2"Mdle connection	Flangejoint	Hangejpint
Waterproof grode				IPX4	IPX4	IPX4
Air flow			m²/h	12000	24000	48000
Noise			dB(A)	62	64	65
Dimension (WHD)	Net	mm	1160x1920x900	2000x1920x900	2200x2220x1100
		pocking	mm	1240x2060x950	2080x2060x950	2280x2360x1140
Weigh	Net	kg	320	635	1010
		Pocking	kg	350	650	1060
Ambient Temperature	Coofng	℃	-5-46℃
		Heating	℃	-30-45℃
Water Ihlet Temperature	Coofng	℃	-9-25℃
		Heating	℃	-20-55℃

Company Factory Introduction

Manufacturing Technique

Certifications

Customer Case feedback

Business Partners

Exhibition

Packaging and shipping

FAQ

Q1:Are you a manufacturer or trading company? How can I trust your company?
A:We are one of the best professional HVAC solutions manufacturers and suppliers in China with more than 10 years of experience, and are also the authorized agents of some well-known brands, such as Dunham-Bush (American brand with 126 years of history) and TICA Climate (Carrier Holdings, Inc.), you can verify us in any way, and if needed we can also provide business references in your area as proof of credibility. Our products have obtained AHRI, RTCA, ENERGY STAR, CE and other certifications.

Q2:Can you provide drawing design services?
A:Yes, we have a professional HVAC engineering team to design your project and optimize the solution, and we can also provide professional HVAC drawings.

Q3:Do you have technical support?
A:We have a professional technical team available 7*24 hours to answer technical questions.
After the goods arrive, we can also guide installation and debugging via online video or phone call.
If required, we can also dispatch a project engineer to your country at a reasonable cost.

Q4:Can you help me calculate the best logistics and transportation price in my country?
A:Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping 20GP, 40GP, 40HQ in full container.

Q5:What is your delivery time?
A:About 35-40 days for standard units. The specific time depends on your needs.

Q6:Can you provide mounting accessories with the equipment?
A:Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.
Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.

Q7:How about the packaging?
A:Carton packaging, different logos can be customized according to customer requirements.
Q8: What payment methods are supported?
A: Usually payment is by T/T L/C payment method.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $2588 / set
  • 5–9 set: US $2488 / set
  • 10–19 set: US $2368 / set
  • 20+ set: US $2188 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this evi heat pump?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the evi heat pump be supplied for my local voltage?

The standard configuration is 380-415V 3N~ 50Hz / 60Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Foshan Sylon Electrical Appliance Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Foshan Sylon Electrical Appliance Co., Ltd. range on HVACR Nexus.
