The exhaust fan listed here carries 380V, power source Electric, documented exactly as the manufacturer publishes it. Made by Qingzhou Duohui New Material Technology Co., Ltd. (5 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Exhaust Fan
- Model Number: DHT-1380, 1380*1380*450mm
- Power Source: Electric
- Voltage: 380V
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Certification: CE CCC
Technical Specifications
| Voltage | 380V |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM |
| Place Of Origin | Shandong, China |
| Brand Name | DuoHui |
| Model Number | DHT-1380, 1380*1380*450mm |
| Drive Type | Direct Driven |
| Application | Animal Husbandry/Greenhouse |
| Function | Cooling Ventilation |
| Certification | CE CCC |
| Color | Silver |
| Product Name | 1380 Push Pull Exhaust Fan |
| Keyword | Exhaust Cooling Fan |
| Fan Type | Industrial Exhaust Ventilation Box Cooling Fan |
| Bearing | Ball Bearng |
| Item | Cooing Fans |
| Selling Units | Single item |
| Single Package Size | 140X47X138 cm |
| Single Gross Weight | 85.0 kg |
Product Details
Product Description

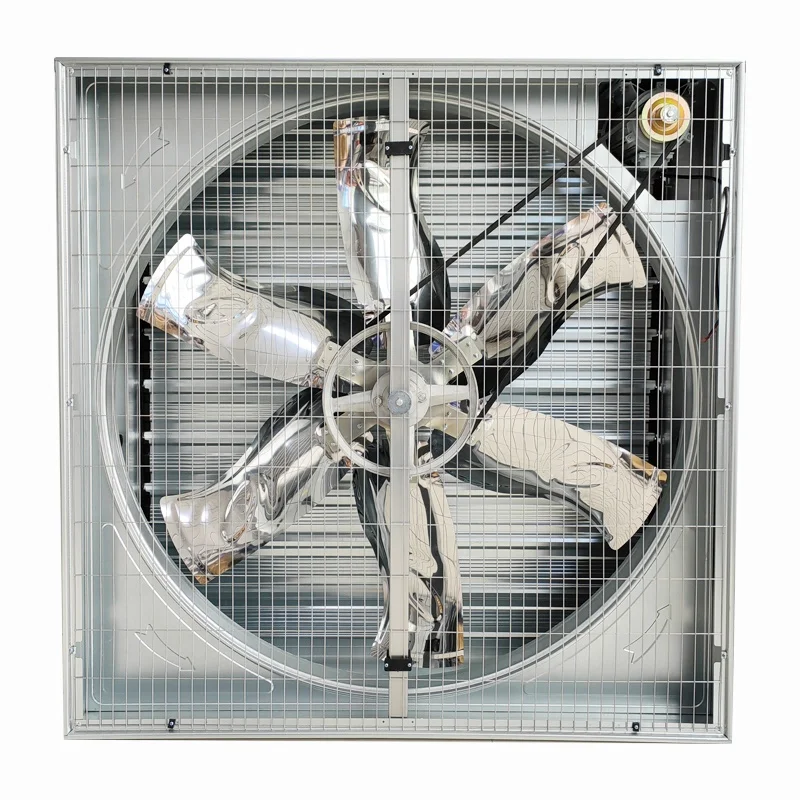

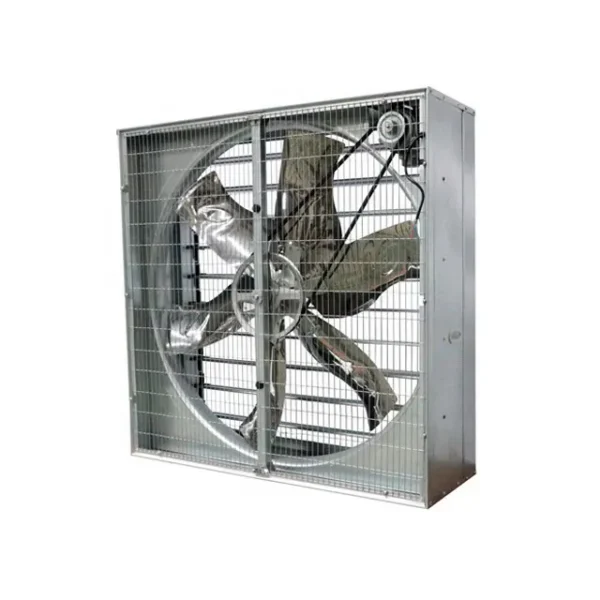

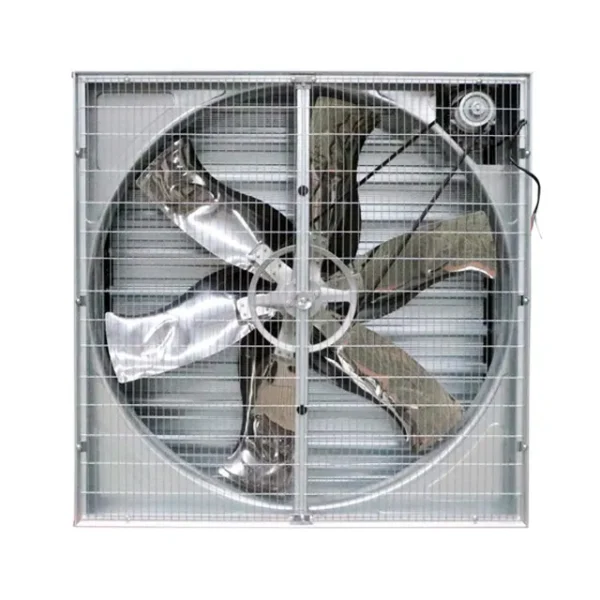

Working Principle:
The fan is mainly composed of blades, belt pulley and flange, blade hub, belt, bearing, blade support, shutters, frame, protection mesh, motor and other components. The motor drives the blades to generate airflow. To prevent outdoor dust and foreign matter from entering, and to avoid the effects of rain, snow and wind.

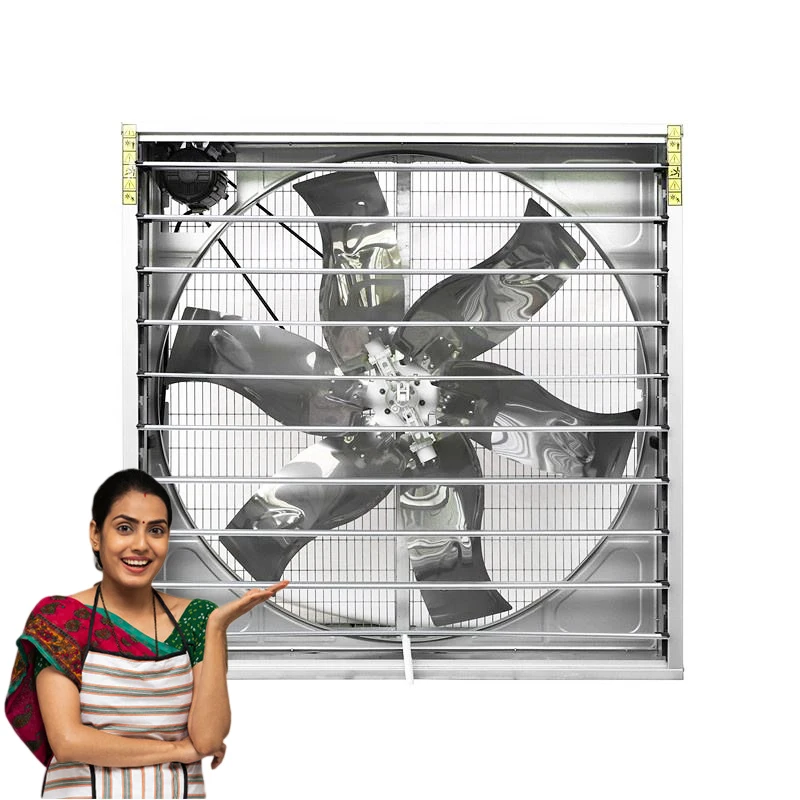

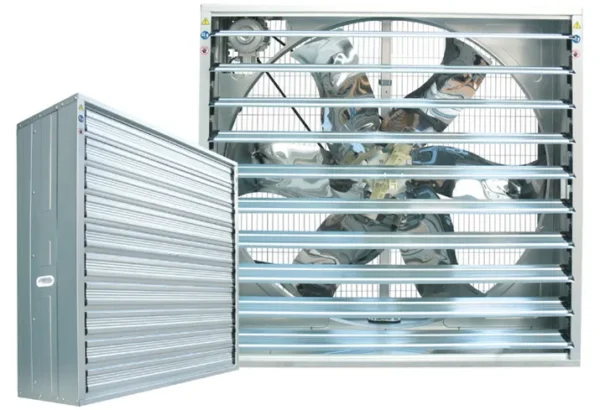

Push Pull Type Negative Pressure Exhaust Fan:
⊙ The specially designed fan blade shape could self-cleaning to ensure highly efficient operation, blades are made of stainless steel through punch forming the blades have been tested and calibrated by an advanced computer dynamic balance measure instrument, make sure running smoothly, and small vibrations, low noise, and high airflow.
⊙ Adopting a centrifugal opening system assures the opening and closing of the shutter completely, when the shutter opens, make sure the lowest air resistance and highest air volume are.
⊙ Shutter connection accessories made of good quality nylon material, long life, easy open, make sure the shutter no changing, working stable.
⊙ Frame adopts Hot Galvanized sheet with a zinc thickness of 275 q/m'.Shutters are made of galvanized sheets with thicknesses of 0.8 mm and 1.5 mm, ensuring shutters have no deformation, and running stable.
Detailed Images
Fan Motor | 1. Chinese famous motor, Siemens motor, ABB motor 2. Motor Protection Grade: IP55 3. lsulation Class: F grade |
Fan Blades | 1. Material : Krupp 430 stainless steel, thickness 1.2mm 2. Diameter 1270mm / 1250mm |
Fan Belt Pulley | 1. Material: High strength aluminum-magnesium alloy by die-castinq. 2. Blast-sandingtreatment, eliminate internal stress to improve its own rigidity and stability. |
Fan Bearing | lmported doublerow bearing with special waterproof design |
Fan Belt | Brand: A type Mitsuboshi belt (Japanese) |
Fan Centrifugal System | 1.Material: High quality Nylon PA66 2.Guide Rod: 304 stainless steel with special material outside, high strength, no rustreduce friction. 3.Rivet: 304 stainless steel , wear-resisting, no rust. |
Fan Frame with Plastic Handle | 1. Frame: Hot Galvanized sheet with zinc thickness of 275q/m³, high anti-corrosion performance 2. Plastic Handle, easy to carry , Convenient to load. |

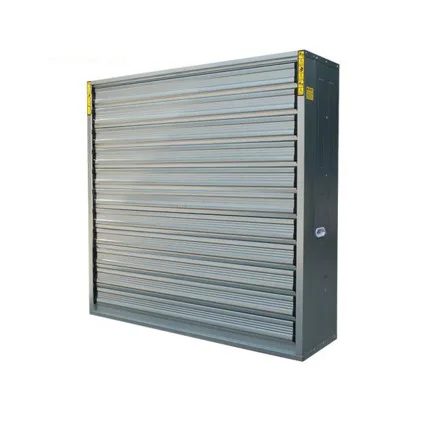

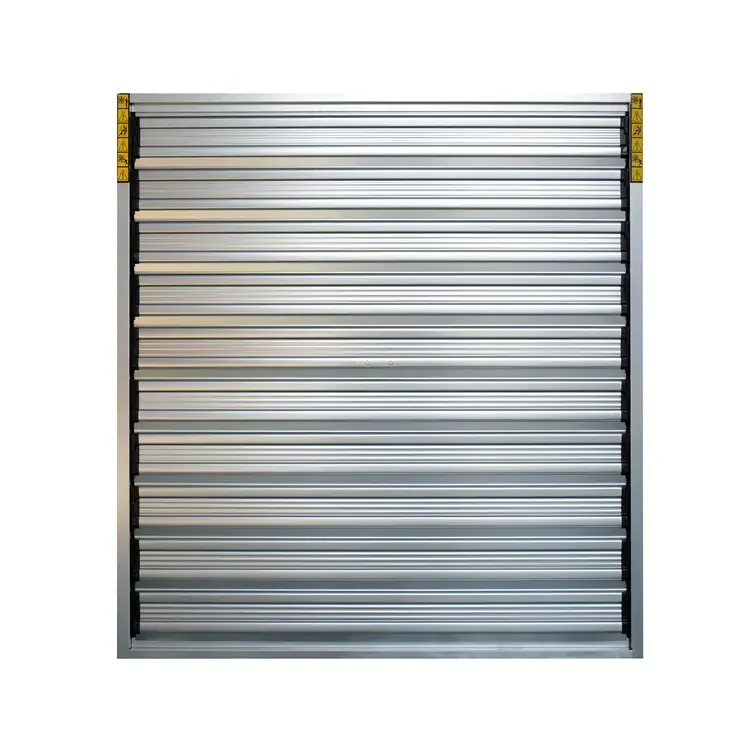

Fan Shutters | 1. Material: Hot Galvanized sheet with zinc thickness of 275g/m³ 2. Shutter Fixed Parts: High quality nylon. |

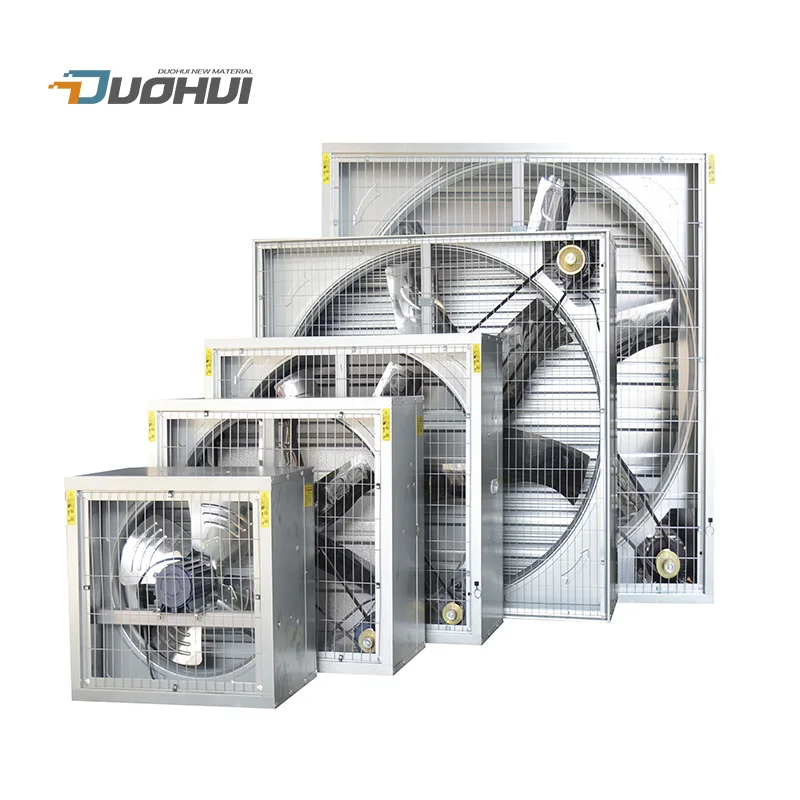

Model | Air Flow(m³/h) | Input Power(W) | Dimension(mm) |
DHT-750(24 Inch) | 11000 | 370 | 750*750*400 |
DHT-900(30 Inch) | 22000 | 370 | 900*900*400 |
DHT-1000(36 Inch) | 25000 | 550 | 1000*1000*450 |
DHT-1100(40 Inch) | 32500 | 750 | 1100*1100*450 |
DHT-1220(43 Inch) | 38000 | 750 | 1220*1220*450 |
DHT-1380(50 Inch) | 44000 | 1100 | 1380*1380*450 |
DHT-1530(56 Inch) | 55800 | 1500 | 1530*1530*450 |
How to Install the Exhaust Fan:
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed.
3. The Expansion screws and Self tapping screw can be used to fix.
Product Advantages
Main Features:
–> Krupp stainless steel blade, large air volume, no deformation, no broken no dust, attractive and durable. –> Centrifugal system can open the shuttles at a complete 90 degrees to ensure the lowest air resistance and biggest air volume. –> Type B belt imported from Japan, ensures long service life –> Siemens motor and Chinese famous motor are available. –> Voltage and frequency can be customized. –> Fan belt pulley and flange, with lightweight and lower vibration, are made of high-strength aluminum-magnesium alloy by die-casting. –> Blast-sanding treatment for an attractive appearance and eliminate internal stress.Product Application

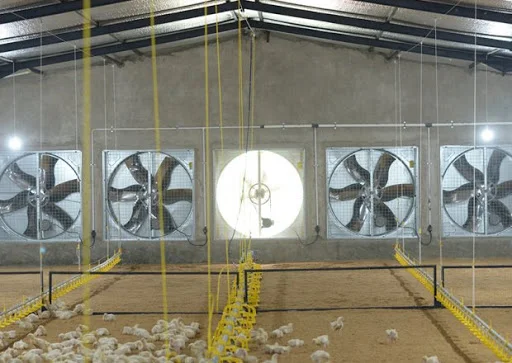

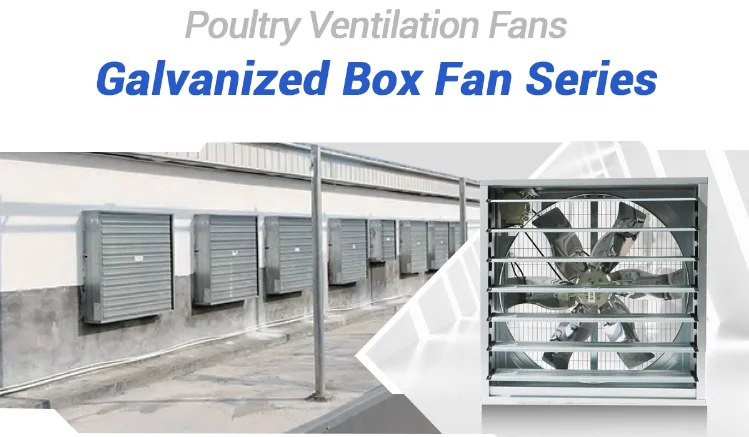

Centrifugal Push-Pull Exhaust Fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Certificate & Delivery
The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands "DUOHUI".
If the order is not large, we can send it to you by express delivery, such as TNT, DHL, UPS or EMS.If the order volume is large we will recommend you to use air or sea transportation through the designated freight forwarder. We also have long-term cooperative agents.
Company Profile
Duohui New Material Technology Co., Ltd
Our company was established in 2019 and we are a top professional manufacturer for integrating emulsion, resin research and development, and scientific production and sales in China. Qingzhou Duohui is a high-tech enterprise, and with many domestic institutions of higher learning, scientific research institutions have established a good scientific and technological research and development cooperation relationship, and successively launched a variety of international standards of new emulsion varieties.
Our main products include evaporative cooling pad production line and accessories, Ventilation and cooling equipment, water treatment equipment and accessories, kraft paper, phenolic resin, urea-formaldehyde resin, waterproof emulsion, construction emulsion, textile emulsion, and packaging emulsion.
Our main products include evaporative cooling pad production line and accessories, Ventilation and cooling equipment, water treatment equipment and accessories, kraft paper, phenolic resin, urea-formaldehyde resin, waterproof emulsion, construction emulsion, textile emulsion, and packaging emulsion.
Duohui has a professional international trade team, complete testing equipment and strong technical advantages, integrating R&D,production, sales and maintenance services.
FAQ
Ordering and Pricing
- Minimum order quantity: 20 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this exhaust fan?
The standard minimum order quantity is 20 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this exhaust fan carry?
It is supplied with CE CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the exhaust fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
