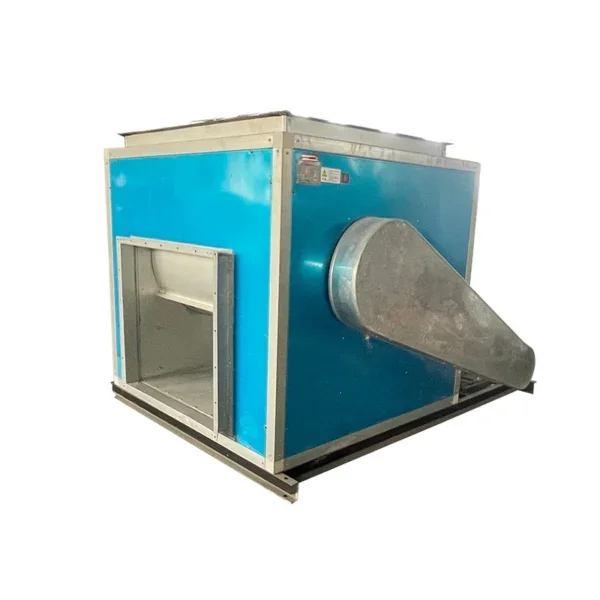

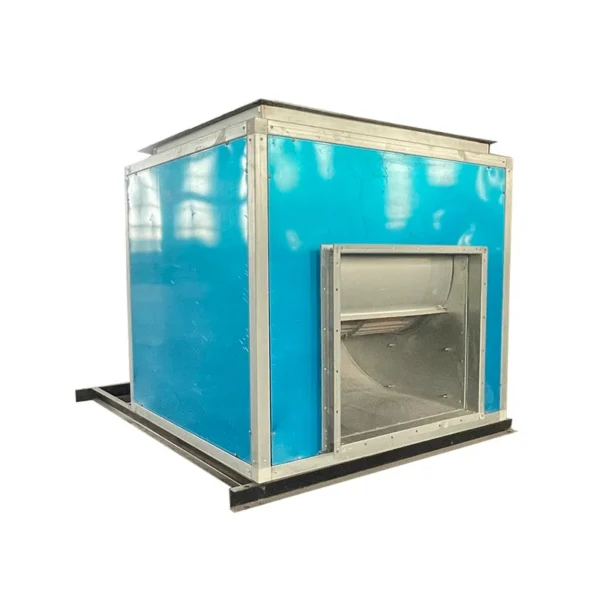

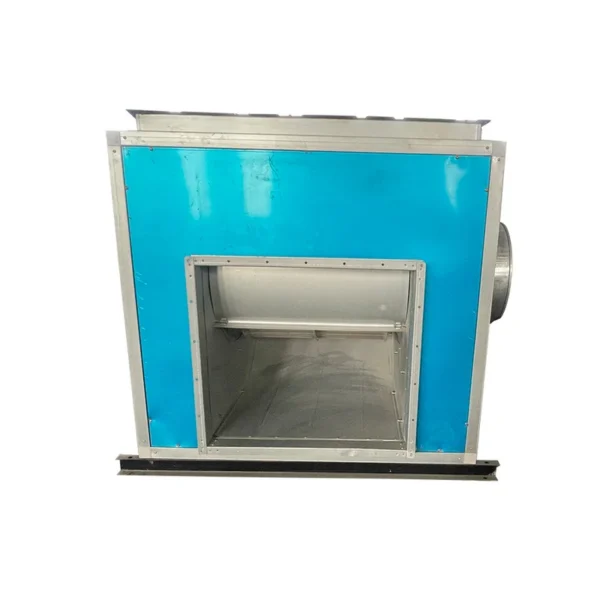

Exhaust Ventilation Centrifugal Fan, HVAC, Steel

This exhaust ventilation centrifugal fan is published with the manufacturer’s full specification — voltage Customized, 380V, power source type Corded Electric. Made by Jinan Hongpeng Building Solutions co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Exhaust Ventilation Centrifugal Fan

• Power Source Type: Corded Electric
• Voltage: Customized, 380V
• Blade Material: Carbon steel or stainless steel
• Material: Carbon steel,Stainless Steel SUS 304/310/316/2205/904 etc
• Noise Level: 35–39 dB
• Speed: As requested

Technical Specifications

Product Details

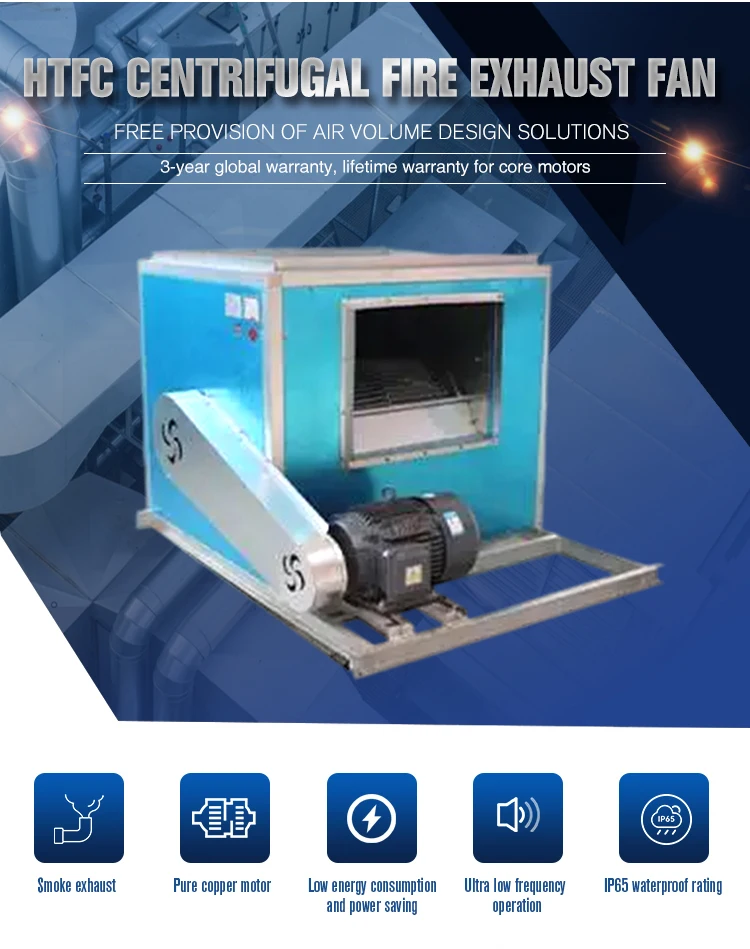

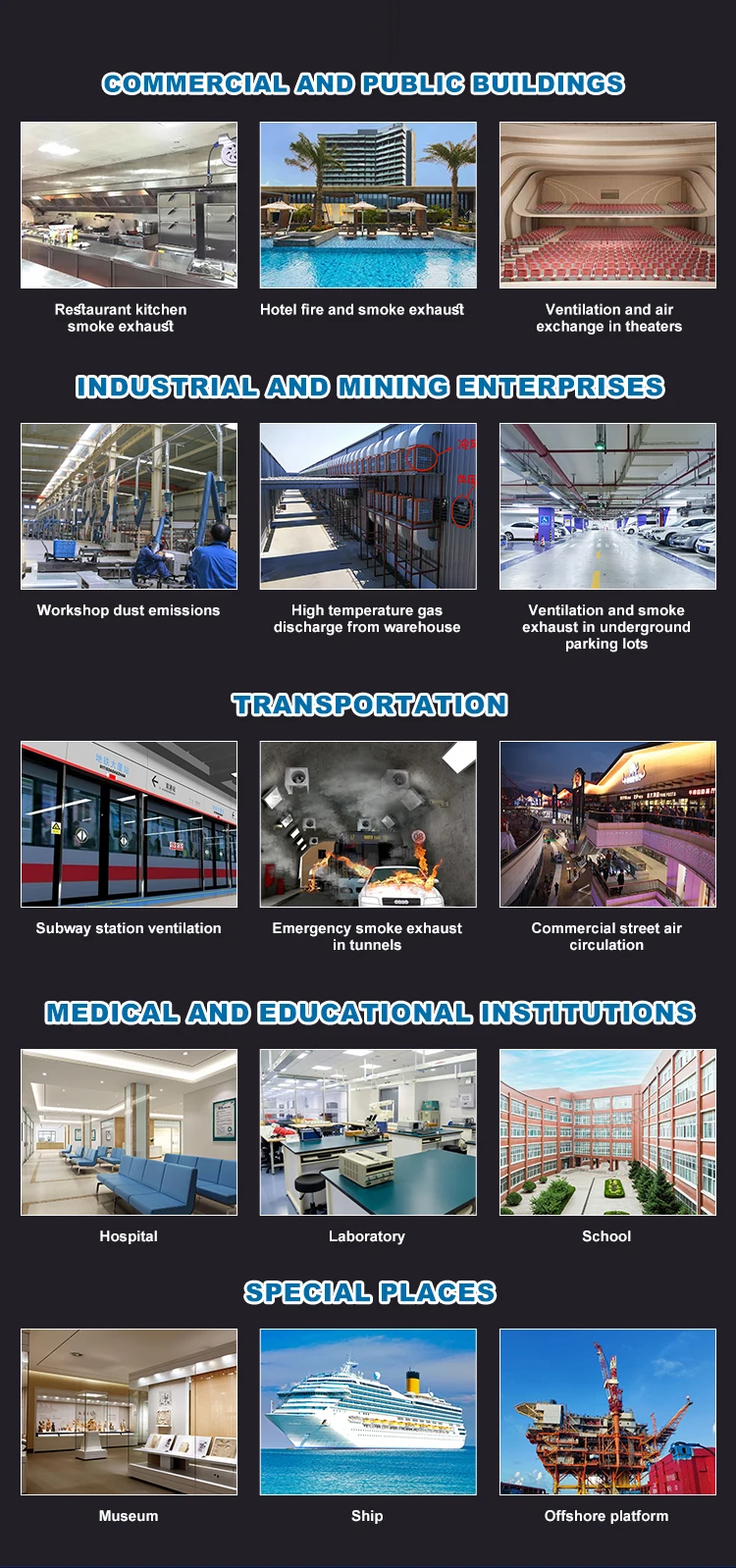

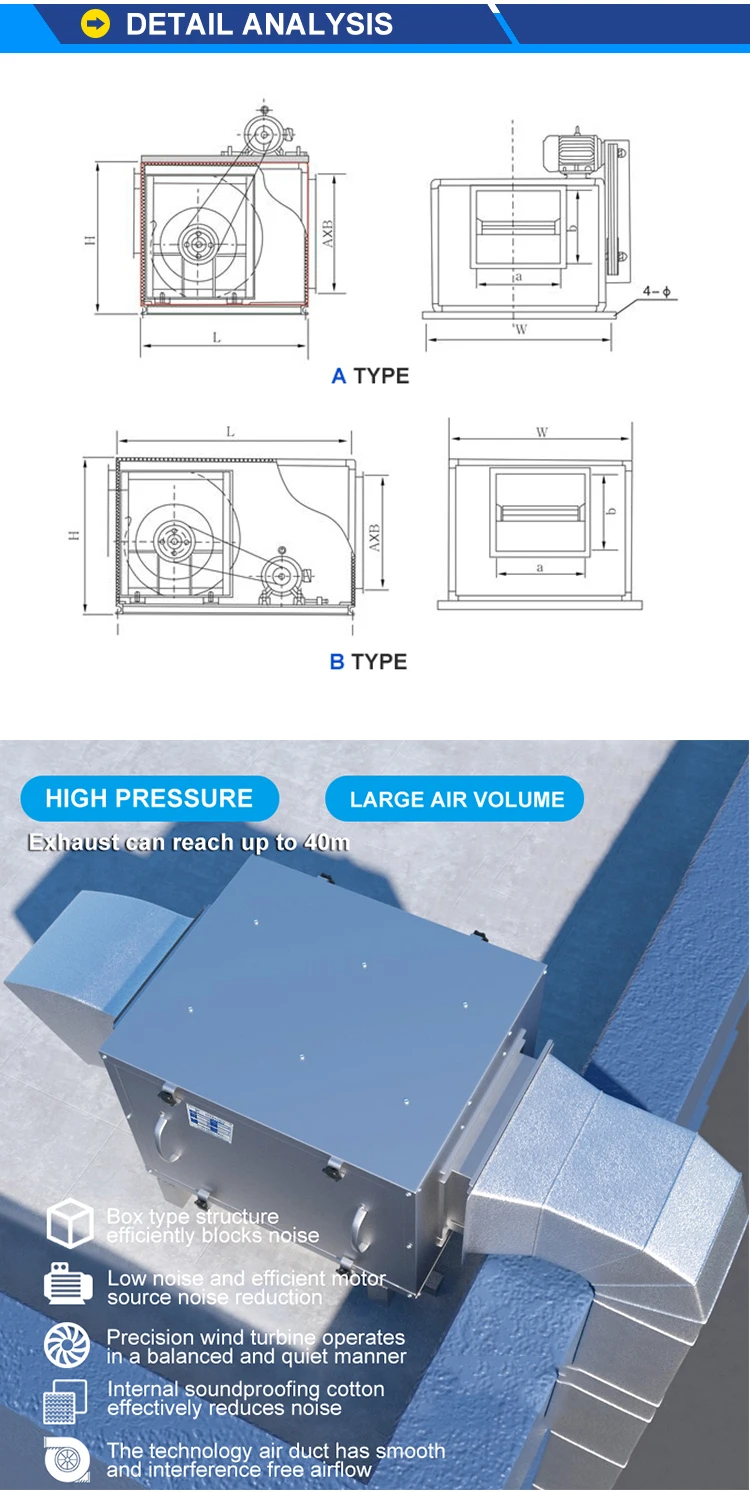

The HTFC centrifugal fire smoke exhaust fan has the characteristics of low noise, large air volume,low speed, high efficiency, small size, light weight, stable operation, easy maintenance, and convenient installation. There are two types of this product: Type A and Type B. The type with the motor installed inside the box is Type B, the type with the motor installed outside the box is Type A,the type with the motor installed inside the box is Type B, and the type with the motor installedoutside the box is Type A. Type A can be used for fire smoke exhaust. The product can be widely used in hotels, auditoriums, basements, workshops, office buildings, and ventilation areas of factories and mines.

Products Description

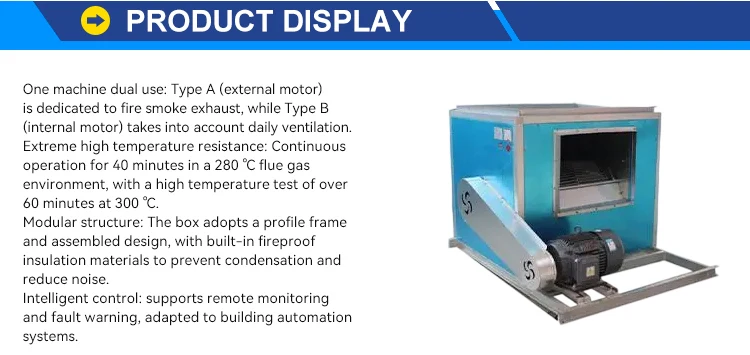

One machine dual use: Type A (external motor) is dedicated to fire smoke exhaust, while Type B (internal motor) takes into account daily ventilation. Extreme high temperature resistance: Continuous operation for 40 minutes in a 280 ℃ flue gas environment, with a high temperature test of over 60 minutes at 300 ℃. Modular structure: The box adopts a profile frame and assembled design, with built-in fireproof insulation materials to prevent condensation and reduce noise. Intelligent control: supports remote monitoring and fault warning, adapted to building automation systems.

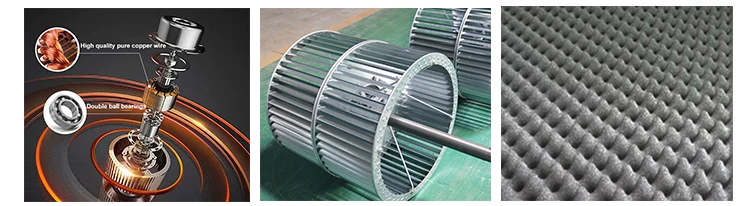

MILITARY HEART HAS A LIFESPAN OF 50%

All copper motor+ceramic bearings, 30000 hours of rigorous testing, soaringdurability

Corrosion resistant impeller

Galvanized steel plate impeller, G2.5 dynamic balance accuracy, deformation resistance increased by 60% (high temperature and high humidity resistance)

Built in soundproof cotton

Effectively reduce fan case noise, vibration, and oil fume/dust adhesion rate by 70%

Fan model	Air volume	Wind pressure	Power KW	Fan speed	Motor model
HTFC-9#	3600	471	0.75	1450	YE2-80M2-4
HTFC-9#	3980	573	1.1	1600	YE2-90S-4
HTFC-10#	4140	555	1.1	1450	YE2-90S-4
HTFC-10#	4530	673	1.5	1600	YE2-90L-4
HTFC-12#	6375	435	1.5	1000	YE2-90L-4
HTFC-12#	7970	680	3	1250	YE2-100L2-4
HTFC-15#	10440	494	2.2	800	YE2-100L1-4
HTFC-15#	11240	701	4	960	YE2-112M-4
HTFC-15#	12653	722	5.5	1050	YE2-132S-4
HTFC-18#	13000	452	3	700	YE2-100L2-4
HTFC-18#	14865	590	4	800	YE2-112M-4
HTFC-18#	17278	755	7.5	940	YE2-132M-4
HTFC-20#	14170	548	4	700	YE2-112M-4
HTFC-20#	17840	546	5.5	700	YE2-132S-4
HTFC-20#	22940	905	11	900	YE2-160M-4
HTFC-22#	21490	517	5.5	600	YE2-132S-4
HTFC-22#	25700	914	11	800	YE2-160M-4
HTFC-22#	26775	790	15	840	YE2-160L-4
HTFC-25#	25170	546	7.5	550	YE2-132M-4
HTFC-25#	32020	884	15	700	YE2-160L-4
HTFC-25#	34839	827	18.5	740	YE2-180M-4
HTFC-28#	28590	430	7.5	450	YE2-160M-6
HTFC-28#	36030	704	11	550	YE2-160M-4
HTFC-28#	43790	843	18.5	600	YE2-180M-4
HTFC-28#	47420	990	22	650	YE2-180L-4
HTFC-30#	32390	643	11	500	YE2-160L-6
HTFC-30#	35630	778	15	550	YE2-180L-6
HTFC-30#	44180	803	18.5	600	YE2-200L1-6
HTFC-30#	52710	923	30	640	YE2-225M-6
HTFC-33#	59169	814	22	550	YE2-225L-6
HTFC-33#	67775	1069	37	630	YE2-250M-6
HTFC-36#	69536	799	30	500	YE2-225M-6
HTFC-36#	73690	1085	45	580	YE2-280M-6

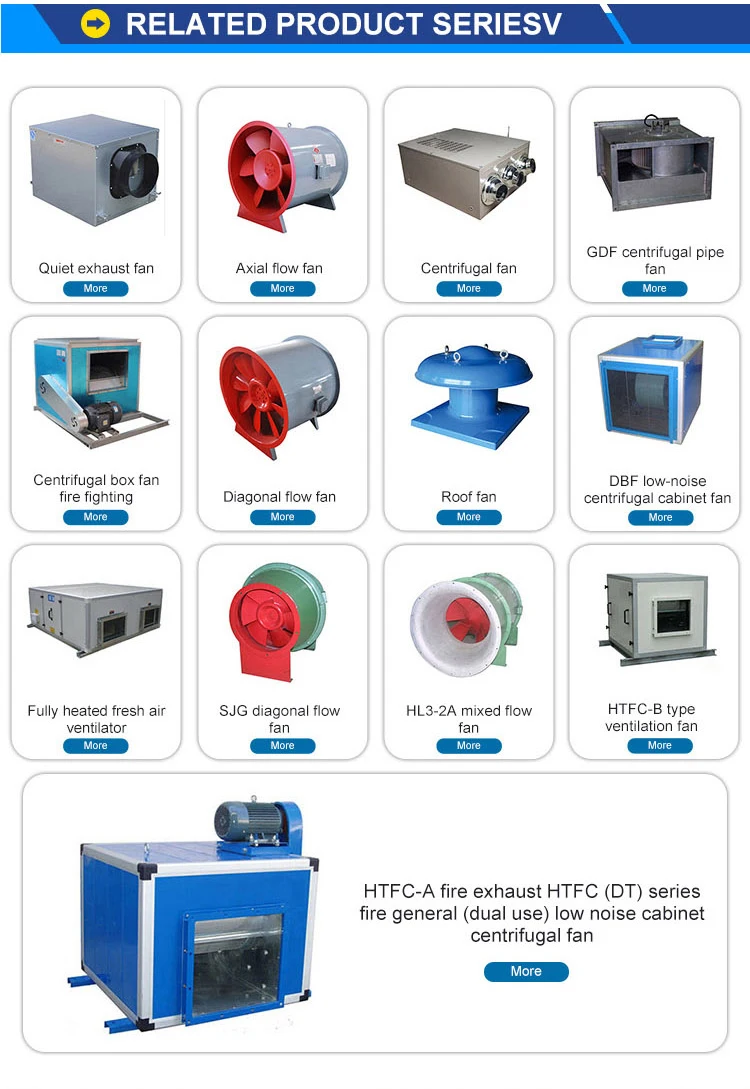

Related Product Series

Packaging And Transportation

Company Profile

Jinan Huifengquan Ventilation Equipment Co., Ltd. is located in Jinan New Materials Industrial Park, mainly producing central air conditioning end products and fire ventilation and smoke exhaust series products. The company has successively won the honorary titles of "Contract abiding and Credit worthy Enterprise" in Shandong Province, "Shandong Famous Trademark", "Jinan Famous Brand" product, municipal "Demonstration Enterprise", "exemplary organization", and many national utility model patents. The company has successively passed ISO9001 quality system certification, ISO14001 environmental system certification, and OHSAS18001 occupational health and safety management system certification. The ventilation fan equipment products have obtained the national industrial product production license, and the fire protection products have been certified by the Emergency Management Department's Fire Product Qualification Assessment Center and obtained the CCCF certification certificate.

The company's main products include centrifugal smoke exhaust fans, low-noise cabinet fans, axial flow smoke exhaust fans, mixed flow ventilation fans, roof fans, aluminum alloy vents, diffusers, regulating valves, fire dampers, smoke exhaust valves, smoke exhaust fire dampers, mufflers, static pressure boxes, seismic brackets, etc. The production workshop covers an area of over 30000 square meters, with more than 200 sets of production equipment and 16 assembly lines. The production machinery and equipment have a high degree of intelligence, strong technical strength, complete testing equipment, perfect management system, reliable product quality, and advanced fan performance testing laboratory.

Our core goal is to create outstanding products and services based on talent and technology. The company leads the industry with high technology, cooperates with domestic universities and research institutes, and takes the innovative path of combining production, learning, and research, effectively enhancing the strategic route of producing high-end products. We want to take this opportunity to go abroad and promote our goalkeeper products to the world. Hongpeng looks forward to sincere cooperation with friends from all walks of life and advancing hand in hand!

FAQ

Q1: Do you have the ability of independent research and development？ A1: We have a professional R & D team that regularly collects feedback from each customer for product improvement and new product development. Q2: How many years of your warranty? A2: We could offer 3-5 years warranty. Q3: Can we make a trial order to test the quality first？ A3: Yes, Warmly welcomed. Q4: What is your payment term? A4: T/T,Western Union,L/C,and Paypal. This is negotiable. Q5: What is your lead time? A5: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $113 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this exhaust ventilation centrifugal fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this exhaust ventilation centrifugal fan carry?

It is supplied with CE/RoHS/ISO9001/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the exhaust ventilation centrifugal fan be supplied for my local voltage?

The standard configuration is Customized, 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jinan Hongpeng Building Solutions co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jinan Hongpeng Building Solutions co., Ltd. range on HVACR Nexus.
