The explosion proof fans listed here carries 220V/380V, 18KW(24.14hp), documented exactly as the manufacturer publishes it. Made by Shandong Huahao International Trade Co., Ltd. (1 year on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Explosion Proof Fans
- Power: 18KW(24.14hp)
- Voltage: 220V/380V
- Intake Capacity: 20000m ³/h
- No-Load Speed: /
- Warranty: 1 year
- Place Of Origin: Shandong, China

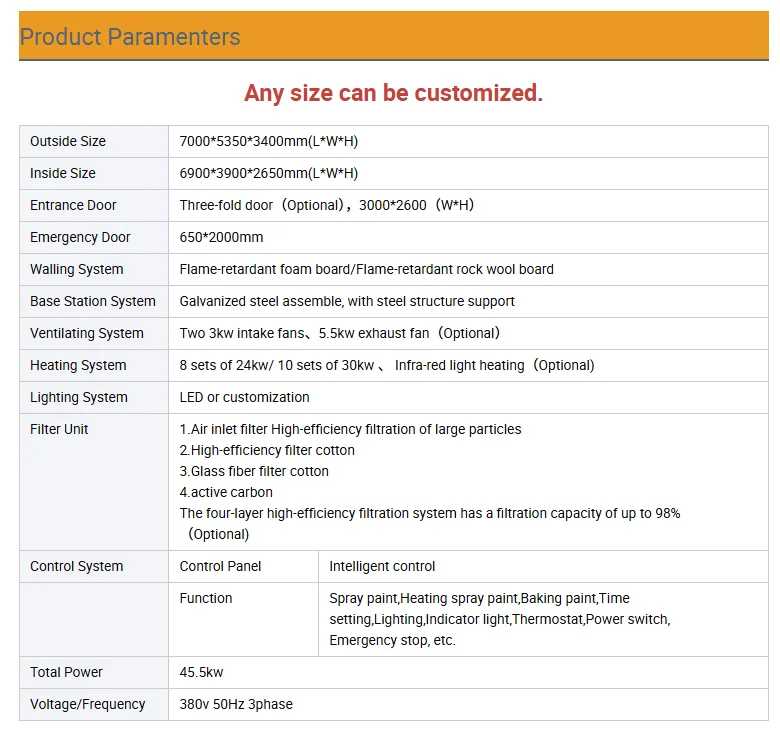

Technical Specifications
| Type | Spray Booths |
|---|---|
| External Size | 7000x5350x3400mm(275.59×210.63×133.86in), 7000x5200x3400mm(275.59×204.72×133.86in) |
| Heating System | riello diesel burner, Electric Heating |
| Baking Temperature | 80°c(144℉) |
| Power | 18KW(24.14hp) |
| Filter | Water Filter, Ceiling Filter, environmental 3 filter process, fiberglass filter, high efficiency filter |
| Fans Kind | Axial Fans, Tube Axial Fans, centrifugal fans, energy-saving cooling fans |
| Lighting System | Led Lighting, energy saving led light, explosion proof lighting |
| No-Load Speed | / |
| Disc Diameter | / |
| Place Of Origin | Shandong, China |
| Voltage | 220V/380V |
| Brand | xinyuan |
| Warranty | 1 year |
| Ventilation System | Two 4kw imported fans and one 5.5kw outlet fan |
| Entrance Door | 3 high-strength sheet metal doors |
| Work Gate | 700*1800mm (width * height – 1 fold/panel) |
| Wall Panel | 50mm EPS/50mm Rock wool |
| Loadingramps | 900×2000 mmx2 pc |
| Overhead Lighting | 8 sets of 4 x 16w LED high-efficiency energy-saving lamps |
| Control Panel | Intelligent electronic control system. |
| Intake Capacity | 20000m ³/h |
| Outlet Air Volume | 15000m ³/h |
| Side Lamp | 8 units *60w LED lighting |
| Selling Units | Single item |
| Single Package Size | 200X200X150 cm |
| Single Gross Weight | 3000.0 kg |
Product Details
PRODUCT HIGHLIGHTS
- Electric paint spraying room: adopting advanced electric heating technology, precise temperature control, no open flames, zero emissions, in line with EU environmental standards, providing a stable temperature environment for high-end car spraying, ensuring paint glossiness and adhesion
- LED lighting paint booth: equipped with high color rendering index LED light groups, simulating natural light, ensuring that the paint color has no deviation under different lighting conditions, while reducing energy consumption by 50% compared to traditional fluorescent lamps, with a service life of up to 50000 hours
- Car spray booth: designed specifically for car maintenance and modification, spacious enough to accommodate various models such as SUVs and trucks, supporting customized sizes and configurations, suitable for car repair shops of different sizes
- Explosion proof Lighting Spray Booth: Complies with explosion-proof standards and uses explosion-proof lighting equipment to effectively isolate flammable and explosive gases in paint mist, providing all-weather safety protection for spraying operations.
- Infrared Lamp Spray Booth: The infrared lamp group evenly covers the work area, quickly heats the paint surface, reduces drying time by 40%, avoids defects such as sagging and orange peel, and improves spraying efficiency and yield
- Ceiling Filter Spray Booth: Imported fiberglass ceiling filter cotton is used to effectively capture paint mist particles, maintain clean air in the work area, and protect fans and heating elements from pollution, extending equipment service life
- Customizable wall panels: providing excellent insulation and durability for stable environments
- Advanced filtration: ensuring air quality during the spraying process
- One year warranty: giving you peace of mind

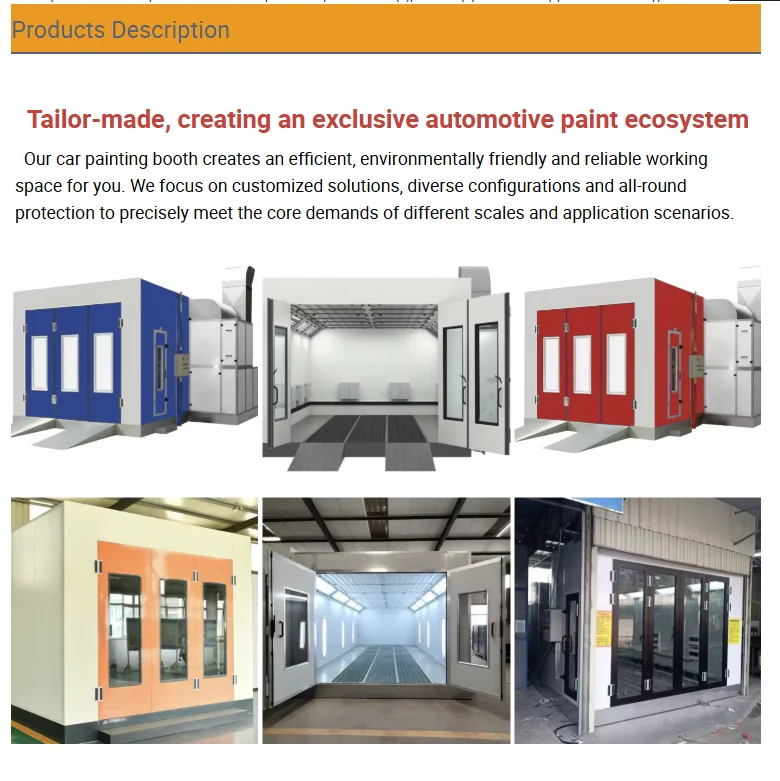

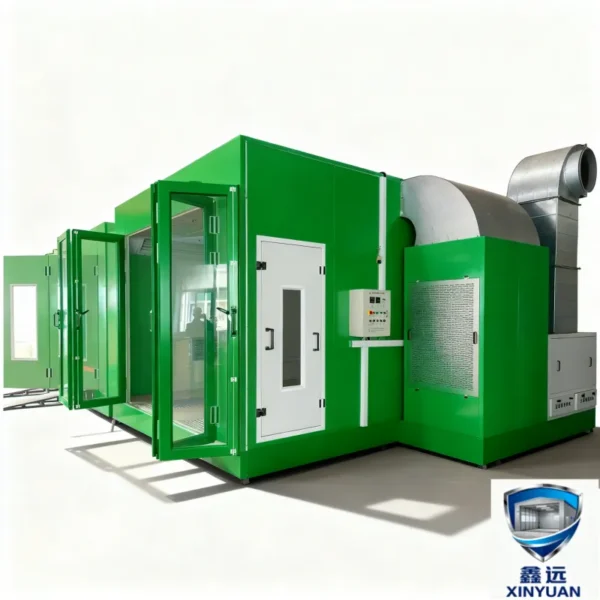

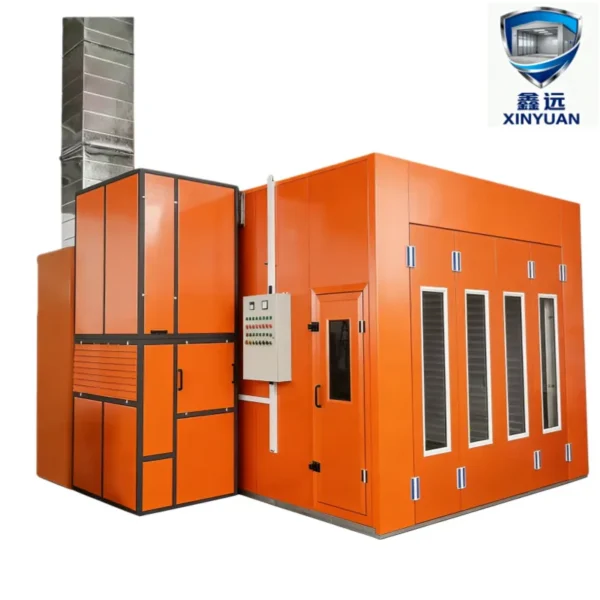

Customized Car Spray Booth, can be tailored in size, color and configuration to meet personalized needs of customers. The booth body is built with rock wool/foam sandwich panels, featuring heat insulation, fire resistance and flame retardancy. Equipped with high-efficiency filtration and ventilation systems, it achieves dust-free painting, with excellent paint finish, suitable for auto repair shops, 4S stores and other scenarios.

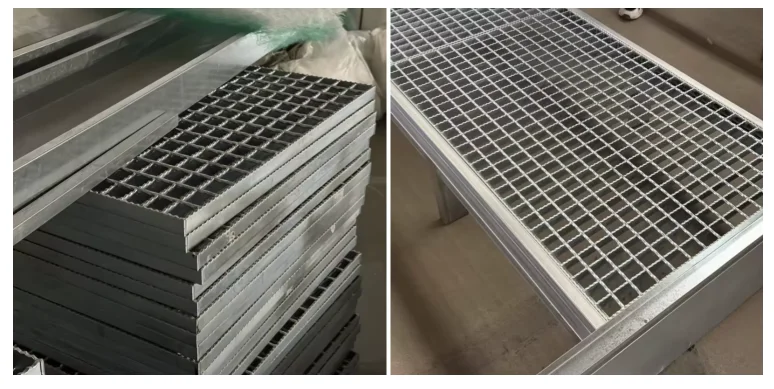

Galvanized Steel Grille Floor for Spray Booth, made of galvanized steel grille, grid design for ventilation and paint mist filtration. High load-bearing capacity, anti-slip, wear-resistant, corrosion-resistant, not easy to deform. Paint mist falls into the lower filter system, keeping the work area clean, core component of the floor system.

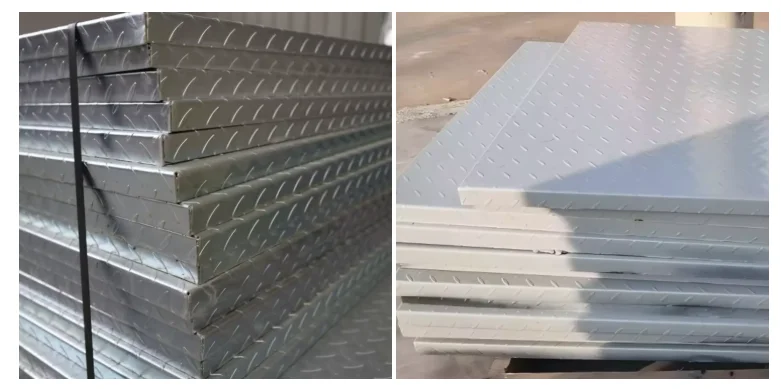

As the core component of the platform system, it is made by precision pressing high-strength hot-dip galvanized patterned steel plate. The surface has clear anti slip patterns, which can prevent slipping during operation. It has strong load-bearing capacity and can support various vehicles and maintenance equipment without deformation. The hot-dip galvanized layer provides dense protection, corrosion and rust resistance, resists paint mist and cleaning agent erosion, and extends its service life

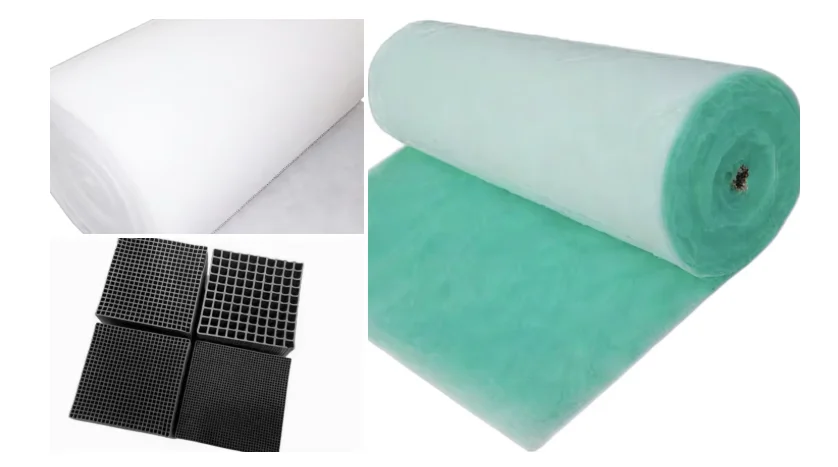

Full Set of Filter Consumables for Car Spray Booth, including ceiling filter cotton, floor filter cotton and honeycomb activated carbon blocks. High-efficiency non-woven filter cotton captures over 99% of paint mist particles with low ventilation resistance. Honeycomb activated carbon adsorbs VOCs and odors, meeting international environmental standards. Easy to replace with reasonable cycle, suitable for all spray booths, ensuring painting quality

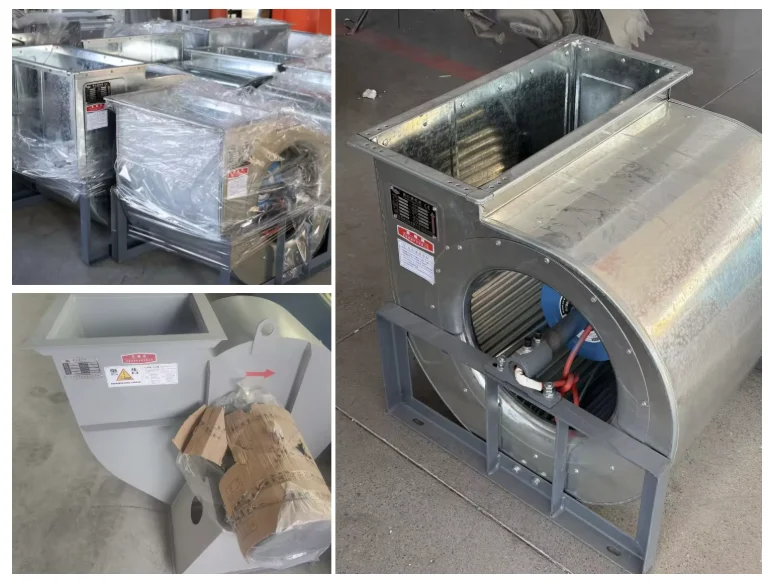

Professional Centrifugal Fan for Car Spray Booth, core power of ventilation system. Galvanized steel shell is corrosion-resistant and aging-resistant, adapting to spray booth environment. Equipped with high-efficiency copper core motor, it has large air volume, sufficient pressure, stable operation and low noise. Adjustable air volume, rapid air supply and exhaust, discharging paint mist and maintaining slight positive pressure in the booth

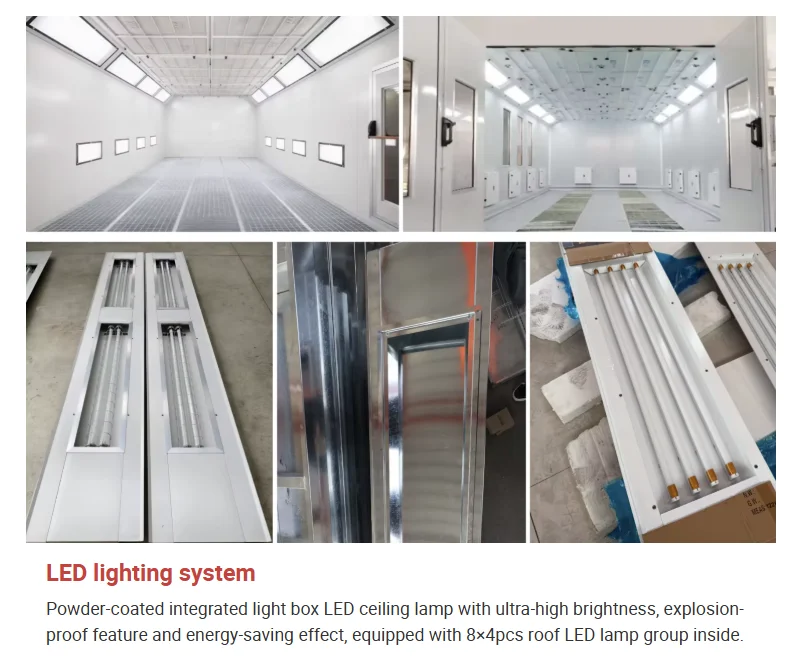

LED Lighting System for Spray Booth, with powder-coated integrated light box and explosion-proof LED tubes. High brightness, uniform light, no flicker or shadow, restoring true paint color. Energy-saving and explosion-proof, suitable for humid and paint mist environment, ensuring clear vision and painting precision.

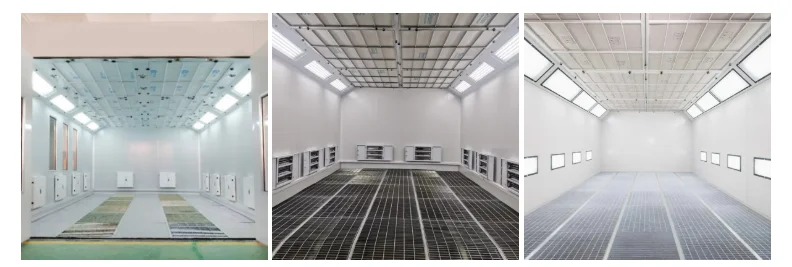

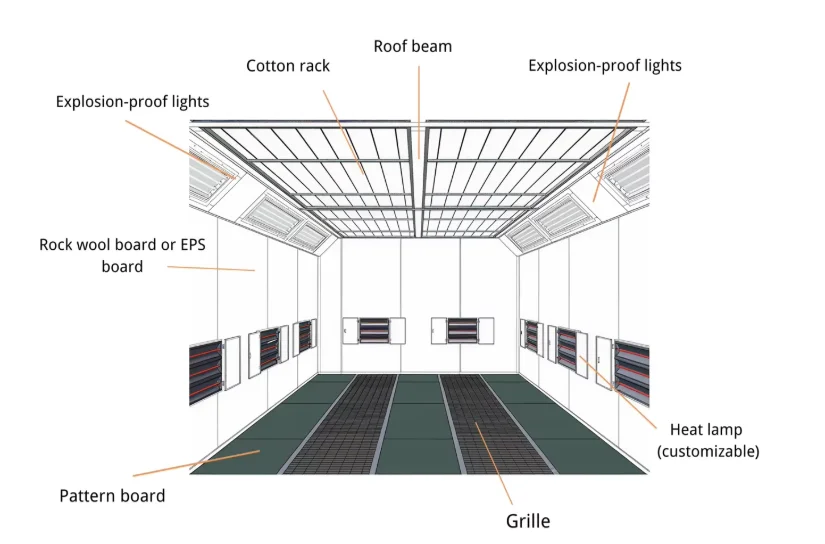

Interior of Car Spray Booth, equipped with bright LED lighting system, with uniform light and no shadows, restoring the true color of the paint. The floor is paved with grilles/checkered plates, the walls are smooth and easy to clean, and the ceiling cotton filters air evenly to ensure dust-free environment, avoiding paint defects. Spacious and transparent, suitable for painting and drying various vehicles.

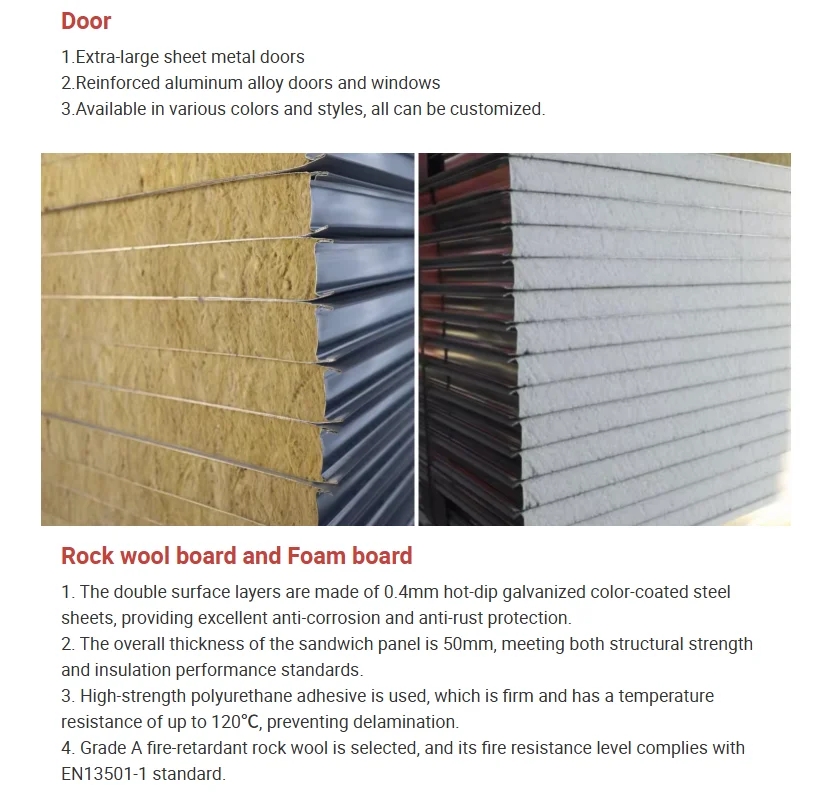

Spray Booth Sandwich Panel, with 0.4mm hot-dip galvanized color-coated steel sheets on both sides, 50mm thick A-grade fireproof rock wool/foam core. Bonded with high-strength polyurethane adhesive, high temperature resistant and non-delaminating, corrosion-resistant and rust-proof, meeting EN13501-1 fire standard, ideal for booth walls and doors.

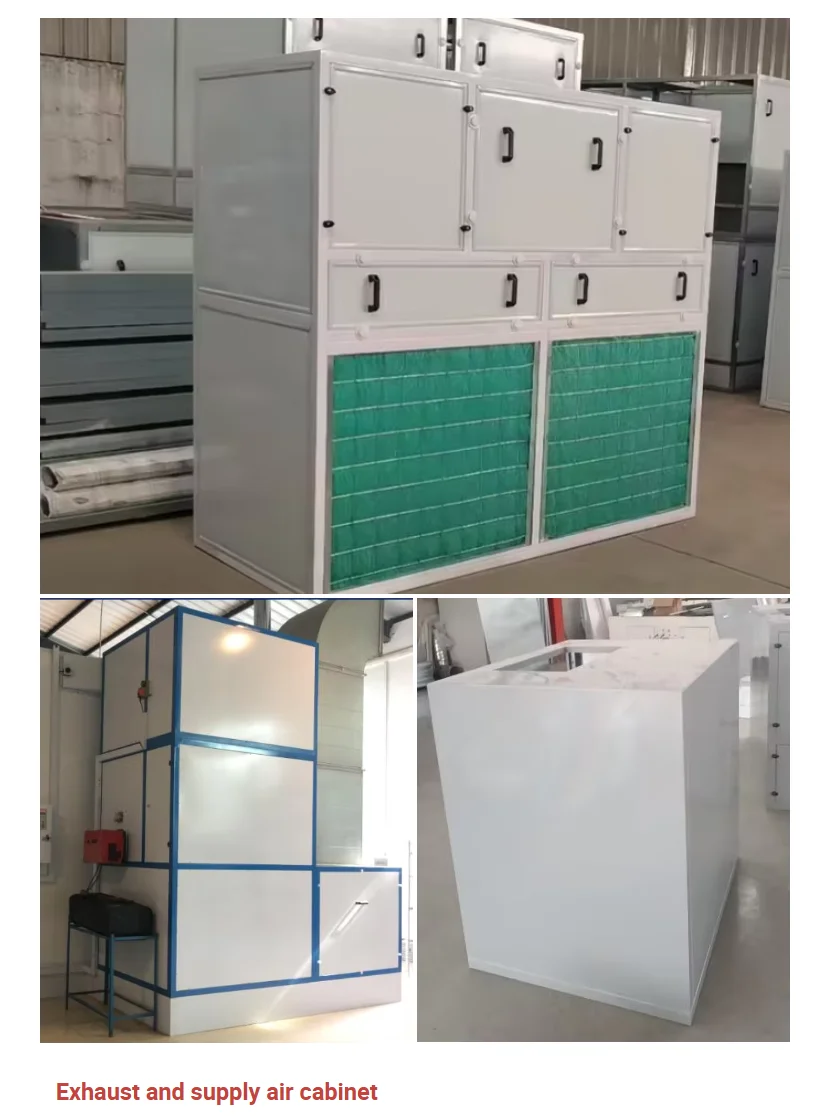

Air Supply and Exhaust Cabinet for Spray Booth, made of thickened galvanized steel plate, sturdy and durable. Built-in multi-layer filters, filtering impurities and paint mist in the air, delivering clean air and exhausting waste gas. Reasonable structure, good airtightness, low ventilation resistance, extending filter service life.
Shandong Huahao International Trade Co., Ltd. mainly supplies spray painting rooms, car lifts, VOCS waste gas treatment equipment, waste gas dust removal equipment, and large-scale industrial coating automation production lines. With 17 years of experience in manufacturing automotive maintenance equipment, our headquarters is located in Shandong, an important hub of China's automotive equipment industry. We integrate research and development, production, and international trade to provide high-quality, cost-effective solutions for global automotive repair shops, 4S stores, modification centers, and industrial enterprises. With 17 years of professional experience, we have deep technical expertise to optimize product performance. Our core products meet the requirements of modern painting and have the characteristics of energy conservation and environmental protection; The heating system ensures uniform temperature, and LED lighting enables precise spraying. We also provide customized designs based on customer needs. We have a strict quality control system, using high-quality raw materials and obtaining CE certification, which has been widely recognized in Europe, Southeast Asia, Africa, South America and other regions. Our professional team provides one-stop service, including consultation, customization, logistics, and after-sales support, with flexible terms, safe delivery, and one-year warranty. Adhering to the principles of "quality first, customer foremost, innovation driven, and win-win cooperation", we focus on technological innovation and are committed to becoming a leading global supplier. Shandong Huahao is your trusted partner, and we look forward to long-term cooperation with global customers.
FAQs
Why choose Jinan Xinyuan?
High quality, competitive prices, and high-quality revenue generating products. Excellent customer service. With technical support, the fastest response time is within 1 hour. Quick delivery. User friendly English manual for machine operation and maintenance.
How is the quality and safety of your products?
Our product has passed safety testing and CE certification.
What is the minimum order quantity for your company?
The minimum order quantity is 1 set. We have stock products and will ship them within 2 days, while customized products will be shipped within 7 days.
Are Jinan Xinyuan's products designed for commercial use?
All of our products can be used in commercial applications without any issues.
I am a person who values service. How is your after-sales service?
We provide an excellent purchasing experience. If there are any issues with the product, the warranty period for all of our products is at least 12 months. We provide professional technical support for installation or use. If machine parts are damaged during the warranty period, we also provide replacement parts service.
Do you provide customized designs?
Yes, Jinan Xinyuan provides OEM/ODM services for top partners. Our skilled engineers can provide excellent design recommendations.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–2 piece: US $4300 / piece
- 3+ piece: US $3430.4 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this explosion proof fans?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the explosion proof fans be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Huahao International Trade Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Huahao International Trade Co., Ltd. range on HVACR Nexus.
