Key specification for this explosion-proof flange tubular heater: 12v 24v 110v 220v 380v etc, heating capacity Excellent. Everything below is reproduced from the factory data sheet. Made by Yancheng Better Electric Heating Equipment Co., Ltd. (6 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

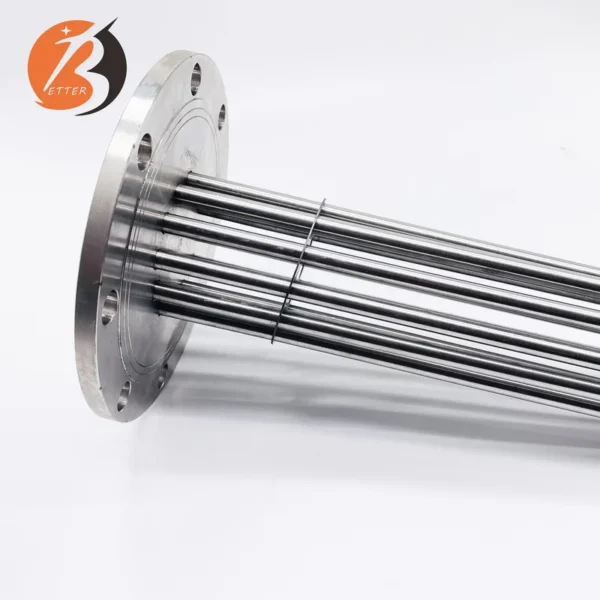

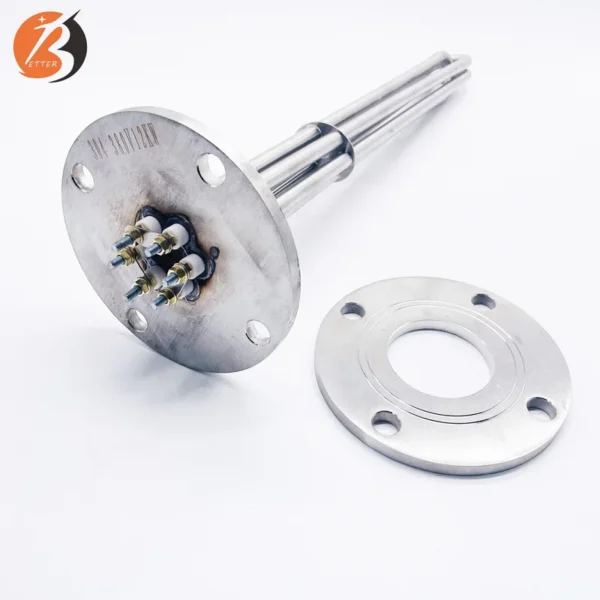

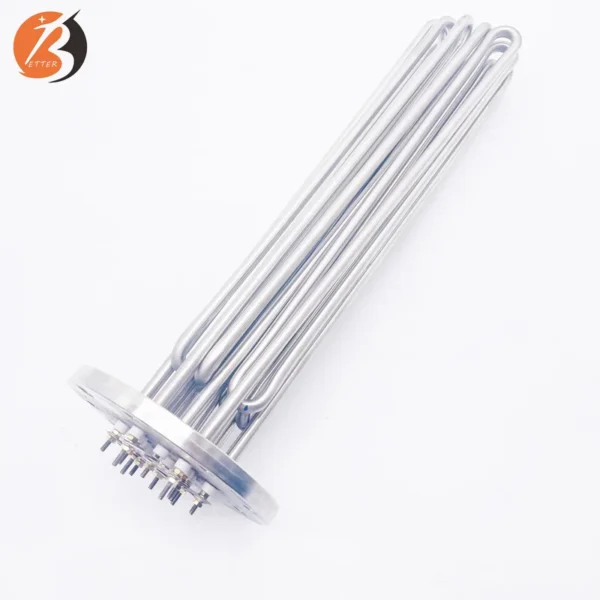

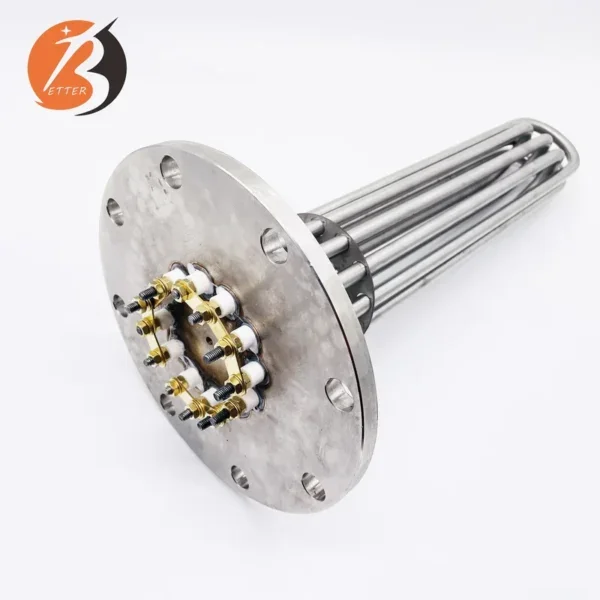

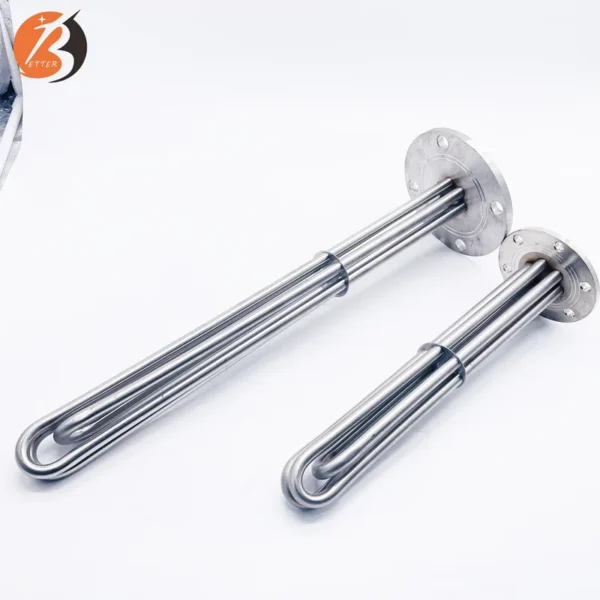

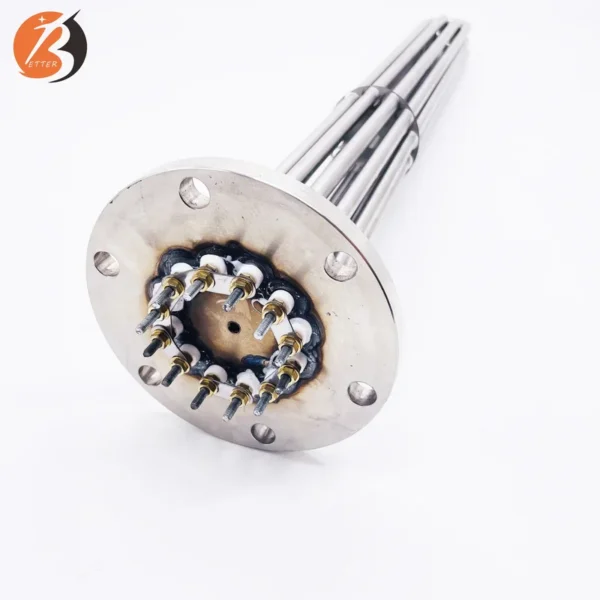

Key Features of This Explosion-Proof Flange Tubular Heater
- Power Source: Electric
- Voltage: 12v 24v 110v 220v 380v etc
- Heating Capacity: Excellent
- Material: Stainless Steel
- Insulation Material: Mgo Powder
- Warranty: 1 Year
Technical Specifications
| Type | Oil Heater |
|---|---|
| Power Source | Electric |
| Voltage | 12v 24v 110v 220v 380v etc |
| Material | Stainless Steel |
| Core Components | Resistance |
| Key Selling Points | Easy To Operate |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | Excellent |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 2 |
| Brand Name | Better |
| Dimension(L*W*H) | Custom size |
| Working Temperature Range | 1 – 800 ℃ |
| Name | Flange Heating Element Steam Ironing Machine Water Tank |
| Volt | 12v-380v |
| Resistance | NiCr2080 |
| Size | Customized |
| Surface Loading | 1-20w/c㎡ |
| Standard Cold Zone | 30mm |
| Insulation Material | Mgo Powder |
| Max Temperature | 800 ℃ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
*Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.
*Tubular heaters can be used in any application. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application.
Diameter | 6mm,8mm,11mm,12.5mm,16mm18mm | ||||||
Length | Customized | ||||||
Leads type | Direct line, SUS 304 braided, metal hose, etc.+5%,-10% | ||||||
Total capacity | +10% – 5% (closer tolerances are available upon special request) | ||||||
Shape | U/ Hairpin/ W/ Z/ Straight/ Spiral/ Circular(with extension)/ Double Loop/ Bent Hairpin | ||||||
Sheath Material | Nickel800,SS304,SS321,SS316,copper,titanium | ||||||
Insulation material | Magnesium Oxide Powder | ||||||
Special Specifications | Flange heating tube, nut electric tube, explosion-proof electric heating tube,etc. | ||||||
Maximum Temperature | 800 degress Celsius | ||||||
Special Specifications | Flange heating tube, nut electric tube, explosion-proof electric heating tube,etc. | ||||||
FAQ
A, Yes we are the factory and have 10 production lines for us.
2.Q:What's the shipping method?
A: International express and sea transportation,Depend on customers.
3.Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in Shanghai, you can let your
forwarder ship the products for you.
4.Q:What's the Payment method?
A:T/T, 30% deposit before production, the balance before delivery.
We sugguest you transfer the full price at one time. Cause there is bank process fee, it would be a lot of money if you make twice
transfer.
5.Q: What is our payment term?
A:We can accept the payment by T/T, Ali Online, Paypal,Credit card and W/U .
6.Q:Can we print our own brand?
A: Yes, Of course.Will be our pleasure to be one your good OEM manufacturer in China to meet your OEM requirements.
7.Q:How to Place an order?
A:Please kinldy send us your order by email,we will confirm the PI with you .we wish to know the below:your details
address,phone/fax number,destination,transportation way ;
Product informaiton:item number,size,quantity,logo,etc
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $20 / piece
- 100+ piece: US $15 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this explosion-proof flange tubular heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the explosion-proof flange tubular heater be supplied for my local voltage?
The standard configuration is 12v 24v 110v 220v 380v etc. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
