Explosion-proof rotary evaporator — 220V/50HZ, power source Electric. The complete factory specification follows. Made by Gongyi City Yuxiang Instrument Co., Ltd. (11 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Explosion-Proof Rotary Evaporator
- Power Source: Electric
- Power(W): 120W 1/5
- Bath Heating Power: 15KW
- Voltage: 220V/50HZ
- Voltage/Frequency: 380V/50HZ
- Material: Stainless Steel
Technical Specifications
| Processing | Rotary |
|---|---|
| Material | Stainless Steel |
| Power Source | Electric |
| Core Components | PLC, Motor, Pump |
| Voltage | 220V/50HZ |
| Warranty | One Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life |
| Power(W) | 120W 1/5 |
| Place Of Origin | Shaanxi, China |
| Weight (Kg) | 191 |
| Brand Name | HEB |
| Dimension(L*W*H) | 1700*850*2600mm |
| Product Name | rotary vacuum evaporator |
| Rotary Flask | 100L |
| Vacuum Degree | 0.098Mpa |
| Collecting Flask Volume | 50L |
| Voltage/Frequency | 380V/50HZ |
| Rotary Speed | 0-120rpm |
| Bath Heating Power | 15KW |
| Temperature Precision | ±1℃ |
| Temperature Control Range | R.T.-180℃ |
| Rotary Speed Display | Digital display |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details

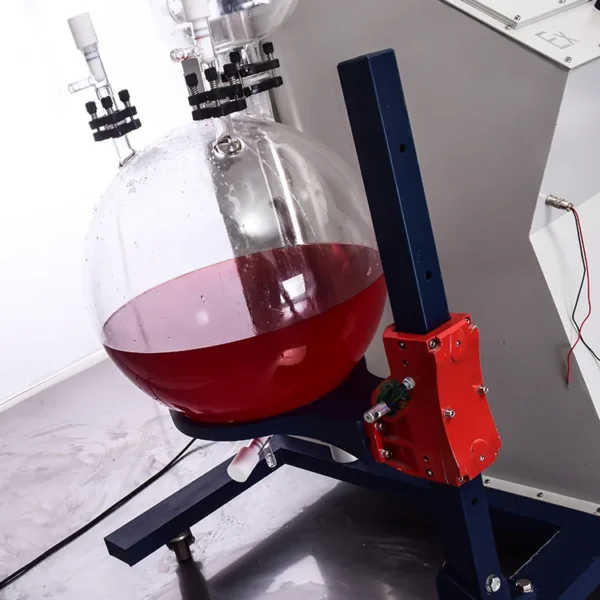

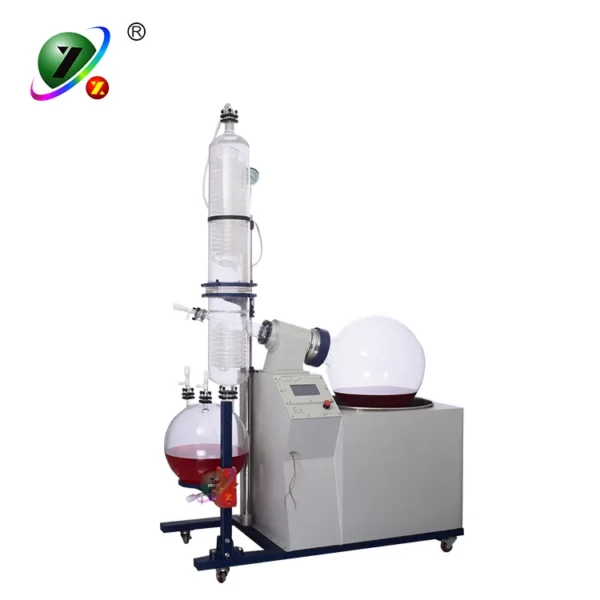

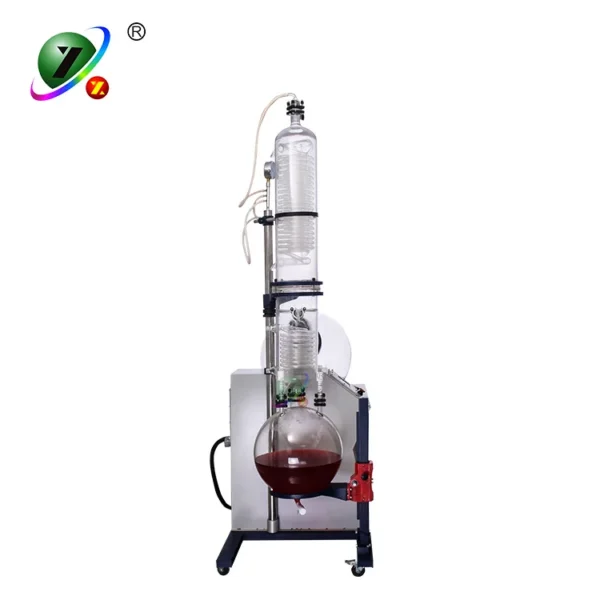

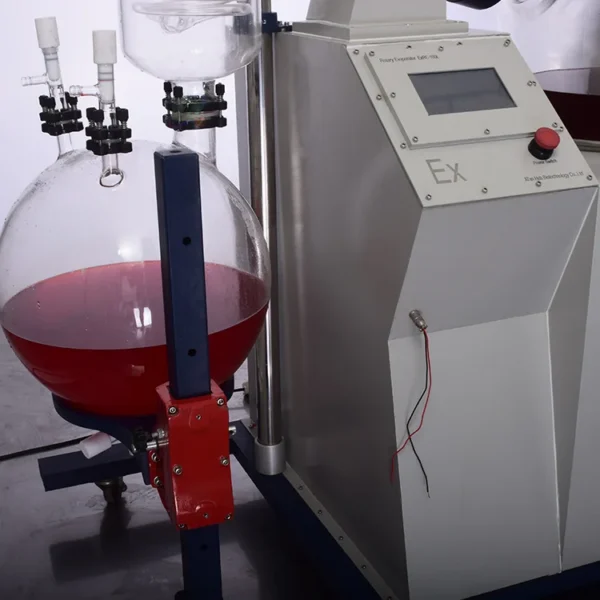

100L Explosion-proof Rotary Evaporator with Chiller and Vacuum Pump 100L price
100l rotary evaporators is the largest capacity rotary evaporator in the domestic.it's the first independent research and development product of our company, HEB plowing ahead in the large capacity evaporator ,filled the blank of domestic 100L rotary evaporator. RE-100L rotary evaporator ,behind the main body.there is a universal wheel,the machine can be mobile, bath can be fitted automatically, speed adjusting and temperature control is concentrated in the host of the mesa,which is greatly convenient for the user's operation.The motor adopted brushless motor,safety,without noise,LCD display speed.
Features of the rotary evaporator
– HEB RE-100L rotary evaporator is probably capacity rotavapor in China,it's ouradvanced independent research techlogy
– Automaticly adjust the ascending or descending of heating bath

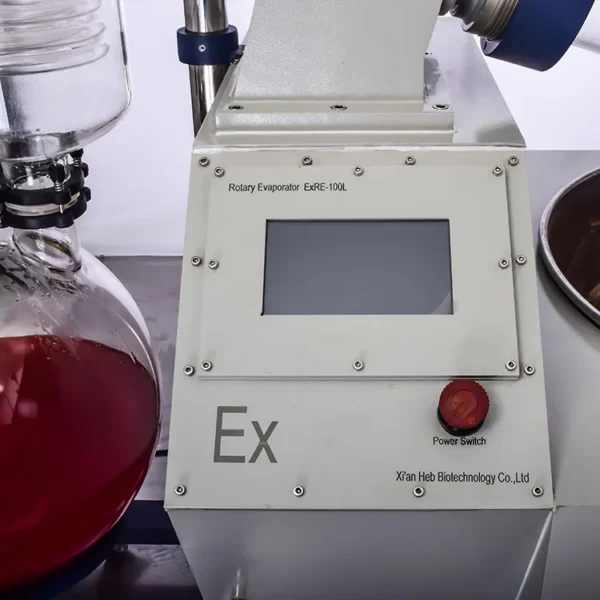

– LCD display and control

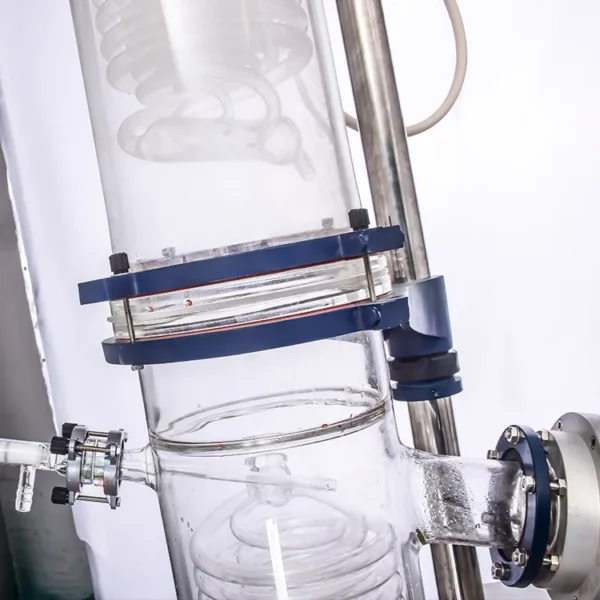

– Double layer cooling coils for improved condenser performance.
– High quality borosilicate glass 3.3 with excellent physical and chemical properties
– Movable design,more convenient for your operation.
General Technical Specifications of the RE-100L Rotary Evaporator
Model | EX RE-100L |
Total Power | 15160W |
Rotary flask volume | 100L |
Collecting flask volume | 50L |
Vacuum | 0.098Mpa |
Rotary speed | 0-120rpm |
Motor power | EX370W |
Bath Heating power | 15KW |
Voltage/frequency (V/Hz) | 380V/50Hz |
Bath lifting stroke | 215mm |
Packing size | 1670*860*1570mm |
Gross Weight | 366kg |
Temperature control range | Room temperature-180℃ |
Want more details?
Send us enquiry now,we will send you the detailed specification immediately.
Any custom services?
★Voltage custom:110V/220V/380V
★Designe and manufacture the rotary evaporator as your need,our engineers will try their best to provide you with the best solution.
Why choose our rotary evaporator?
☆We are factory,better price you will get.
☆More than 10 years' experience,more professional.
☆CE&ISO certificated,make your import more smothly and easy.
☆Borosilicate glass 3.3 glass body with stainless steel frame.
☆Explosion-proof type is optional
Add: Yingyu Industrial Park, Gongyi City, Henan, China
MT.: 86-15896724982
Tel: 86-029-89195057(Direct line)
E-mail: cherry(AT)heblab.com
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $11000 / set
- 2+ set: US $9500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this explosion-proof rotary evaporator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a One Year warranty. Spare parts and technical support remain available after the warranty period.
Can the explosion-proof rotary evaporator be supplied for my local voltage?
The standard configuration is 220V/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
